Wattmeter Power Meter for Digital Communication with Average Reading, uses APM Series Elements (Not Included).

Wattmeter Average Reading Power Meter for Digital Communication.

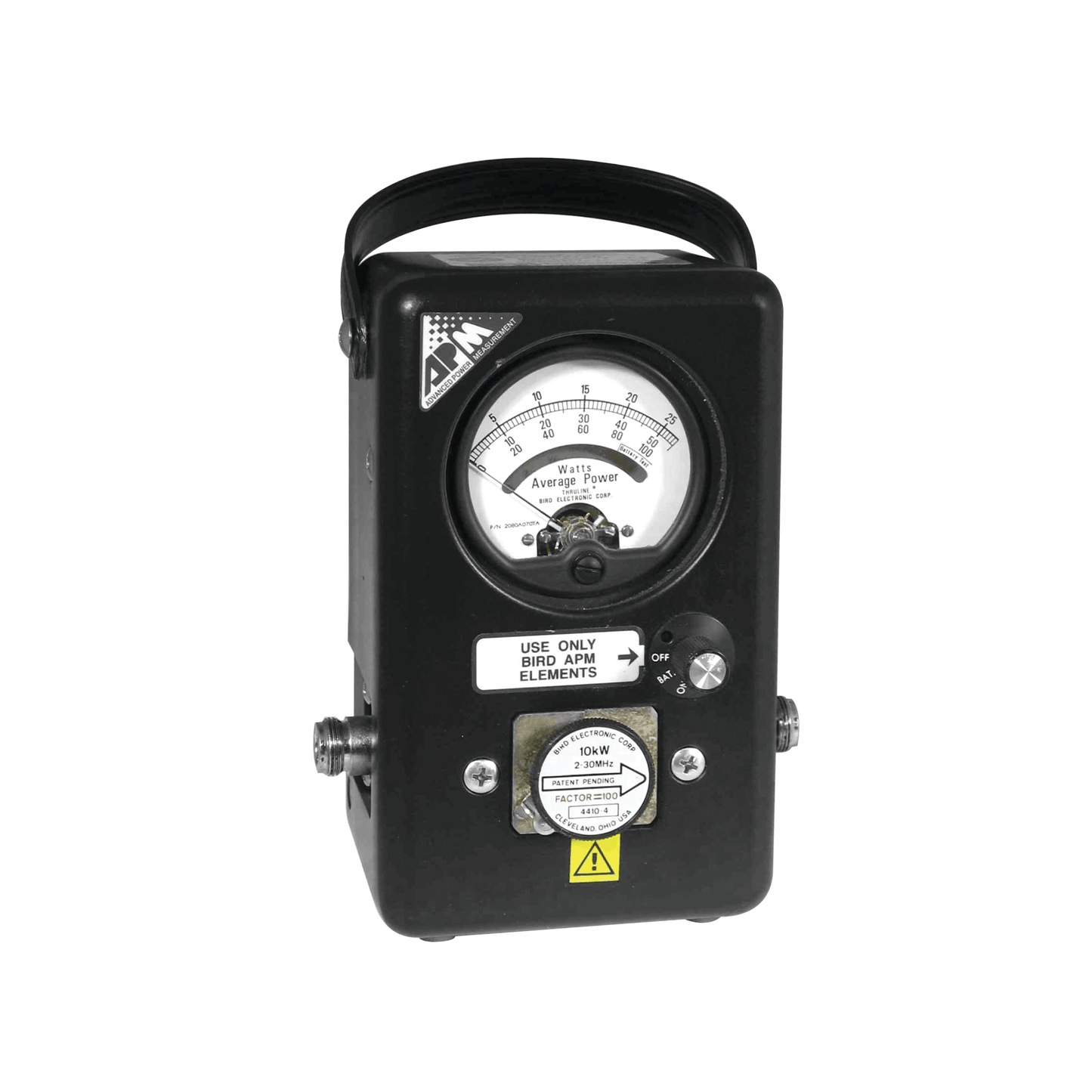

The APM-16 average reading power meter is designed to keep up with the increasing complexity of digital communication systems.
The BIRD Model 43 and most other Wattmeters available today were designed to measure power with constant amplitude and sine waveforms.
Modern wireless communication systems can use a variety of digital techniques to combine many channels of voice data into a complex, composite RF signal.
Measuring such signals with a conventional Wattmeter can produce unacceptable errors.
The APM-16 uses active circuitry to deliver ±5% accuracy for multiple access technologies, such as CDMA, TDMA, FDMA and other digitally encoded communication systems.

• Specially designed for RF power measurements in PCS, cell phones, ESMR, paging and similar communication systems.
• Equally effective for measuring RF power in conventional analog systems.
• Uses APM series assembleable elements ( Not Included ) to cover a wide range of frequencies and power levels.
• Simple Thruline® style operation for immediate direct or reflected power readings.
• Interchangeable QC connectors for quick connection.

Characteristics

• Item Model: APM-16.
• Item Description: Average Reading Power Measurement.
• Power Range: 1 W - 1000 W
• Frequency Range: 2 MHz - 2.3 GHz.
• Insertion VSWR: With connector N 1.05 max. at 1000 MHz.
• Accuracy: 10ºC to 35ºC +/- 4% of reading, +/- 1% full scale.
• -2 0ºC to 50ºC +/- 6% of reading, +/- 2% full scale.
• Peak to Average Ratio: When exceeding 10 dB.
• Time Setting: < 1 second.
• Connectors: QC (Quick Change) Type "Quick Change" (Normally N Female).
• Humidity: 95% +/- 5% max. (without condensation).
• Battery: Internal 9 Volt.
• Operating Temperature: -20 to 50ºC.
• Storage Temperature: -25 to 65ºC (-13 to 149ºF).
• Measuring Scales: Stop mounted linear scale with 25° expanded scales 50 and 100 for full scale readings from 1 to 1000 W. Reflected scale includes 5% off scale.
• Dimensions (H x W x D): 6-7/8" x 5-1/8" x 3-5/8" (175 x 130 x 92 mm).
• Weight: 3 lbs. (1.4kg).
