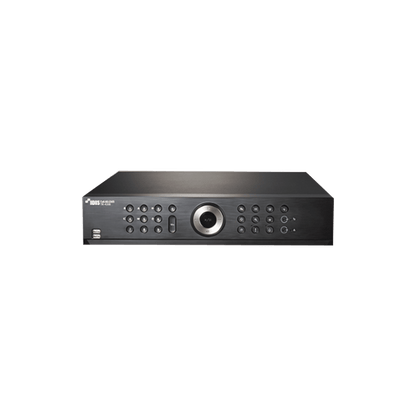

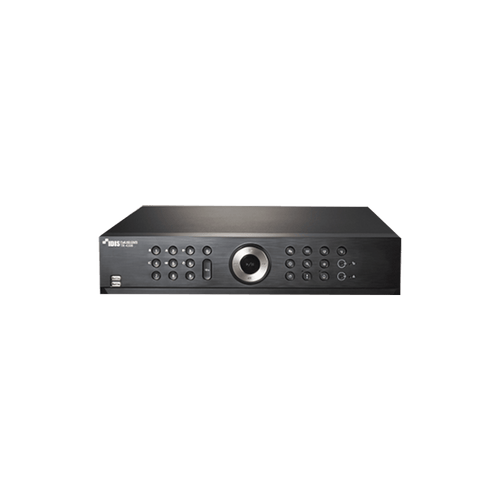

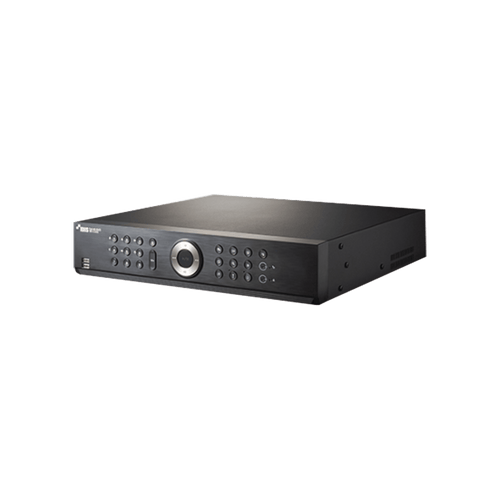

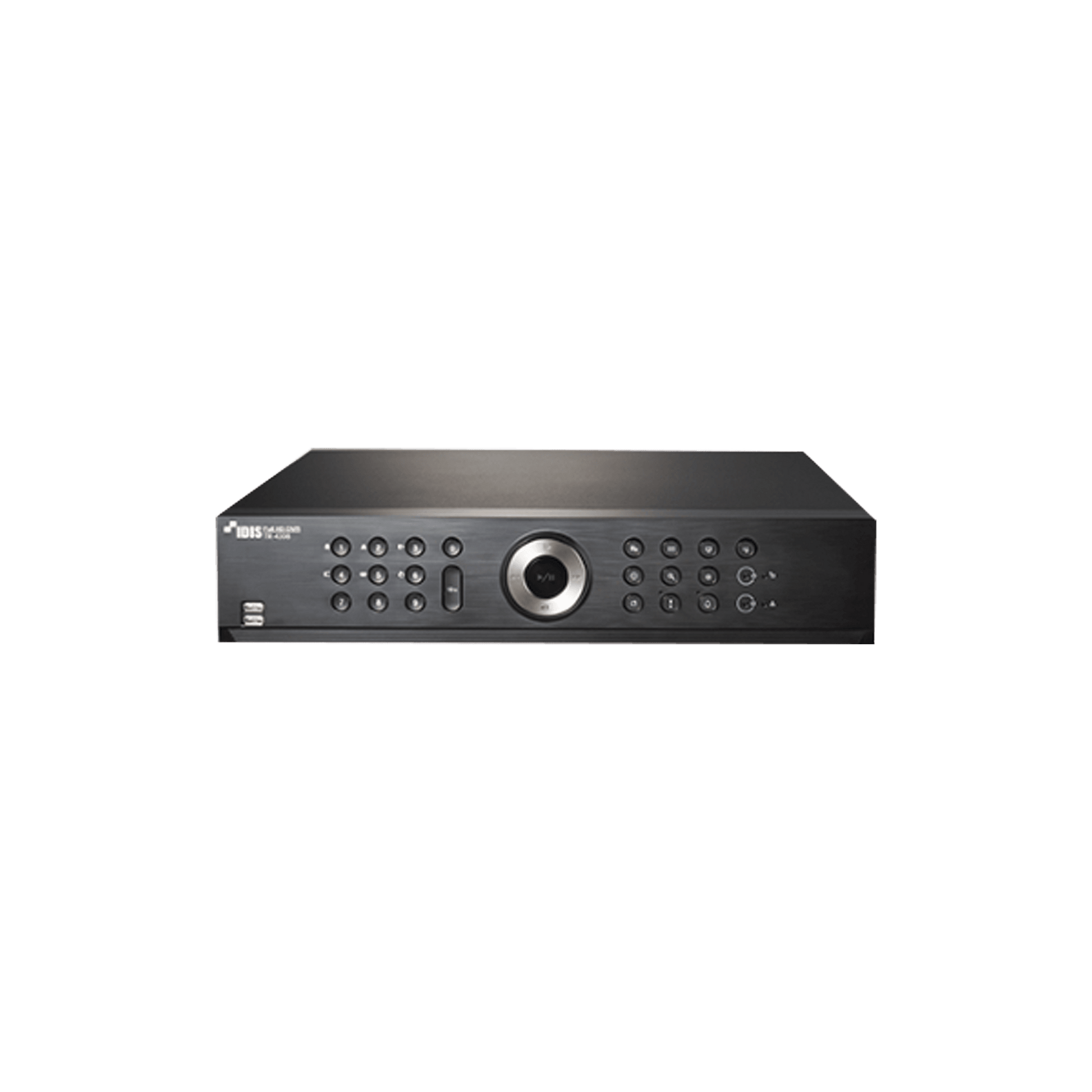

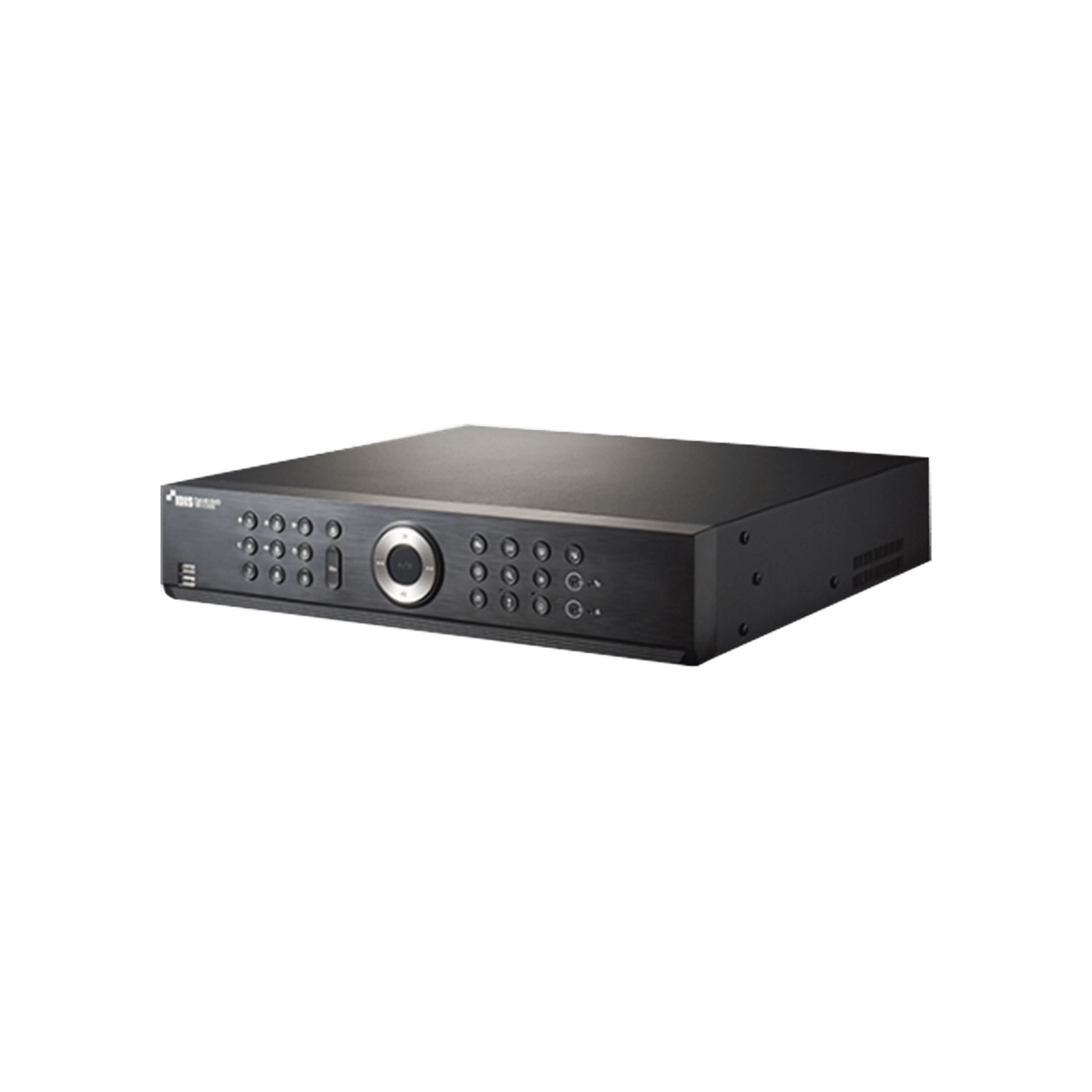

Analog Video Recorder | 8 Channels | DirectCX | 1080p Recording Resolution | Supports e-SATA | Up to 4HDD | FEN

GENERAL CHARACTERISTICS

• Supports multi-standard analog camera
• Operating system: Embedded Linux
• Up to 240fps Full HD recording
• Resolution support up to 5MP.
• UHD display with HDMI output
• Full HD display with HDMI and VGA output
• Compatible con CVBS Spot Monitor
• Long transmission distance over coaxial cable
• Supports HD-TVI camera OSD control over Coaxial
• Expandable up to 48TB with 4 SATA interfaces and 1 eSATA storage interface
• Supports one-click network configuration via service FEN
• Performance: 4-channel 1080p synchronous playback
• Search mode: Time-lapse, event record, motion, text input
• Zoom digital: x2 ~ x12
• Working temperature: 0°C to 40°C (32℉~104℉)
• Working humidity: 0%~90%
• Power Source: AC 100-240V, 50/60Hz, ≤ 2.0A
• Power input: AC 100-240V, 50/60Hz, 1.2 - 0.6A
• Power consumption: 76W

VIDEO

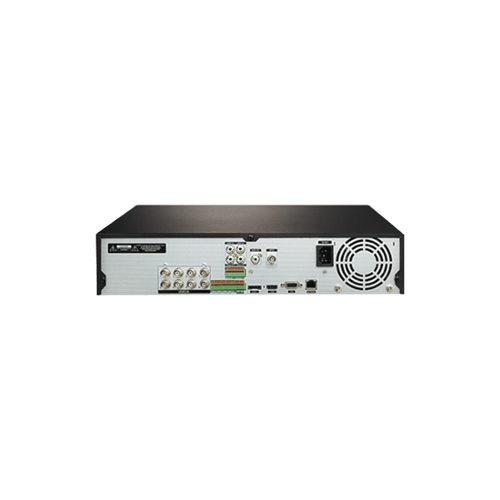

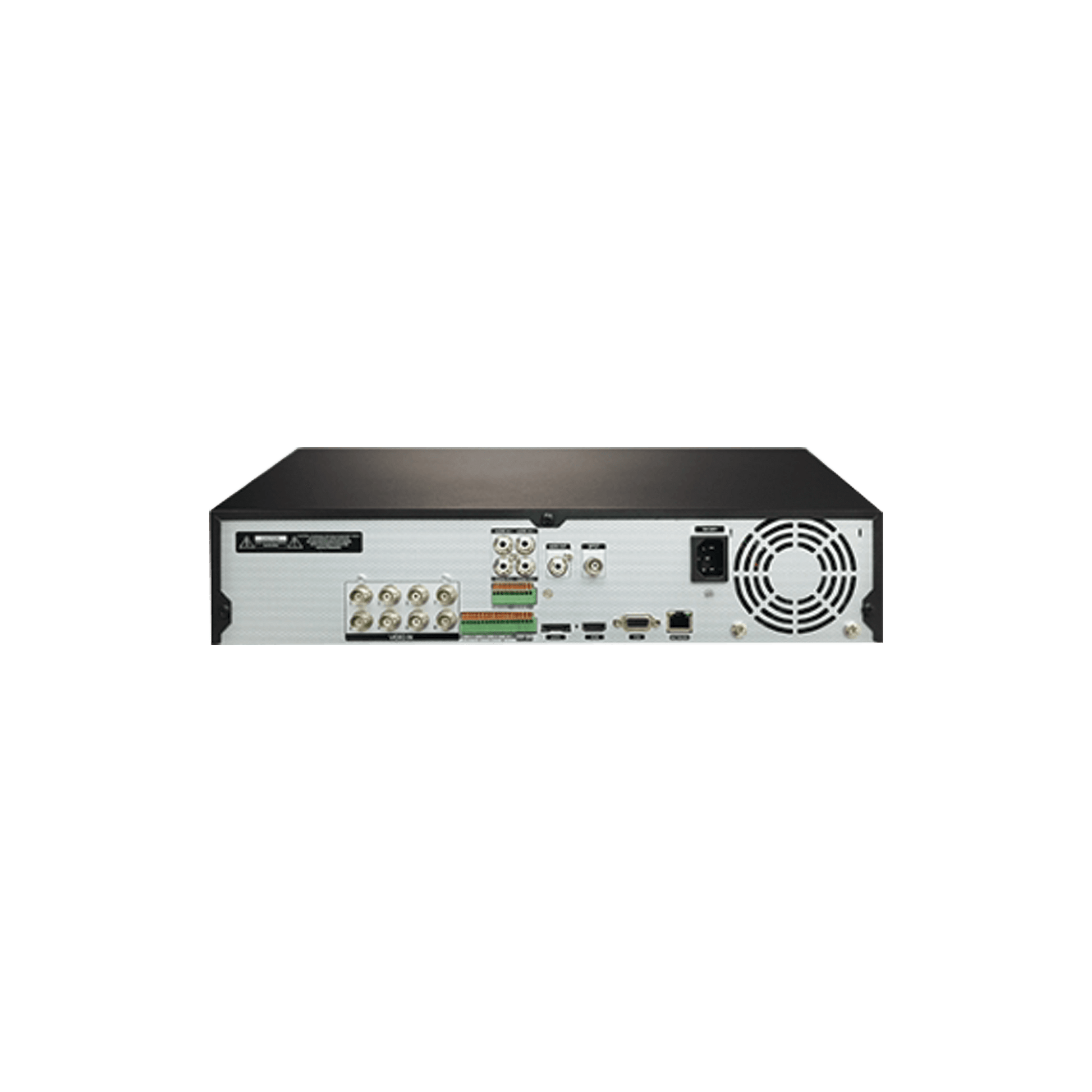

• Video Inputs: 8 BNC (Multistandard Analog)
• Tipos de cámaras compatibles: 5MP, 4MP, 3MP, 1080P30, 1080P25, 720P30, 720P25, CVBS (NTSC / PAL)
• Video outputs: 1 HDMI, 1 VGA, 1 BNC (Spot)
• Screen resolution:
  • HDMI: 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024
  • VGA: 1920 x 1080, 1440 x 900, 1280 x 1024
  • Compound: 720x480 (NTSC), 720x576 (PAL)
• Display speed: Up to 240ips
• Zoom digital: x2 ~ x12

RECORDING

• Recording resolution: 5MP, 4MP, 3MP, 1920x1080, 1280x720, 960x480,720x480,960x240, 720x240 480x240, 360x240
• Frame rate: 240ips @ 1080p
• Compression: H.264
• Recording mode: Time-lapse, event, pre-event, panic
• Trigger events: Input alarm, motion detection, video loss, text input

STORAGE

• HDD: SATA x4, eSATA x1, (up to 6TB capacity for each disk)
• Total capacity: 48TB = 6TB x (4+(1x4))
• Data export device: USB hard disk, USB flash drive

NETWORK

• Client Connection: Gigabit Ethernet x1
• Transmission speed: 120ips @ Full HD
• Remote data export: IDIS Player, AVI, JPG
• Event Notification: Email (attach clip (.cbf)), Callback to remote S/W, Push Notification (IDIS Mobile), SNS (Twitter), NetFS (FTP)
• Two-way audio: Support
• Client viewer: IDIS Center, IDIS Mobile, IDIS Web
