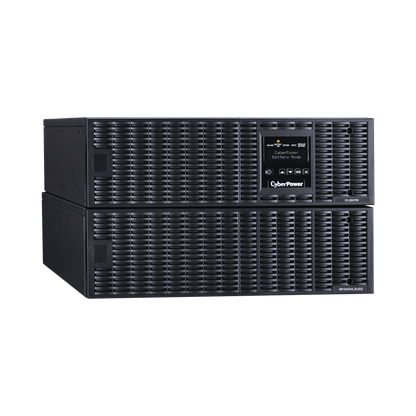

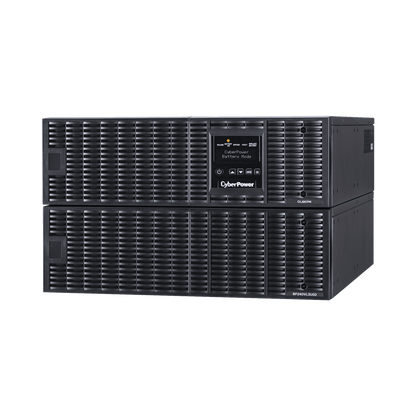

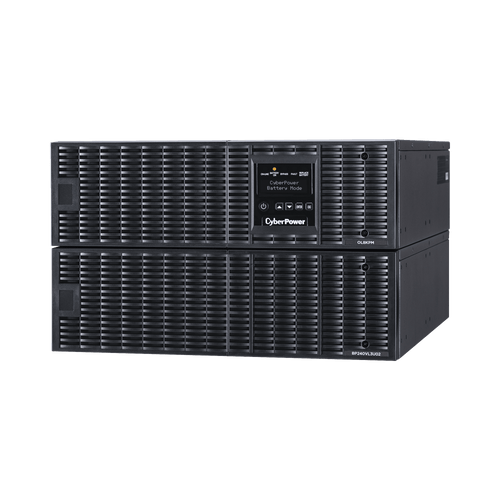

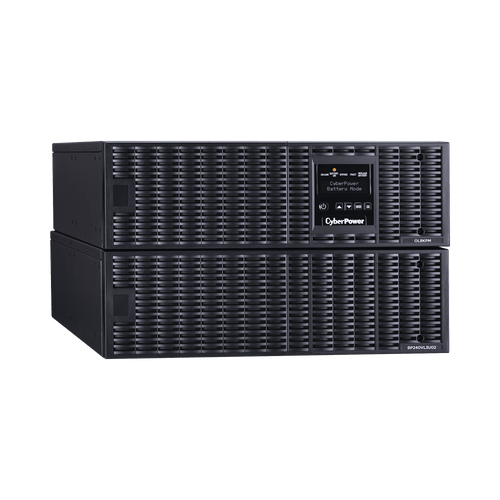

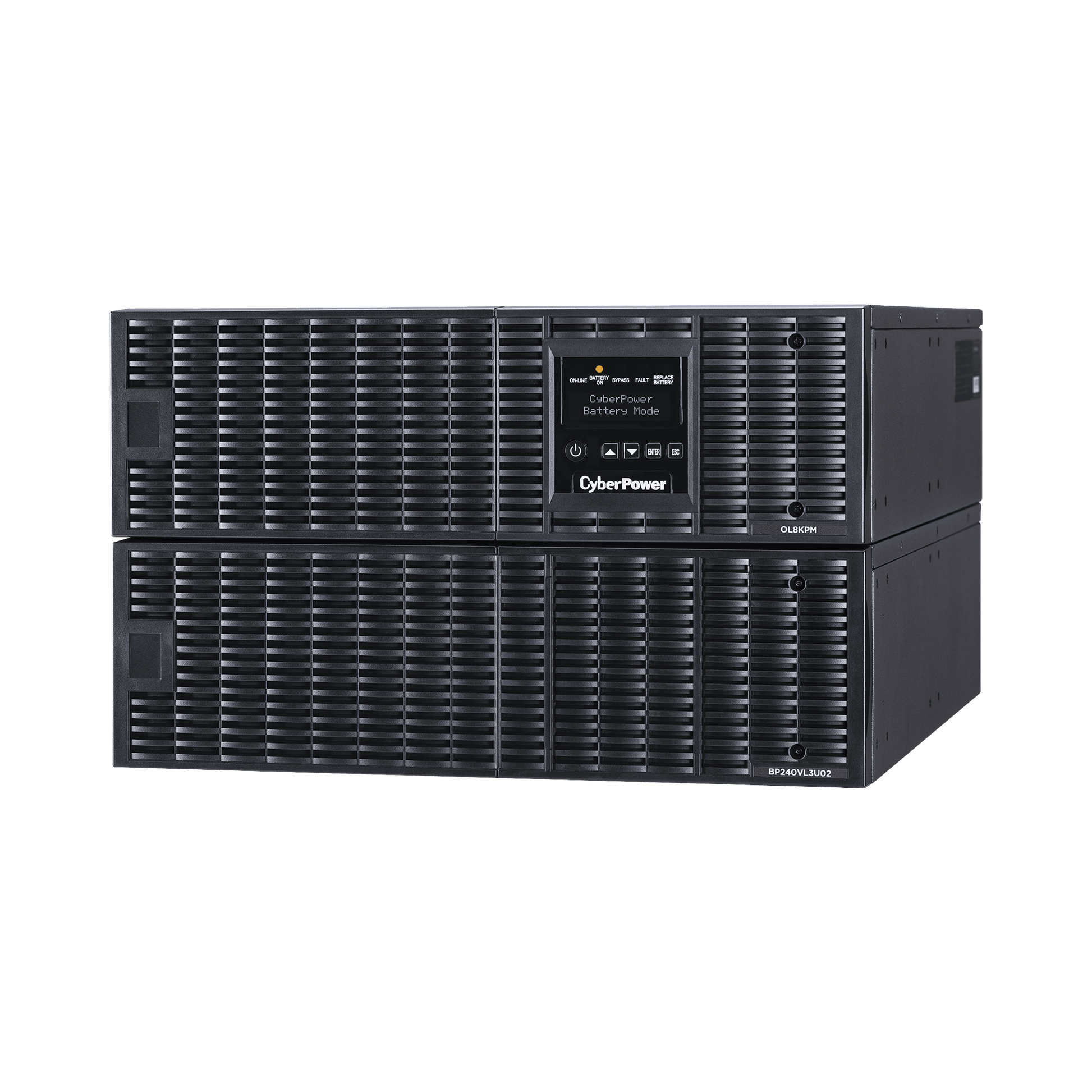

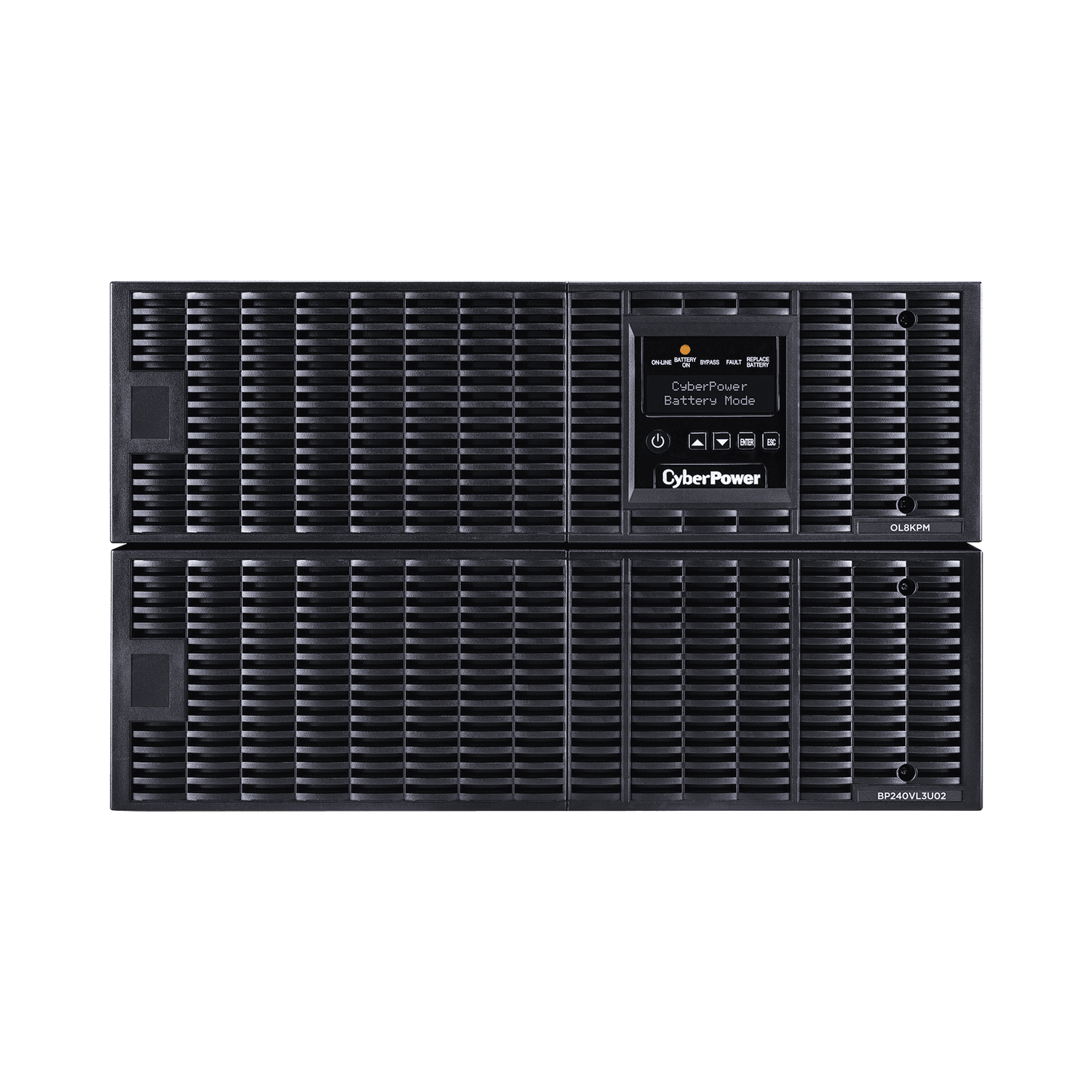

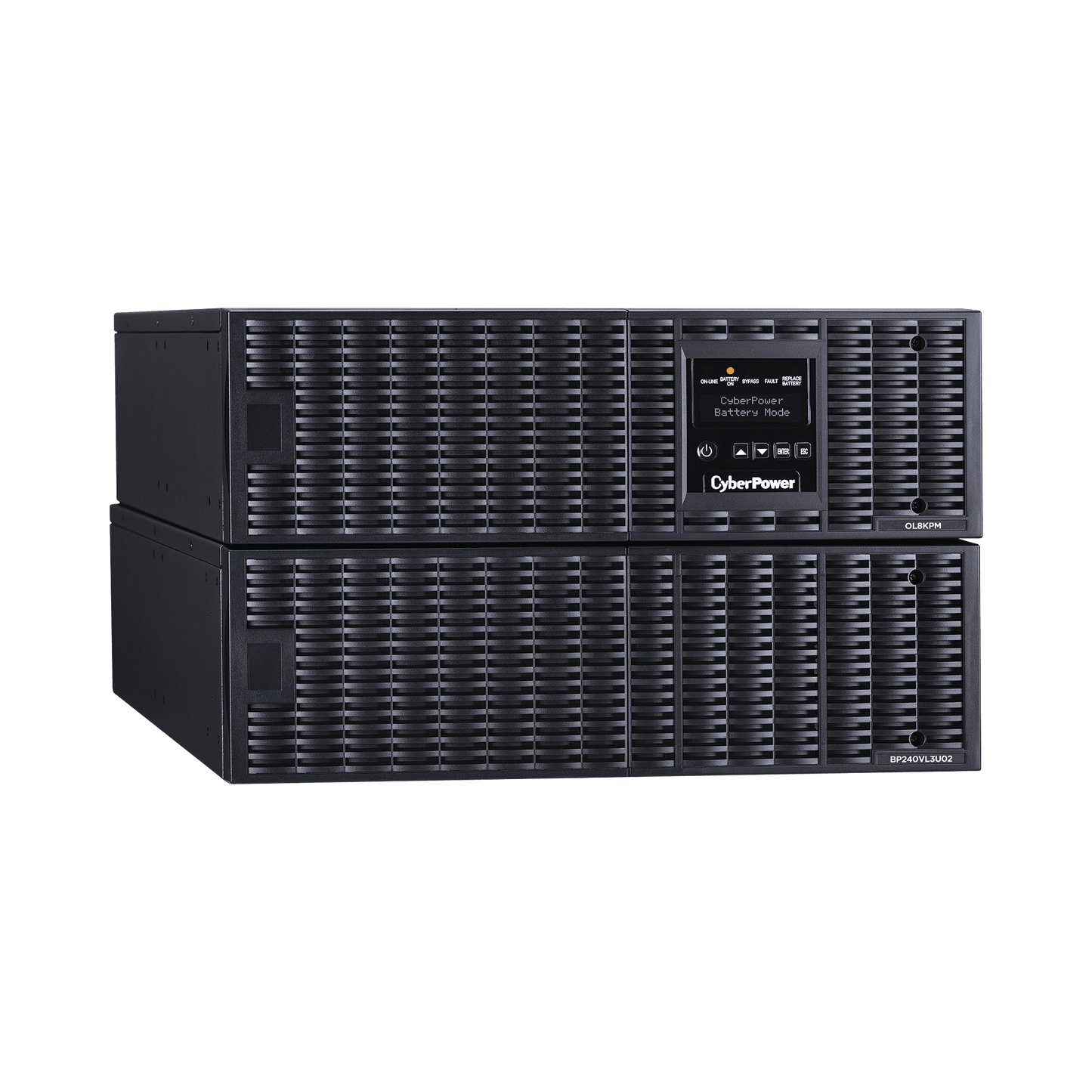

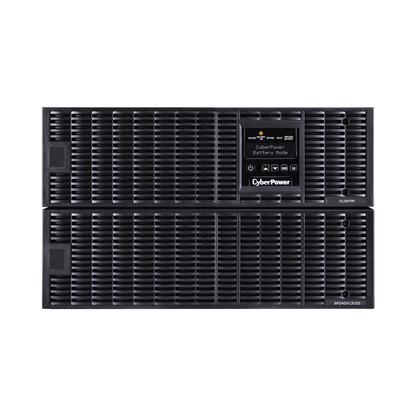

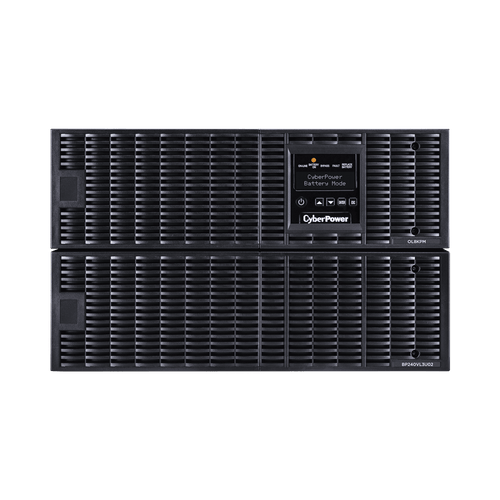

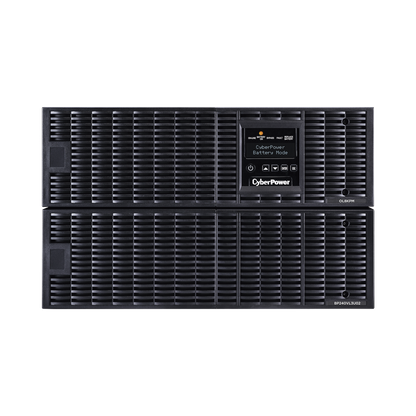

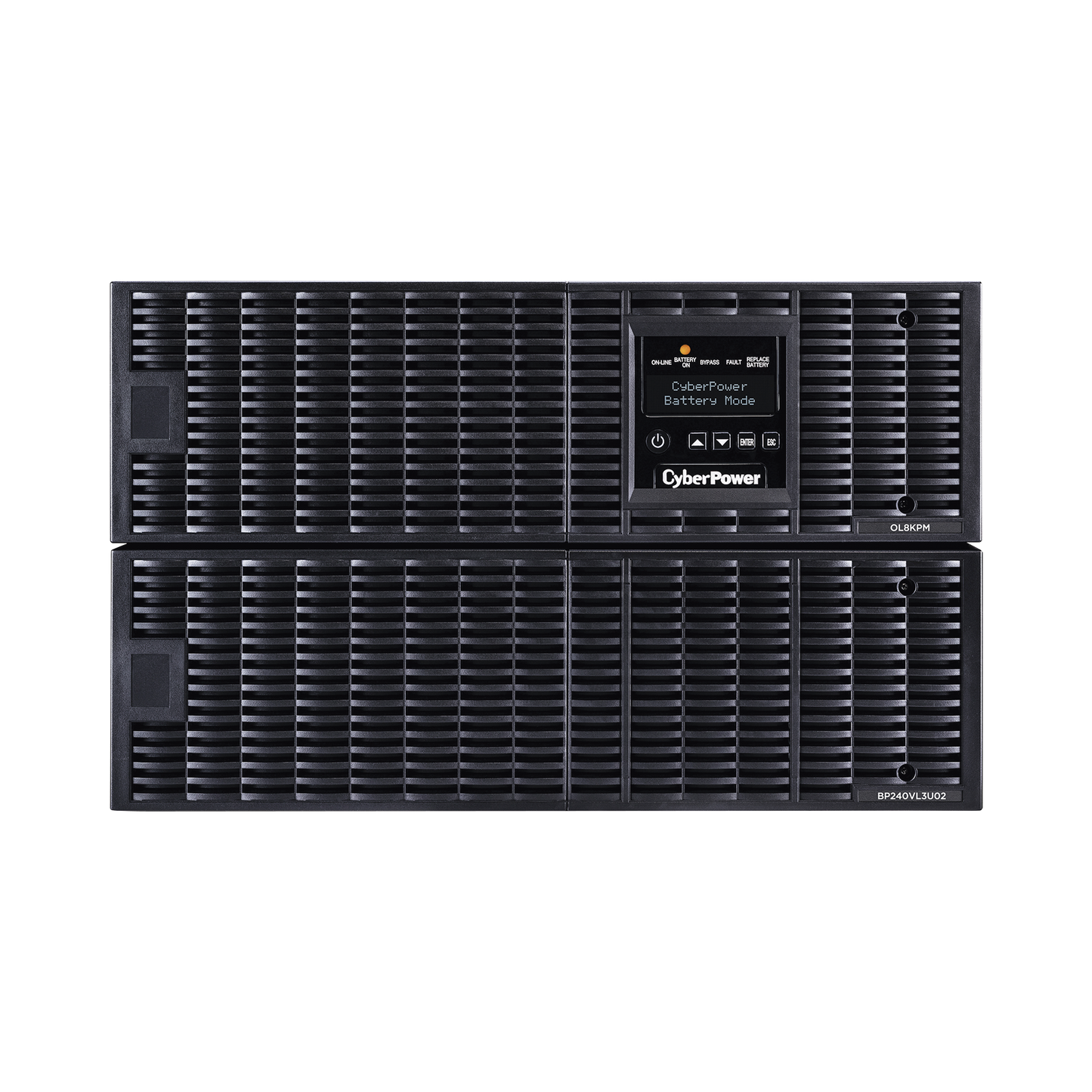

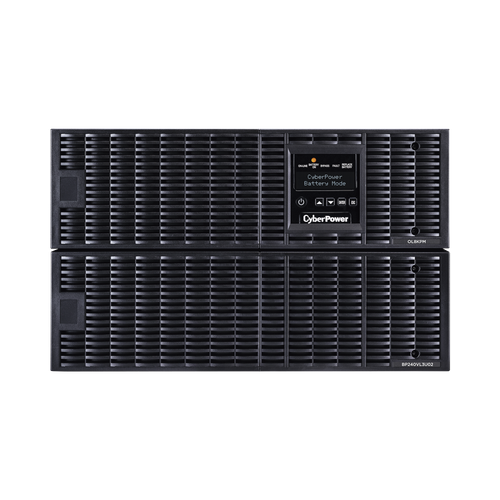

8000 VA/ 8000 W UPS, Online Double Conversion, 200 - 240 Vac Output, Hardwired Terminal, Pure Sine Wave, 6 RU Tower or Rack, With 3 NEMA L6-30R Outlets

*Note: This equipment must be started by a CyberPower expert to make the warranty effective. For more information contact the Engineering department.

*Note 2: This equipment delivers output voltage of 200-240 Vac and does NOT derive at 120 Vac per phase. If an output voltage of 120 Vac is required, the OL8KRTF model with a step-down transformer at the output is required.

To carry out the start-up of the equipment, it must be ready on the scheduled date with the following characteristics:

• 8 AWG cable wired to UPS
• Suitable supply voltage level of 200-240 VAC
• 60 Amp Input Switch (2x30)
• Isolated landing system well referenced to ground

Applications:

CyberPower's Smart App Online OL8KRT rack/tower UPS with LCD panel and pure sine wave safeguards mission-critical servers, data centers and telecommunications equipment, VoIP and internetworking hardware that requires power correction. Its online double conversion topology is generator compatible and delivers consistent, clean AC power with zero transfer time. Configurable GreenPower UPS™ ECO mode improves UPS efficiency up to 95% and reduces cooling/power costs.

Technical specifications:

• Input voltage: 200 - 240 Vac
• Input frequency: 40 - 70 Hz
• Hardwired Input Plug Type: Heavy Duty Cable.
• Cable length: N/A
• VA output: 8,000
• Output Watts: 8,000
• Power Factor: 1
• Battery Voltage: 200, 208, 220, 230, 240 Vac (Configurable) ±2%. Does not provide 120 Vac output
• Step down transformers from 220 to 120 available: OL10KSTF
• Total output sockets: 4

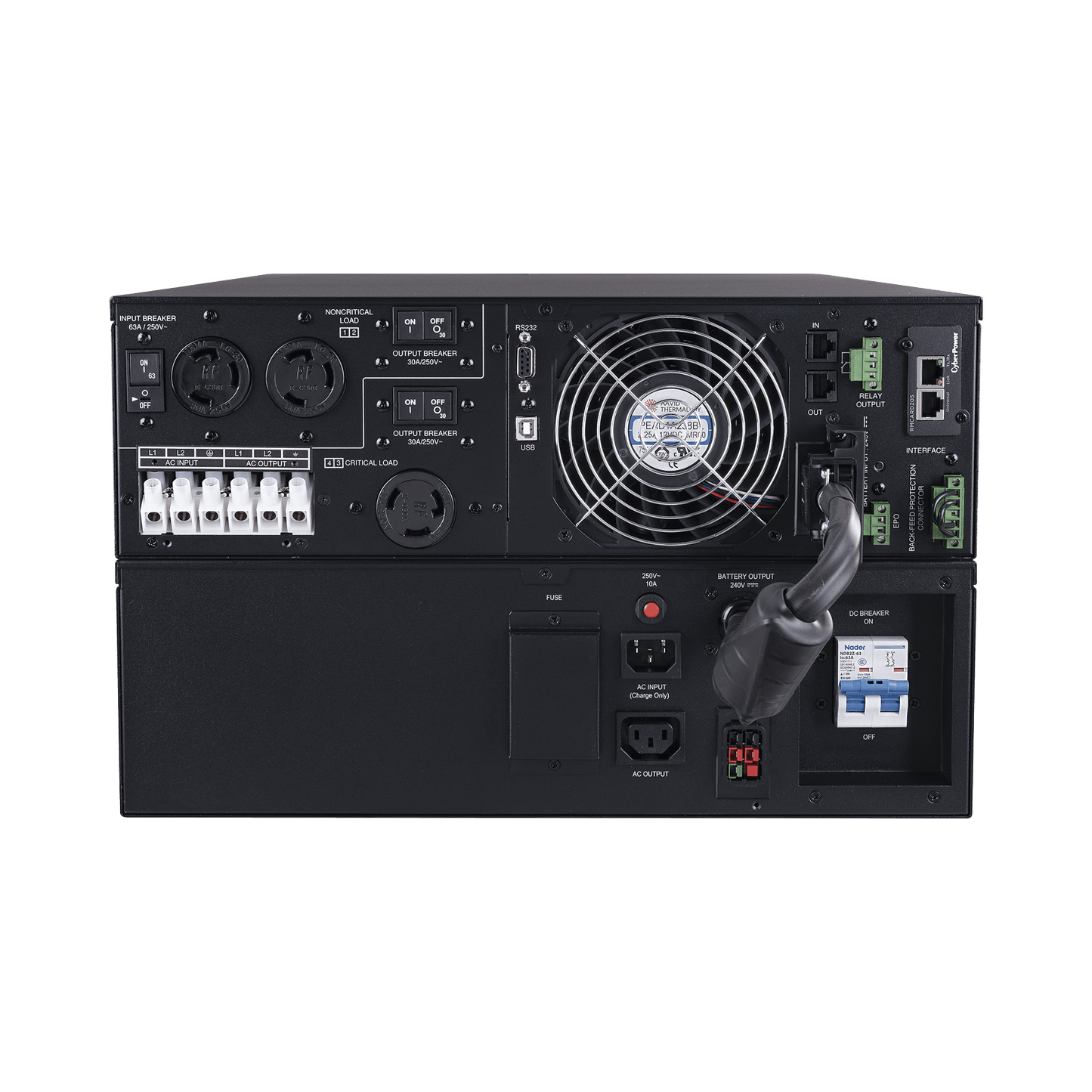

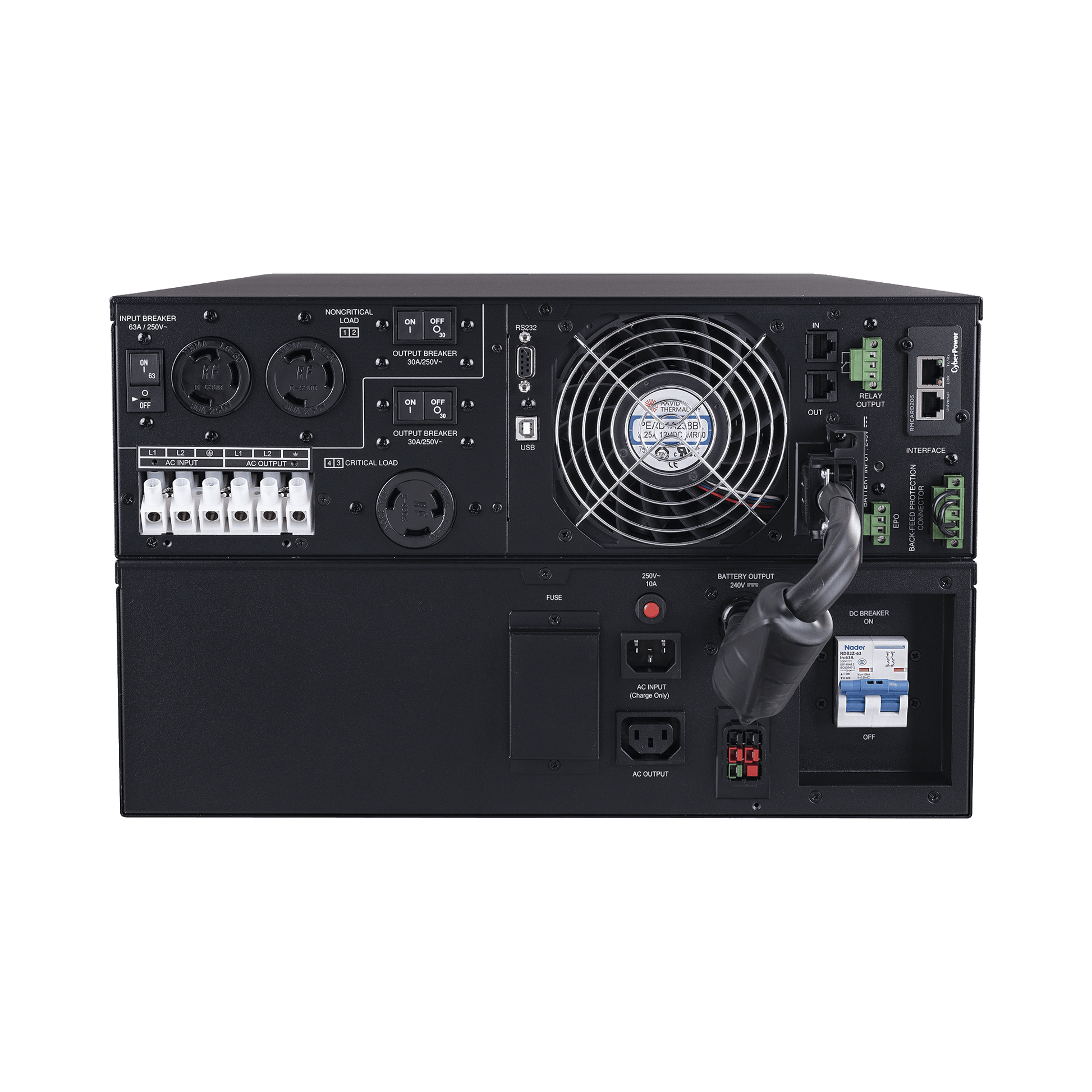

• Socket type: NEMA L6-30R (3) Hardwired Terminal Block (1)
• Half load backup time: 12 minutes
• Backup time with full charge: 4.7 minutes
• Surge protection: network grade.
• Remote SNMP/HTTP Management: RMCARD205 (optional)
• Extended Battery Module: BP240VL3U01
• Indicators: LCD readout screen
• Total rack size: 6U
• Dimensions: 433 x 266 x 660 mm (Width x Height x Depth).
• Weight: 103kg
• 3 years warranty (battery included)
