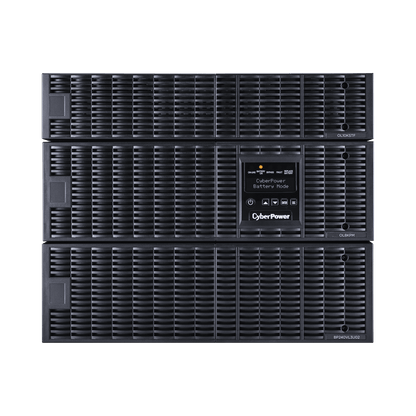

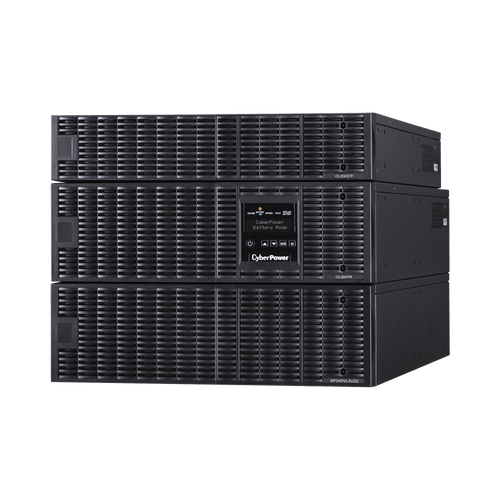

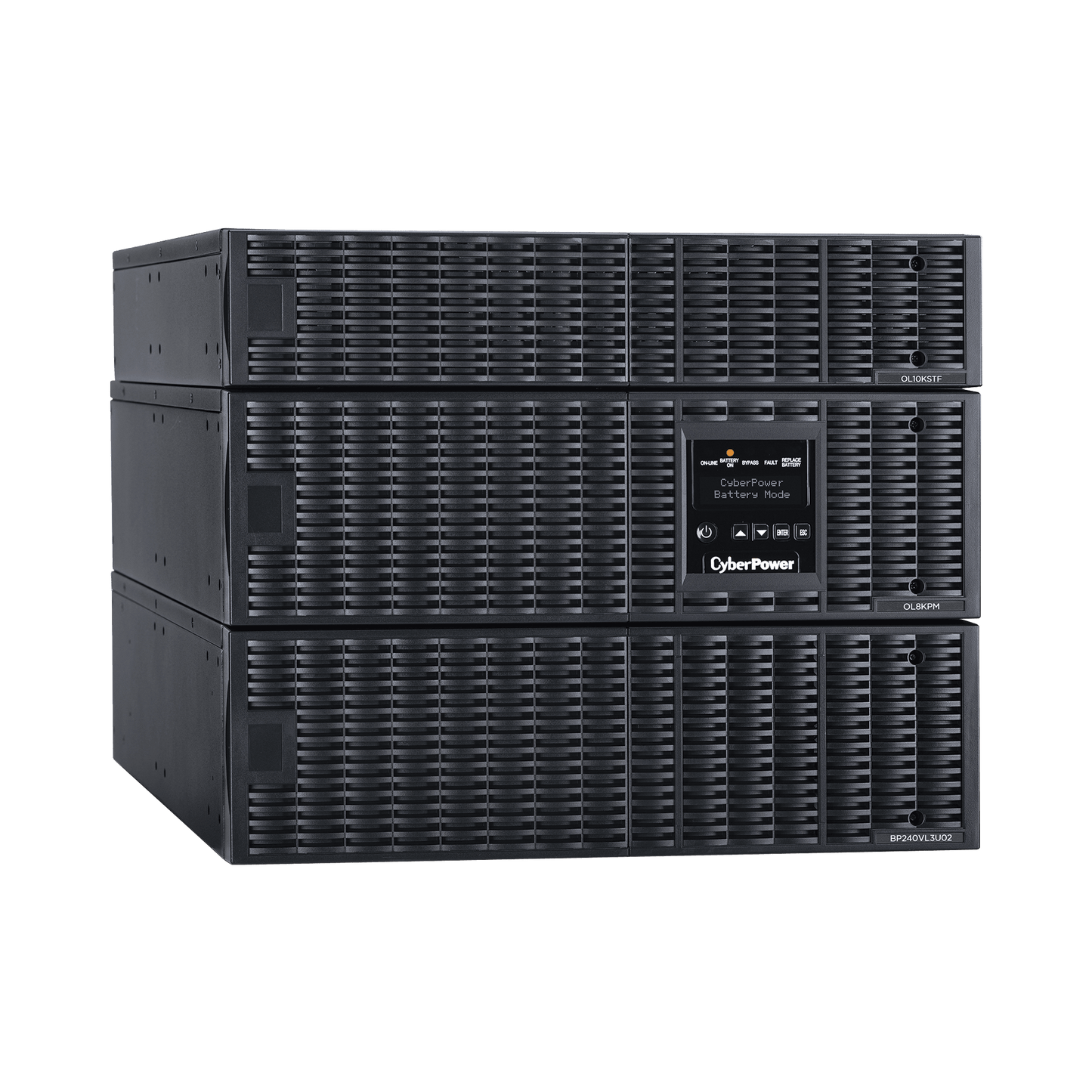

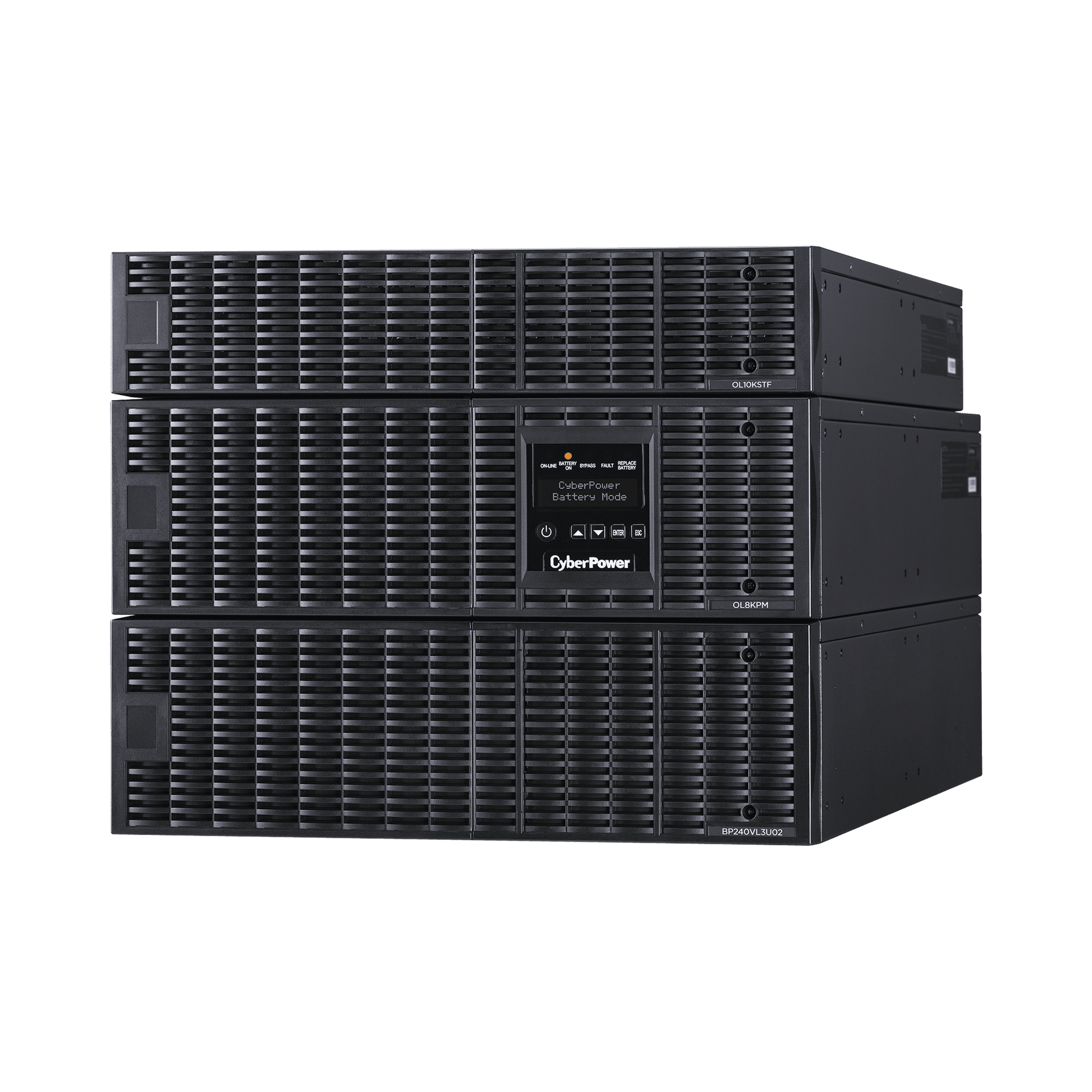

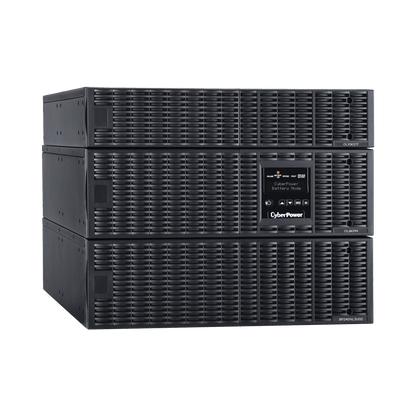

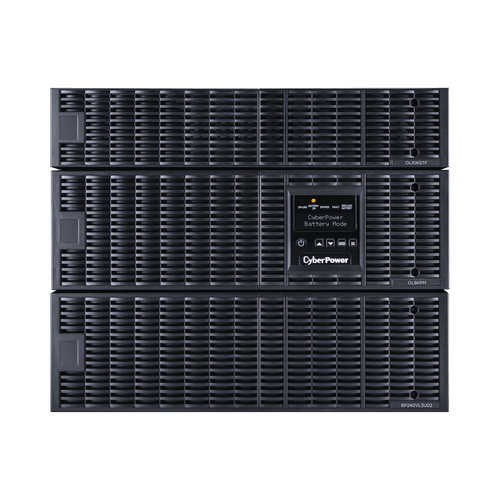

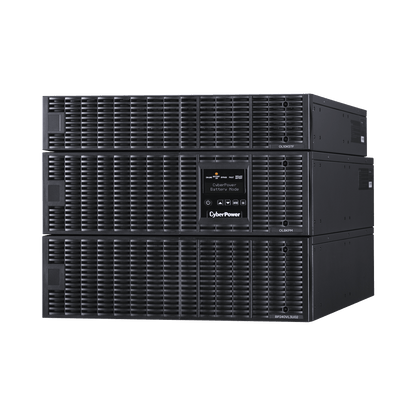

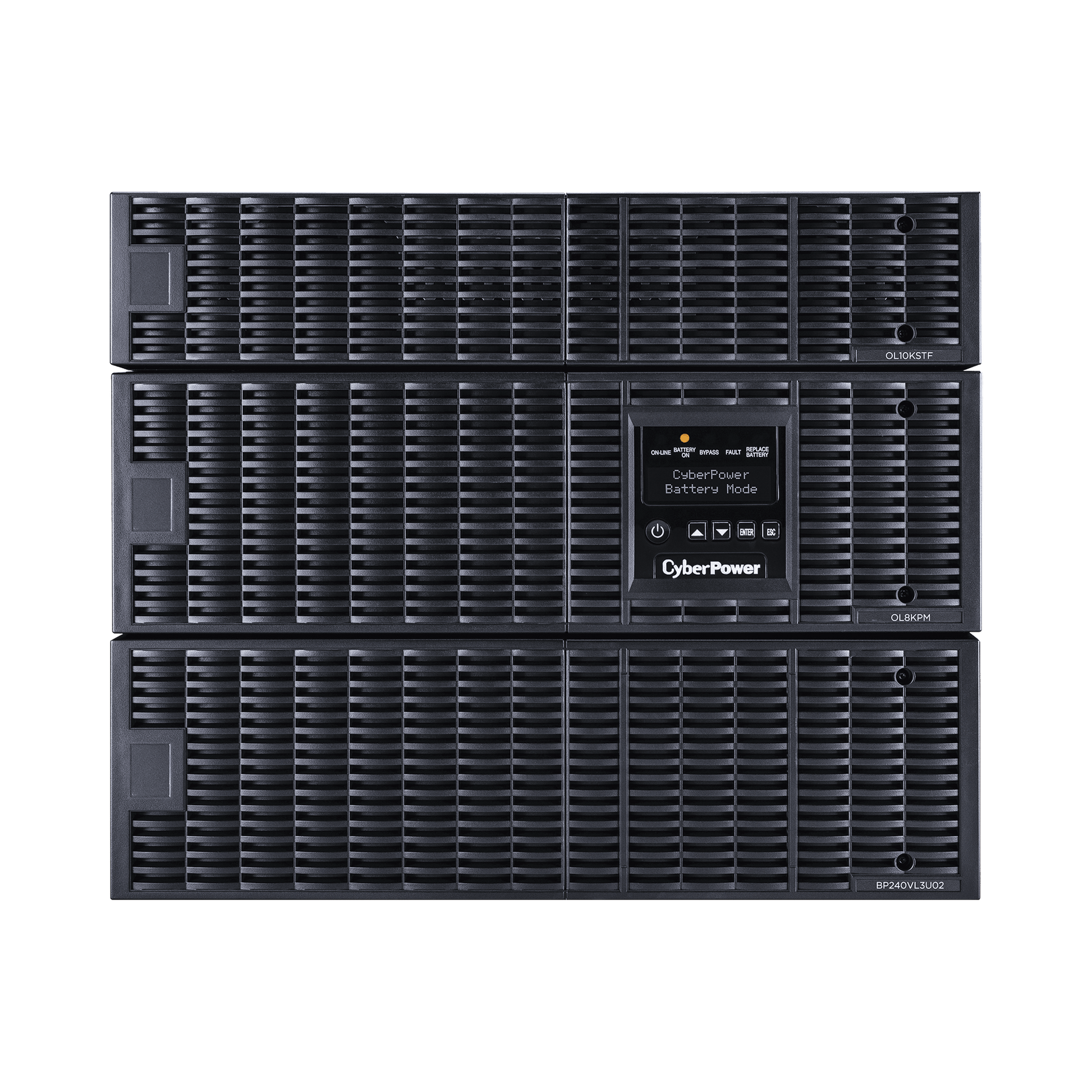

8000 VA/8000 W UPS, Online Double Conversion, 200 - 240 Vac Input, 120 - 240 Vac Output, Hardwired Input, Pure Sine Wave, 8 RU Tower or Rack, With 6 NEMA 5-20R Outlets, 3 NEMA L6-30R and Hardwired Terminal

  • 116a1d5027c2cd643f9171083b20c1bb
  • 05e0715b2a9094352f015f2e024d9508
  • 800395f1a8e1e09a327ae88c653e56ed
  • 69ec01023b7d630511d323c06cdcb332
1 4
  • Backup time with half load (4000 W): 4.7 Minutes
  • SNMP/HTTP Remote Management Capability With RMCARD205 Card (optional)
  • Free PowerPanel® Management Software
  • Zero Second Transfer Time
  • Hardwired Input and Output for Heavy Duty Power Cord Connection

11 in stock

Modelo: OL8KRTF

Proveedor: CYBERPOWER

Código SAT: 39121011

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

*Note: This equipment must be started by a CyberPower expert to make the warranty effective. For more information contact the Engineering department.

To carry out the start-up of the equipment, it must be ready on the scheduled date with the following characteristics:

  • 8 AWG cable from the wiring to the UPS.
  • Suitable supply voltage level of 200-240 VAC.
  • 60 Amp input switch (2x30).
  • Isolated landing system well referenced to ground.

Applications:

Ensures power backup protection for IT equipment, servers, workstations, NAS / storage devices, telecommunications devices, network devices, security/emergency systems and surveillance systems. The UPS adopts double conversion topology to provide high quality output power with additional ECO Mode to save energy and save on energy costs.

This generator-compatible UPS includes hot-swappable battery packs for maintenance without power interruption and an emergency power off (EPO) switch to allow users to shut down the UPS immediately during an emergency.

Technical specifications:

  • Input voltage: 200 - 240 Vac
  • Input frequency: 40 - 70 Hz
  • Hardwired Input Plug Type: Heavy Duty Cable
  • Cable length: N/A
  • VA output: 8,000
  • Output Watts: 8,000
  • Power Factor: 1
  • Batteries: 20 x 12V/9Ah
  • Backup time with half load (4000 W): 4.7 Minutes
  • Backup time with full load (8000 W): 12 Minutes
  • Battery Voltage: 120 Vac; 200, 208, 220, 230, 240 Vac, (Configurable) ±2%
  • Total output sockets: 10

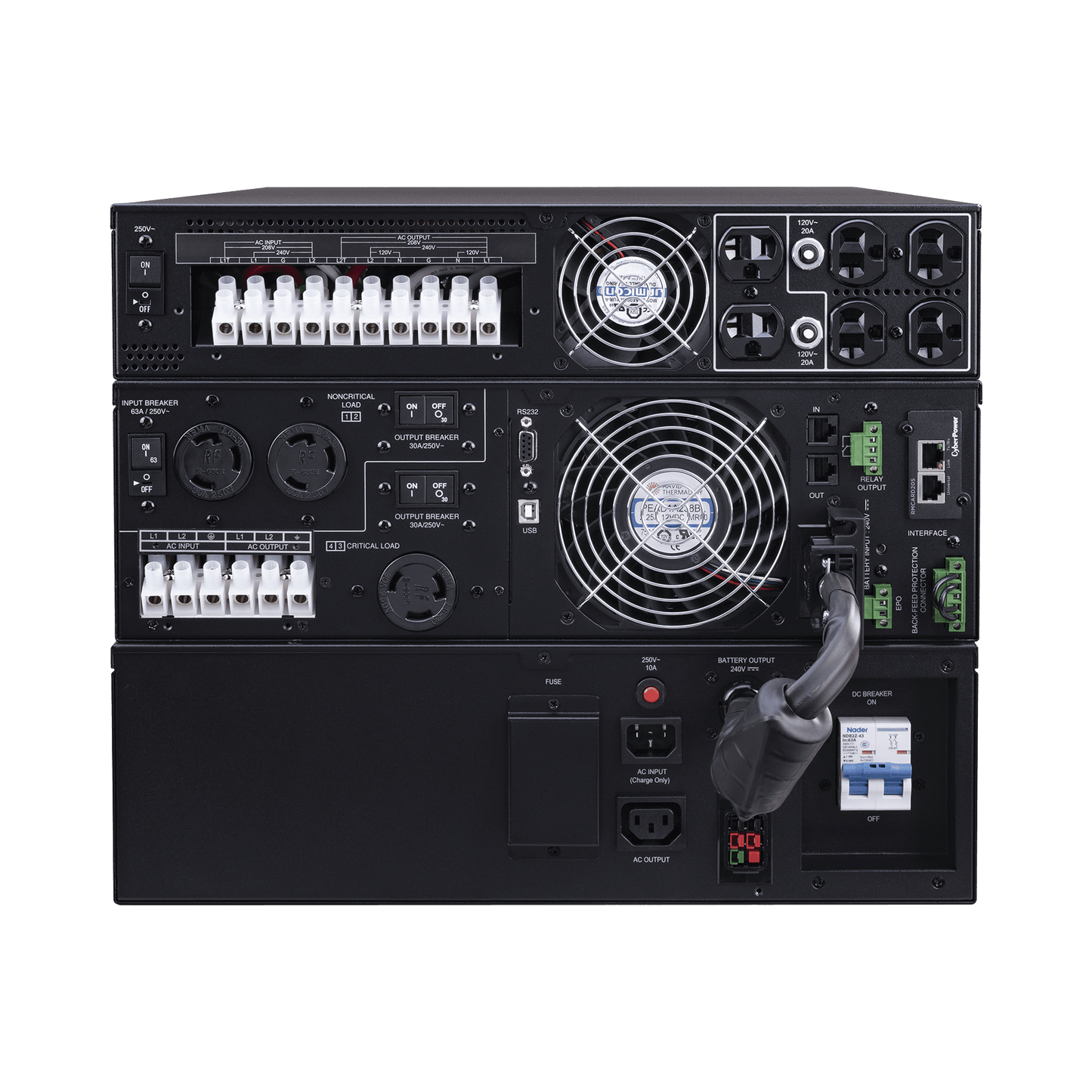

  • Socket type: NEMA 5-20R (6) NEMA L6-30R (3), Hardwired Terminal Block (1)
  • Surge Protection – Network Grade
  • Remote SNMP/HTTP Management: RMCARD205 (optional)
  • Extended Battery Module: BP240V30ART3U or BP240VL3U01
  • Indicators: LCD readout screen
  • Rack Size: 8U
  • Dimensions: 433 x 400.05 x 660 mm (Width x Height x Depth)
  • Weight: 174.6kg
  • 3 years warranty (battery included)
