UniFi OS Console: Dream Machine Pro, with 1 Gigabit RJ45 WAN port, 1 10G SFP+ WAN port / 8 Gigabit RJ-45 LAN ports, and a 3.5\" HDD bay (HDD not included), Integrates all UniFi applications

  • ee1f0aa3c8e92aa3e1caeefacb2fa655
  • f14eabcf71394e46a503f2856a078a32
  • e0bbfd722110362e8def58c66bc2364e
1 3
  • Bay for 1 3.5" or 2.5" HDD for NVR storage
  • Control up to 50 network devices or 20 UniFi HD cameras
  • All UniFi applications on one device
  • Free cloud access
  • Dual WAN ports for redundancy (Failover or load balancing)

129 in stock

Modelo: UDM-PRO

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222600

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

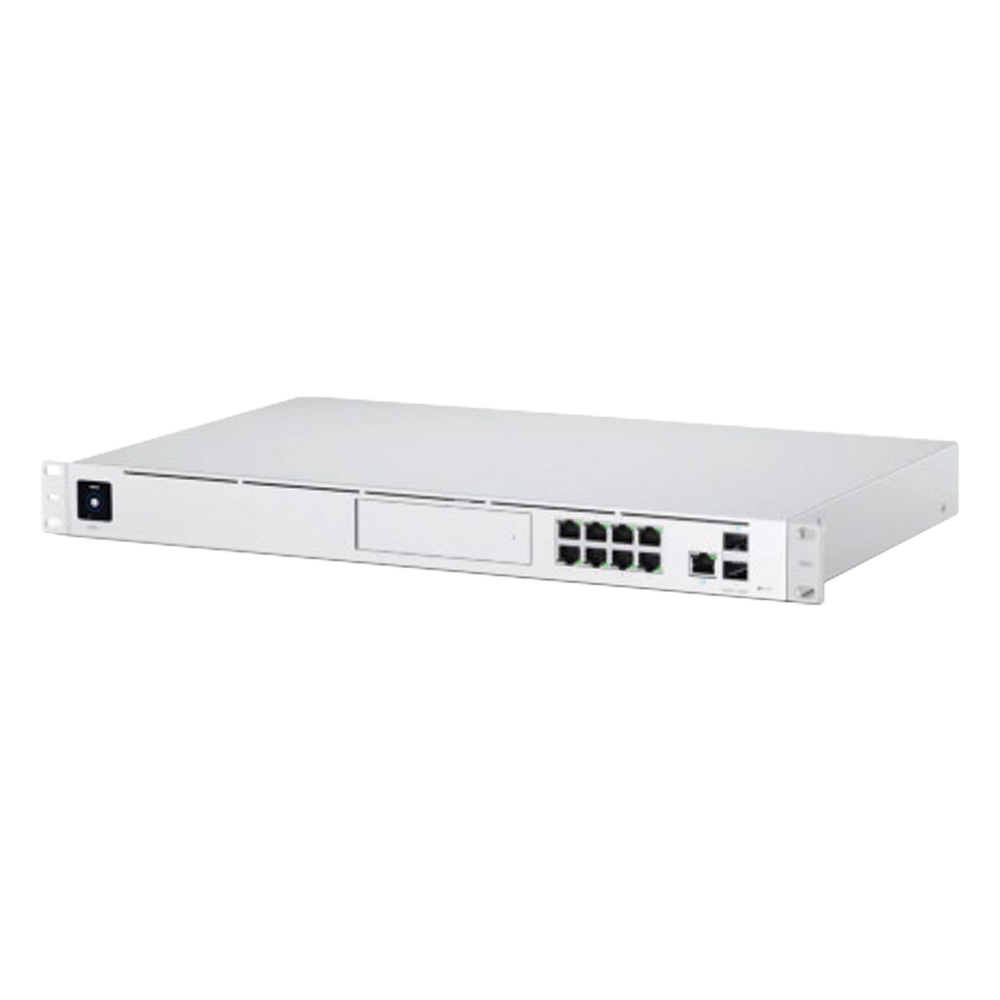

UniFi Dream Machine Pro

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one business networking device. UDM-Pro integrates all current and future UniFi applications with a 10G SFP+ WAN Gateway, an 8-port Gigabit switch and an HDD bay.

Characteristics

  • All-in-one 1 Rack Unit device for small and medium-sized businesses.
  • It combines the new UniFi operating system with an 8-port switch.
  • UniFi Protect NVR with Standard 3.5"/2.5" HDD Support
  • 8-port Gigabit switch with 1 Gbps RJ45 and 10G SFP+ LAN.
  • IPS/IDS, IPR and business capabilities.
  • Powered by a fast 1.7 GHz 4-core processor
  • Redundant power via USP-RPS system (sold separately)

It is recommended to use the resource calculator to select a UiFi OS Console: UniFi OS Console Resource Calculator

Recommended for up to 50 UniFi Network devices or 20 UniFi HD cameras or 7 4k cameras (WITHOUT using advanced security or Threat Management features).

The best experience for small and medium businesses

UniFi Enterprise Architecture Evolves

New UniFi Cloud Portal Provides Simple Access to All Evolving Applications

UniFi Cloud Portal

Launch all current and future applications from a single view with simple access.

Secure access

Login authentication optimizes secure access to applications.

Centralized administration

Administrators easily manage users.

Installing new applications

Install new UniFi apps and maintain them with a single click through the setup page.

Seamless network integration

Use UniFi Dream Machine Pro as your network control center.

Product specifications.

DIMENSIONS:

  • Width x Height x Depth:
    442.4 x 43.7 x 285.6mm
    (17.42 x 1.72 x 11.24")
  • Weight: 3.90 kg (8.60 lb)
  • With mounting kits:
    3.99 kg (8.80 lb)

PACKAGE CONTENT:

  • (2) Supports
  • (8) Support Screws
  • (4) Mounting screws
  • (4) Nuts
  • (1) Security screws
  • (4) Screws for 2.5" HDD
  • Power cord
  • (4) Rubbers

TECHNICAL SPECIFICATIONS:

Interfaces
  • (8) 10/100/1000 RJ45 LAN Ports
  • (1) 10/100/1000 RJ45 WAN Ports
  • (1) 1/10G SFP+ LAN Port
  • (1) 1/10G SFP+ WAN Port
Management interfaces
  • In-Band Ethernet
  • (1)Bluetooth BLE
Technical information
  • IDS/IPS performance: 3.5 Gbps *
  • Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
  • System memory: 4 GB DDR4
  • Flash Storage: 16 GB eMMC
  • * Measured with iPerf3.
Atmosphere
  • Operating temperature: -10° to 40° C (14° to 104° F)
  • Humidity: 5 to 95% Non-condensing.
Feeding
  • Maximum consumption: 33W
  • Voltage range: 100 to 240VAC
  • Power Method: (1) Universal AC Input: 100-240Vac, 50/60Hz
  • Redundancy: (1) RPS DC
  • Power Supply: Internal 50W/12V
  • ESD/EMP Protection: Air: ±16 kV, Contact: ±12kV
Certifications
  • CE, FCC, I.C.

Note: The UniFi Network application in UDM-PRO does not allow the creation of multiple virtual sites, only one.
