Full HD HDMI over IP Extender Transmitter Unit

  • 5499a13a4eea6900787c1b8a395fbc8b
  • 5499a13a4eea6900787c1b8a395fbc8b
1 2

40 in stock

Modelo: VE8900R

Proveedor: ATEN

Código SAT: 52161500

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

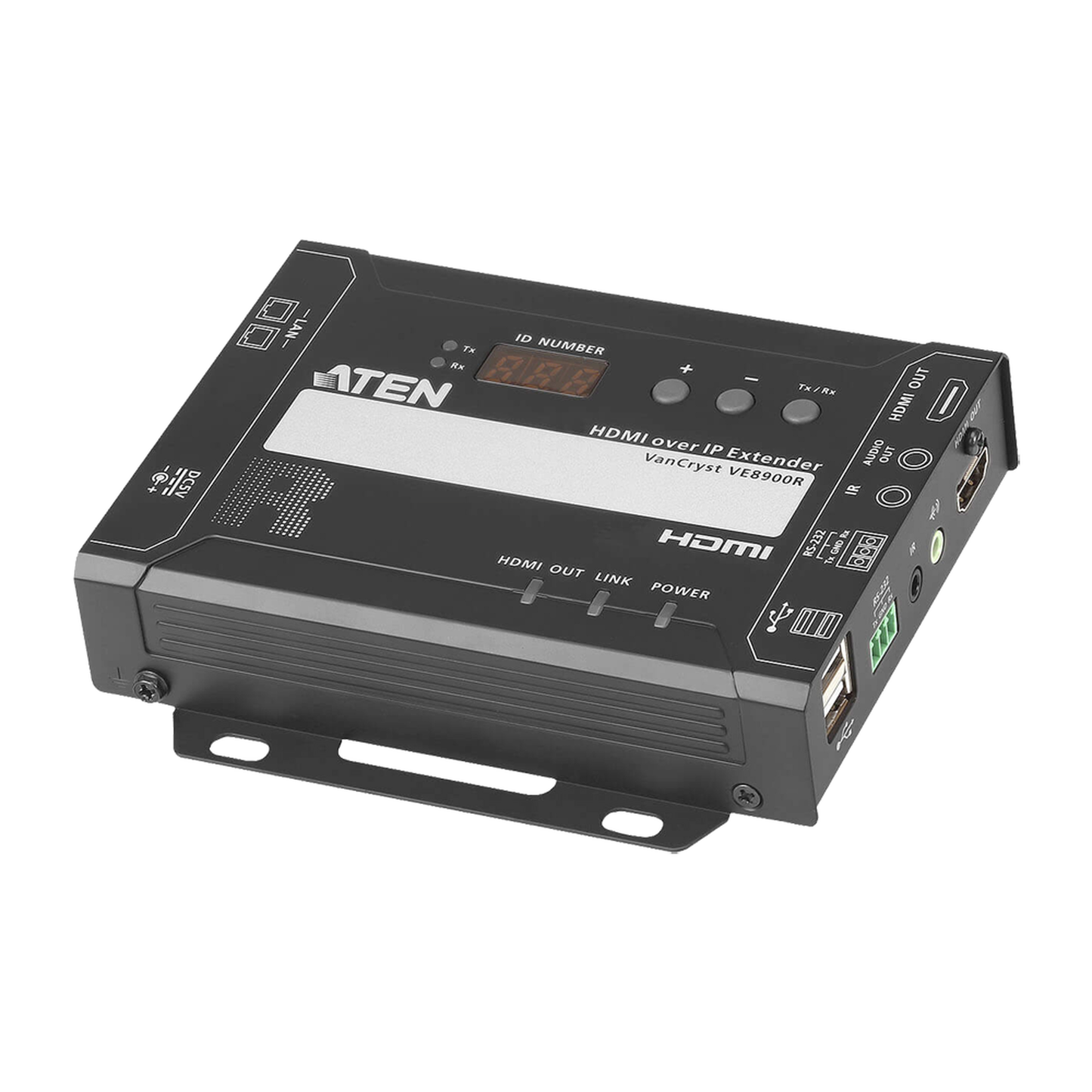

HDMI over IP Receiver (1080p@100m)

Provides an effective digital signage solution, easy-to-use and cost-effective with the following features and benefits that directly address the challenges system integrators face when deploying AV over IP systems: Unlimited scalability and flexibility , No complicated IP configuration, No server PC or additional software required, Go further for less with daisy chaining . Designed to meet today's 1080p signal transmission demands, large-scale multi-display and designed to be easy to set up and operate, The VE8900R video over IP receiver is an ideal product for a wide range of environments, like trade fairs, airports. , university campus, conference centers and shopping centers

General characteristics

  • Video output:
    • Interfaces: 1 x HDMI Type A female (Black)
    • Impedance: 100Ω
    • Maximum distance: 3 meters (2L-7D03H)
  • Video
    • Max. Data rate: Average 150 ~ 500Mbps
    • Compliance: HDMI-HDCP Compliant
    • Max. Resolutions / Distance Up to: 1080p@100m (Cat 5e/6, point to point)
  • Audio:
    • 1 x HDMI Type A Female (Black)
    • 1 x Mini Female Stereo Jack (Green)
  • Control
    • RS-232
      • Connector: 1 x terminal block, 3 poles
      • Transmission speed: 19200, data bits: 8
      • Stop bits: 1, no parity and flow control
    • USB: 2 x USB Type A female (black)
    • IR: 1 x Mini Female Stereo Jack (Black)
  • Energy consumption
    • DC 5V: 4@28W: 41BTU
    • 1 x DC connector (black) with lock
  • Environmental conditions
    • Operating temperature 0-40℃
    • Storage temperature -20 - 60°C
    • Humidity RH 0 - 80%, no condensation
  • Physical properties
    • Metal Housing
    • Weight: 0:49 kg (1:08 lbs)
    • Dimensions (L x W x H) with stand: 14'02x12'30x3'06cm (5'52'' x 4'84'' x 1'2'')
    • Dimensions (L x W x H) without stand: 13'60x10'10x2'96cm (5'35'' x 3'98'' x 1'17'')

Input resolutions:

640x480p at 59.94/60 Hz (4:3)

720 (1440) x 240p at 59,94/60/119,88/120/239,76/240 Hz (4:3)/(16:9)

720x480p at 59,94/60/119,88/120/239,76/240 Hz (4:3)/(16:9)

720x576p at 50/200Hz (4:3)/(16:9)

1280x720p at 23@98/24/25/29@97/30/50/59@94/60/100/ 119@88/120 Hz (16:9)

720x576p at 100Hz (16:9)

1280x720p at 29:97/30/50/59:94/60/100/119:88/120 Hz

1440x480p at 59@94/60 Hz (4:3)/(16:9)

1920x1080i at 50/59,94/60/100/119,88/120 Hz (16:9) 1440x576p at 50 Hz (4:3)/(16:9)

1920x1080p at 23@98/24/25/29@97/30/50/59@94/60/100/ 119@88/120 Hz (16:9)

(2880)x480p at 59@94/60 Hz (4:3)/(16:9)

720 (1440)x576i at 50/100/200 Hz (4:3)/(16:9)

1680x720p at 23@98/24/25/29@97/30/50/ 59@94/ 60/100/119@88/120Hz

720 (1440)x480i at 59@94/60 Hz (4:3)/(16:9)

2560x1080p at 23@98/24/25/29@97/30/50/59@94/60 Hz

720 (1440) x 288p at 50Hz (4:3)/(16:9)

Content in the package : 1 HDMI over IP receiver VE8900R, 1x RS-232 terminal block 1x 5V power adapter. 1x user instructions
