UFiber WiFi 802.11n GPON ONU, Optical Network Unit with 1 GPON WAN Port (SC/APC) + 4 Gigabit Ethernet LAN Ports

  • cd9cccbe420855d539c7f919c0fc3196
  • cd9cccbe420855d539c7f919c0fc3196
1 2
  • 802.11n Wi-Fi, up to 300 Mbps.
  • UN low cost and robust.
  • Speeds: 2,488 Gbps Upstream (TX) and 1,244 Gbps Downstream (RX).
  • Range up to 20 km.
  • LED

500 in stock

Modelo: UF-WIFI

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

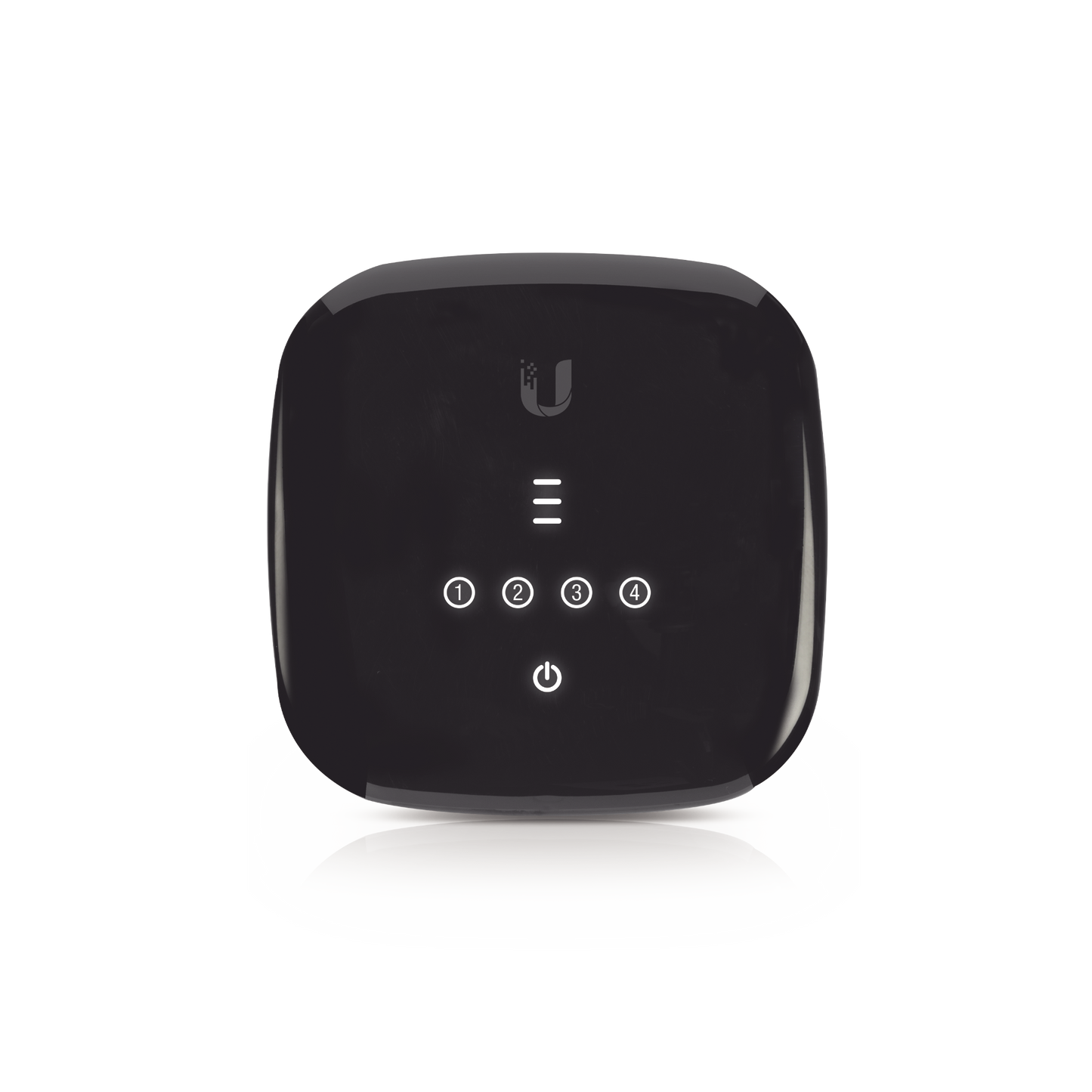

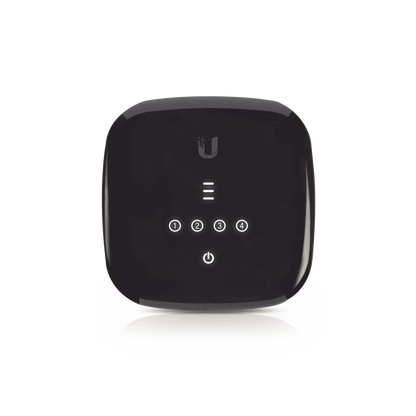

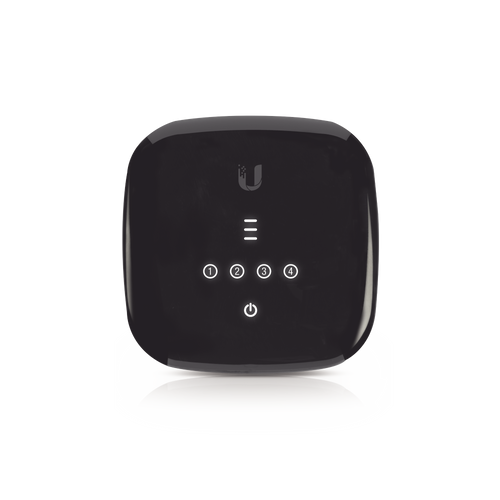

Showing off an elegant industrial design, The UFiber Wi-Fi is a robust, high-performance GPON CPE that features an informative LED display with 4 Ethernet and Wi-Fi ports.

Ports:
1 GPON WAN port (SC/APC).
4 Gigabit Ethernet LAN ports.

Characteristics:
Speeds of up to 2,488 Gbps downstream and 1,244 Gbps upstream.
Wavelength: 1310 nm Upstream (TX) 1490nm Downstream (RX).
Status LEDs.

Physical and Electrical Characteristics:
Power: Passive PoE (24V, 1A) or Power Adapter (24V, 0.5A).
Dimensions: 126.34 x 126.09 x 31.65 mm.
Weight: 190g.
Operating Temperature: -10 to 45°C.

Includes:
Power adapter ( 24 V, 0.5 A).

Warranty:
1 year.

Status LEDs.

Easy-to-read LEDs provide status information: Ethernet connection, signal strength and power.

Versatile Power.

The UFiber Wi-Fi can be powered via 24V passive PoE on Port 1, or by 24VDC.

Designed for integration with UNMS.

Up to 128 UFiber Wi-Fi devices can be connected to a single GPON port. By supporting GPON links of up to 20 km, UFiber Wi-Fi integrates with UFiber OLT, UFiber OLT 4 and third party OLT devices .
