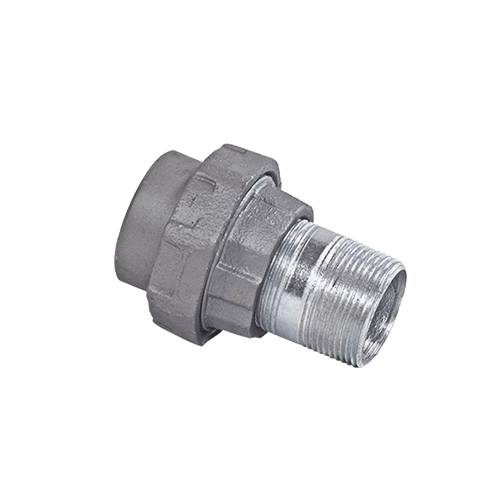

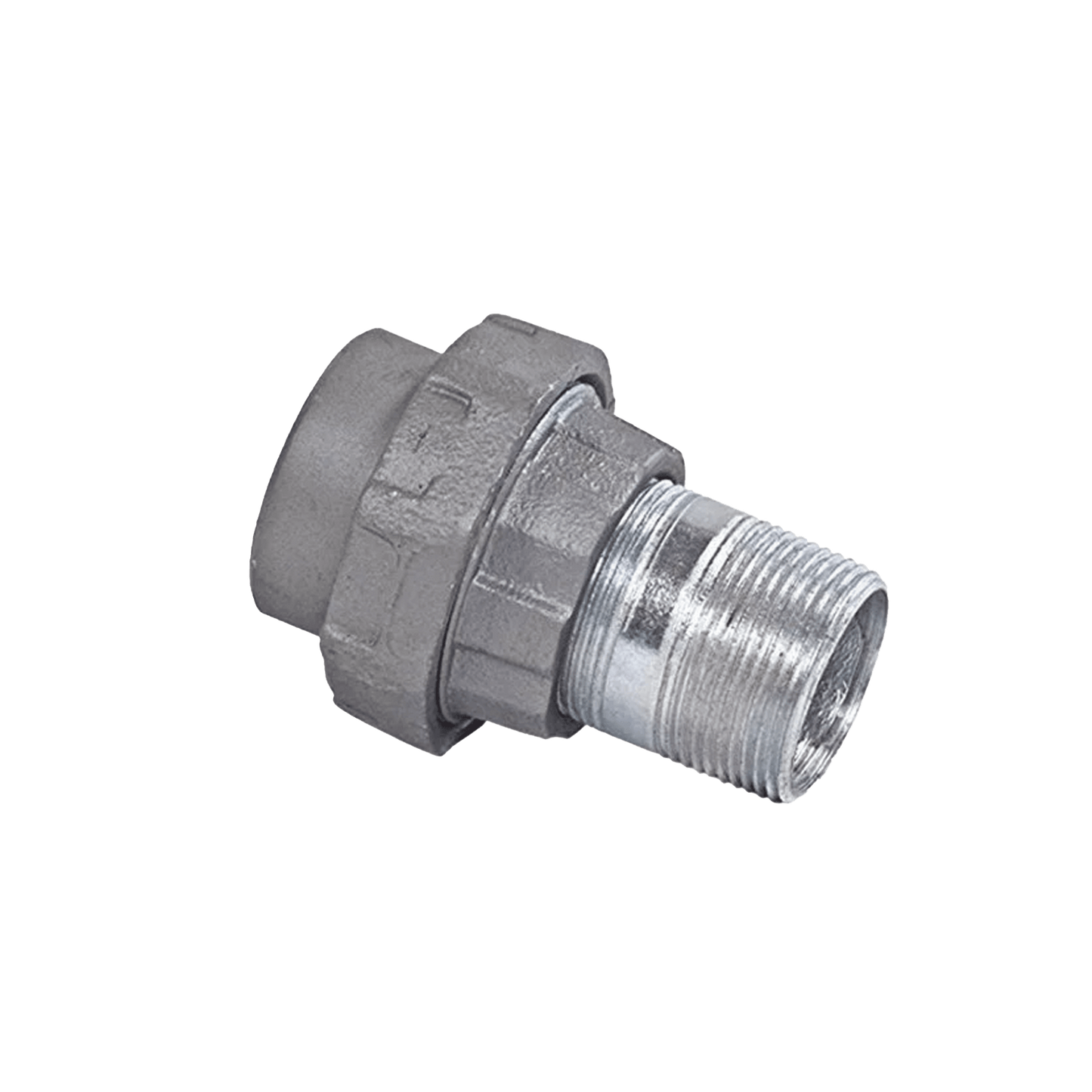

1 1/2\" (38.1 mm) Male-Female Union Nut for Hazardous Areas.

  • 501455bf3b4669a49c9941f677435e96
1 1

Out of stock

Modelo: TU-2996-N

Proveedor: RAWELT

Código SAT: 40171507

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Main features:

  • Material: Pressure-injected copper-free aluminum (diecast ).
  • Nominal measurement: 1 1/2" (38.1 mm).
  • Paint salt chamber tests according to ASTM B117.
  • Paint adhesion tests according to ASTM 3359.
  • Resistance to mechanical impacts on the body according to IK09, Thanks to its design that does not have elements susceptible to breakage.
  • Concentric tie grooves to ensure a perfect seal.
  • NPT thread for use with rigid conduit.
  • Precision threads to guarantee continuity in landing.
  • Weight: 0.3.7kg

Applications:

  • Used to join conduit pipe and accessories, allowing disassembly without unscrewing the tube.

Finishes:

  • Finishes: Polymerized epoxy/polyester electrostatic paint minimum thickness of 2 mils.

*Review models with available certifications for ratings.

  • Class I, Div. 1 and 2, groups C,D.
  • Class II, Div. 1, groups E,F,G.
  • Class II, Div. 2, groups F,G.
  • Class III
  • NEMA 4, 4X, 7 CD, 9 EF G.
  • Manufacturing based on: UL 886, UL 1203, CAN/CSA - C22.2 No. 30
