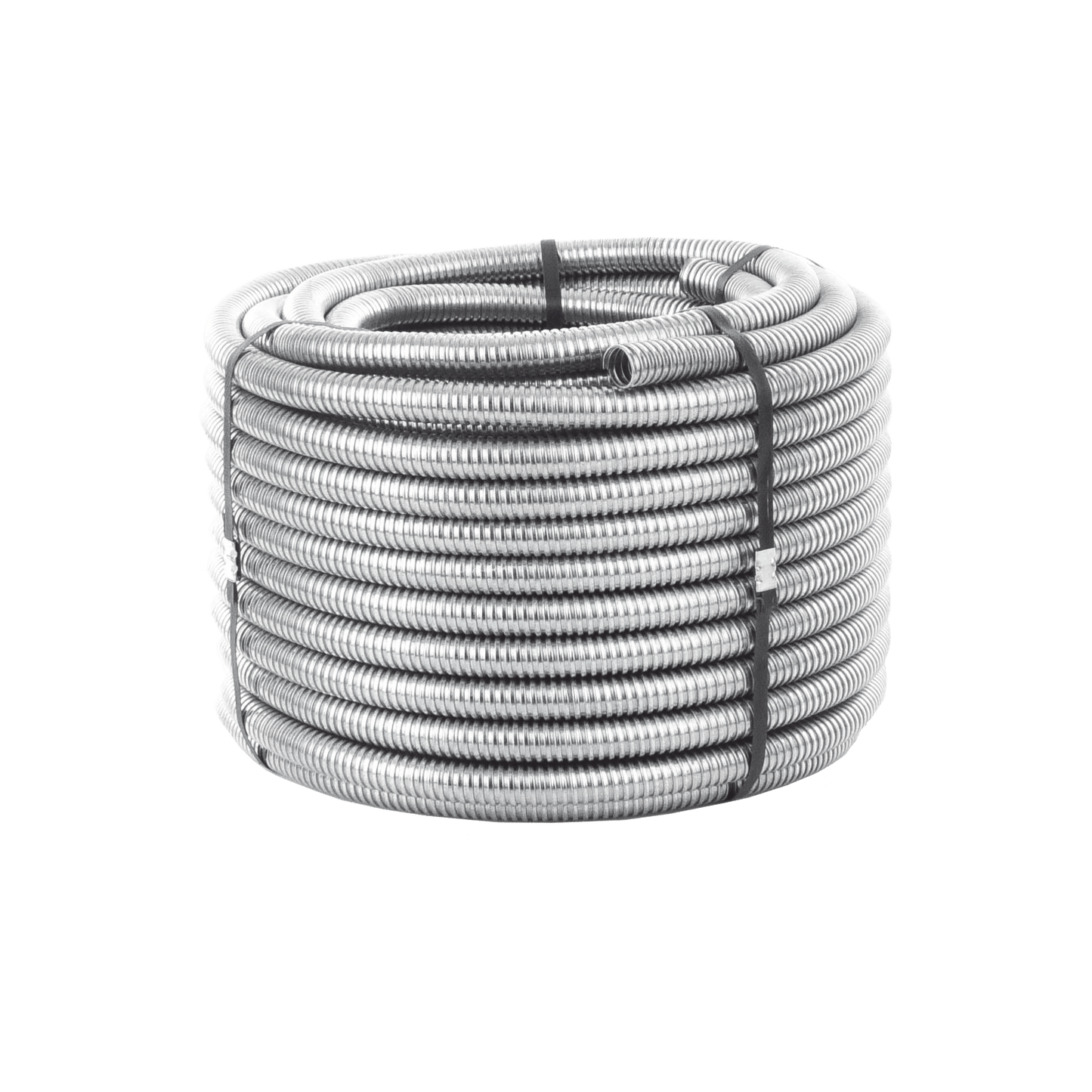

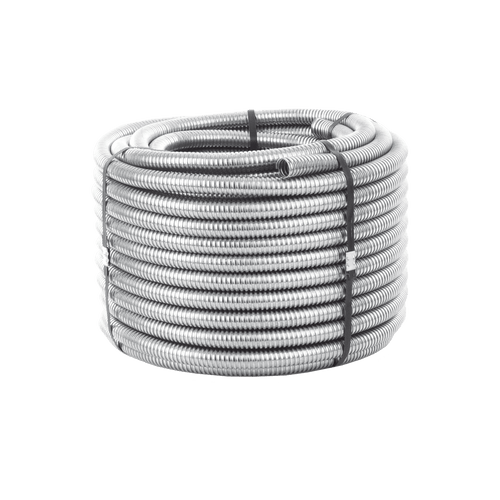

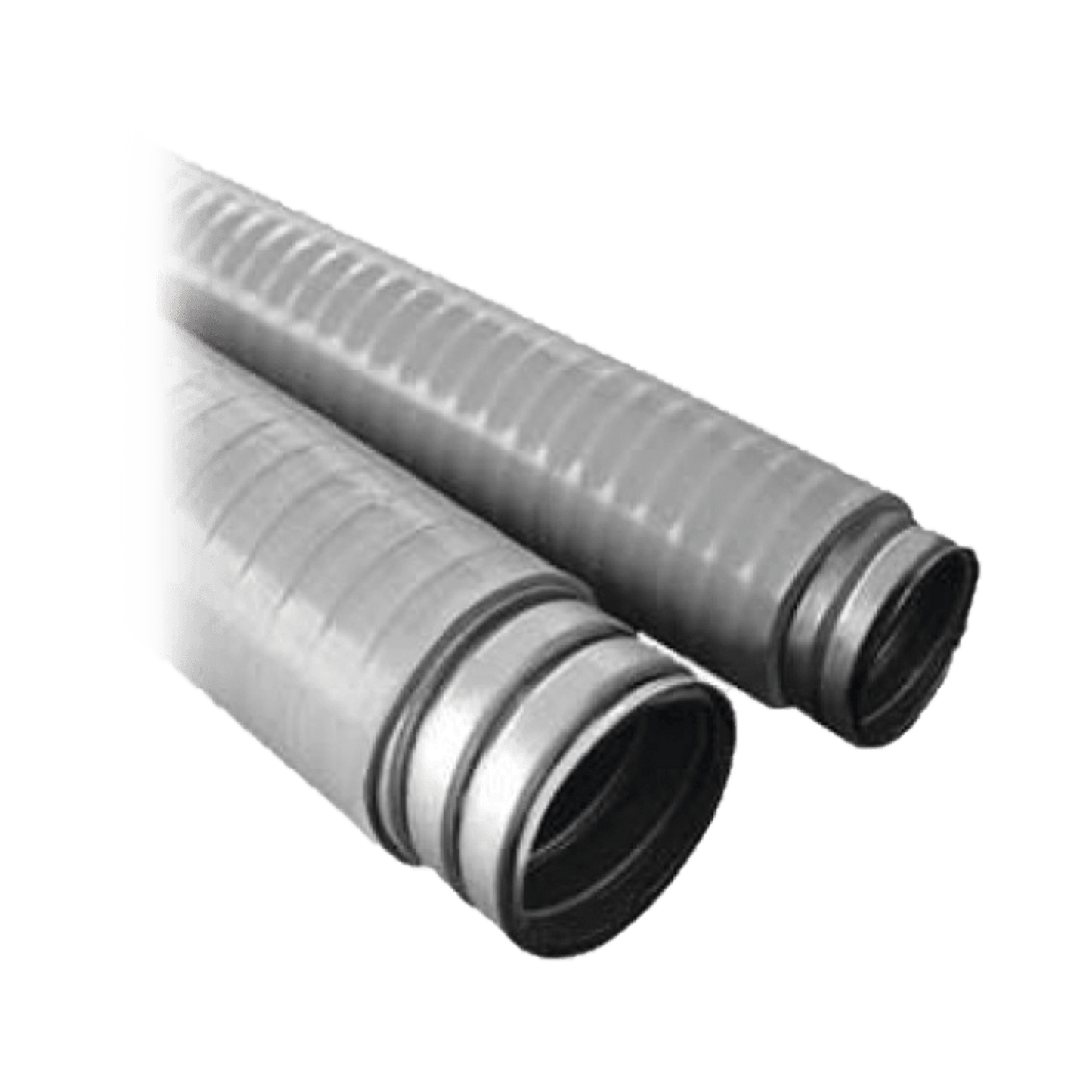

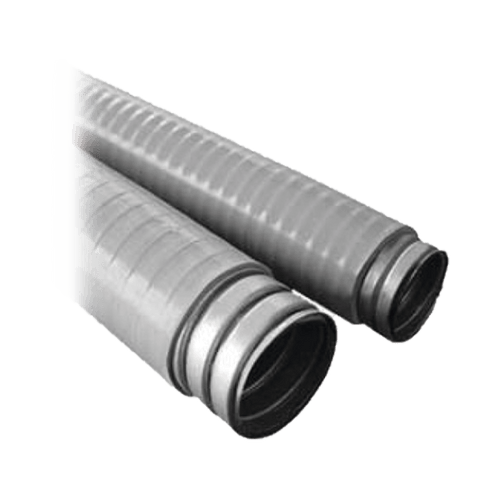

Flexible Tube Type 1 \ \ Liquidtight (25mm). PVC steel. 30 meter roll.

Physical Characteristics:

• Nominal diameter: 1 " (25mm).
• Meters per roll: 30 meters.
• Weight per roll: 12.90 kg.
• Manufacturer's clave: COT 100

Featured Features:

• Pre-galvanized steel coil rolled and crimped for optimum strength.
• Coextruded and thermoformed PVC lining that follows the corrugations of the soul with which greater flexibility and economy are obtained.
• The thickness of PVC on the crest and the inner diameter are similar to the traditional HELITITE & comma; making it possible to use standard ANCLO type HLR and HLC bracors on both.
• Level NEMA 4 the IP-65.

The Liquidtight & comma; pipe is used for the conduction of both apparent and concealed electrical wiring on ceiling or false floor. It is recommended for the installation of machinery and others where it is necessary to absorb vibrations and movements such as hospitals & comma; industries & comma; computer rooms and insulation boards & comma; among others.
