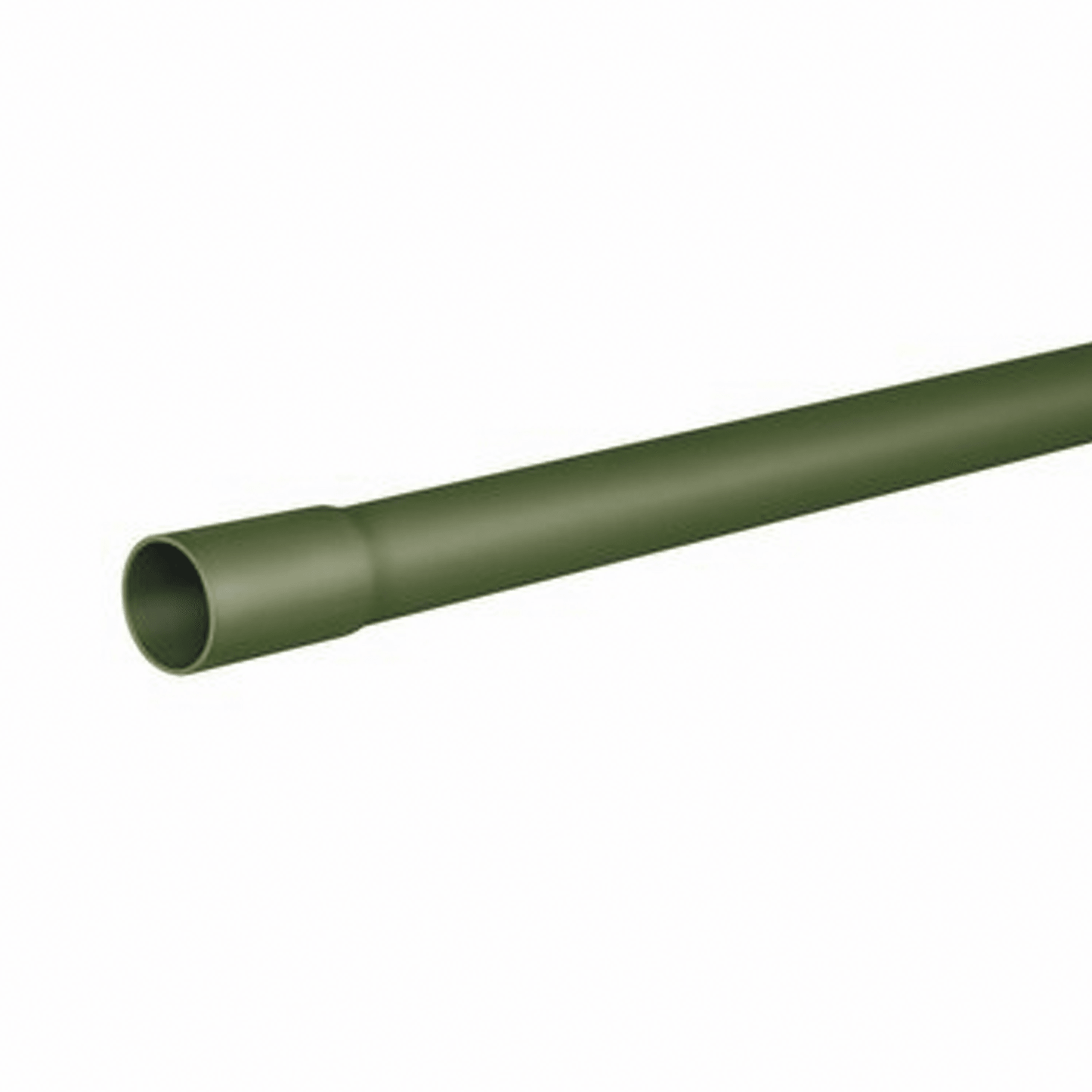

1/2\" (13 mm) x 3m Lightweight PVC Conduit Pipe.

Applications

The light type conduit pipe is specially designed for the conduction of electrical cables. in uses such as electrical installations, industrial, domestic, voice and data in a home, trade, etc For installations in construction sites where concrete will cover it.

The light type conduit pipe is made using a Polyvinyl Chloride (PVC) compound without plasticizer, with classification cell 12454 according to NMX-E-031. The light type conduit pipe is manufactured in accordance with the current NMX-E-012-SCFI.

The union of these pipes is carried out through the direct interconnection of a thermoformed sleeve integrated into the tube, or by means of an injected PVC coupling that facilitates its insertion.

Compliance with everything mentioned above, completely guarantees the correct operation of the product, as well as its useful life. It meets the highest safety standards and thanks to its dielectric strength, it is a good insulator in installations, avoiding short circuits and/or leaks of electrical potential from the cable to the duct.

Characteristics:

• Nominal Diameter: 1/2" (13 mm)
• Outer Diameter: 17.8 -18.0 mm
• Wall Thickness: 1 - 1.2 mm
• Bushing entry diameter: 18.1- 18.5 mm
• Ferrule terminal diameter: 17.8 -18.2 mm
• Cap Length: 17.5 mm

Note: The length of the pipes is 3 000 mm +- 0.5% (15 mm)
