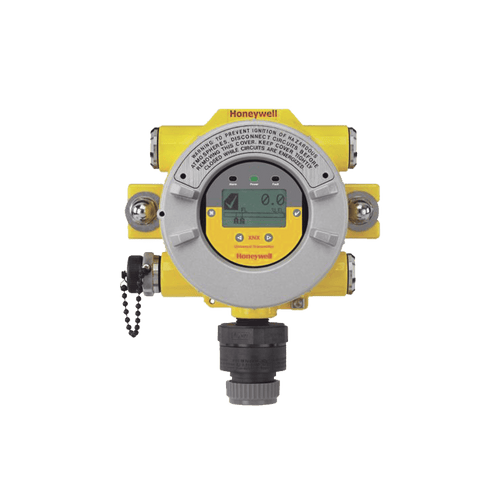

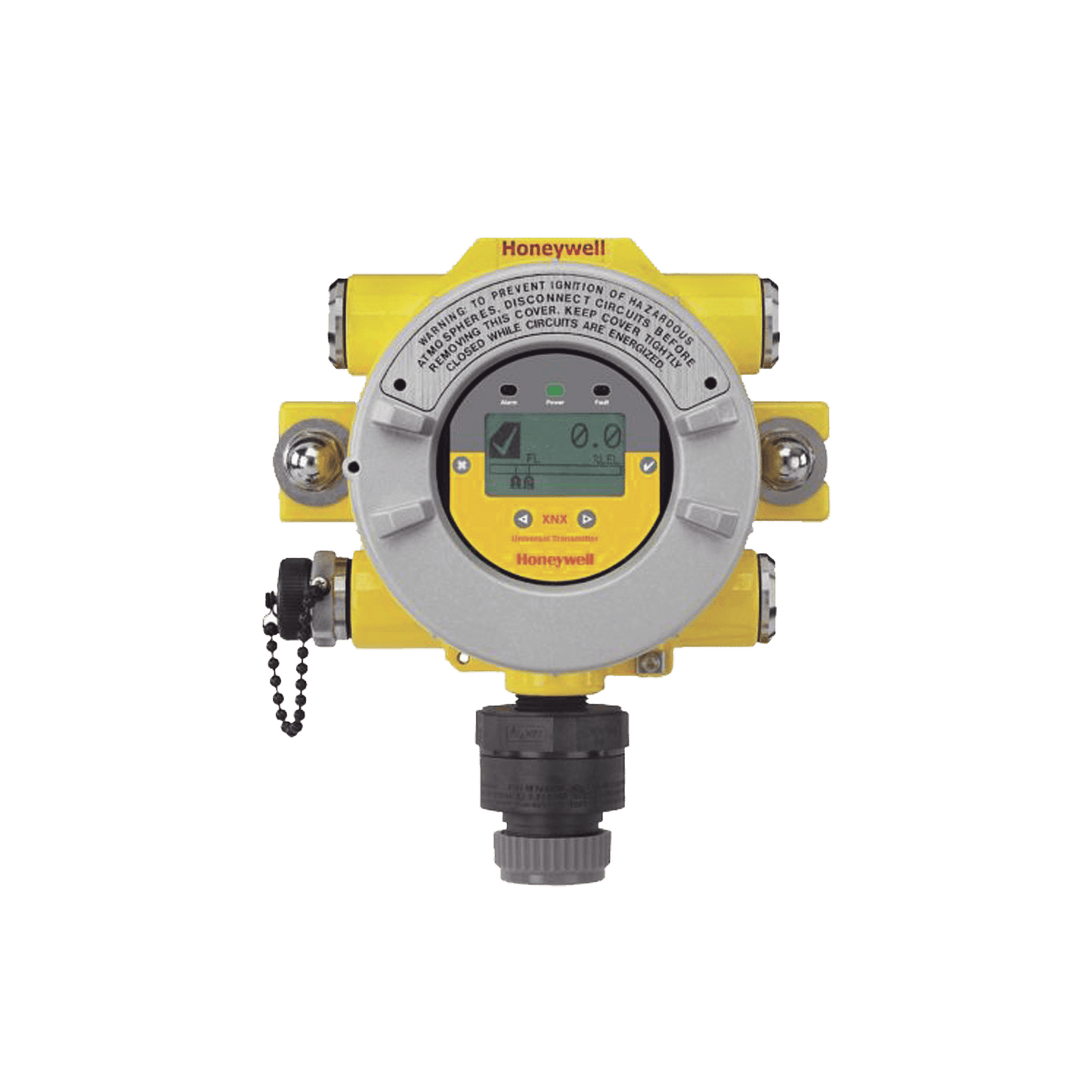

XNX Series Universal Transmitter Configured For Searchpoint Optima Plus & Searchline Excel, HART over 4-20 mA output, HART Local Interface, UL/CSA, 4 x 3/4\" NPT, Stainless Steel

The XNX series universal transmitter, marks a new twist in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs. XNX is designed for flexible integration, simple, easy to use and simple maintenance. It is ideal for use with a variety of industry standard PLC or gas monitoring controllers. The introduction of our HART Enhanced Device Descriptor Language (EDDL) and Device Type Manager (DTM) software provides users with an at-a-glance indication of the status of their gas detectors in the field.

C2H4, C3H8, C4H10, C5H12, C6H12O2, C6H14, C7H8, CH4, CI2, CIO2, CO, CO2, H2, H2S, HCI, HF, LEL, NH3, NO, NO2, O2, PH3, SO2

Order the required toxic gas or oxygen sensor separately.

High performance

• Flammable gas detection 0 to 100% LFL/LEL
• Spot IR with heated optics provides immunity to poisoning and no hidden flaws
• Open Path Infrared Flammable Gas Detection in LEL-m Measurement
• Electrochemical cell offers ppm toxic gas detection
• IR cell provides CO2 and fuel gas monitoring
• Robust and reliable operation in explosive areas and hostile environments

Effective cost

• Minimal training required
• One man operation
• Replacing the plug-in sensor
• All necessary accessories included

Flexible operation

• 3 versions: supports gas detection (catalytic bead and IR cell), electrochemical cell and IR gas detection (point and open path)
• Multipurpose Detector (MPD) with field-repairable mV, catalytic bead and IR cell capacity
• 4-20 mA with HART® as standard
• HART Enhanced Device Description Language (EDDL) and Device Type Manager (DTM) software* - Multiple communication options include up to
• 3 relays, Modbus®
• Optional local IS port for portable HART configurator

Easy to install

• 3 or 4 wire operation: source, sump or isolated
• Simple plug-in sensors and replaceable cells
• NEMA 4X IP66 rating for rugged indoor and outdoor use
• Five conduit entries for easy installation

Easy to use

• Large LCD screen: Backlit, easy-to-view display that offers multi-sensory indicators (visual icons, colorful lamps, text, etc.) to display gas and sensor readings
• User interface supports 8 selectable languages ​​(English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)
• self-test and fault indication functions
• Non-intrusive operation by one person
• Quick calibration with auto-inhibition

Certifications

• UL approved, CSA, FM, DEMKO, DEKRA, InMetro, TUV, ABS, HART, IELDBus Foundation, CU-TREx and KTL for hazardous locations, gas performance and SIL 2 ratings, among others.
• Class I, Division 1, Groups A, B, C and D; Class II, Division 1, Groups F and G; Dangerous places
• Class I Zone 1 Group IIC, Class II, Zone 20 and 21
• Intrinsically safe barriers for HART and CE connections
• For additional information on certifications and approvals contact Honeywell Analytics
