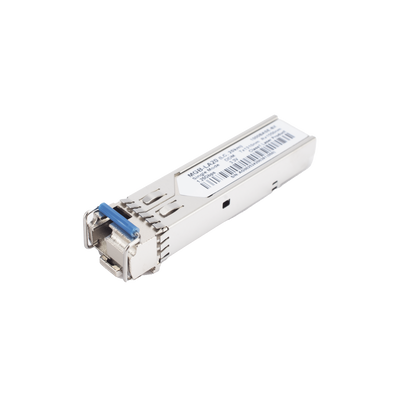

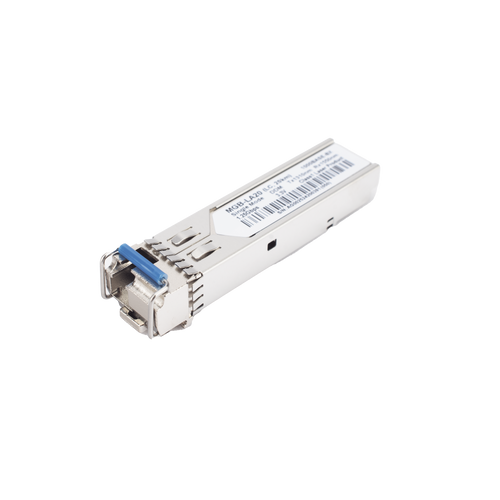

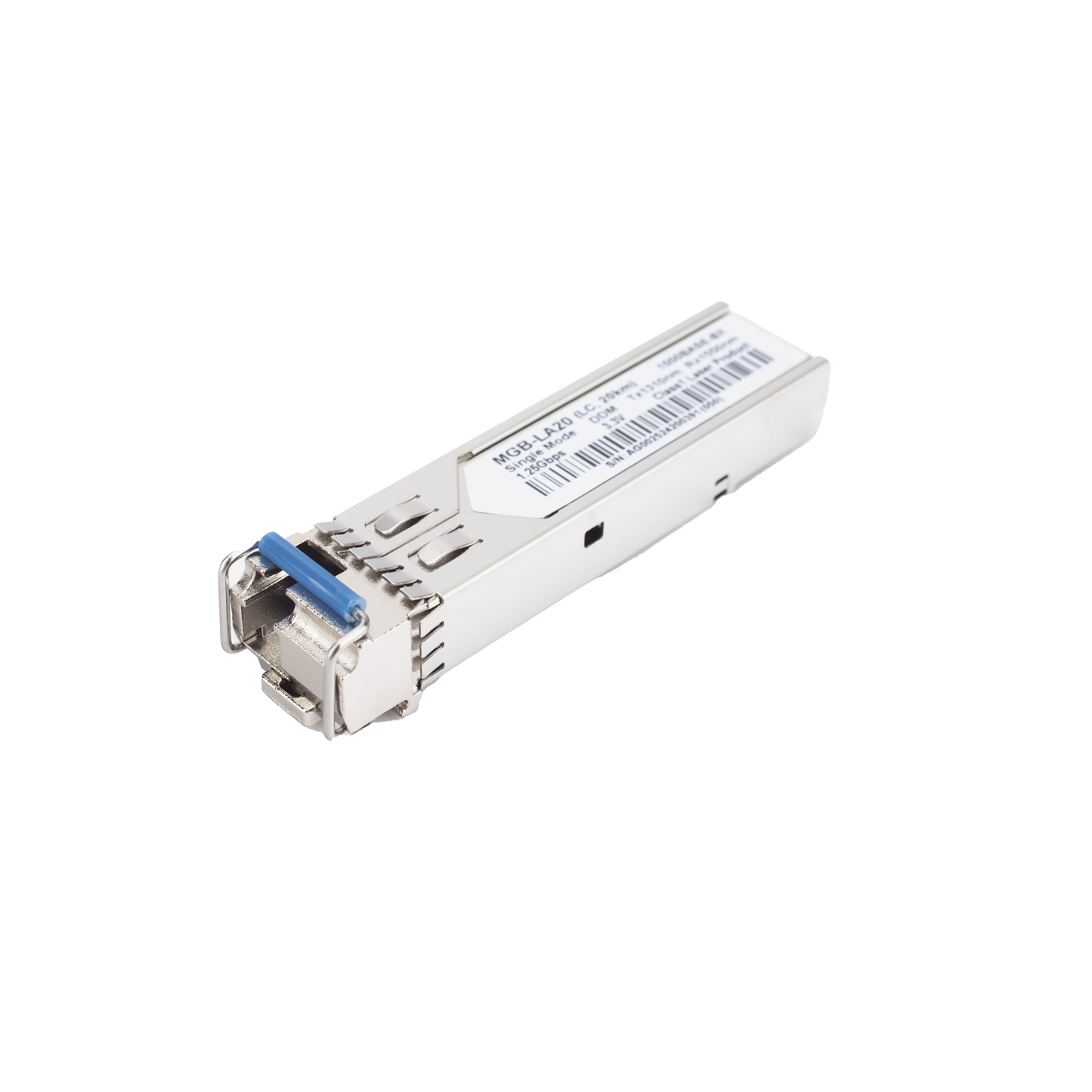

WDM mini-Gbic SFP transceiver 1G LC TX:1310nm RX:1550 for Mono Mode fiber 20 km, requires MGB-LB20

  • 52f5fe7c7c38d2ee81bb0cc808478a67
  • 52f5fe7c7c38d2ee81bb0cc808478a67
1 2
  • Compatible con interfaces 1000Base-SX/LX/BX SFP
  • Alcance hasta 120 km según transceptor
  • Hot-pluggable y hot-swappable para fácil manejo
  • Tipo de fibra monomodo, conector WDM/BiDi LC
  • Longitud de onda TX: 1310nm, RX: 1550nm

80 in stock

Modelo: MGB-LA20

Proveedor: PLANET

Código SAT: 43223323

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The MGB family of Gigabit Ethernet SFP module can be installed on PLANET Switches and Media Converters with 1000BASE-SX/LX/BX SFP interface. The range can be extended from 550m (Multi-Mode, LC) to 120 kilometers (Single-Mode, LC) depending on the transceiver.

The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and out the transceivers to/from any SFP port without having to power off the Switch/Media Converter.

MGB-LA20
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 20km
Operating Temperature 0 ~ 60 degrees C

** This Model requires working together with Model: MGB-LB20
