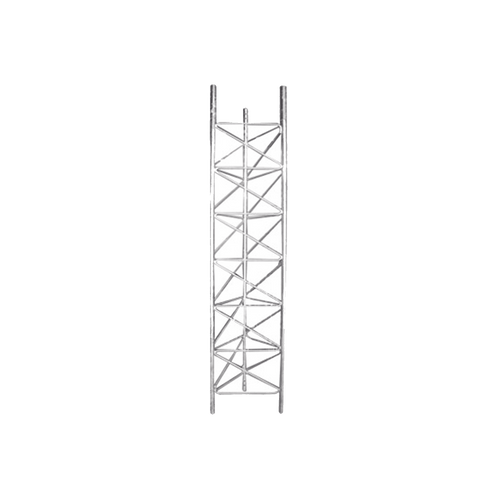

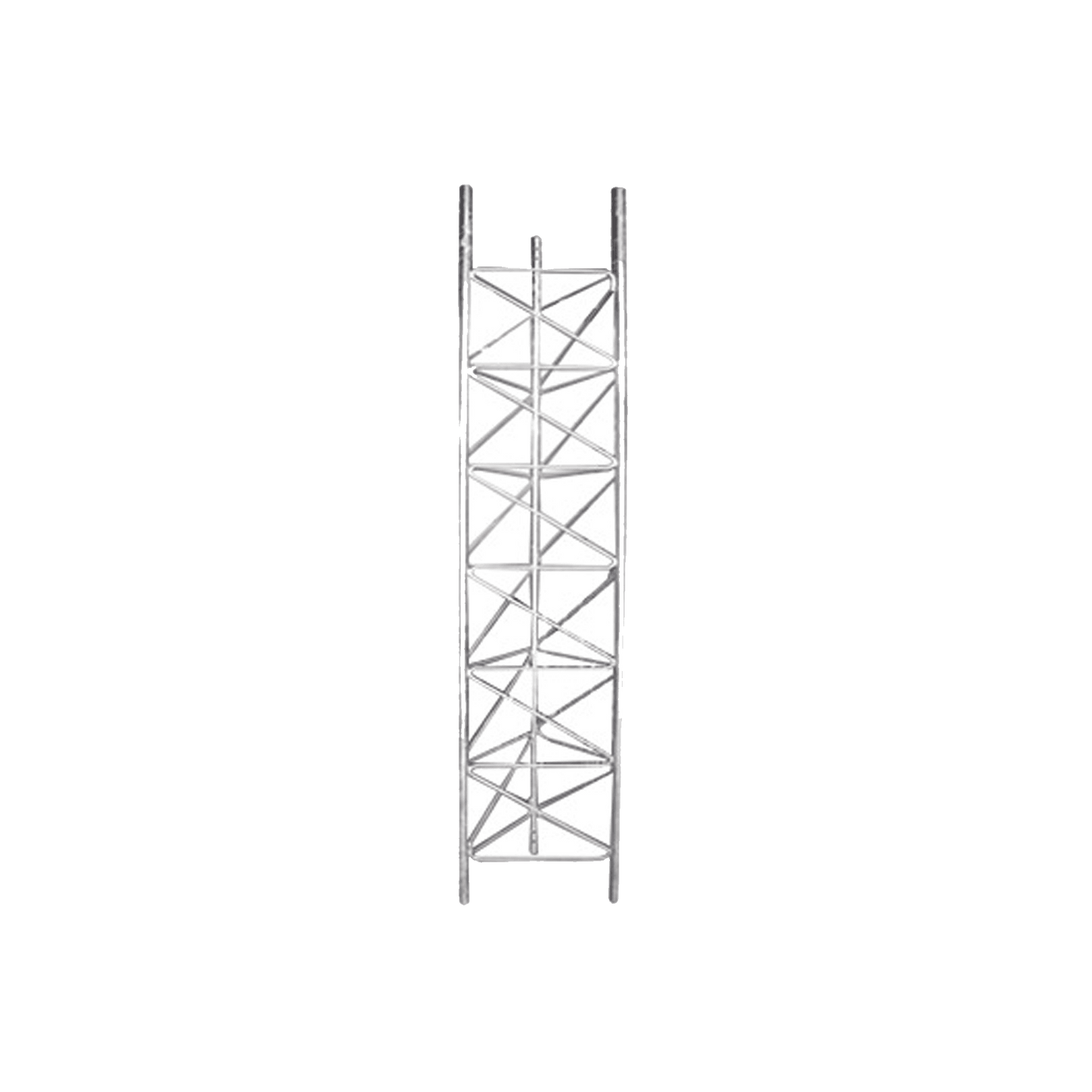

Tower Section 3 m x 60 cm Wide (1 1/4\" Tube Ced. 40), Hot Dip Galvanized, Up to 99 m Elevation.

  • 5665a700fffe88a88e991f596df2d151
1 1

Out of stock

Modelo: STZ-60RG

Proveedor: SYSCOM TOWERS

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Highlights:
  • Product manufactured under standard: ISO 9001:2015.
  • Each of the sections is manufactured by numerical control machinery.
  • Includes screws for installation.
  • Recommended for Humid Areas or in environments with moderate corrosion.
  • In accordance with the hot dip galvanizing standard NMX-H-004-SCFI-2008, ASTM A-123 and ISO-1461.
Physical Characteristics:
  • Maximum Load: 800 Kg.
  • Maximum Height: 99 m. (33 sections)
  • Wind Resistance: 200 km/hr.
  • Material: 1 1/4" industrial tube (Ced. 40).
  • Semi-arrow (Zig-zag): Round 1/2".
  • Nipple: 16 cm.
  • Face width: 60 cm.
  • Weight: 57.6 Kg.
  • Dimensions: 3 m Length
  • Structure material: Steel (A-36).
  • Anticorrosive protection: Hot dip galvanized (NMX-H-004-SCFI-2008)
Application:
  • Point - Point Systems.
  • Point - Multipoint System.
  • Cellular signal amplification.
  • Lightning rod systems.
  • Repeat base radios.
  • Monitoring points.
  • Lightning.
  • Emergency auditory signaling.
  • And more.

The assembly of a tower with STZ60G section necessarily requires a model STZ60GRDES extension section for correct installation (Consult the engineering department for more information).

Featured technical notes:

  • Make sure installation is done by a trained professional.
  • Schedule a maintenance plan to check tensions in retainers and tighten hardware.
  • Do not install solar panels more than 6 meters high. Check compatibility between solar cells and mounts.
  • A stress study must be carried out when an eccentric load is placed on the tower. This can cause excessive torsion and bending in the tower causing structural failure.
  • The declared weight is of the equipment without accessories and without packaging.
  • The towers can be purchased in complete kits SEE TOWER KITS .

Warning:

  • Hot dip galvanizing is recommended for humid areas, salty and/or corrosive environments, industrial parks with gas release ( SEE AREA MAP ).
  • The tower must be painted according to (at least) the CFE D8500-02 specification (7 symmetrical stripes of orange and white interspersed, starting and ending in orange.
  • It must include night lighting, at least two luminaires, one in the middle and one at the top.
  • Local regulations by municipality must be consulted to ensure correct and legal tower installation.
  • We recommend at all times to follow the retention installation recommendations: SEE RETENTION INSTALLATION DIAGRAM .
