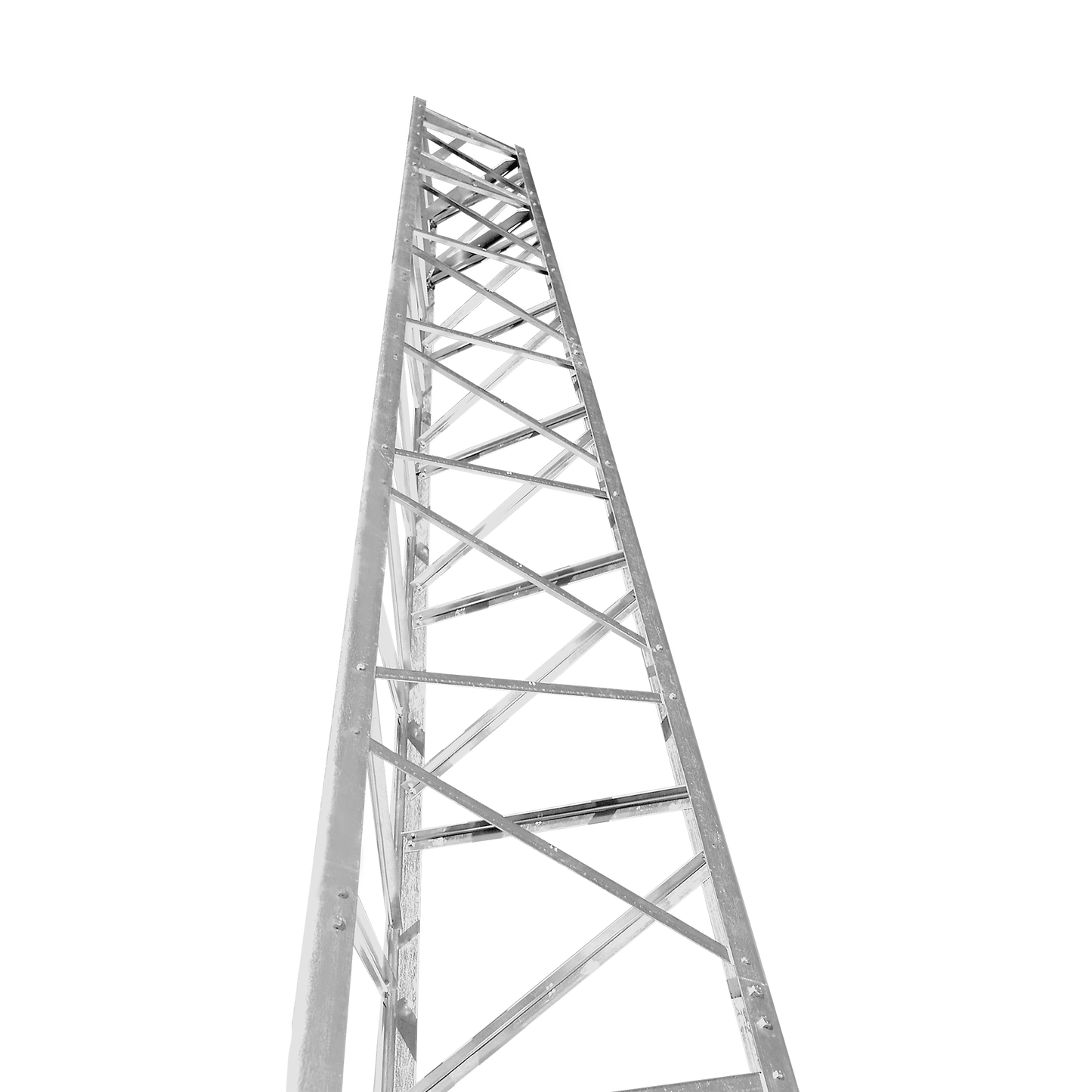

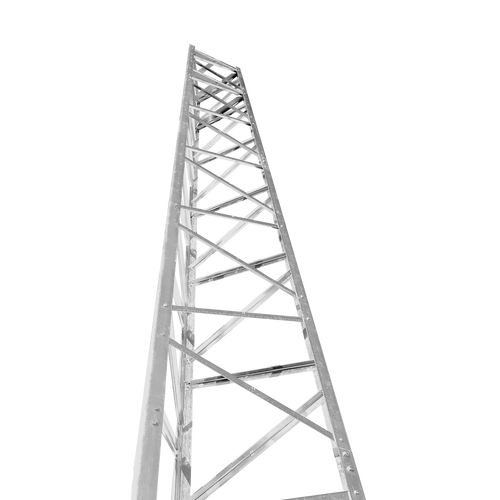

TITAN T-300 Self-Supporting Tower of 26.8 meters (88 feet) with Base.

  • bcf9b412427c0087fde5c1f0a707f469
  • bcf9b412427c0087fde5c1f0a707f469
1 2
  • Torre autosoportada con altura total de 26.8 m
  • Secciones de 2.4 m para fácil transporte
  • Soporta vientos hasta 100 mph (161 km/hr)
  • Área antenas permisible: 22 ft² sin hielo
  • Ideal para monitoreo y radiocomunicación profesional

Out of stock

Modelo: TRY-T-88-T300

Proveedor: Trylon

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details



The TITAN tower has been the favorite lightweight tower of installers for over 30 years. With more than 15,000 towers installed in the USA, this tower has been used for telemetry, Satellite TV, network systems, radio communication and amateur applications.

Specifications:
Type: Self-supported.
Overall height: 26.8 m (88').
8' (2.4m) sections for space reduction.
Ribbed legs.
Model: T-300 (consult engineering for towers of greater capacity or height).

Loading capacity wind speed
Loading conditions. 70 mph
(112 km/hr)		 85 mph
(136 km/hr)		 100mph
(161 km/hr)
Allowable Antenna Area in Square Feet (ft²) - Survival - No Ice (Round) 22 6 -
Allowable Antenna Area in Square Feet (ft²) - Ice Survival-1/2" (Round) 3 - -


Applications:
Ideal for remote monitoring systems.
Two-way radio communication systems:
-Public security system, police use, firefighters, official buildings.
-Private transportation companies, factories, etc
Internet service providers (WIPS).
Video surveillance applications (camera towers).

TITAN Line Differentiators
-The best Height - Cost ratio on the market.

Installation of 24 meter tower.


Use of tower for Radiocommunication system:


Tower disassembled upon delivery (Savings in freight costs):
