TITAN T-300 Self-Supporting Tower of 14.6 meters (48 feet) with Base.

  • d4b7d1c47613f20e47af12b187aac223
  • d4b7d1c47613f20e47af12b187aac223
1 2
  • Torre autosoportada de hasta 14.6m de altura
  • Soporta vientos hasta 161 km/h sin hielo
  • Secciones de 2.4m para fácil transporte
  • Piernas acanaladas para mayor estabilidad
  • Ideal para telemetría y redes de comunicación

Low stock: 3 left

Modelo: TRY-T-48-T300

Proveedor: Trylon

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

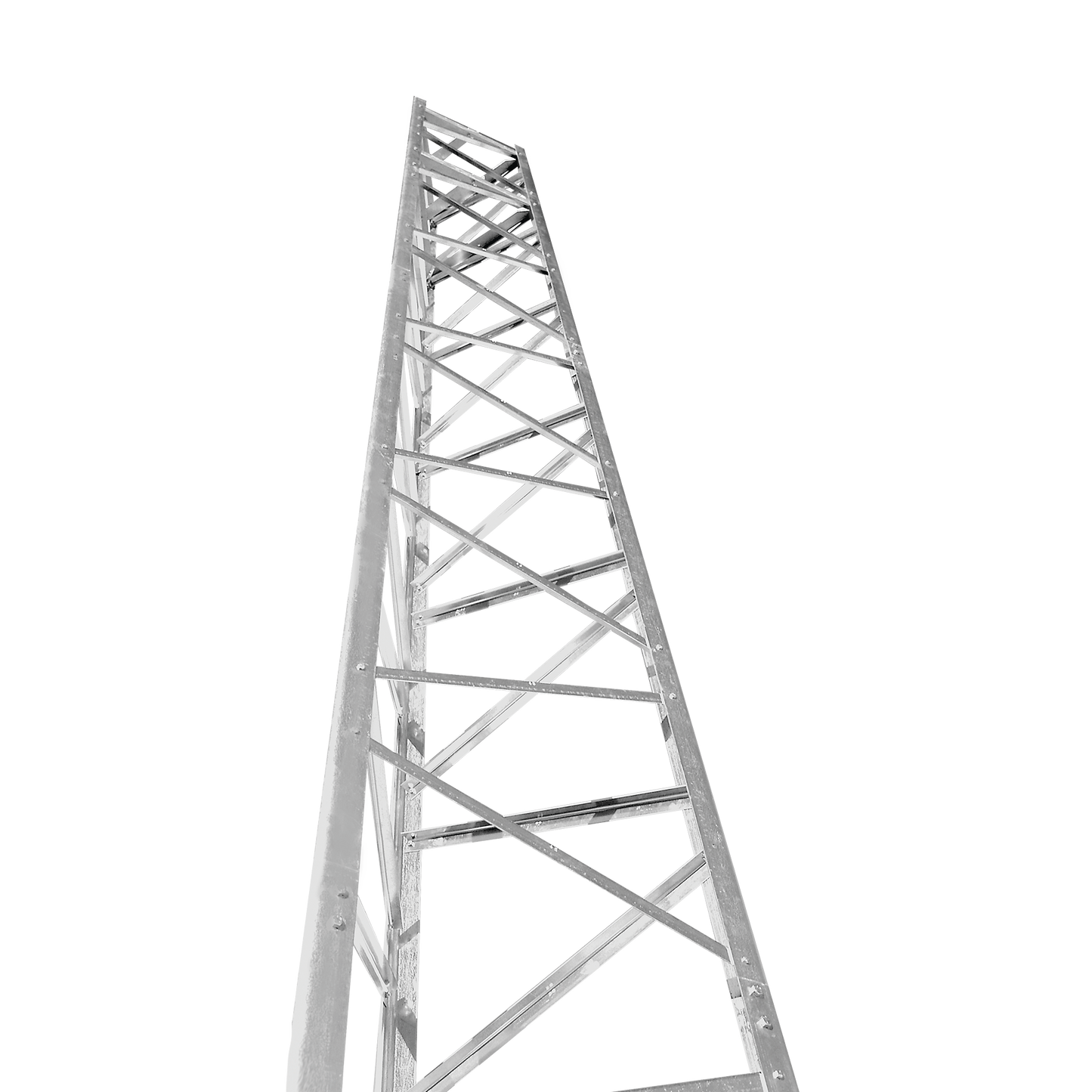

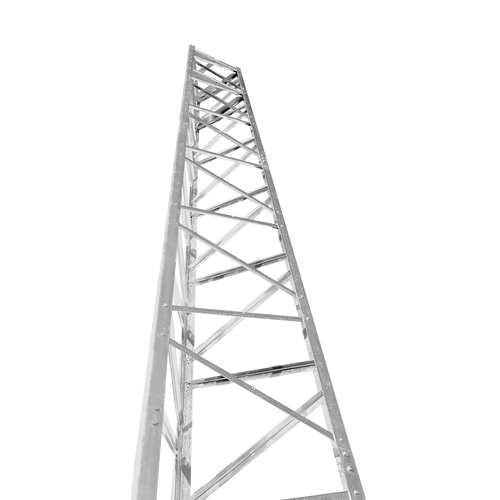

The TITAN tower has been the favorite lightweight tower of installers for over 30 years. With more than 15,000 towers installed in the USA, this tower has been used for telemetry, Satellite TV, network systems, mobile radios and amateur applications.

Specifications:
Type: Self-supported.
8' (2.4m) sections for space reduction.
Ribbed legs.
Overall height: 1 4.6 m (48').
Model: T-300 (consult engineering for towers of greater capacity or height).

Loading capacity wind speed
Loading conditions. 70 mph
(112 km/hr)		 85 mph
(136 km/hr)		 100 mph
(161 km/hr)
Allowable Antenna Area in Square Feet (ft²) - Survival - No Ice (Round) 25 eleven 1
Allowable Antenna Area in Square Feet (ft²) - Ice Survival-1/2" (Round) 3 - -


Applications:
Ideal for remote monitoring systems.
Two-way radio communication systems:
-Public security system, police use, firefighters, official buildings.
-Private transportation companies, factories, etc
Internet service providers (WIPS).
Video surveillance applications (camera towers).

TITAN Line Differentiators
-The best Height - Cost ratio on the market.
-The tower is sold pre-assembled, which saves significant installation costs.
-A single 29 meter tower fits in a single package or pallet.

Installation of 24 meter tower.


Use of tower for Radiocommunication system:
