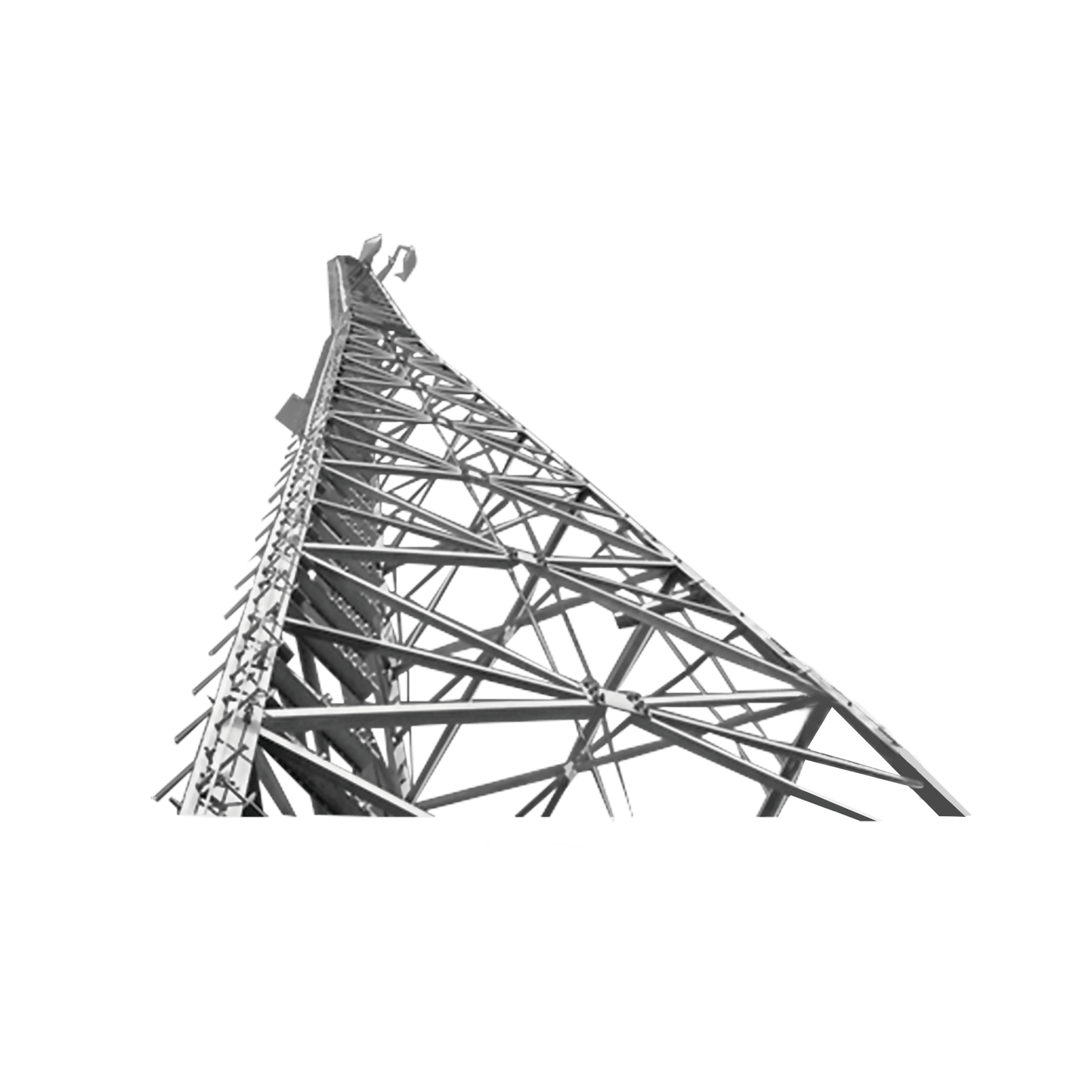

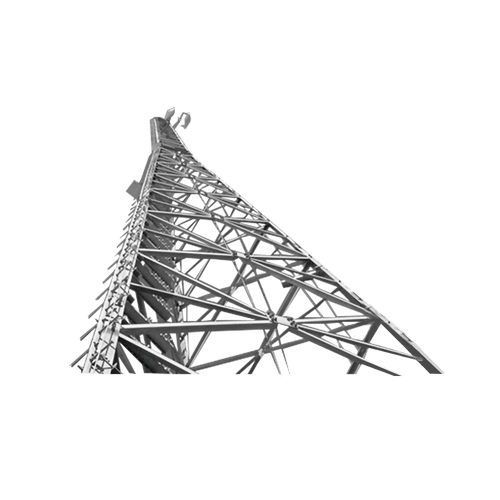

SUPER TITAN S-300 Self-Supporting Tower of 21.33 meters (70 feet) with Anchoring.

  • b8c331bd4ae73ea9bf24c1acb4b69fc4
1 1

Low stock: 2 left

Modelo: TRY-ST-70-S300

Proveedor: Trylon

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details





The SuperTitan KD is a modular tower that can be raised up to 190 feet high. This modular system can be configured to create different types of towers, varying heights and load capacities.
SuperTitan KD design meets ANSI-TIA-222 F&G standard.


Specifications:

-Type: Self-supported.
-Height of each section: 10' (3m).
-Total Height: 21.33m (70').
-Model: S-300
-Designed to comply with the TIA/EIA​-222 standard.

Loading capacity

wind speed

Loading conditions.

90 mph
(144.8km/hr)

105 mph
(168.9 km/hr)

120mph
(193.1 km/hr)

Allowable antenna area in square feet (ft²).
EIA Rev. Class 1:
0.75" Ice

38

16

4

Allowable antenna area in square feet (ft²).
EIA Rev. Class 2:
0.75" Ice

28

12

-



Applications:

-Emergency services (police, firefighters, etc.).
- SCADA systems.
-Ideal for base stations with higher load parameters.
-Towers for base station installation.

SUPERTITAN Line Differentiators

-Maximum height of 190 feet.
-New innovative packaging.
-Dramatically reduces freight costs.
-Reduced delivery times.

Optimized Packaging System:


Typical Tower Installation:


Installation in snow conditions:
