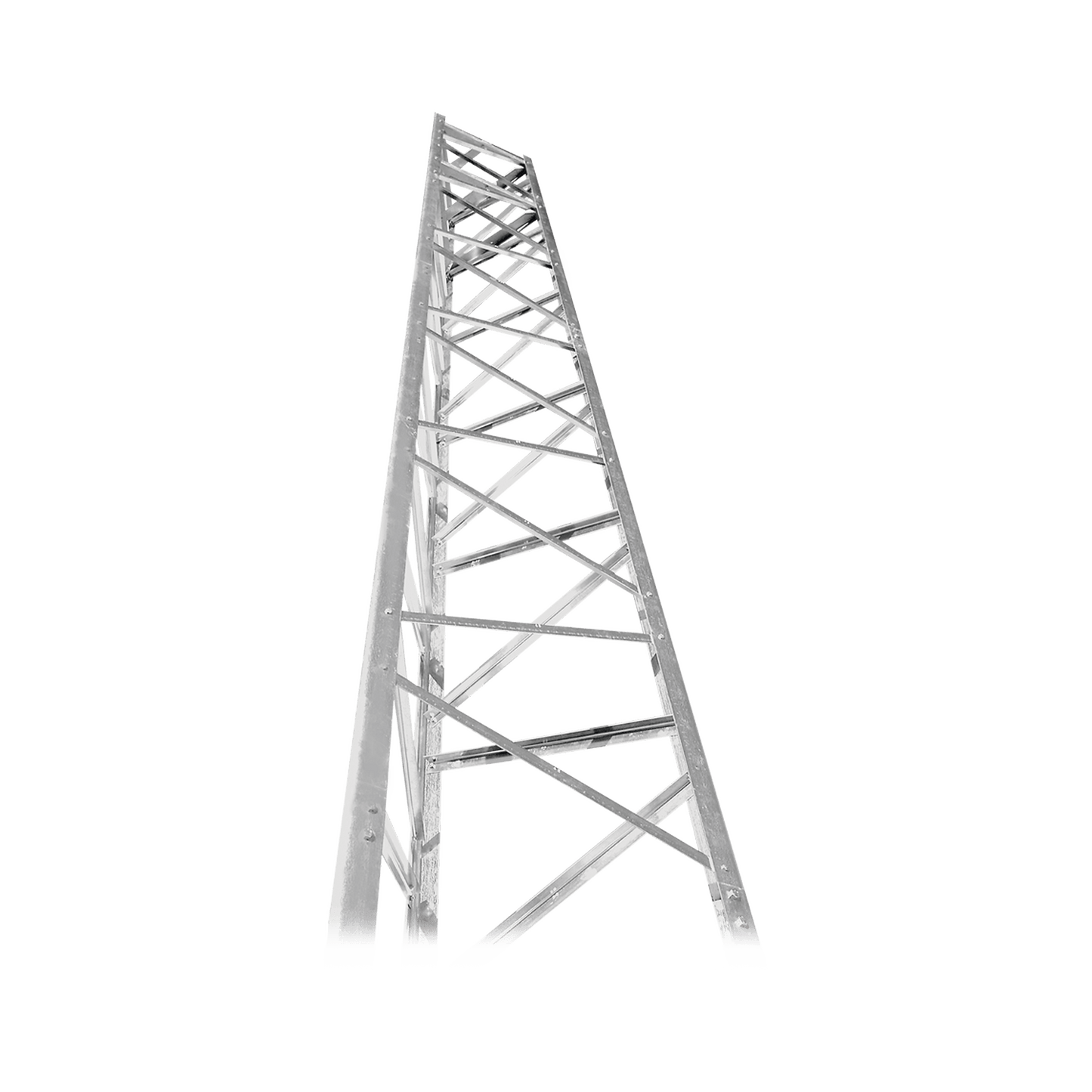

Self-supporting tower. 24 ft (7.3 m) Titan T200 Galvanized (includes anchor)

  • e57498edd0fd1362fc63542c81fd185c
1 1
  • Torre autosoportada de 7.3 m con secciones modulares
  • Capacidad de carga para vientos hasta 161 km/hr
  • Ideal para monitoreo remoto y radiocomunicación
  • Piernas acanaladas para estabilidad estructural
  • Modelo T-200 para diversas aplicaciones profesionales

Low stock: 7 left

Modelo: TRY-T-24-T200-BOX

Proveedor: Trylon

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The TITAN tower has been the favorite lightweight tower of installers for over 30 years. With more than 15,000 towers installed in the USA, this tower has been used for telemetry, Satellite TV, network systems, radio communication and amateur applications.

Specifications:

Type: Self-supported.

Overall height: 7.3 m (24').

8' (2.4m) sections for space reduction.

Ribbed legs.

Model: T-200 (consult engineering for towers of greater capacity or height).

Loading capacity wind speed
Loading conditions. 70 mph
(112 km/hr)		 85 mph
(136 km/hr)		 100mph
(161 km/hr)
Allowable Antenna Area in Square Feet (ft²) - Survival - No Ice (Round) 16 8 3
Allowable Antenna Area in Square Feet (ft²) - Ice Survival-1/2" (Round) 2 - -

Applications:

Ideal for remote monitoring systems.

Two-way radio communication systems:

-Public security system, police use, firefighters, official buildings.

-Private transportation companies, factories, etc

Internet service providers (WIPS).

Video surveillance applications (camera towers).

TITAN Line Differentiators

-The best Height - Cost ratio on the market.

Installation of a 24-meter tower for Luminaires.

Use of tower for Radiocommunication system:
