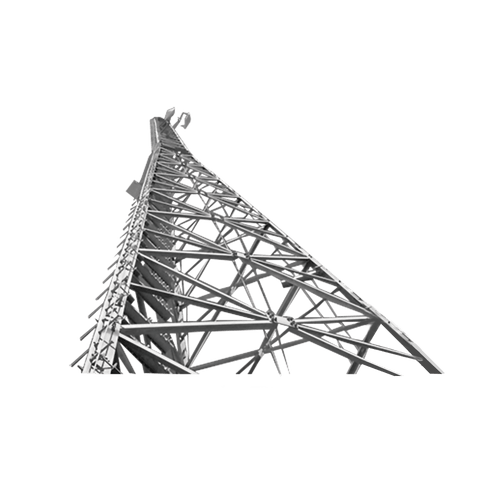

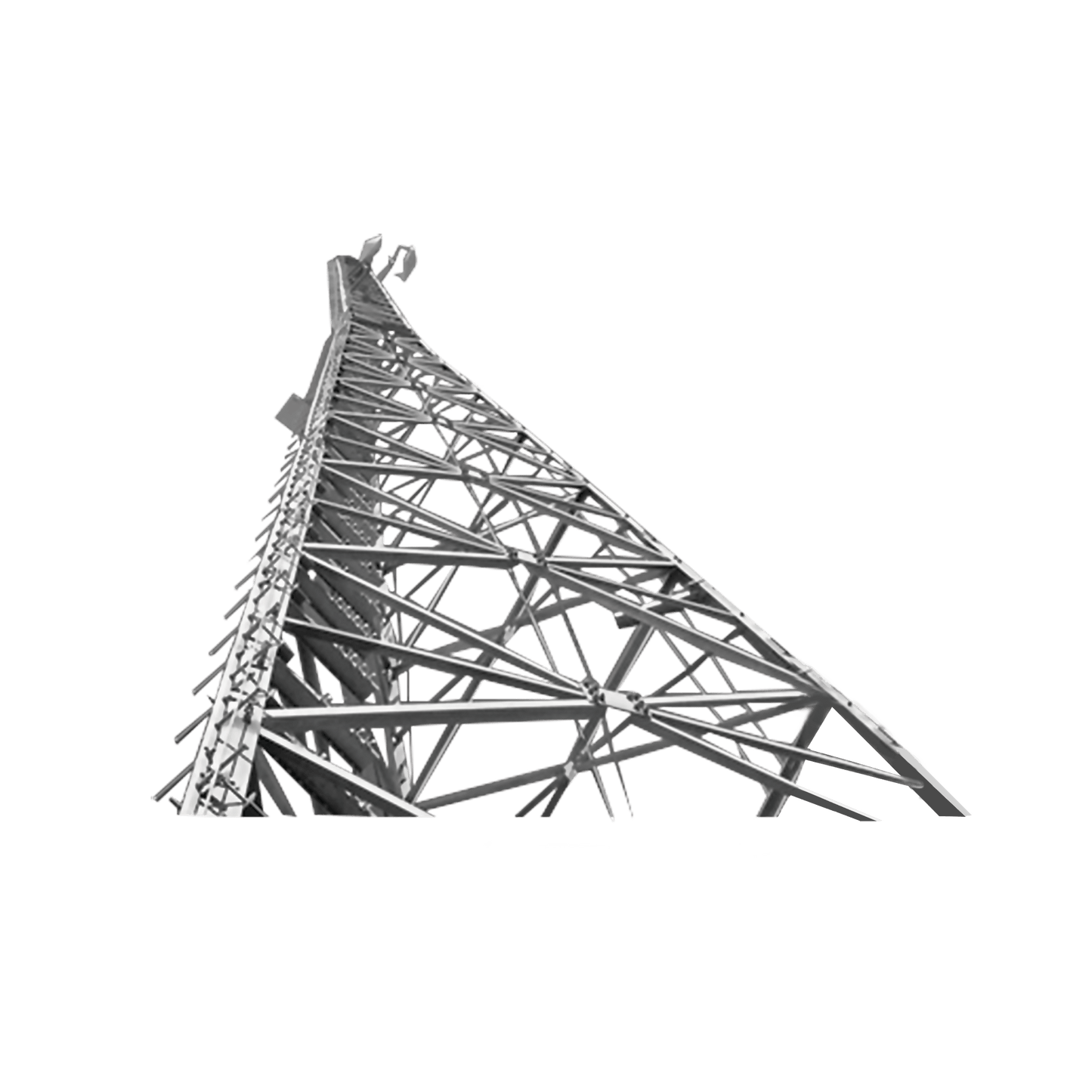

Self-supporting tower. 140ft (42.7m) SuperTitan S310 Galvanized (includes anchor)

  • cfdd09464d92a8ce9a346d7177fa1bca
1 1

Out of stock

Modelo: TRY-ST-140-S310

Proveedor: Trylon

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details




The SuperTitan KD is a modular tower that can be raised up to 190 feet high. This modular system can be configured to create different types of towers, varying heights and load capacities.
SuperTitan KD design meets ANSI-TIA-222 F&G standard.


Specifications:

Type: Self-supported.

Total Height: 42,672 m (140').

Line: S-310

Designed to comply with TIA/EIA-222 standard.

Hot dip galvanized.

Sections included 3 to 16.

Height of each section: 10' (3m).

Loading capacity

wind speed

Loading conditions.

90 mph
(144.8km/hr)

105 mph
(168.9 km/hr)

120 mph
(193.1 km/hr)

Allowable antenna area in square feet (ft²).
EIA Rev. Class 1:
0.75" Ice

14

-

-

Allowable antenna area in square feet (ft²).
EIA Rev. Class 2:
0.75" Ice

6

-

-



Applications:

Emergency services (police, firefighters, etc.).

SCADA systems.

Ideal for base stations with higher load parameters.

Towers for base station installation.

SUPER TITAN Line Differentiators

Maximum height of 190 feet.

New innovative packaging.

Dramatically reduces freight costs.

Reduced delivery times.

Complementary accessories (Not Included):

Step-type ascent ladder:

10 x TRY-ST-STEP10 Individual Steps in packs of 10 pieces for sections 3 to 12.

4 x TRY-ST-STEPW Bar welded steps for sections 13 to 21.




Optimized Packaging System:


Typical Tower Installation:


Installation in snow conditions:
