Thermostat for single-stage heat and cold systems, non-programmable vertical PRO 1000

  • f65a4008541709ccd93d9245505dda98
1 1

34 in stock

Modelo: TH1110DV1009/U

Proveedor: HONEYWELL HOME RESIDEO

Código SAT: 41112209

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

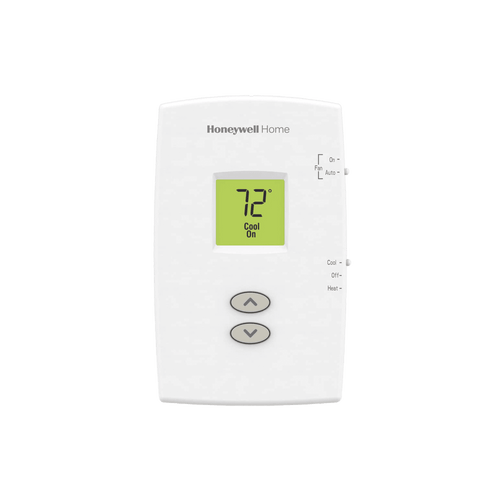

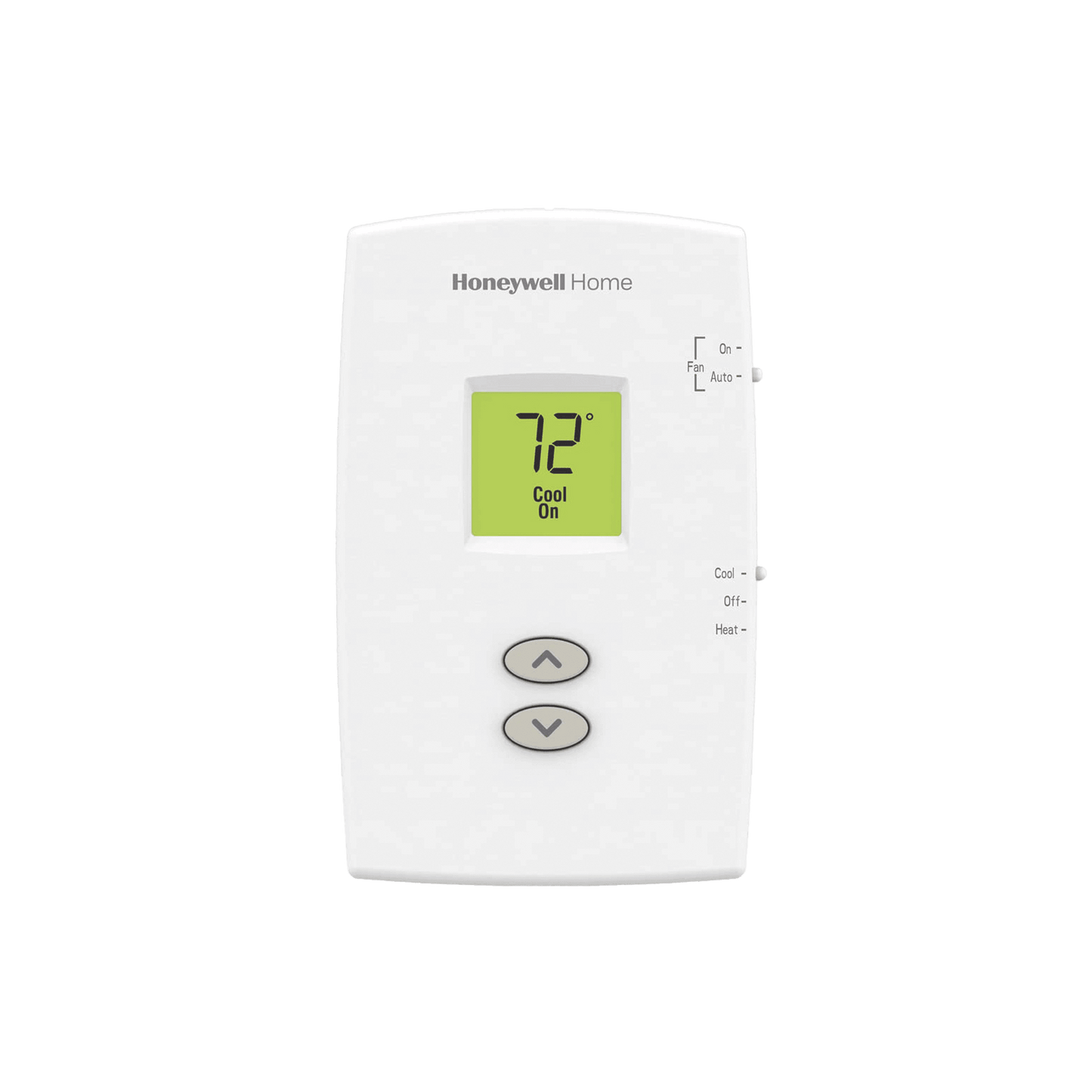

PRO 1000 vertical non-programmable thermostat

Product specifications

Application
1 Heat/1 Cool Conventional Systems and Heat Pumps without Auxiliary Heat
Dimensions
120 mm high x 74 mm wide x 28 mm deep
Item type
Product
Mounting
Vertical
Electrical ratings
20 to 30 Vac or 750 mV
Frequency
50Hz, 60Hz
Stages
1 hot/1 cold
Operating Humidity Range(%RH)
5 to 90% RH, no condensation
Change positions (system)
HOT-OUT-COLD
Change positions (fan)
AUTOMATIC IGNITION
Power method
Dual Power: Battery or Wired
Color
Premier® White
Terminal Designations
R, RC, C, W, And, G, O, b
screen size
1.32 square inches
Change
Manual
Setting temperature range
Heat: 4:5 C to 32 C; Cool: 10 C to 37 C
Cycles per hour
Heating 2 - 6 CPH; Cooling 2 -6 CPH
