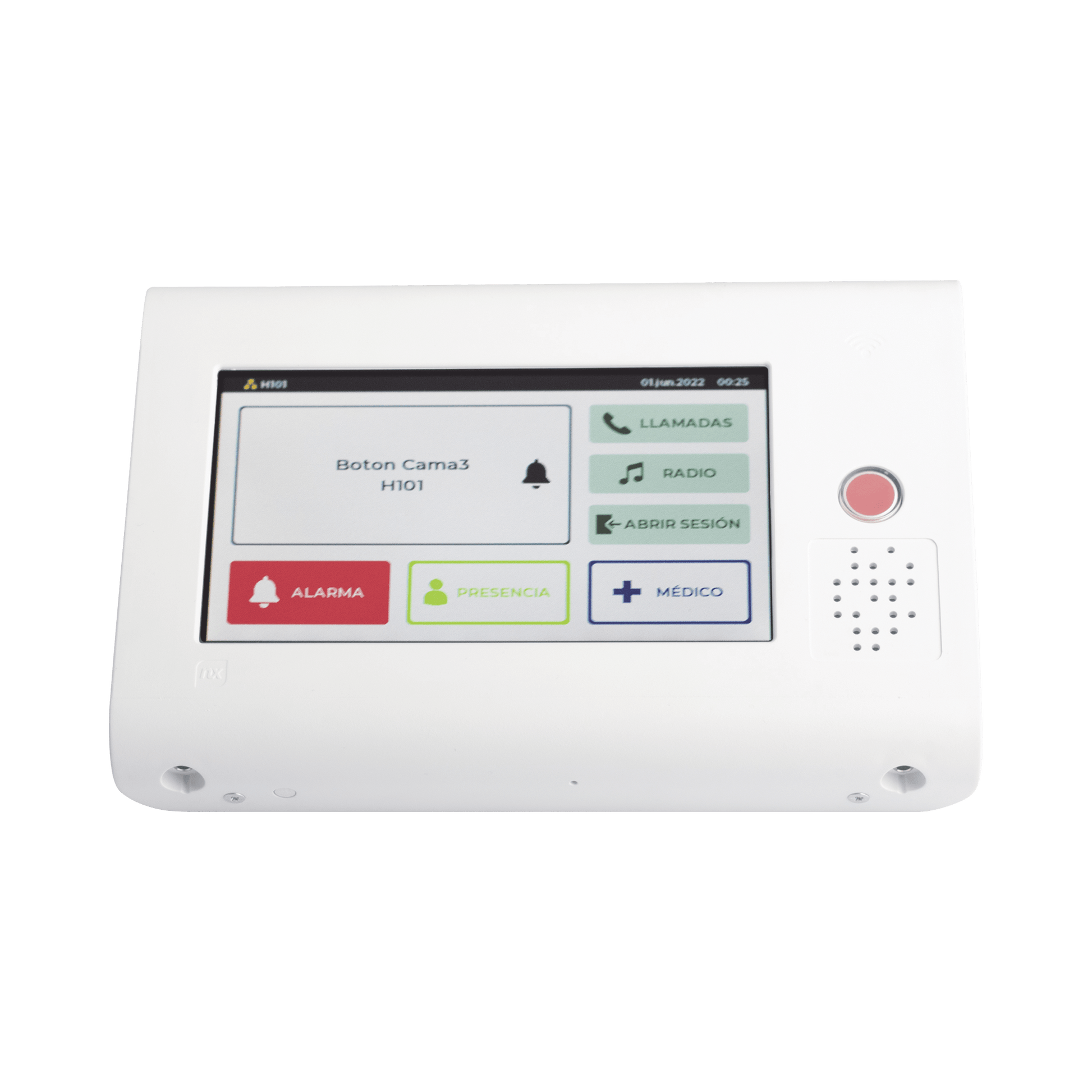

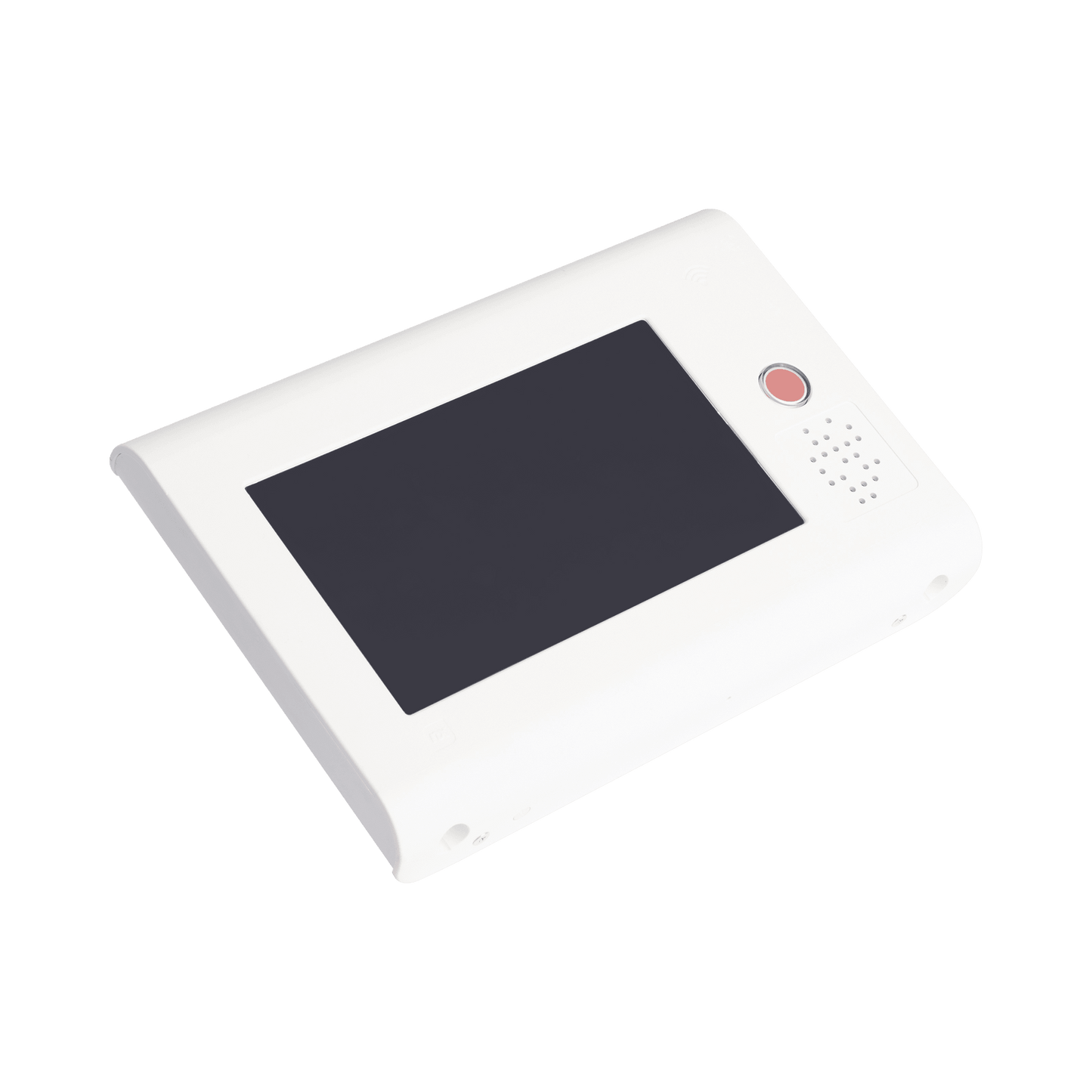

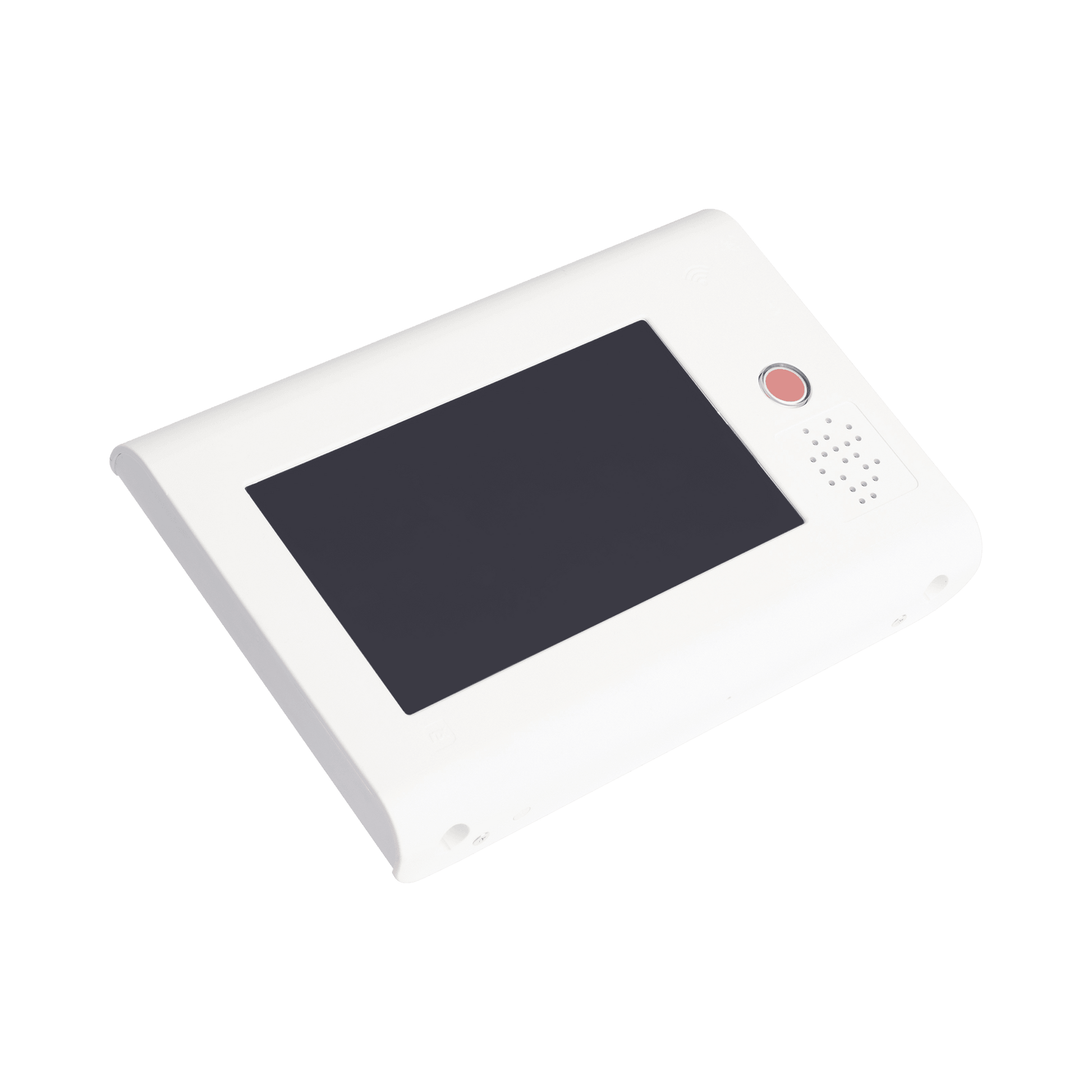

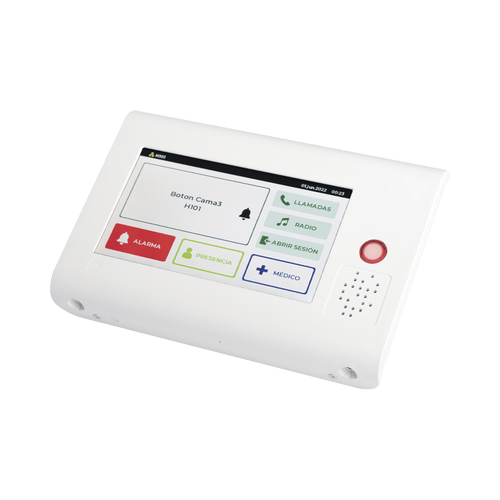

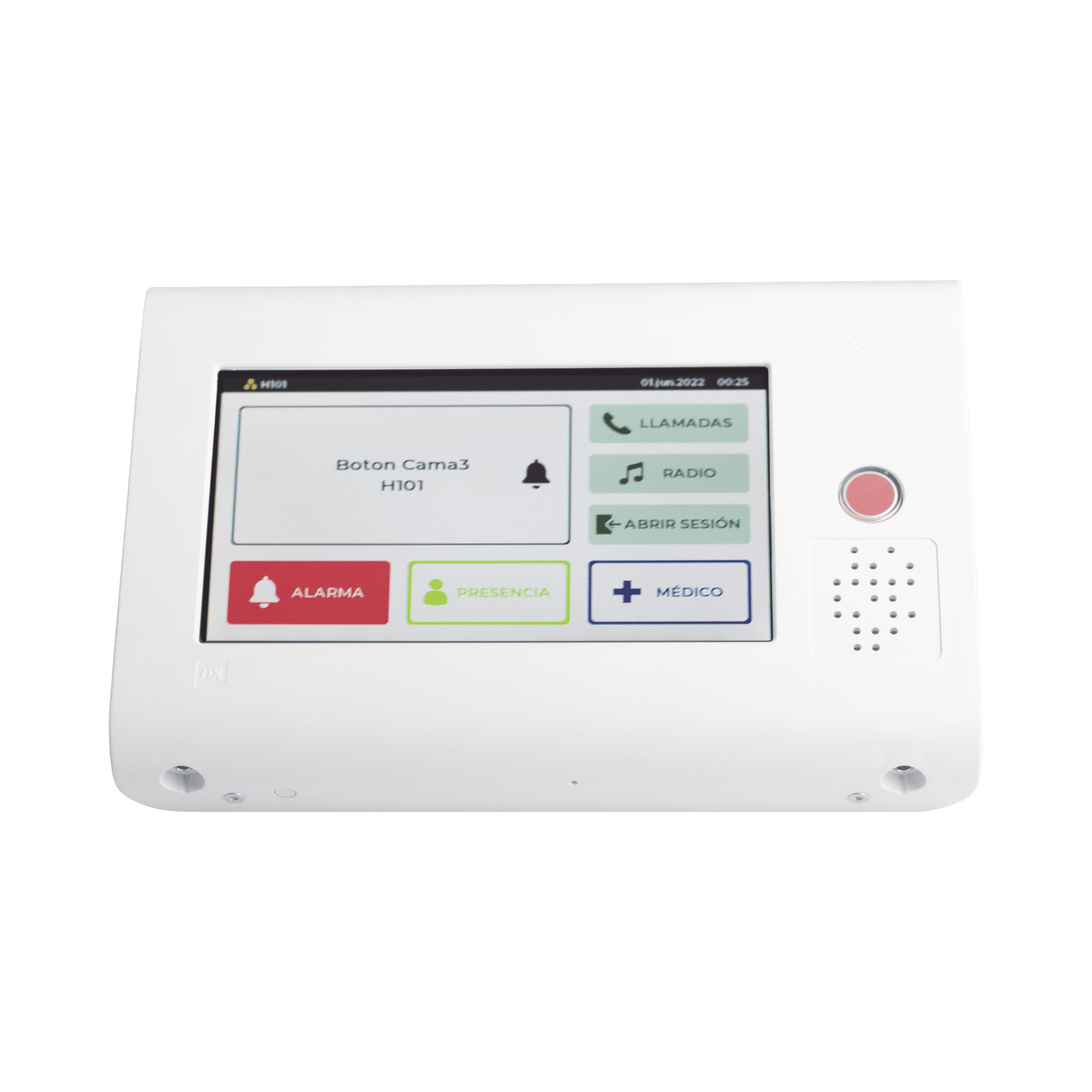

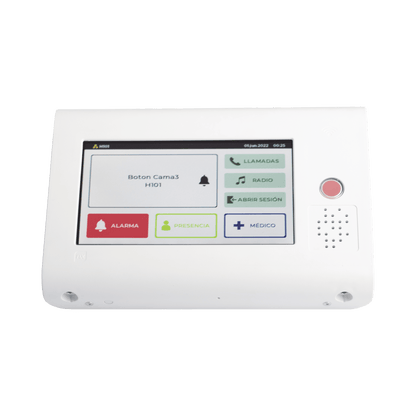

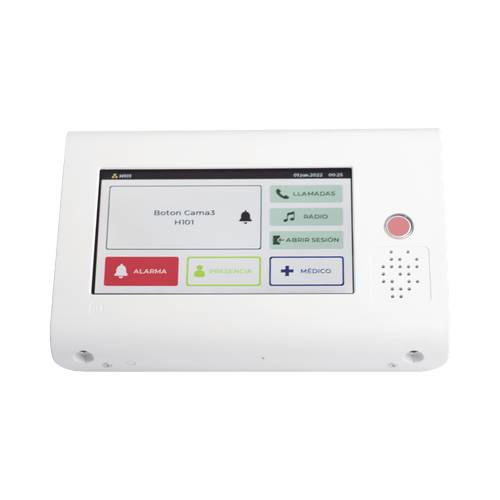

IP Room Terminal / 125 KHz RFID Reader / Bidirectional Audio / SIP / PoE / 7\" Touch Screen / Compatible with NX1071 and NX1075

  • b2ad583370511ed089d2c54334c304ca
  • f06c66928e83b74c639055e64561fefa
  • 409916a11f9a6027d3307b6f95b510e5
  • 682bf04b70c639adedbd85706ea5d7e3
1 4
  • VISUALIZAR Y CREAR TAREAS
  • LLAMADAS ENTRE HABITACIONES
  • VER INFORMACIÓN DEL PACIENTE

142 in stock

Modelo: NX1021

Proveedor: IBERNEX

Código SAT: 42191611

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Main features :

  • 7" color touch screen (can be used with latex gloves)
  • Integrated 125 KHz RFID reader and speaker
  • SIP VoIP Calls
  • Omnidirectional high sensitivity microphone
  • RS485 connection bus
Electrical and physical characteristics:
  • 12 Vdc power supply and PoE (IEEE 802.3af)
  • Current: 550 m A at 12 Vdc (7.6 W PoE)

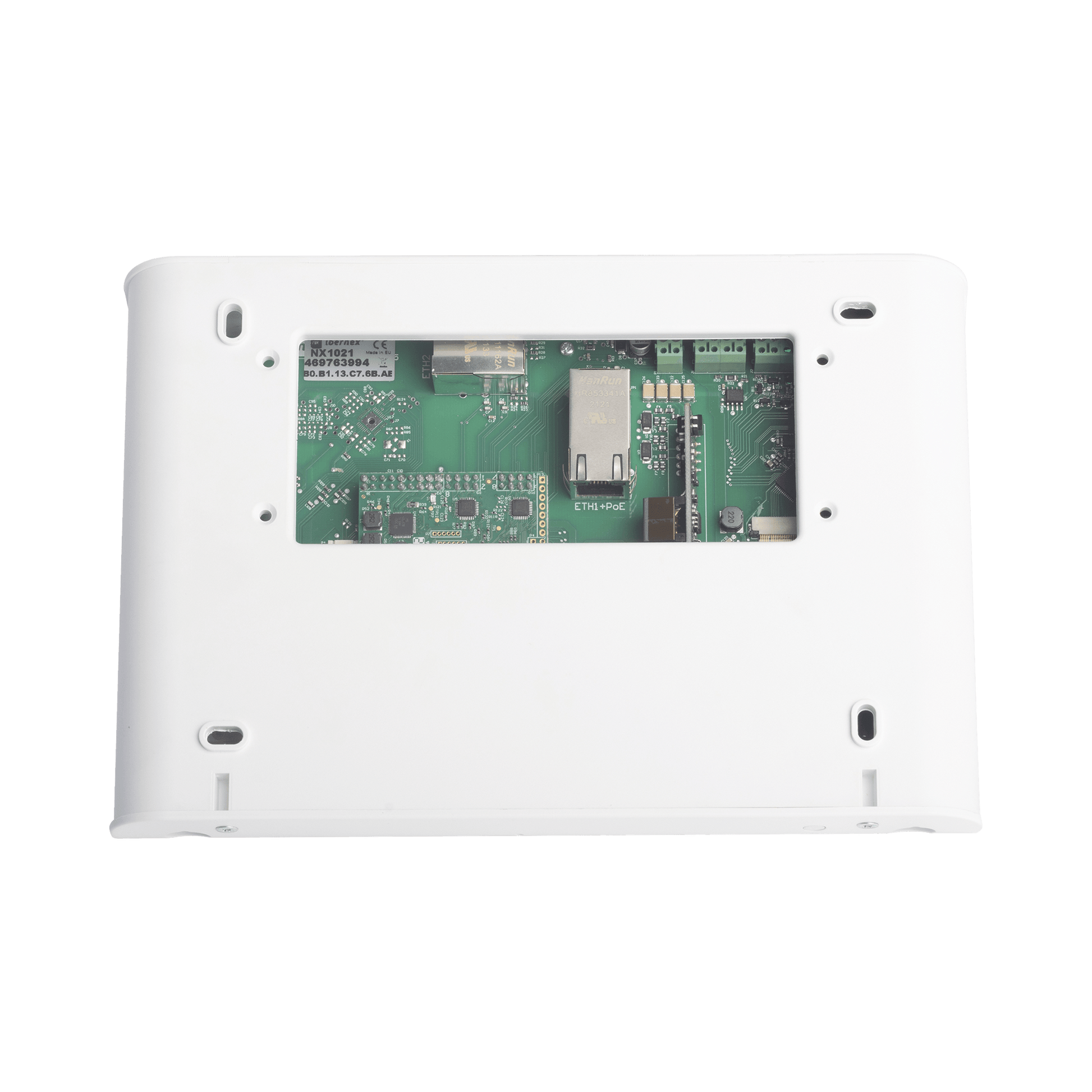

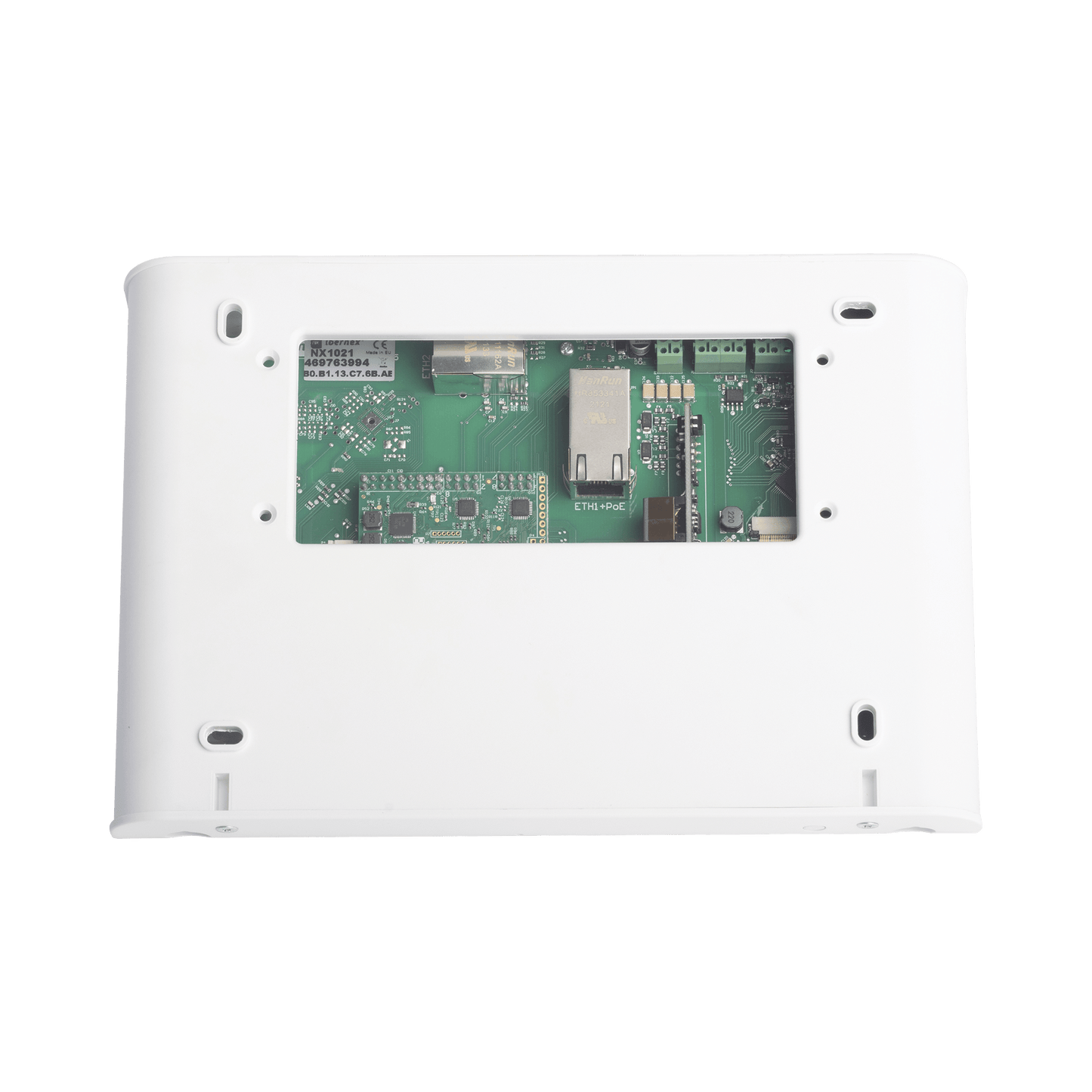

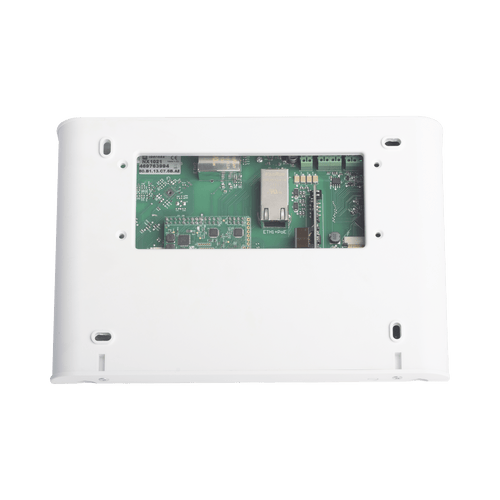

  • 2 Ethernet ports (Port 1 Eth + PoE)
  • Dimensions: 235x155x35mm
  • Review the complete sheet
Featured Features:

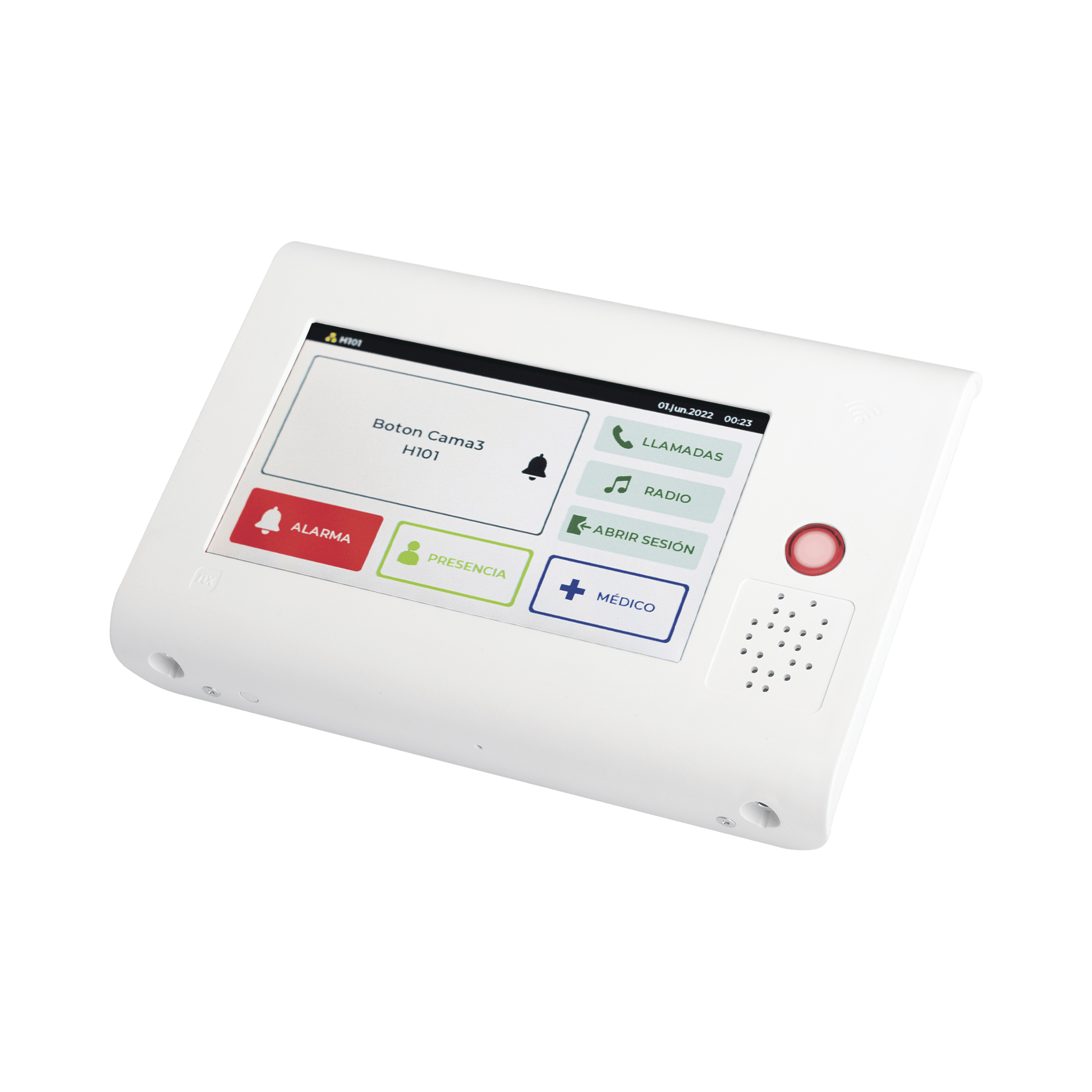

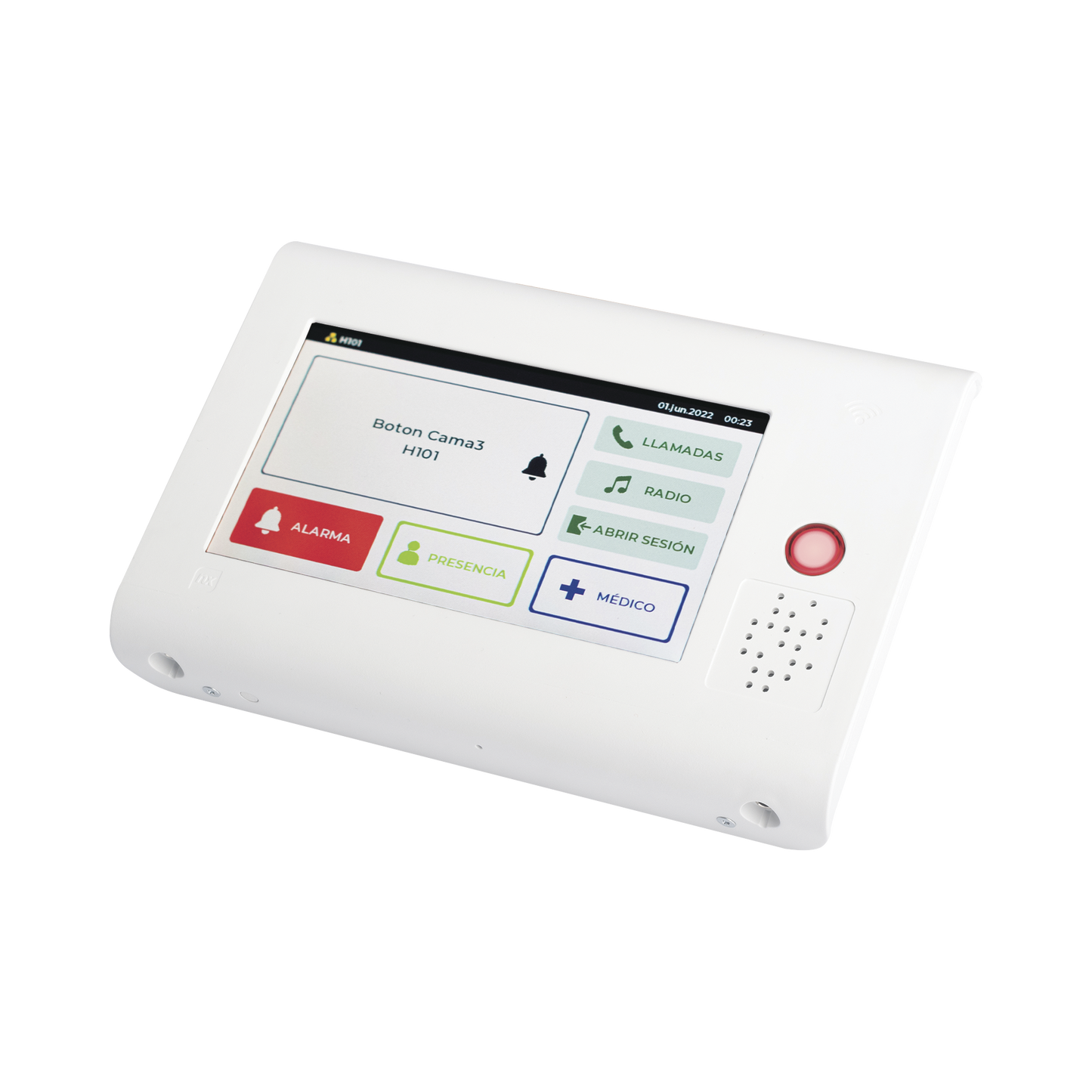

The NX1021 room terminal provides voice and data communication through the PoE Ethernet connection and acts as a controller for the peripherals of the Ibernex patient-nurse call system.

It has a 7" touch screen from which you can consult and record staff activity, as well as manage calls and control the possible configured public address channels. In addition, thanks to its integrated RFID reader, the center staff can identify themselves by card for alarm and task management.

Note: Requires certification for installation and to request technical support.

IP connection topology

All room terminals, nurse or doctor consoles, They connect via Ethernet network to the database.

Example of use

The peripherals connect directly to the room terminal

Direct encoding

Optimize time

It allows alarms to be coded directly on the terminal without having to go to the software or a nursing console, optimizing transfer and operational times.

Coding Reasons

They are customized according to needs

By having the options ready to select with a single touch, you can optimize the coding time of the task carried out in the room.

Additional comments

Optional when coding

They are added as a complement to the task carried out in the room to have more information about it and at the same time a justification of the work carried out.

Information of the patiente

Review important data

You can access information related to the patient that may be useful to staff, for example if they are allergic to any medication or if they require special attention.

Presences in other rooms

Quick view

When someone presents their card at any terminal it is possible to know which room they are in in real time.

Calls between rooms

Make a direct call

It is possible to dial other rooms or nurse consoles directly or using the personalized agenda.

Call to doctor

Also known as code blue

It can be configured so that only with the presence of a nurse can the call to the doctor be made.

Presence with card

Contactless identification

When the nurse or doctor shows up in the room, they simply present their card at the terminal to register presence and have access to a menu of several options, very useful for viewing current and past alarms or pending tasks.

Assistance Tasks

Programmed from the software

Tasks can be scheduled to be performed in one room, an entire apartment or building, They can also be applied to a specific patient either once or periodically.

Custom logo

In sleep or screen saver mode

The company logo or image can be uploaded to be displayed directly on the terminal.

Latex gloves

Interaction without direct contact

The touch screen also responds when wearing latex gloves

Bed push button

Directly at the terminal

Up to 2 bed buttons such as the NX0881 can be directly connected without the need for another accessory.
