IP Room Terminal / Blue Doctor Call Button / 125 KHz RFID Reader / SIP / PoE / Compatible with NX1071 and NX1075

  • ed788a3f003957c184869a406fb344be
  • ed788a3f003957c184869a406fb344be
1 2
  • "BLUE CODE"
  • BIDIRECTIONAL AUDIO

186 in stock

Modelo: NX0019/B

Proveedor: IBERNEX

Código SAT: 42191611

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Principal functions:
  • Antibacterial Material
  • Integrated 125 KHz RFID reader and speaker
  • SIP VoIP Calls
  • Omnidirectional high sensitivity microphone
Electrical and physical characteristics:
  • 12 Vdc power supply and PoE (IEEE 802.3af)
  • Current: 540 m A at 12 Vdc (7.5 W PoE)
  • 2 Ethernet ports (Port 1 Eth + PoE)
  • Digital echo cancellation
  • Dimensions: 243 x 119 x 33mm
  • Review the complete sheet
Featured Features:

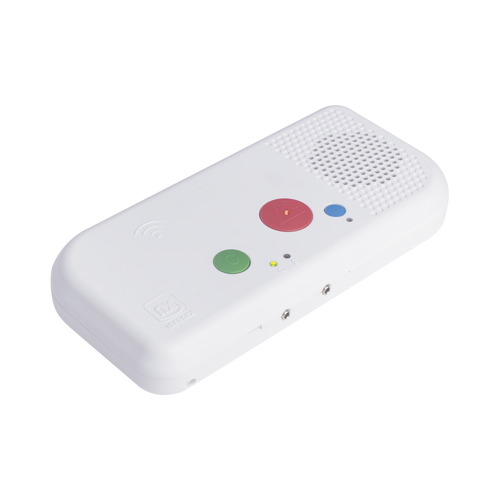

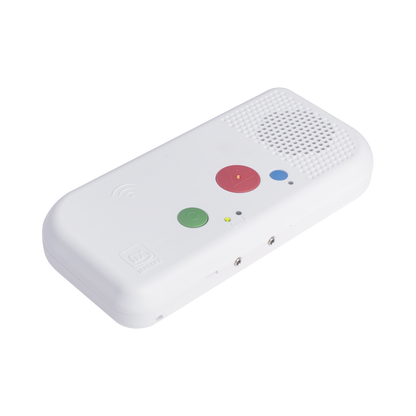

The NX0019/B IP room terminal provides voice and data communication through the PoE Ethernet connection and acts as a peripheral controller for the Ibernex patient-nurse call system.

It has three buttons that allow you to generate and cancel assistance alarms, including the blue button for calling a doctor. Also, thanks to its integrated RFID reader, Center staff can identify themselves by card and register their presence in the room.

Note: Requires certification for installation and to request technical support

IP connection topology

All room terminals, nurse or doctor consoles, They connect via Ethernet network to the database.

Examples of use

All peripherals are connected to the room IP terminal and powered from there.
