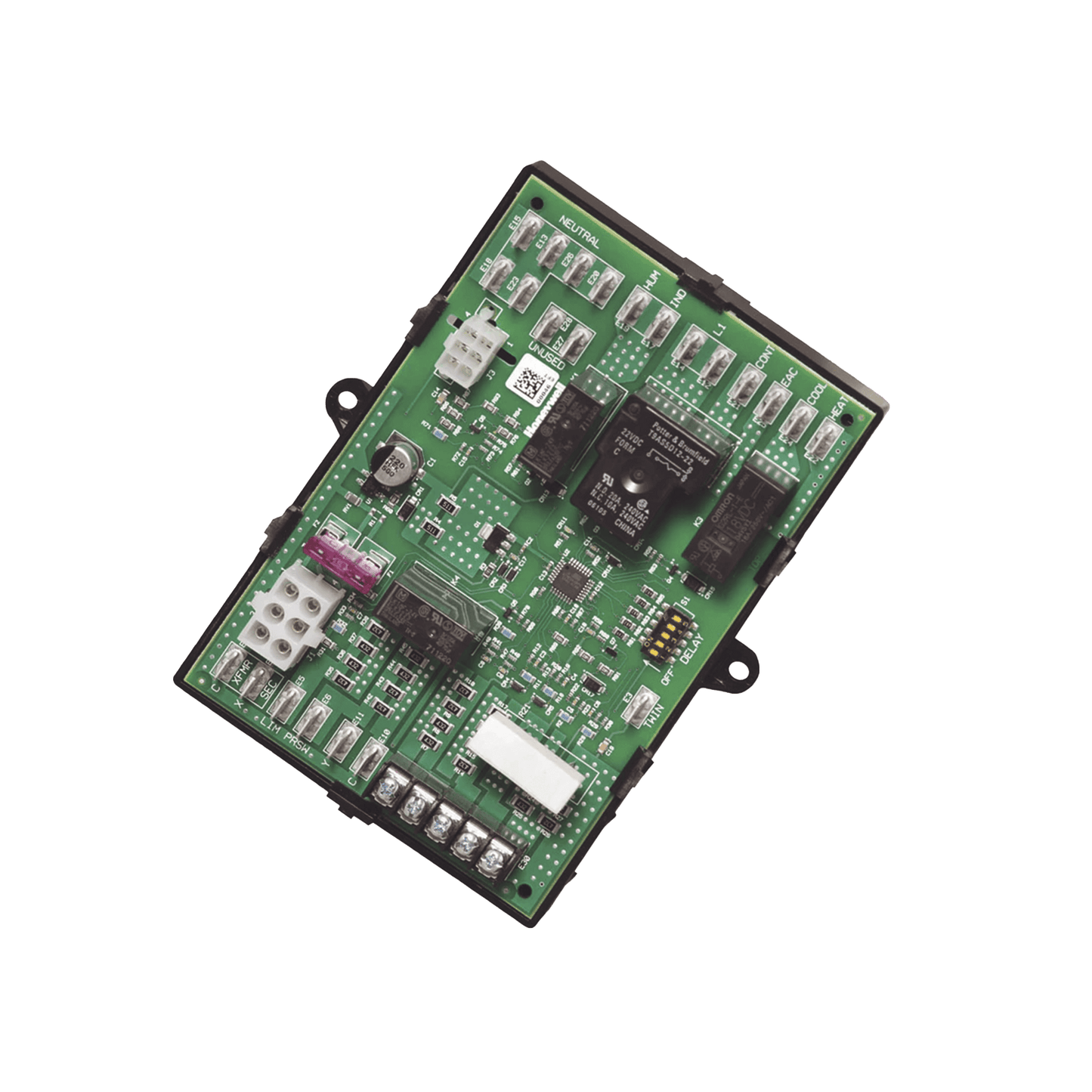

Universal electronic fan timer, replaces models ST9120, ST9101, ST9141 and ST9160.

  • 7b678d3d06f77e63bfbb270fbfcf0829
1 1

Out of stock

Modelo: ST9120U1011/U

Proveedor: HONEYWELL HOME RESIDEO

Código SAT: 40101800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

General description

Universal Electronic Fan Timer Replaces ST9120 Models: ST9101, ST9141 and ST9160 installed in gas hot air ovens. Includes instructions and special wire harnesses for easy replacement.

Characteristics

  • Replaces over 40 existing electronic fan timers
  • Instruction sheet provides a complete cross-reference and wiring guide
  • Interface harnesses for simple conversion
  • Integrates control of all combustion blower and circulation fan operations in the gas hot air appliance
  • Replaceable fuse
  • Hot and cool delay on and off times selectable by DIP switch
  • LED lights for easy diagnosis
  • Electronic Air Filter and Humidifier Terminal Connections
  • Continuous indoor air circulation at low speed

Product specifications

Application
Integrates control of combustion blower and circulation fan operations for a gas hot air appliance
Electrical ratings
18 to 30 Vac
Frequency
50Hz; 60Hz
Approvals, Underwriters Laboratories Inc.
Listing: Report MP466
Approvals, Canadian Standards Association
Certificate: File No. LR95329-17
Commercial value
Universal commercial line
Ambient temperature range (C)
-40C to +79C
Ambient temperature range (F)
-40F to +175F
Replaces
all ST9101, all ST9120, all ST9141 and all ST9160
Heat fan start delay
adj. 30, 60 sec (set to 30 sec)
Heat fan off delay
adj. 60, 120, 150, 180s (set to 120s)
Cool fan on delay
adj. 4, 30 sec (set to 4 sec)
Cooling fan shutdown delay
adj. 30, 60 sec (set to 30 sec)
