12-Line Business IP Phone with 5 Function Keys and 4-Way Conference, PoE

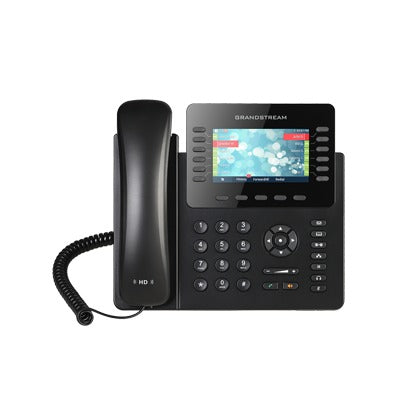

The GXP2170 is a powerful Enterprise grade IP phone that is ideal for busy users handling high call volumes. This phone is the top of the range with 12 lines and 6 SIP accounts, using a 4.3-inch color LCD screen and HD audio. The GXP2170 supports the fastest connections with its two Gigabit ports. It has built-in PoE and Bluetooth to sync with mobile devices and Bluetooth headsets. It also allows you to connect and power up to 4 extension modules in cascade with LCD display to access up to 160 BLF contacts. The GXP2170 also has up to 48 on-screen digital BLF keys for operations with your contacts. Added advanced security protection and broad interoperability with most leading SIP devices and SIP/NGN/IMS platforms, The GXP2170 is the perfect selection for users looking for the best in business phones with advanced functionality and performance.

Main:

- 12 Lines, 6 SIP accounts, 5 programmable XML function keys and 5-way conference.

- 4.3-inch LCD color graphic screen (480x272).

- HD Audio.

- Double Gigabit network port.

Expansion:

- Can power up to 4 GXP2200EXT modules.

Telephony functions:

Retention, transfer, resend (unconditional/no response/busy), 5-way conference, parking/call recovery, downloadable phone book (XML, LDAP, up to 500 contacts) call waiting, call history (up to 200 records), automatic dialing when picking up, automatic response, click to dial, flexible dial plan, shared workstations (hot desking), ringtones with personalized music, server redundancy and failover.

Codecs:

G7.29A/B, G.711μ/a-law, G.726, G.722(wide-band), in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO).

Interfaces:

- Dual 10/100/1000 Mbps switched Ethernet ports with auto detection.

- RJ9 headset connector (allows EHS with Plantronics headsets).

Security:

Access control at user and administrator level, authentication based on MD5 and MD5-sess, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x Media Access Control.

Quality of service:

Layer QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, Di Serv, MPLS).

Idioms:

Spanish, English, german, Italian, french, Portuguese, russian, Croatian, simplified and traditional Chinese, korean, Japanese.

Protocols and rules:

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6.

Accordance:

FCC: Part 15 (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1.

Physical and electrical characteristics:

- Universal power supply; Input: 100~240VAC 50-60Hz; Output: 12Vdc, 1A. / PoE 802.3af , 5.4~9.2W.

- Mountable on base or wall.

- Dimensions: 228 x 206 x 46 mm.

- Weight: 0.94 kg.

- Operating temperature: 0~40ºC.

Package content:

GXP2170 phone earphone with cord, support base, universal power supply: network cable, Quick Installation Guide: brochure, GPL license.

*1 year warranty.

GXP2170 with a GXP2200EXP expansion module
