HDMI Input Card | 4 Ports | HDCP 1.4 | EDID Expert | Audio Compatible | Compatible with VM1600A

  • 226db2e9d5bcb7dc178ed4f2a89c7e2a
  • 23b6496a4d463e31395120dfc865ed3c
1 2

Out of stock

Modelo: VM7804

Proveedor: ATEN

Código SAT: 46171611

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

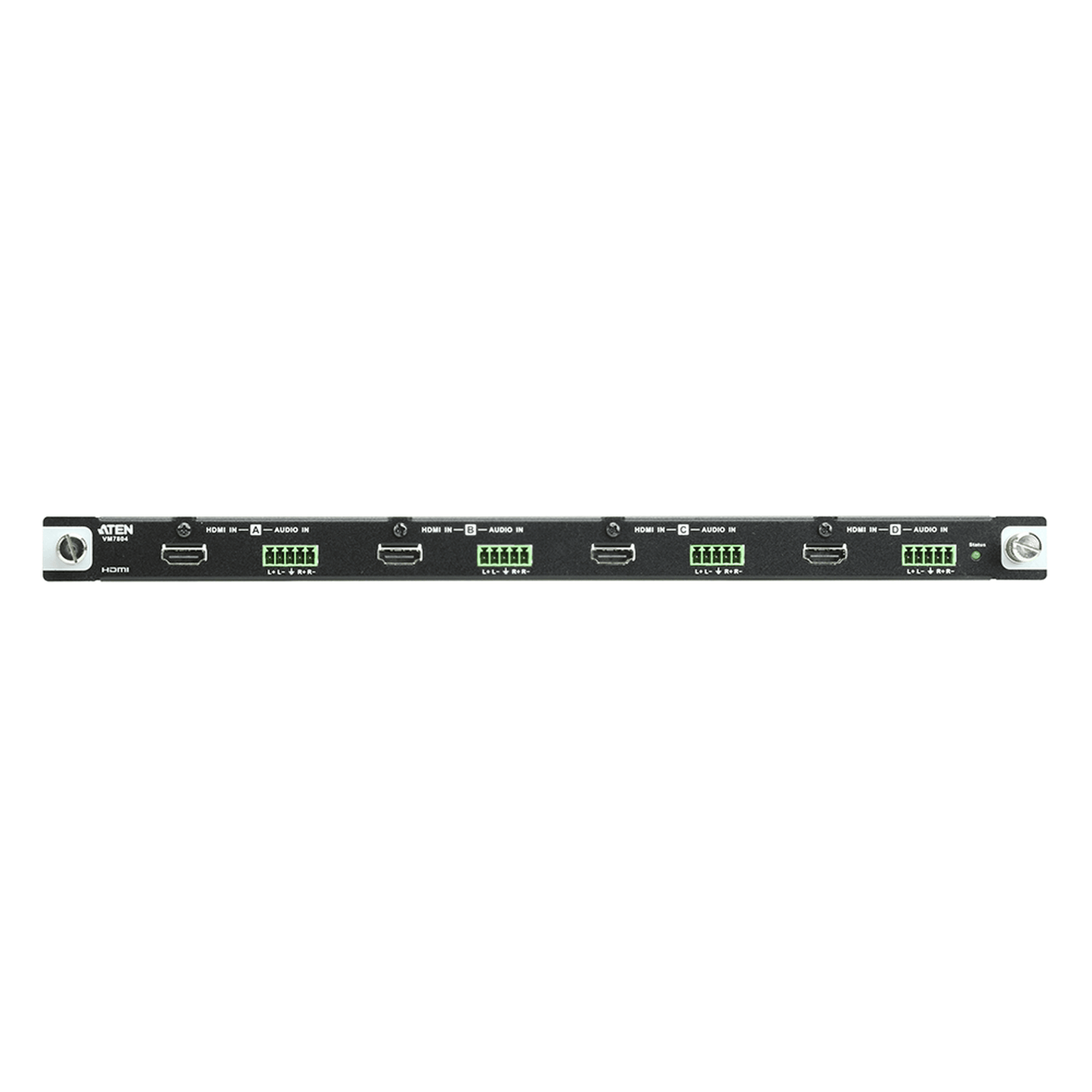

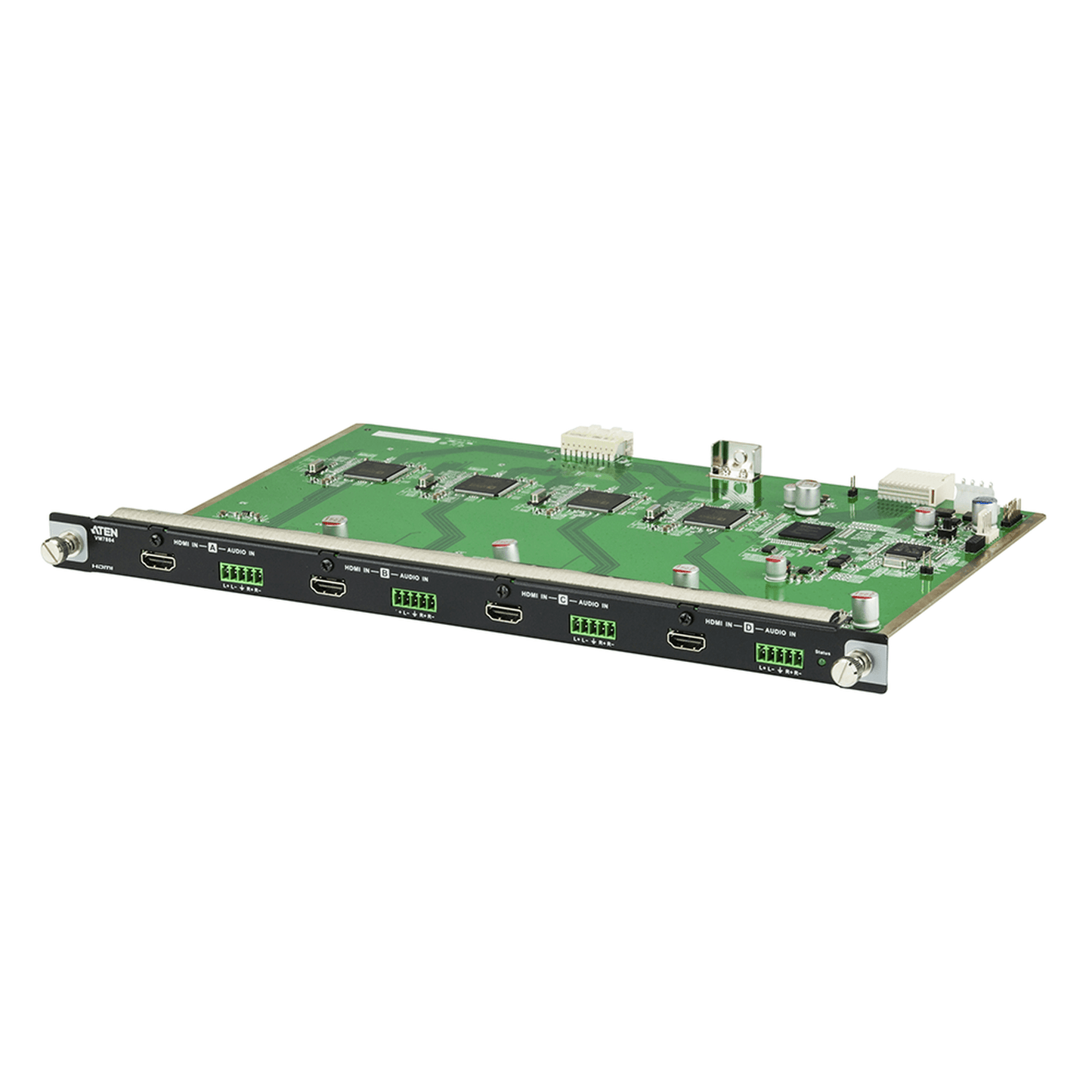

The VM7804 4-Port HDMI Input Card offers an easy way to route 4 audio/video sources to 4 displays, in combination with the ATEN modular matrix switch.

The VM7804 also allows HDMI audio extraction and stereo audio keying.

General characteristics

  • Video input:
    • Interfaces: 4 x HDMI Type A female (Black)
    • Impedance: 100Ω
    • Maximum distance: Up to 5 m
  • Video output:
    • Interfaces 4 x HDMI type A female (Black)
    • Impedance 100 Ω
  • Video
    • Maximum data rate: 6.75 Gpbs (2.25 Gbps per lane)
    • Maximum pixel clock: 225 MHz
    • Normative:
      • HDMI (3D, Deep Color)
      • HDCP 1.4 compliant
      • Electronic consumption control (CEC)
    • Maximum resolution: Up to 1920 x 1080
    • Maximum distance 15 m
  • Audio
    • Entrance:
      • 4 x Connector with captive screw, 5 sections
      • *Audio signal type: stereo balanced/unbalanced.
  • Feeding:
    • Consumption: 7W
  • Environmental conditions
    • Operating temperature 0 - 40°C
    • Storage temperature -20 - 60°C
    • Humidity RH 0 - 80%, no condensation
  • Physical Properties
    • Metal Housing
    • Weight 0:58 kg (1:28 lbs)
    • Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in)

The equipment contains: 1x VM7804 4-port HDMI input card, 4x terminal blocks, 1x instruction manual
