M.2 SSD and 10GbE combo adapter card to accelerate performance

  • 2fea44c9f869ef862580dc3c45f7f736
  • a58bf5777b5b2315e27ef5c70bc31884
1 2
  • Ancho de banda 10 Gbe para mejor rendimiento
  • Cache SSD M.2 para E/S optimizada
  • Conexión PCIe 3.0 x8 para máxima eficiencia
  • Soporte de perfil bajo y altura completa
  • Operativa entre 0°C y 40°C

Out of stock

Modelo: E10M20T1

Proveedor: SYNOLOGY

Código SAT: 43211600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

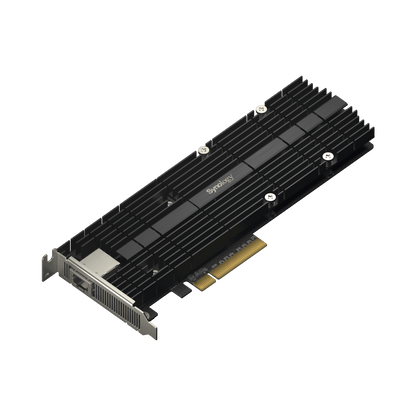

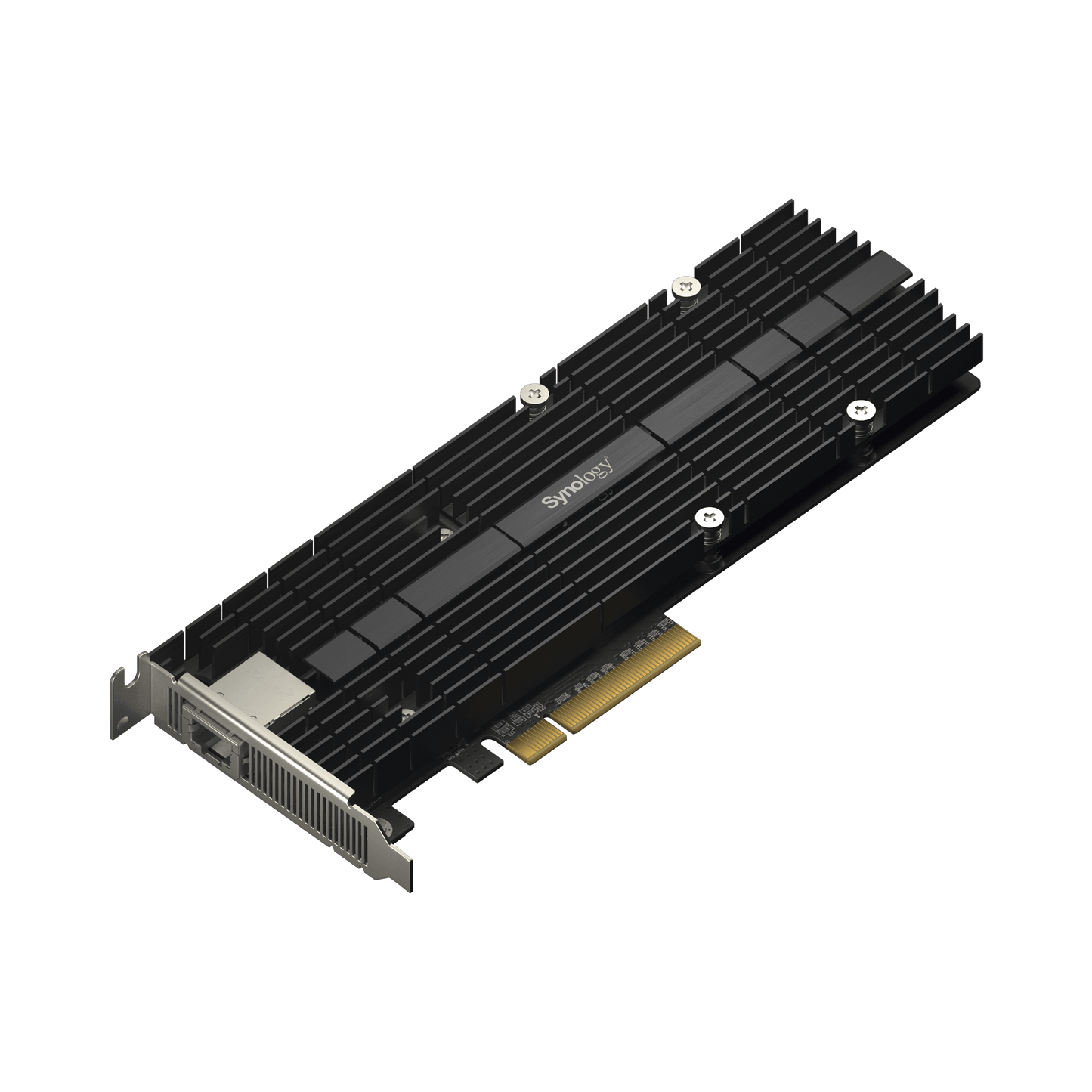

10GbE Bandwidth and M.2 SSD Cache, all in one

Synology E10M20-T1 helps you improve I/O performance and network bandwidth simultaneously with a single PCIe expansion slot on your Synology NAS.

General:
  • Host bus interface: PCIe 3.0 x8
  • Stand Height: Low Profile and Full Height
  • Size (Height x Width x Depth): 71.75mm x 200.05mm x 17.70mm
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -20°C to 60°C (-5°F to 140°F)
  • Relative humidity: 5% to 95% RH
  • Warranty: 5 years
Storage and Network:
  • Storage interface: PCIe NVMe
  • Supported form factor: 22110/2280
  • Connector quantity and type: 2 ports, key M
  • Data transfer speeds: 10 Gbps
  • Network operating mode: Full duplex
Compatibility:
  • SA series: SA3600, SA3400
  • 20 series: RS820RPPLUS, RS820PLUS
  • 19 series: DS2419PLUS, DS1819PLUS
  • 18 series: RS2818RPPLUS, RS2418RPPLUS, RS2418PLUS, DS3018xs, DS1618PLUS

10GbE Ready

Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.

Dedicated cache slots

Free up drive enclosures for data storage.

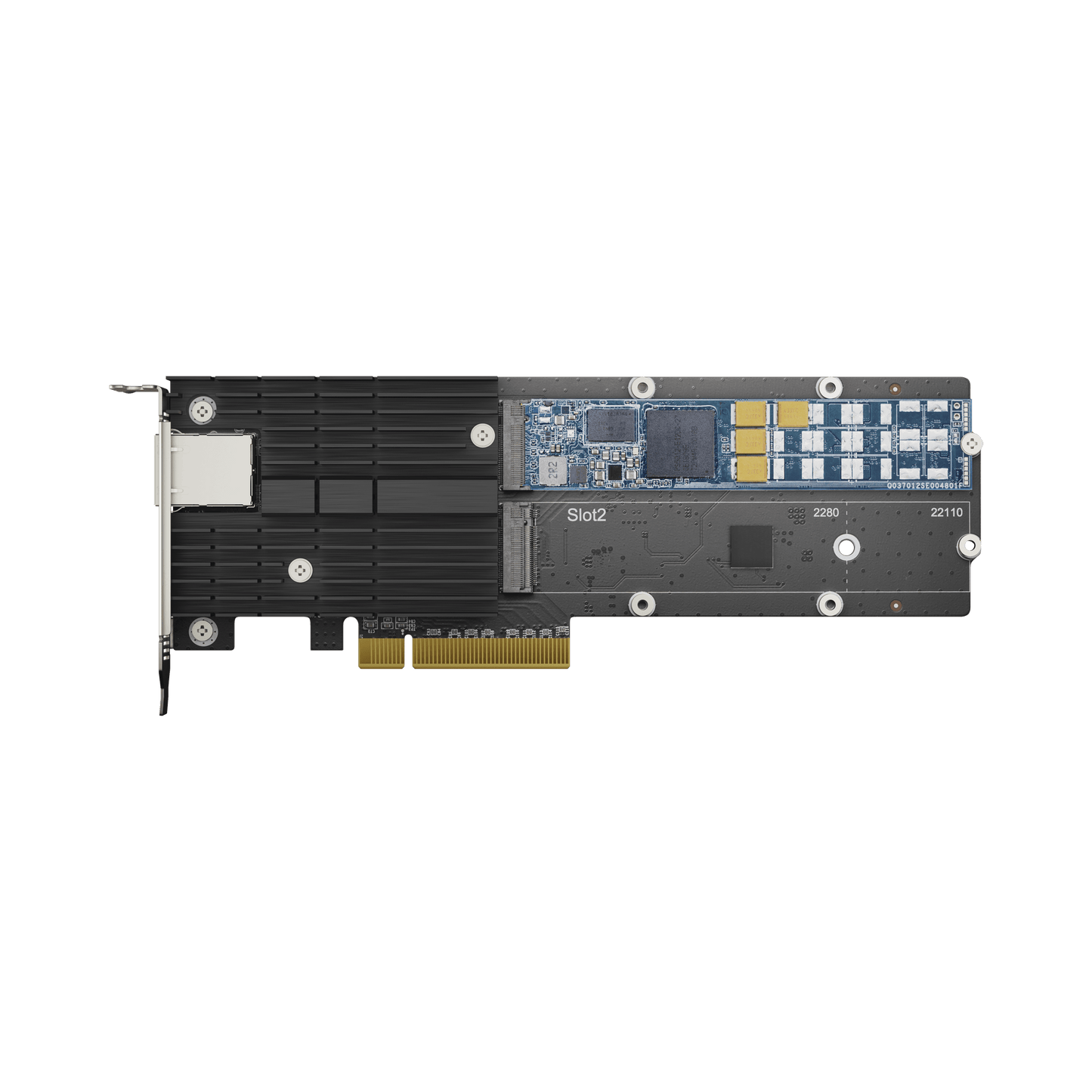

NVMe enabled

Accelerate random I/O performance with two NVMe M.2 2280/22110 SSD slots.

A perfect match with Synology SNV3000 series NVMe SSD

Install Synology SNV3000 series NVMe SSD on M2D20 adapter card for fast and optimized cache acceleration, and make the most of the resistance, the enterprise performance and reliability of Synology SSD with your Synology NAS.

Compliance with IEEE specifications

  • Ethernet IEEE 802.3an 10 Gbps
  • Ethernet IEEE 802.3bz 2.5 Gbps/5 Gbps Gigabit
  • Ethernet IEEE 802.3ab
  • IEEE 802.3u High Speed ​​Ethernet
  • IEEE 802.3x flow control
