(SXT SA5 ac)Access Point in 5GHz 802.11 a/n/ac, Integrated 14 dBi 90° Antenna, Up to 1000 mW

  • 43f92c4321a8615d4a001020b9e553ac
  • 4026105a96b13addf49d0cbdb5956b00
1 2
  • Velocidad de datos por aire hasta 866 Mbps
  • Modulación 256-QAM y canales de 80 MHz
  • Compatible con estándares 802.11a/n/ac
  • Antena sectorial de 90 grados para cobertura ampliada
  • Ethernet Gigabit para máxima eficiencia de red

119 in stock

Modelo: RBSXTG-5HPACD-SA

Proveedor: MIKROTIK

Código SAT: 43222640

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The new AC standard is here, with up to 866 Mbit data speed over the air, 256-QAM modulation and 80MHz channels. 802.11a/n/ac opens up new possibilities and speeds never before possible.

The SXT ac is a new member in our 802.11ac product line, There are currently two models available: with a regular 28-degree antenna and the SA model with a 90 beamwidth sector antenna. It also supports the 802.11a/n standard. Nstreme and Nv2 protocols and are compatible with all previous RouterBOARD devices. Both devices come with Gigabit Ethernet.

New products are backward compatible; for example, You can replace your legacy 5GHz 802.11a/n access point with a new 802.11ac product and your existing clients will still be able to connect to it.

Specifications

Details
Product code RBSXTG-5HPacD-SA
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720MHz
RouterOS License 4
OS RouterOS
RAM size 128MB
Storage size 128MB
Storage type NAND
Tested ambient temperature -40°C up to 70°C
MTBF Approximately 200,000 hours at 25°C

Feeding

Details
PoE in 802.3af/at
PoE in input voltage 12-57V
Number of DC inputs 1 (PoE input)
Maximum power consumption 12W
Fan count Passive

Wireless specifications

Details
Maximum wireless data rate of 5 GHz 867 Mbit/s
Number of 5 GHz wireless chains 2
5 GHz wireless standards 802.11a/n/ac
dBi antenna gain for 5 GHz 14
5GHz wireless chip model QCA9892
5 GHz wireless generation Wi-Fi 5

ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of USB ports 1
USB power reset Yeah
USB slot type USB type A
Maximum USB current (A) 1

Other

Details
PCB Temperature Monitor Yeah
Voltage monitor Yeah

Certifications and approvals

Details
Certification CE, FCC, IC, EAC, ROHS

Wireless specifications

5GHz Transmit (dBm) Receive sensitivity
6 MBit/s 31 -96
54 MBit/s 28 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72

Ethernet test results

RBSXTG-5HPacD-SAr2 QCA9557 1G all port test
mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 234.9 962.2 477.7 244.6
Bridging 25 bridge filter rules 81.2 986.1 118.4 485.0 119.5 61.2
Routing none (fast path) 81.2 986.1 234.9 962.2 408.2 209.0
Routing 25 simple queues 81.2 986.1 158.3 648.4 165.8 84.9
Routing 25 ip filter rules 64.8 786.9 70.4 288.4 60.9 31.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay) and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

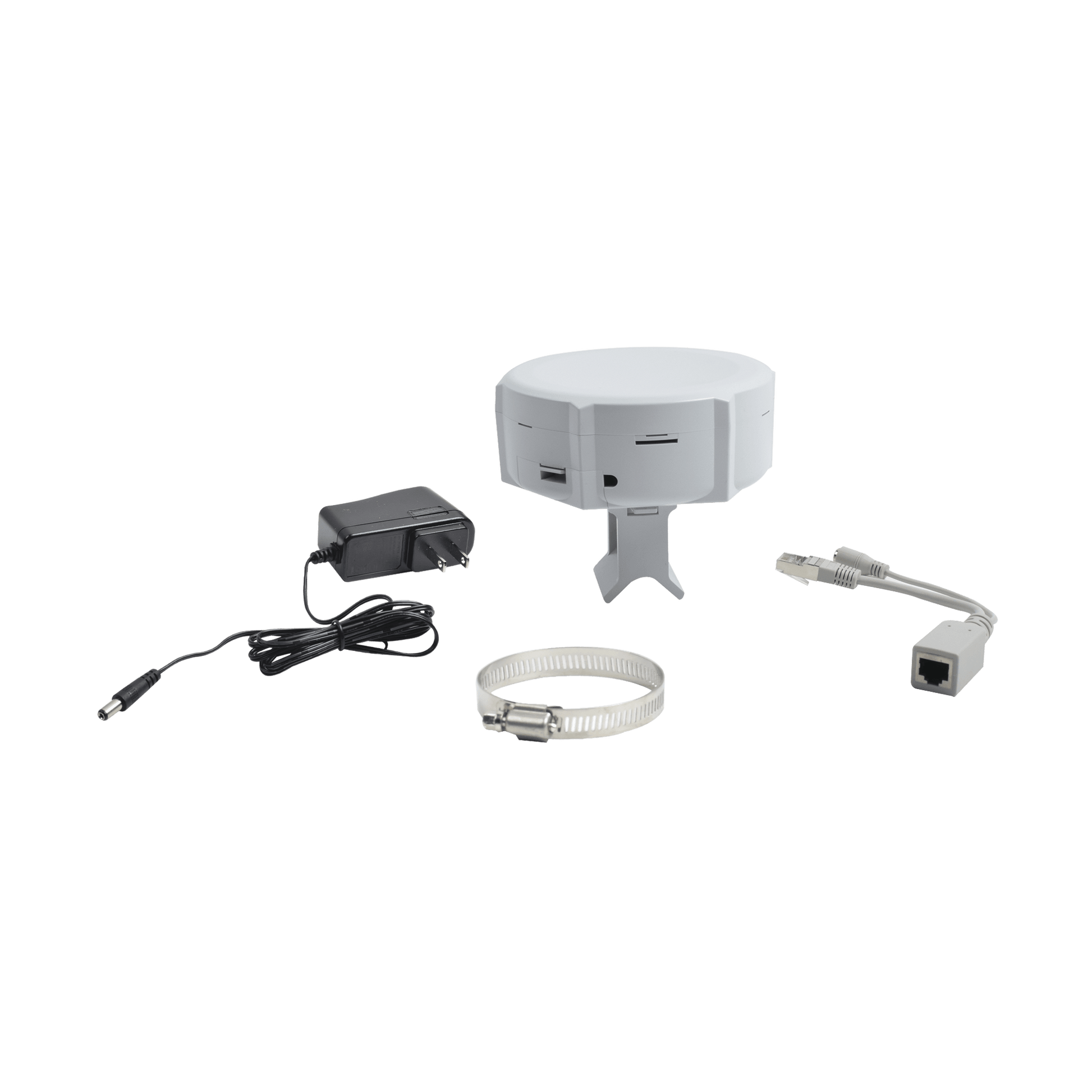

Parts included
