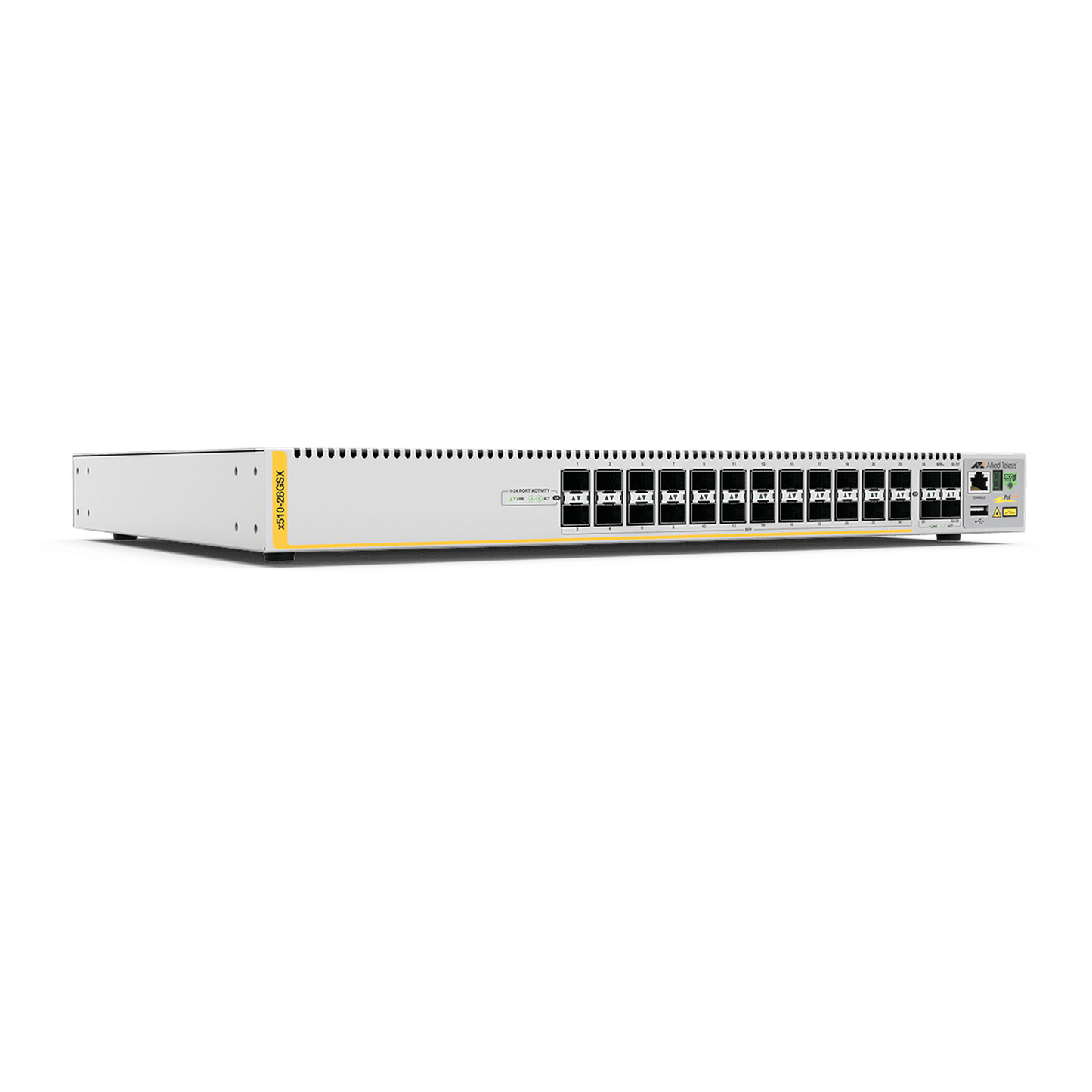

Stackable Layer 3 Switch, 24 Gigabit SFP ports + 4 10G SFP+ ports, redundant supply

  • f5e3f27afb01c6ec277d80d2afcfa820
  • ffa47cd45f64307e2d198867f5658227
1 2
  • Stackable up to four switches.
  • Up to 4094 VLANs.
  • Routing protocols (OSPF, RIP).
  • Multicast support (IGMP snooping).
  • Restrictions on Hazardous Substances (RoHS) Compliance.

Out of stock

Modelo: AT-X510-28GSX-10

Proveedor: ALLIED TELESIS

Código SAT: 43222610

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Ports:

24 100/1000X SFP ports.

4 SFP+ 10G ports (2 are stacked).

Forwarding rate: 95.2 Million packets per second (Mpps).

Switching fabric: 128 Gbps.



OS:

AlliedWare Plus™.



Administration:

Command Line Interface (CLI).

Graphical user interface (GUI).

Telnet.

SSH.

SNMP v1 monitoring, v2c & v3.



General characteristics:

OpenFlow for Software Defined Network (SDN).

VoiceVLAN.

VLAN Mirroring (RSPAN).

Access Control Lists (ACLs).

VLAN ACLs.

Storm protection.

Loop protection.

Multicast support -IGMP snooping (v1, v2 and v3)

Tri-authentication.

QoS (Quality of Service):

  • 8 priority queues.
  • Limit bandwidth per port or per traffic class.



Routing protocols :

Static routing.

Routing Information Protocol (RIP).

Open Shortest Path First (OSPFv3).

AT-FL-X510-01 Premium Layer 3 License.



Redundancy features:

G.8032 Ethernet Ring Protection.

Ethernet Protection Switched Ring (EPSRing).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).



Physical and electrical characteristics:

Power: 90-260 VAC, 47-63 Hz.

Dimensions: 1 U Rack, 44 x 325 x 440mm.

Weight: 4.8kg.

Operating Temperature: 0 to 45° C.



Warranty:

1 year.

Example of a high-performance business network.
