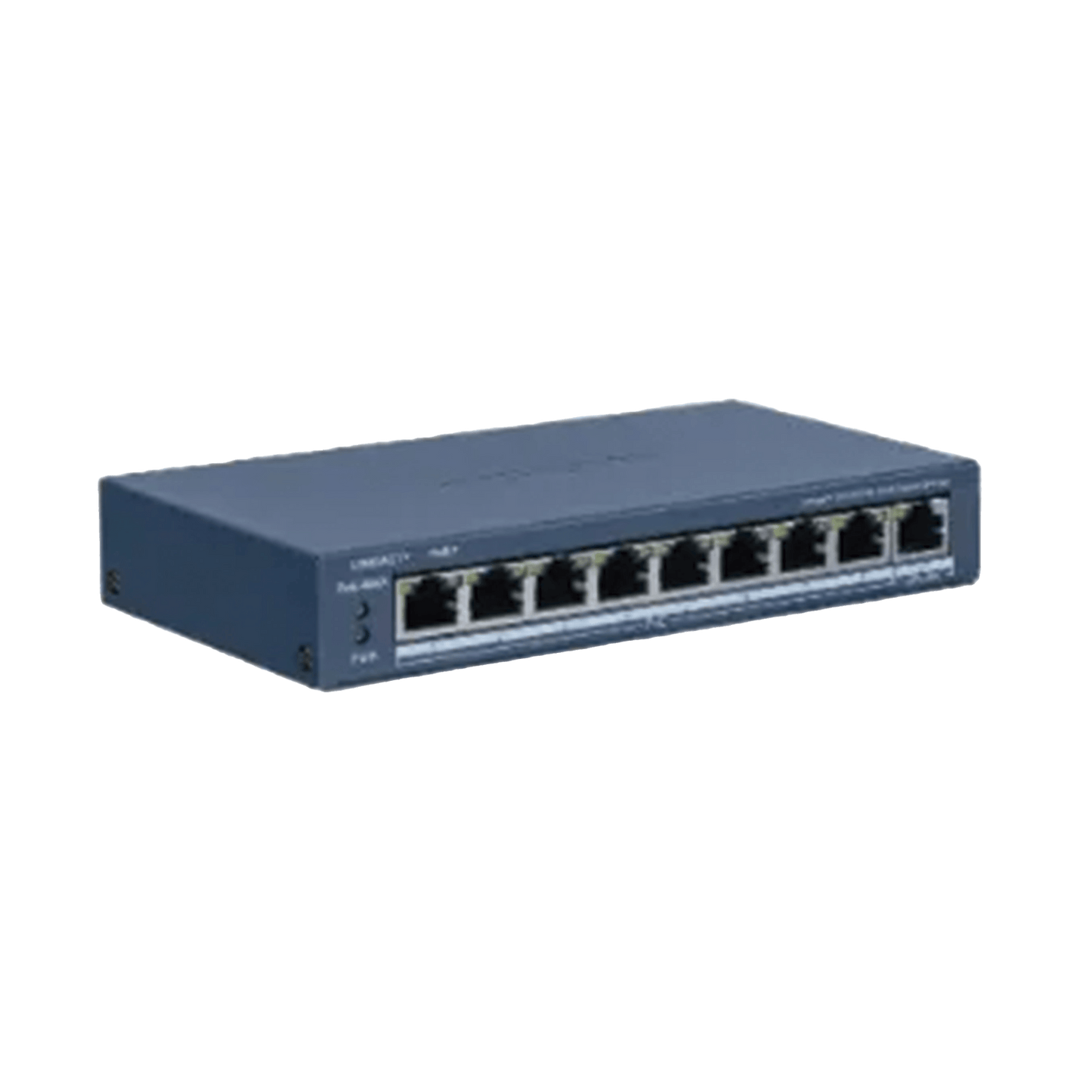

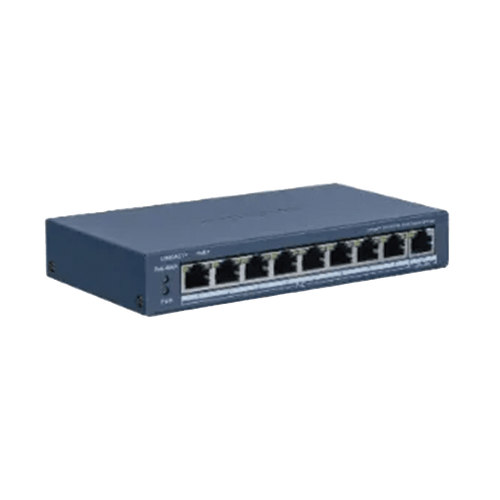

PoE+ Switch / Monitorable / 8 Ports 10/100 Mbps PoE+ / 1 Port 1000 Mbps Uplink / PoE up to 300 meters / 60 W

  • ca0372ea08ed5f10fb2a313d99eba5c4
1 1

500 in stock

Modelo: DS-3E1309P-EI/M

Proveedor: HIKVISION

Código SAT: 43222600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Main features:
  • Extended mode available to reach cable transmission up to 300 meters.
  • ​When EXTEND mode is enabled, the bandwidth will be 10Mbps and the power should not exceed 8W maximum per port.
  • It is recommended to use 100% copper cat 6 cabling for extended mode.
  • Buffer optimization to guarantee video transmission.

Physical and Electrical Characteristics:
  • Maximum Watts Capacity: 60 W.
  • Maximum Watts management per port: 30 W.
  • ​8 802.3af/at PoE ports that support EXTEND mode.
  • ​Power: 48 VDC, 1.35 A (Power Included).
  • Dimensions: 170.00mm × 27.60mm × 93.10mm
  • Weight: 0.9 kg.
  • Warranty: 2 years
  • NOT rack mountable
Considerations:

Driving Mode 1

The HIKVISION PoE switch allows us to reach distances of up to 500 meters in total when using a HIKVISION PoE extender model DS-1H340101P .

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.

Driving Mode 2

When enabling extended mode, it allows us per port to reach distances of up to 250 meters.

Compatible IP cameras in extended mode can be any HIKVISION camera that does not exceed 8 watts in total consumption.
