WebSmart 16-port Gigabit PoE+ Switch 10/100/1000 Mbps (2 x Combo) + 2 gigabit SFP ports (Combo), 185 W

  • 91700a86e84cbb0bc54a76ae9583734d
  • 91700a86e84cbb0bc54a76ae9583734d
1 2
  • Configuration via Web interface.
  • VLANs: Up to 256 groups.
  • RMON Groups (1, 2, 3, 9).
  • IPv4 Multicast support (IGMP snooping).
  • Management IP: DHCP client for Web interface.

Low stock: 6 left

Modelo: AT-GS950/18PS-V2-10

Proveedor: ALLIED TELESIS

Código SAT: 43222600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

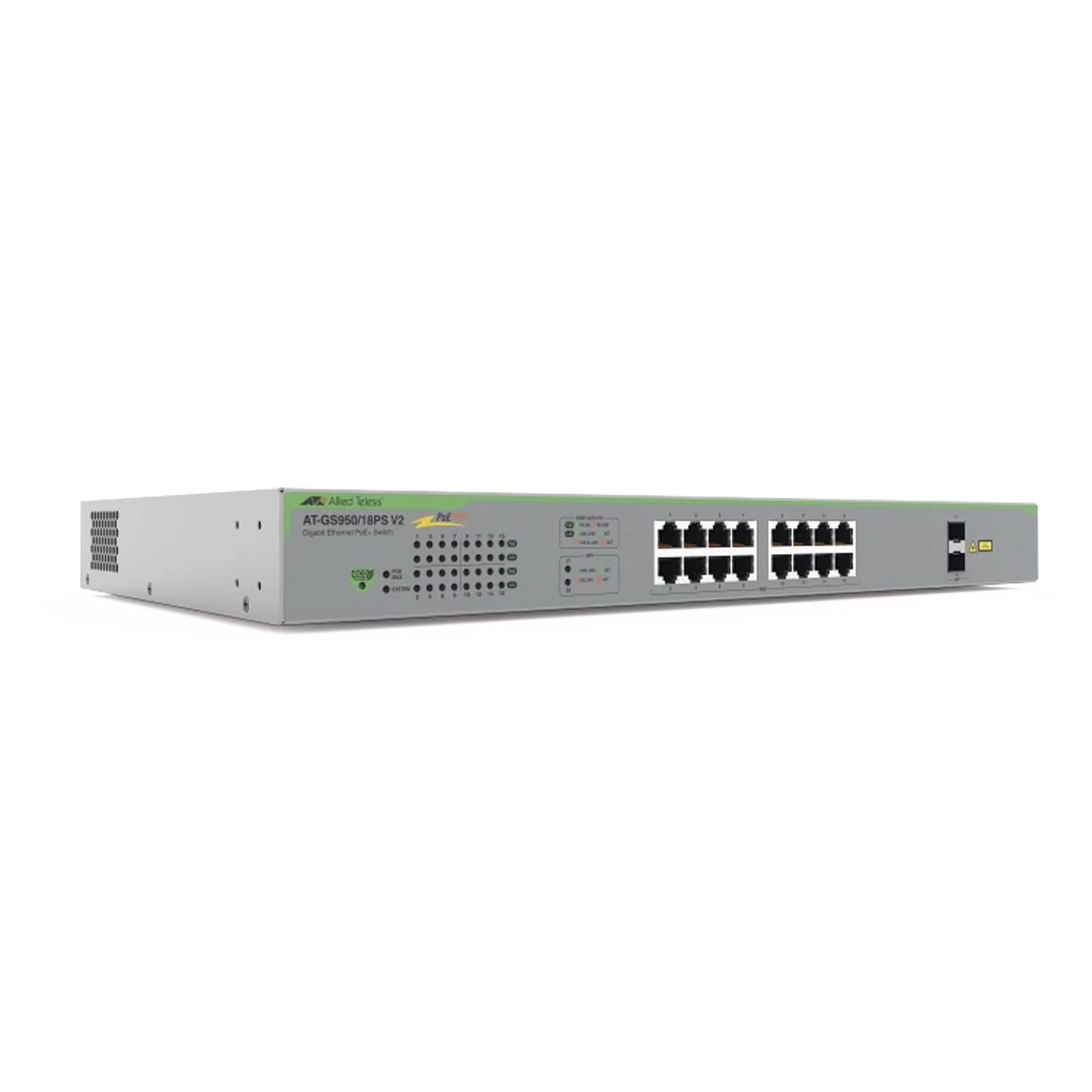

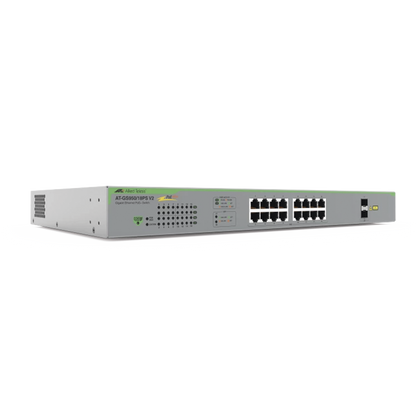

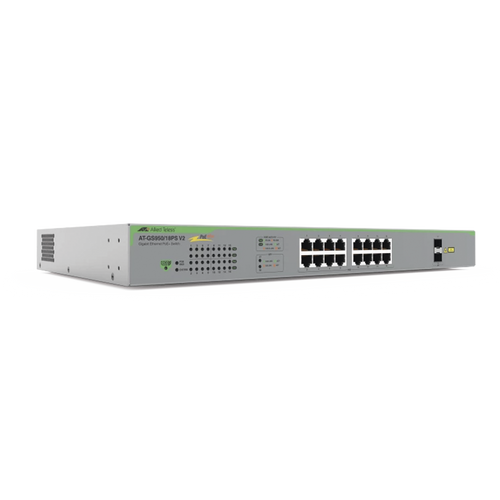

GS950/18PS V2

WebSmart Gigabit PoE+ Switch

The WebSmart Allied Telesis GS950/18PS V2 Gigabit PoE+ Switch features 16 10/100/1000T ports and two SFP ports, that offer up to 30 watts per port (PoE+) to support video surveillance cameras, wireless access points, IP phones and other PoE powered devices. PoE+ eliminates the need for separate power cabling and minimizes the clutter of power supplies and adapters for simplified deployment.

Thanks to its compact size, The AT-GS950/18PS V2 is ideal for edge businesses, classrooms, coffee shops and point of sale (POS) applications.

Specifications

Product 10/100/1000T copper ports 100/1000X SFP ports Total ports PoE+ enabled ports Switch fabric Forwarding rate
GS950/18PS V2 16 2 18 16 36Gbps 26:78 Mpps

Physical

Product Broad Depth Height Weight
GS950/18PS V2 440 mm (17:32 inches) 250 mm (9:80 inches) 44 mm (1:73 inches) 3:7 kg (8:16 lb)

Power and noise characteristics

No PoE load Full PoE+ charge
Product Maximum power consumption (W) Maximum heat dissipation (BTU/h) Noise (dBA) Maximum power consumption (W) Maximum heat dissipation (BTU/h) Noise (dBA)
GS950/18PS V2 75 255,911 41 260 890,948 47:1

Note: Noise values ​​depend on ambient temperature, not POE charging. Above 25C, the fan runs at full speed.

Power over Ethernet

PoE provisioning ports
Product PoE power budget (W) PoE (7:5W) PoE (15:4W) PoE+ (30W)
GS950/18PS V2 185 16 12 6

Warranty:

1+1 year, only if the equipment is registered in the following link:

http://www.alliedtelesis.com/support/maintenance-and-warranty/register
