CentreCOM FS980M Managed PoE+ Switch, Layer 3 with 16 Ports 10/100 Mbps + 2 RJ45 Gigabit/SFP Combo ports, 250W

Ports:

16 10/100 Mbps ports.

2 SFP Gigabit Combo ports.

Forwarding rate: 5.36 Million packets per second (Mpps).

Switching fabric: 7.2 Gbps.

PoE:

IEEE 802.3af Power Over Ethernet (PoE).

IEEE 802.3at Power Over Ethernet plus (PoE+).

Total power: 250 W.

OS:

AlliedWare Plus™.

Administration:

Command Line Interface (CLI).

Graphical user interface (GUI).

Telnet.

SSH.

SNMP v1 monitoring, v2c & v3.

Characteristics:

Access Control Lists (ACLs) based on Layer 2, 3 and 4.

Features of IPv6.

Eco-friendly with the environment.

IEEE 802.1x/MAC/Web authentication support.

Multicast support - IGMP snooping (IGMPv1, v2 and v3).

Storm protection.

Bridge Protocol Data Unit (BPDU) protection.

Tri-authentication.

QoS (Quality of Service):

• Eight priority queues.
• Bandwidth limit per port.
• Traffic classification with low latency.

Redundancy features:

Ethernet Protection Switched Ring (EPSRing).

Loop protection.

Link Aggregation.

Spanning Tree Protocol (STP).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).

Supported Layer 3 Features:

Static routing.

RIP.

Physical and Electrical Characteristics:

Power: 100-240 VAC, 50-60Hz.

Dimensions: 43.2 x 440 x 257 mm .

Weight: 3.6kg.

Operating Temperature: 0 to 50° C.

Warranty:

1 year, for an additional year register the product at the following link:

http://www.alliedtelesis.com/support/maintenance-and-warranty/register

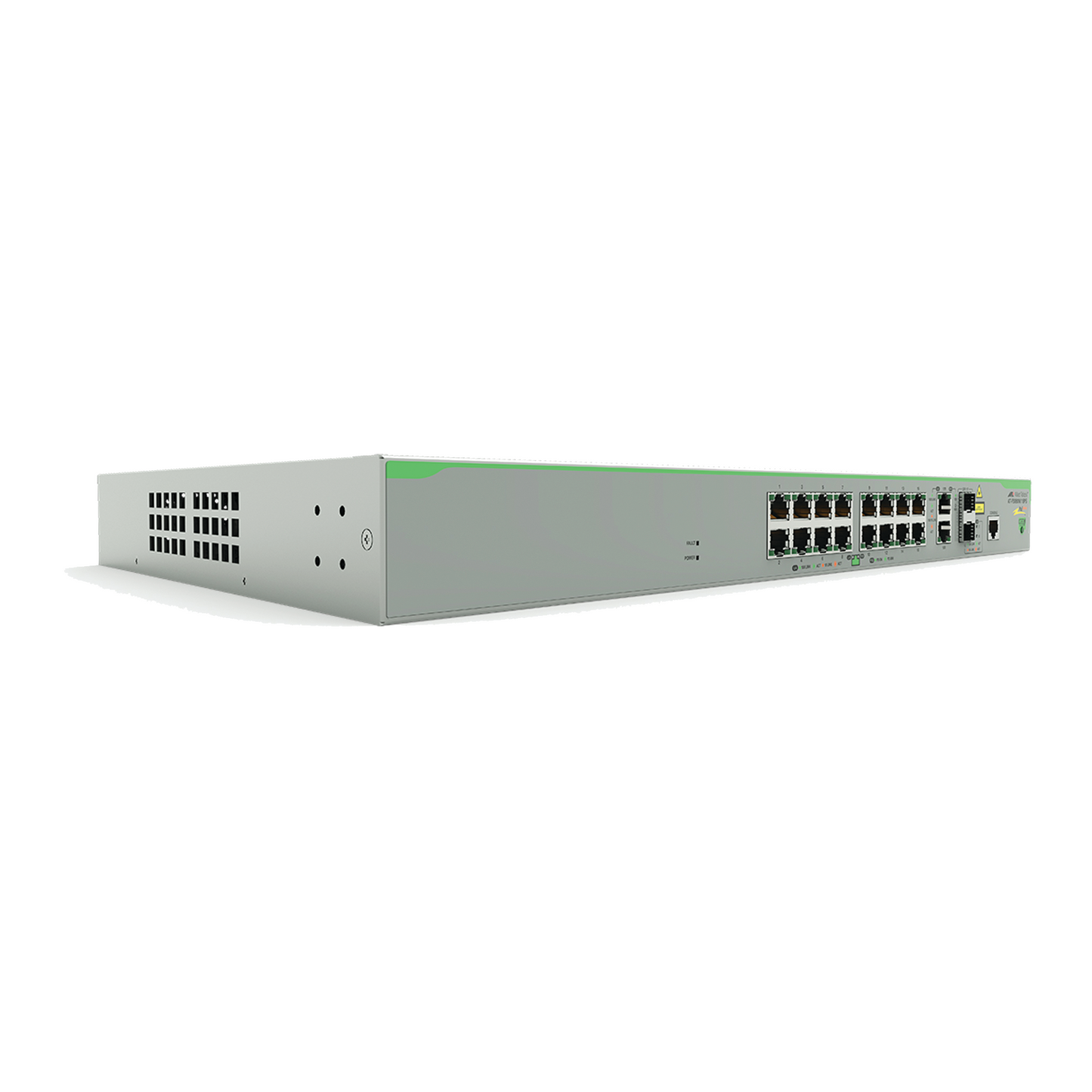

Front panel of the FS980M/18PS switch.
