Main features:

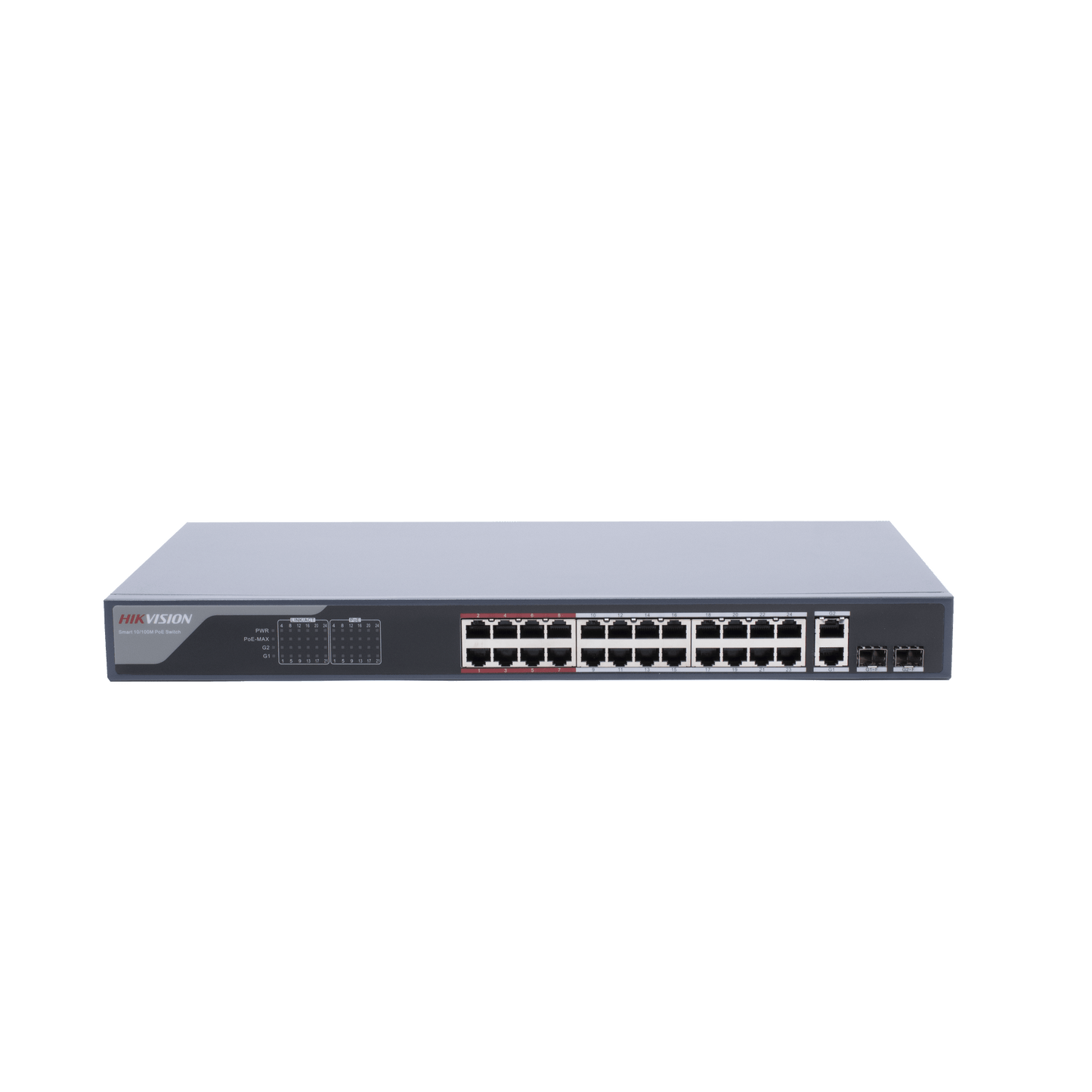

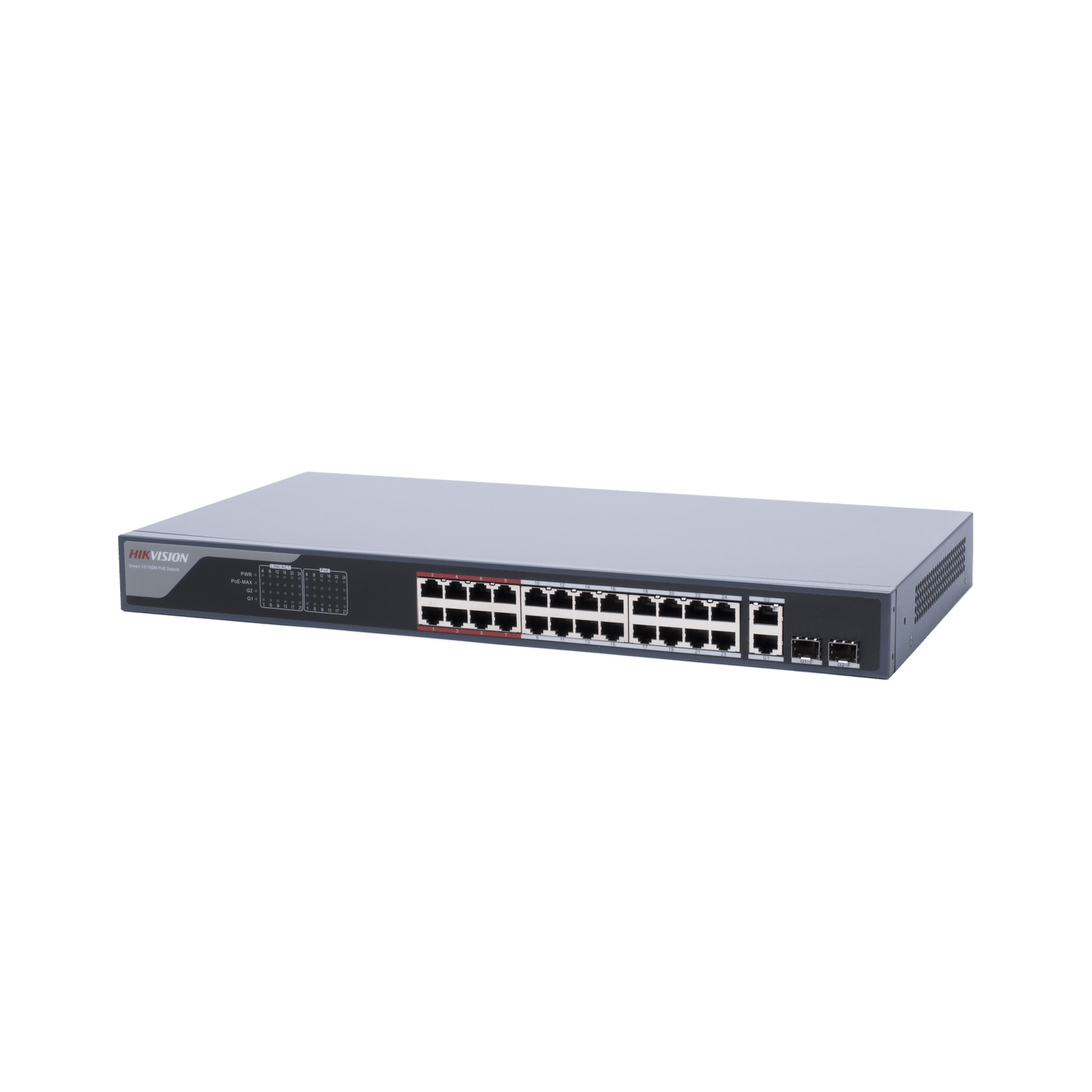

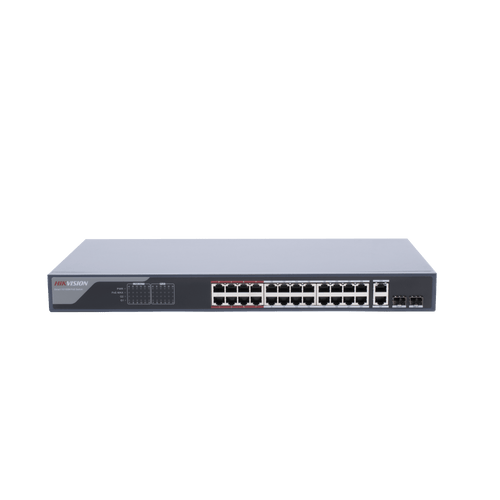

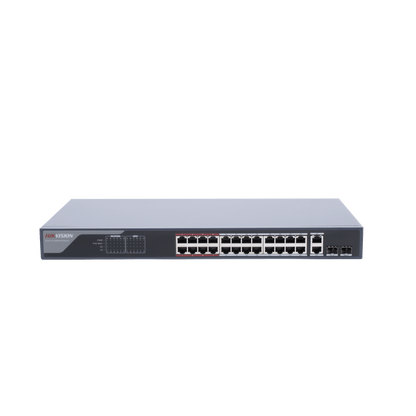

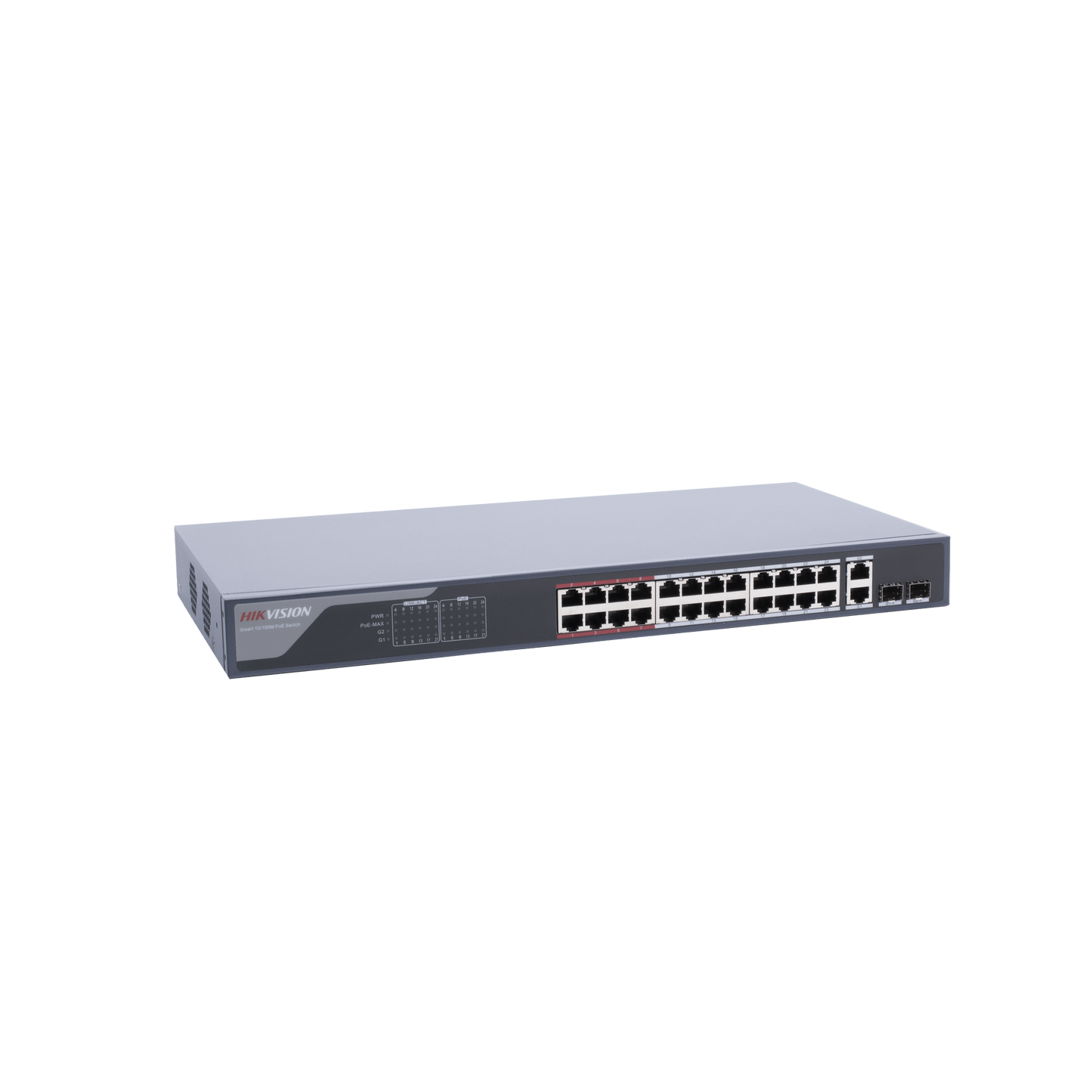

• 24 10/100 Mbps PoE 802.3af/at RJ45 ports .
• 2 RJ45 ports + 10/100/1000 Mbps SFP ports (combo) for Uplink.
• Network topology management.
• Sending Network alarms.
• Network health status monitoring.
• Extended PoE up to 250m to power cameras.
• Compatible with Hik-PartnerPro management platform, HikCentral and iVMS4200 .
• PoE power budget 370 W.
• Switching capacity 8.8 Gbps .
• Packet forwarding rate 6.5 Mpps.
• Supports LLDP protocol for self-discovery on the Network.
• Supports Link Aggregation to add the capacities of 2 ports as one.
• Maximum power consumption 400 W.
• Dimensions (W x H x D) 440 × 44 × 221 mm.
• Operating temperature: -10–55℃.
• Storage temperature: -40–85 ℃.

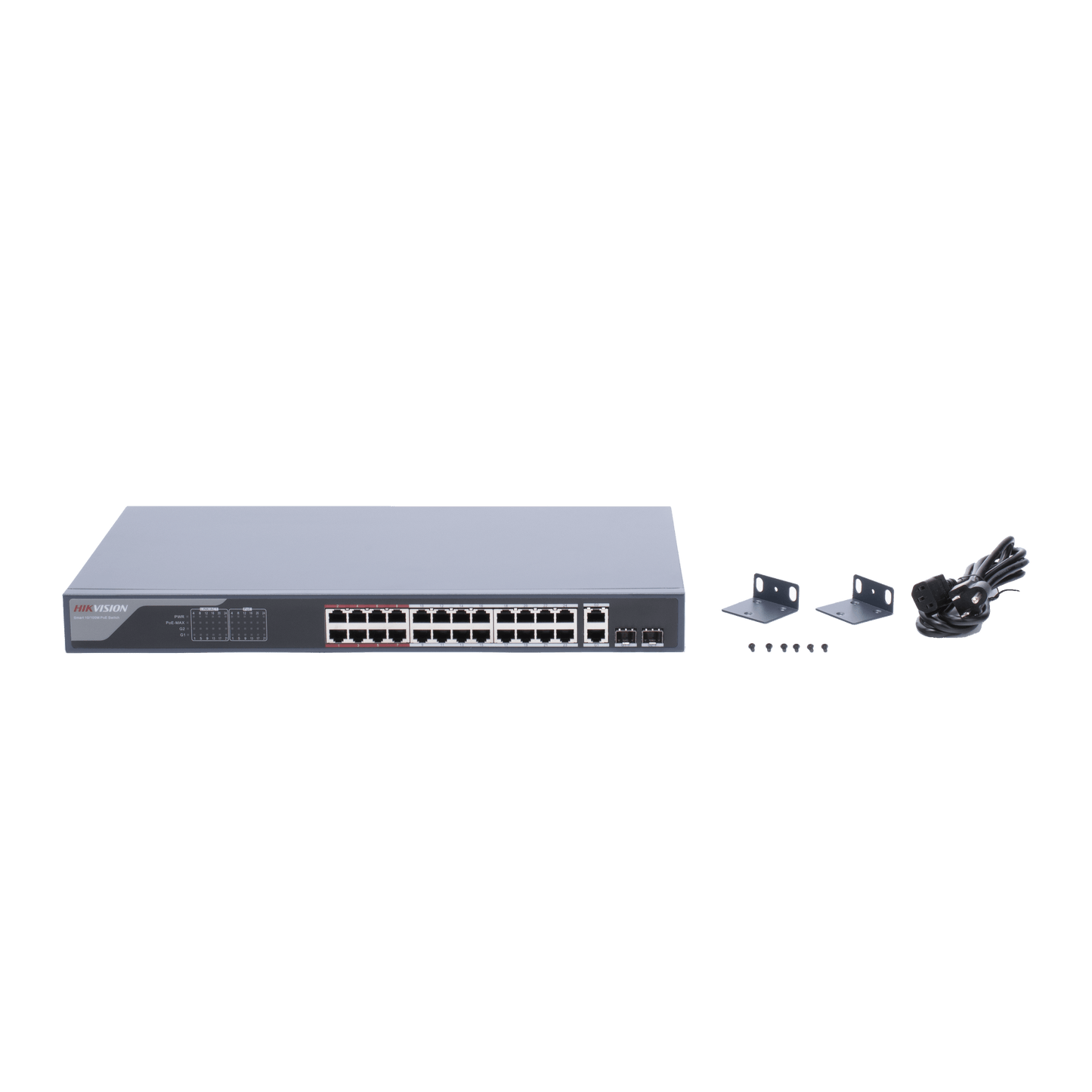

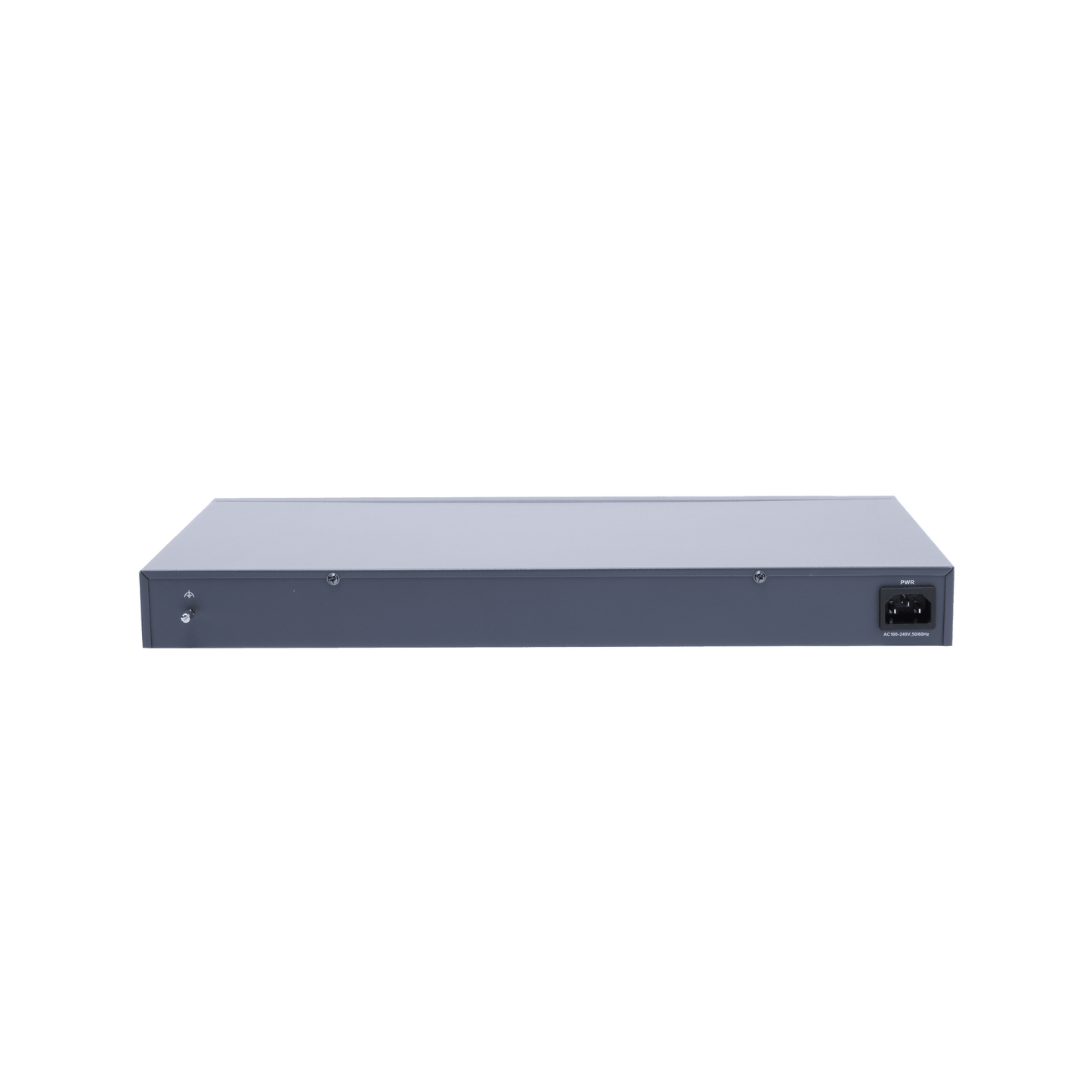

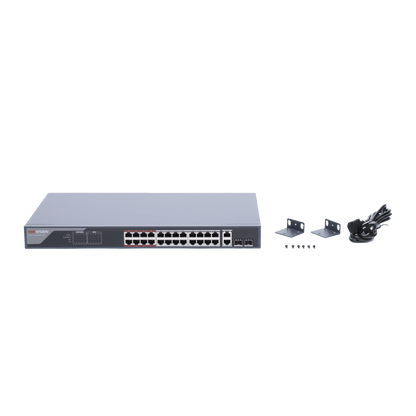

• 110 VAC power supply (cable included) .
• Weight 2.83 kg.
• 2 years warranty .

• If you want to know the health status of this device from Hik-ProConnect, it is necessary to acquire the HKPRO-HM-D-1A license.
• Rack mountable

The new series of Hikvision Switches have added value which consists of the integration between Switches and Hikvision IP devices with the management platform Hik-PartnerPro , In addition to being compatible with the HikCentral platform and iVMS4200 , all this to have a better experience when managing the Network.

But how? we can identify this new series of Hikvision Switches, What is Hik-PartnerPro ? and how does it work?, We show you below with some quick and easy videos .

Some of the functions:

• • Network health monitoring from Hik-PartnerPro and iVMS-4200 .
  • Resetting ports from Hik-PartnerPro and iVMS-4200 .
  • Network topology with Hikvision devices from Hik-PartnerPro and iVMS-4200 .
  • Alarm of port events (disconnection and connection of ports) Hik-PartnerPro and iVMS-4200 .
  • Real-time bandwidth consumption statistics from Hik-PartnerPro and iVMS-4200 .
  • Electrical consumption statistics in real time from Hik-PartnerPro and iVMS-4200 .

Additional features from Hik-PartnerPro

Alarms, Network monitoring and health status

The new Hik-ProConnect remote management platform helps us interact with our Network in a much easier and faster way , since, for example, when there is a connection or disconnection in one of the ports of a Switch, it will tell us in real time that there was that mishap and it will show us that that port is alarmed due to a change that occurred, Likewise, we can clear that alarm once that connection has been reviewed and everything returns to normal .

It is also very helpful for us to monitor the health of our Network and constantly check that our teams are working smoothly and the data Network is stable and this Platform offers us to perform these tasks remotely from any place where we have access to the Internet .

Network topology

The Network Topology is very important when creating our project since whether it works correctly or not will depend on this, There are different types of Topologies, Many times we do not know a Network well or this topic is complicated for us, but the new Hik-PartnerPro platform makes this easier for us since it makes a diagram of how our Network is connected, with the information of each equipment and also every time we add new equipment to the Network this Topology is automatically updated and shows us the new information.

Demonstration of some functionalities in the iVMS-4200 Platform

Demonstration of some functionalities in the Hik-PartnerPro Platform

Common connection diagram between Fiber Optic Switches

Extended PoE Operation

Hikvision PoE Switches allow you to reach distances of up to 500 meters when using a Hikvision PoE extender model DS-1H340101P , Of course, this is with the condition that Hikvision IP cameras do not exceed 8 Watts of total consumption .
