8x8 HDMI matrix switch for HDR and HDCP 2.2 formats / 4K UHD video support @ 60 Hz / Control via Ethernet, RS-232 and IR

  • ce67daf94eef7e07d979c597b1f18da7
1 1
  • Supports all video resolutions, audio formats and color spaces supported in the HDMI specification
  • Support for HDR and HDCP 2.2 formats
  • Support 4K/UHD @ 60 Hz video with 4:4:4 chroma sampling and HDMI data rates up to 18 Gbps
  • EDID and HDCP management functions and independent CEC control for each output
  • Controllable via Ethernet, RS-232 and IR, and comes with a handheld IR remote control

Out of stock

Modelo: AT-HDR-H2H-88MA

Proveedor: ATLONA

Código SAT: 46171611

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

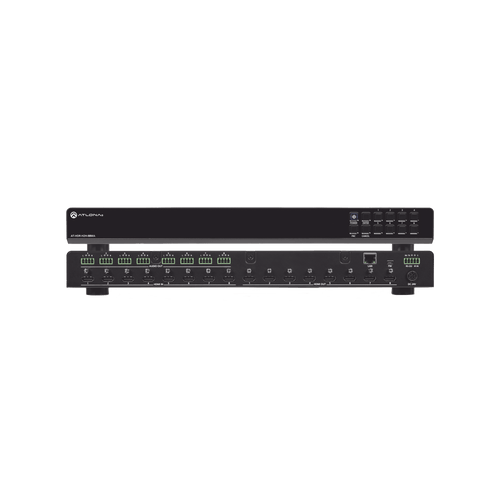

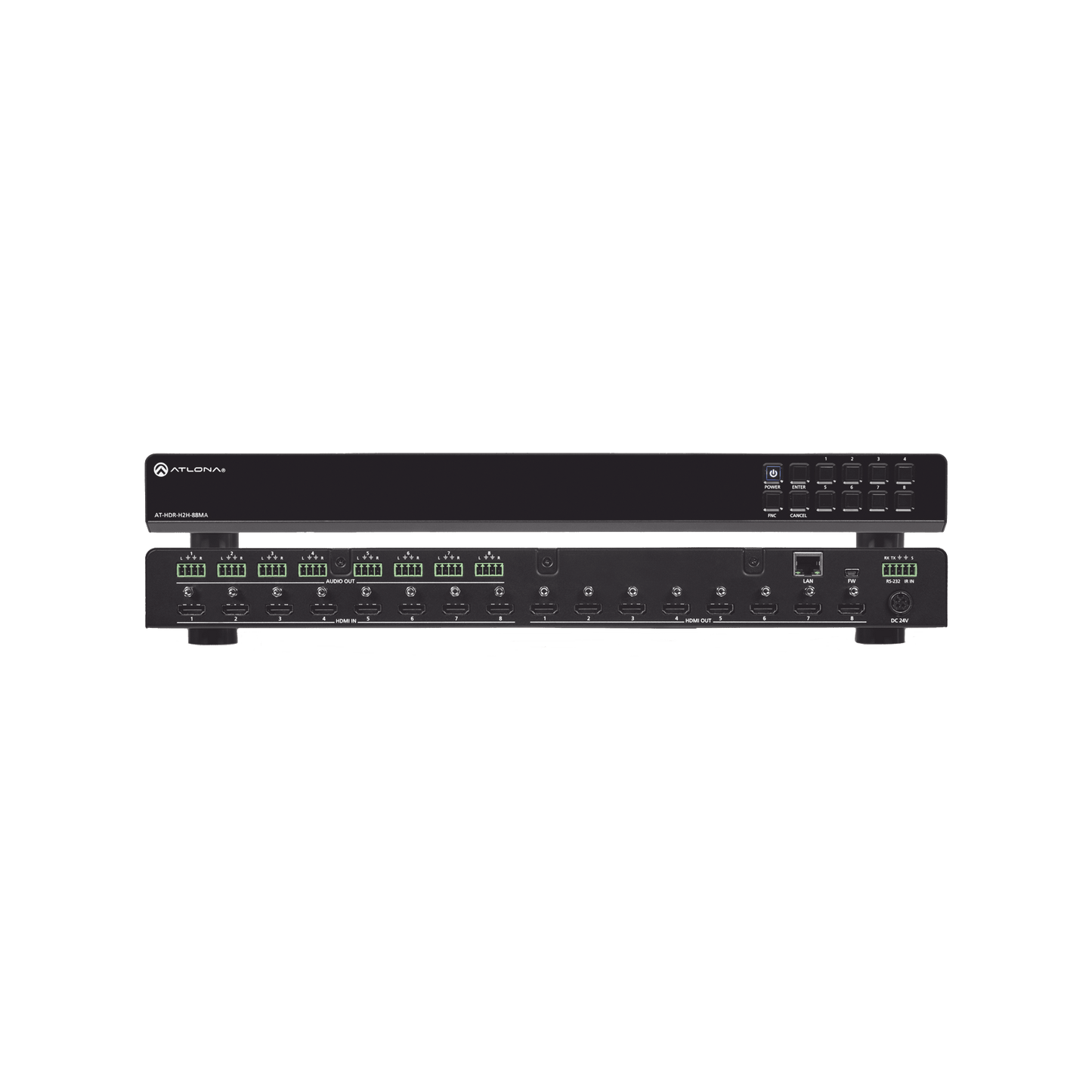

The Atlona AT-HDR-H2H-88MA is an 8x8 HDMI matrix switcher for high dynamic range (HDR) formats. As part of Atlona's comprehensive family of 4K HDR integration products, ​​is HDCP 2.2 compliant and supports 4K/UHD video at 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates of up to 18 Gbps. The HDR-H2H-88MA is ideal for residential applications with the latest and emerging 4K/UHD and HDR sources and displays. Includes EDID and HDCP management functions, and can send CEC* display control independently to each output. An unbalanced analog audio output pairs with each HDMI input to send de-embedded HDMI audio to a whole-home audio system. The HDR-H2H-88MA can be controlled via Ethernet, RS-232 and IR. A handheld IR remote control is included.

The HDR-H2H-88MA is designed to deliver impeccable quality and reliable image presentations in residential and commercial applications.

(Note: HDR-H2H-88MA disembeds PCM audio from two HDMI channels. To extract and mix Dolby® and DTS® audio, Atlona recommends the AT-HDR-M2C audio converter.)

Applications

Residential installations: The HDR-H2H-88MA is designed for AV systems with the latest UHD and HDR sources, such as Ultra HD Blu-ray players, as well as compatible televisions and projectors.

TV Showrooms: The HDR-H2H-88MA can be used for reliable distribution of content to televisions, to adequately demonstrate the quality and appeal of 4K and HDR programming.

Professional AV Applications: Atlona 4K HDR products are ideal for highly detailed, full-motion 4K graphic presentations for viewing, 3D renderings, simulations and more.

Configured and managed by AMS

Atlona Management System (AMS) is a powerful network software platform ideal for setting up, manage and monitor the HDR-H2H-88MA and other Atlona IP controllable devices over a LAN, WAN or VPN. AMS is available free of charge from Atlona and greatly streamlines the installation and maintenance of multiple Atlona products in a facility or company, from a standard web browser.
