Matrix Switch | 4x4 | True 4K | 4096x2160 / 384 x2160 at 60 Hz | HDR 4:4:4 | HDCP 2.2 | Different Control Methods | EDID Expert™

  • 2d42a3fe5460f0ec6e6acdef2c8fabb6
  • 2d42a3fe5460f0ec6e6acdef2c8fabb6
1 2

Low stock: 7 left

Modelo: VM0404HB

Proveedor: ATEN

Código SAT: 52161500

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Matrix Switch

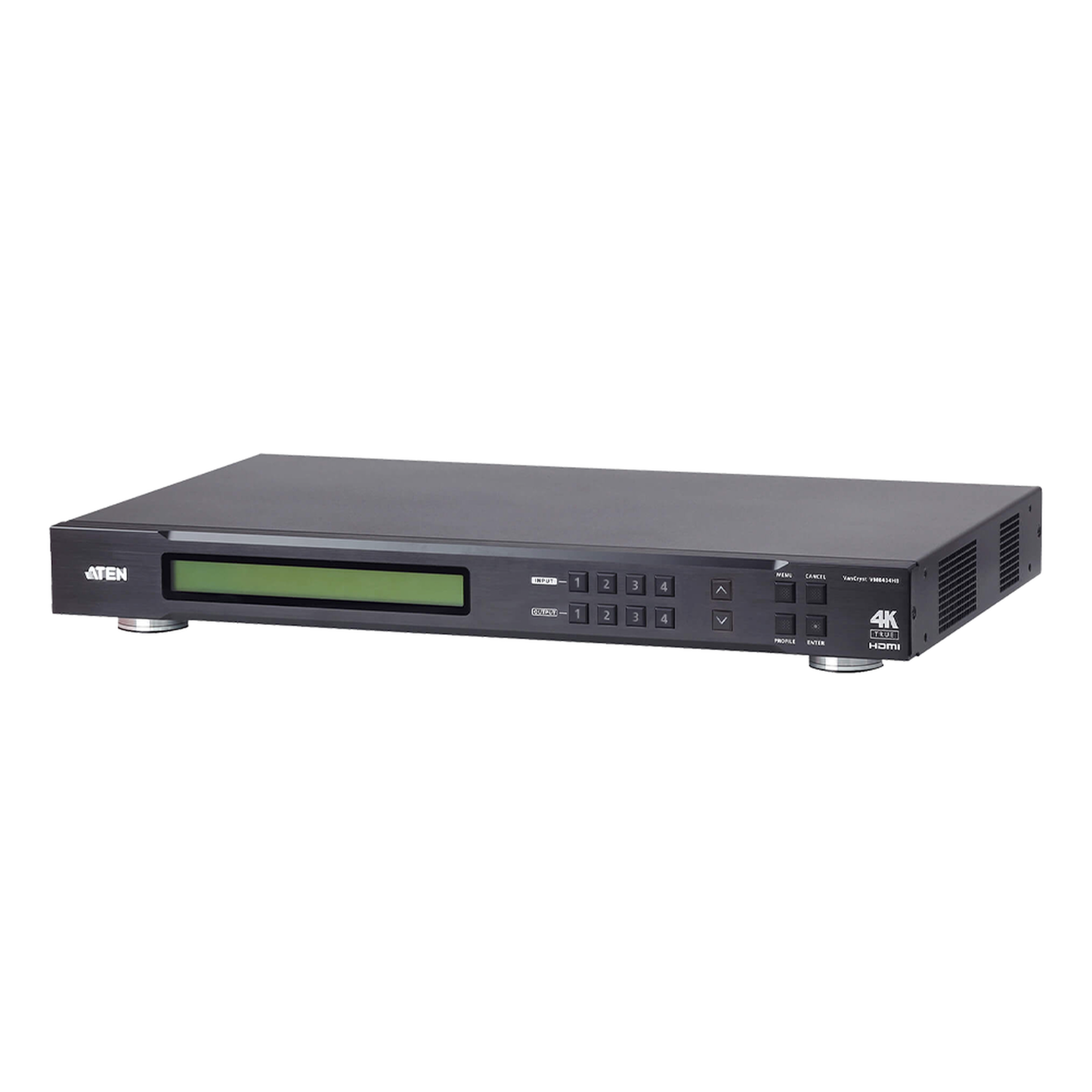

The ATEN VM0404HB is a true 4K HDMI matrix switch that offers a simple and affordable way to redirect any of the 4 HDMI video sources to any of the 4 HDMI displays. With excellent video resolutions up to 4096 x 2160 at 60 Hz (4:4:4), The VM0404HB offers robust signal redirection and extremely fast digital video switching, making it the perfect solution for applications where redirection of true 4K digital signals is required, such as venues for events, digital classrooms, auditoriums, department stores and other environments.

The VM0404HB's intuitive graphical user interface design allows users to flexibly configure input-to-output connections. eliminating the need to make frequent changes to the physical configuration. In addition to the integrated web GUI, The VM0404HB can be used with the front panel pushbuttons, an infrared remote control, RS-232 and Telnet control via Ethernet connections, offering users maximum convenience while keeping the system available with the ability to switch quality video at any time.

General characteristics

  • Video input:
    • Interfaces: 4 x HDMI Type A female (Black)
    • Impedance: 100Ω
    • Maximum distance: 5.0 m / 4K at 60 Hz (4:4:4)
  • Video output:
    • Interfaces: 4 x HDMI Type A female (Black)
    • Maximum distance: 5m / 4K at 60 Hz (4:4:4), 15m / 1920 x 1200
    • Impedance: 100Ω
  • Video
    • Maximum pixel clock: 600 MHz
    • Maximum resolution: Up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:4:4)
    • Maximum data rate: 18 Gbps (6 Gbps per lane)
    • Regulatory: HDMI (3D, 4K, deep color) HDCP 2.2 compliant Consumer Electronic Control (CEC)
  • Control
    • RS232:
      • Connector: 1 x DB-9 female (Black)
      • Baud rate and protocol:
      • Baud rate: 19200, Data bits: 8, Stop bits: 1, Parity: No, Flow control: No
    • Infrared: 1x Female stereo mini connector
    • Ethernet: 1x RJ45
  • EDID Settings
    • EDID Mode: Default / Port 1 / Remix / Custom (EDID Wizard support)
  • Environmental conditions
    • Operating temperature: 0 - 40 °C
    • Humidity: 0 - 80% RH, no condensation
    • Storage temperature: -20 - 60 ℃
  • Physical Properties
    • Weight: 2.47 kg (5.44 lbs)
    • Metal Housing
    • Dimensions (L x W x H) 43.72 x 15.28 x 4.40 cm (17.21 x 6.02 x 1.73 inches)
  • Energy consumption
    • AC110: 17:8 W: 83 BTU
    • AC220:17:6W:83BTU
  • Feeding
    • Input Power Ratings 100 - 240 VAC; 50 - 60Hz; 1:0 A

The kit contains: 1x VM0404HB 4 x 4 Real 4K HDMI Matrix Switch 1x power cable, 1x infrared remote control, 1x infrared receiver, 1x rack mounting kit, 1x instruction manual
