KVM Switch | 8 Ports | DVI/VGA | Cascade Connection | Control of up to 512 computers | USB 2.0 | Broadcast Mode Support | Multi-screen function

  • 813bae0e42a2a0c943df659e05dd35be
  • 2aba2fa6d64fdf9b3ee2ed6e2fa1570f
  • 5d59dd607030eeec6227168798c2730a
1 3

Out of stock

Modelo: CS1768

Proveedor: ATEN

Código SAT: 46171611

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

KVM switch

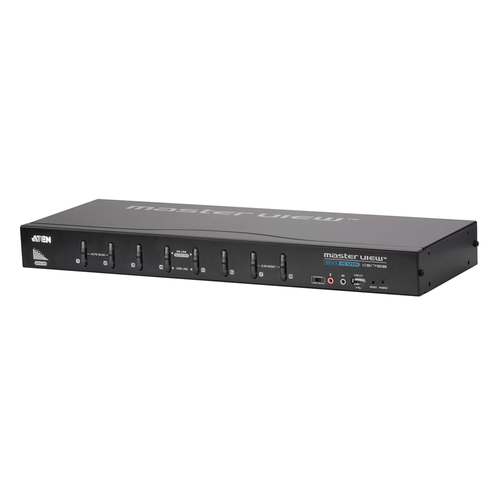

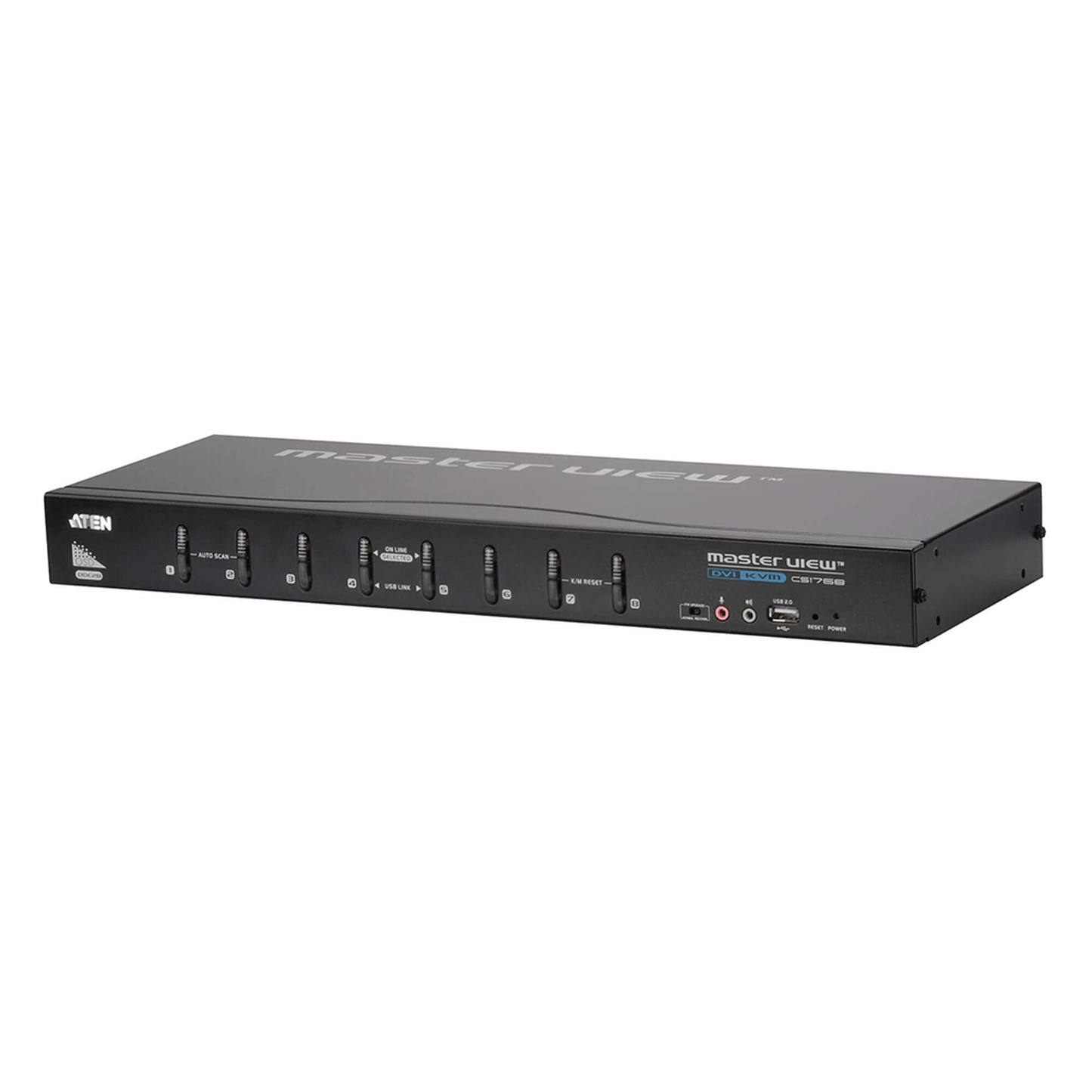

The ATEN CS1768 KVM switch is a multifunctional unit to control 8 computers from a center console with USB keyboard and mouse, and two monitors (DVI-I and VGA). It can be cascaded up to three levels, allowing control of up to 512 computers. Offers multi-screen functionality for up to four switches, simplifying multi-monitor environments. Includes an ATEN On Screen Display (OSD) menu for easy access and configuration, with backup functions. Compatible with multimedia keyboards and transmits audio signals, allowing the sending of sound signals and listening to two sets of speakers. Designed for IT and industrial applications, The CS1768 optimizes management in complex environments.

General characteristics

  • PC connections
    • Direct: 8
    • Maximum: 512 (Waterfall)
  • Port selection
    • OSD, hotkey, button
  • Connectors
    • console ports
      • 1 x HDB-15 female (Blue)
      • 1 x DVI-I female (White)
      • 2 x USB Type A female
      • 2 x 3.5mm female audio connector (Pink; 1 x front panel, 1 x rear panel)
      • 2 x 3.5mm female audio connector (Green; 1 x front panel, 1 x rear panel)

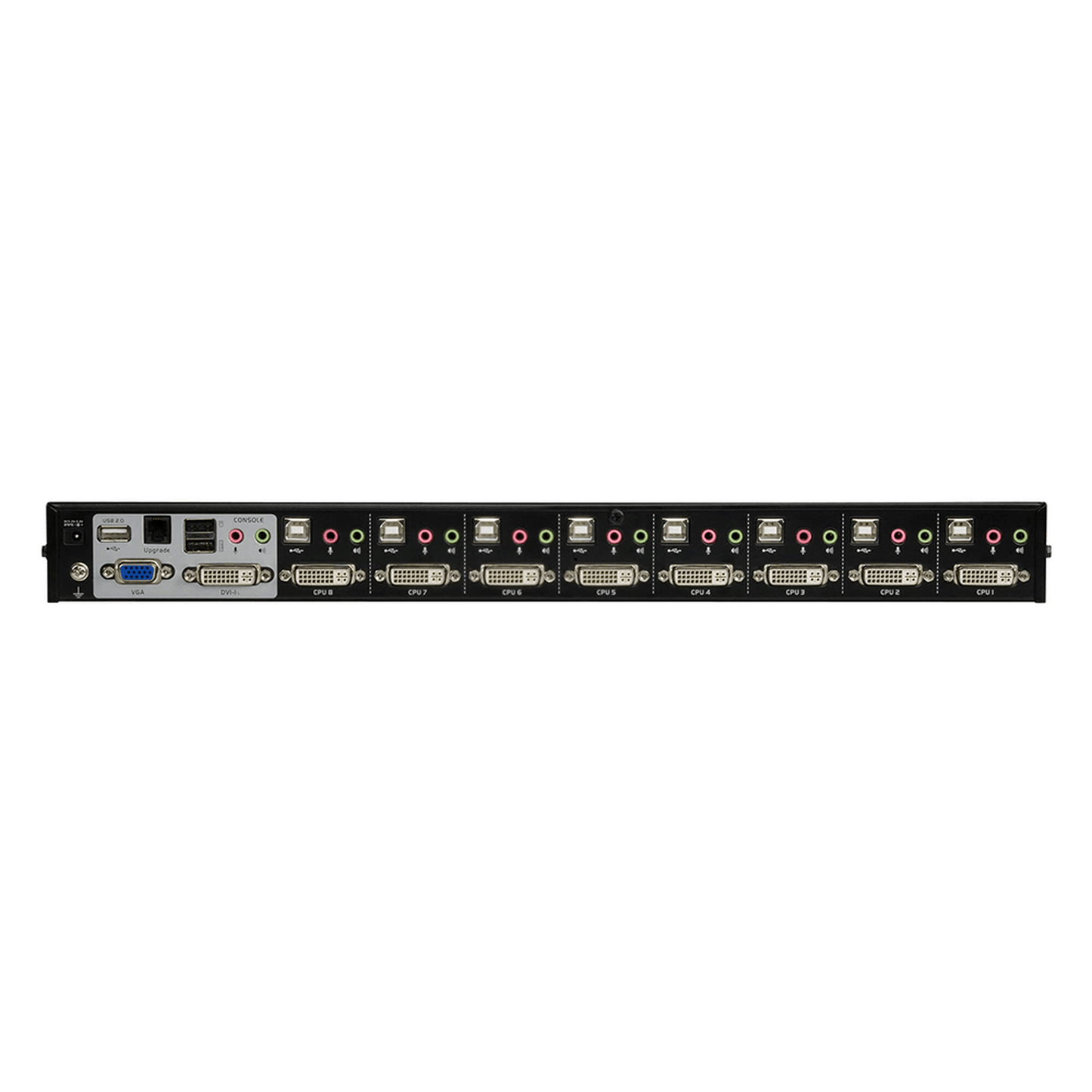

    • KVM ports
      • 8 x DVI-I female (White)
      • 8 x USB type B female
      • 8 x 35mm Female Audio Connector (Green)
      • 8 x 3.5mm Female Audio Connector (Pink)
    • Firmware Upgrade: 1xRJ11 female (Black)
    • Power: 1x DC Connector
    • USB HUB: 2xUSB Type A female

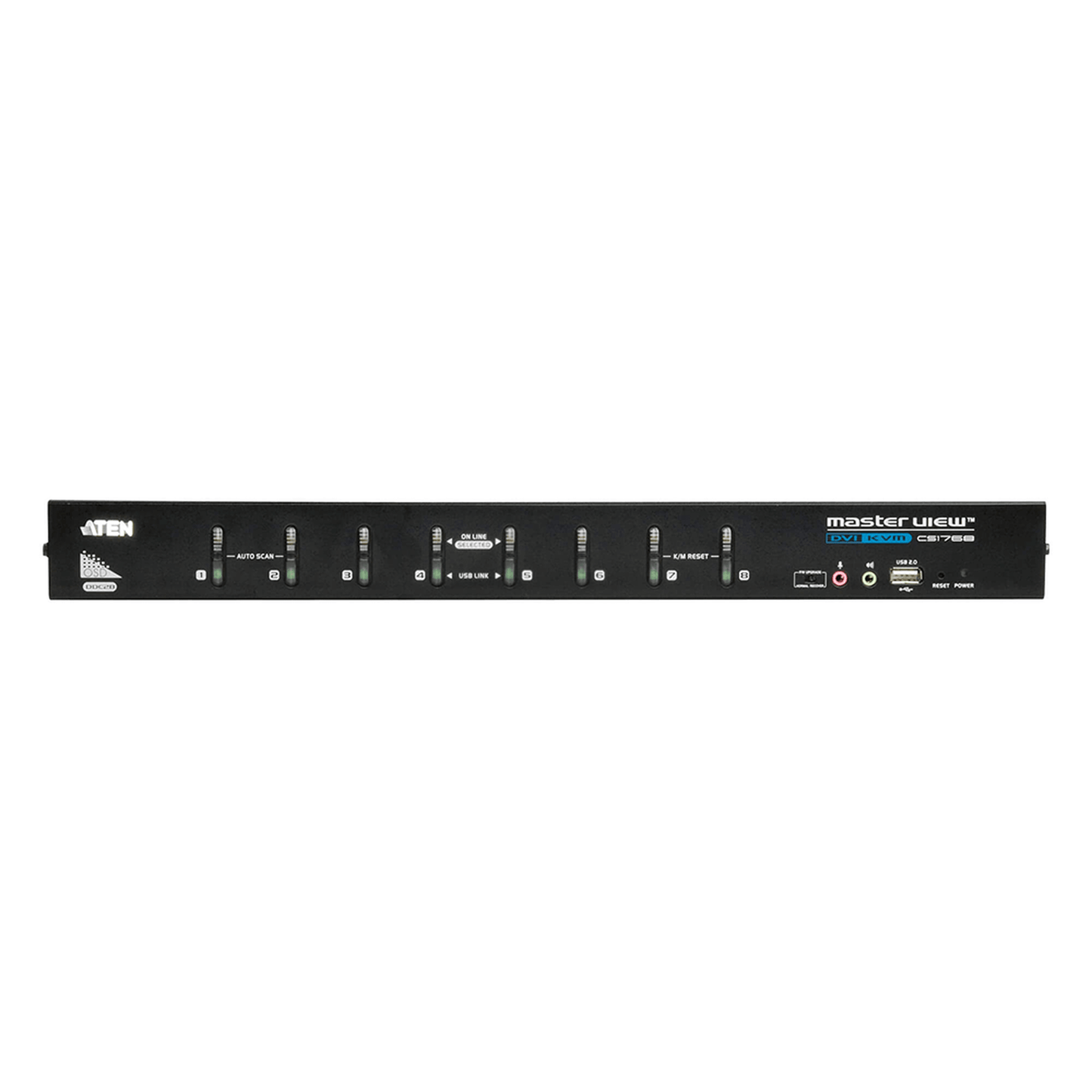

  • switches
    • Port Selection: 8 x Push Button
    • Reset: 1 x Semi-Flush Push Button
    • Firmware upgrade: 1x slide switch
  • LEDs
    • USB Link: 8 (Green)
    • Power: 1 (Dark Green)
    • Online/Selected: 8 (Orange)
  • Emulation:
    • Keyboard/Mouse: USB
  • Video
    • DVI (single link): 1920 x 1200 at 60 Hz;
    • VGA: 2048 x 1536 at 60Hz
  • Scan interval
    • 1-255 sec (default: 5sec)
  • Energy consumption
    • 5.3 Vdc: 4.53 W: 47 BTU
  • Environmental conditions
    • Operating temperature 0-50°C
    • Storage temperature -20-60°C
    • Humidity RH 0 - 80%, no condensation
  • Physical properties
    • Metal Housing
    • Weight 2:80 kg (6:17 lbs)
    • Dimensions (L x W x H)
      • 43.72 x 16.12 x 4.40 cm
      • 17:21 x 6:35 x 1:73 inches

The equipment contains: 1x CS1768 8-port KVM switch for USB with DVI and rack mounting kit, 2x sets of custom USB and DVI-D KVM cables, 1x cable to update the firmware, 1x power adapter: 1x set of legs (4 units) 1x user manual
