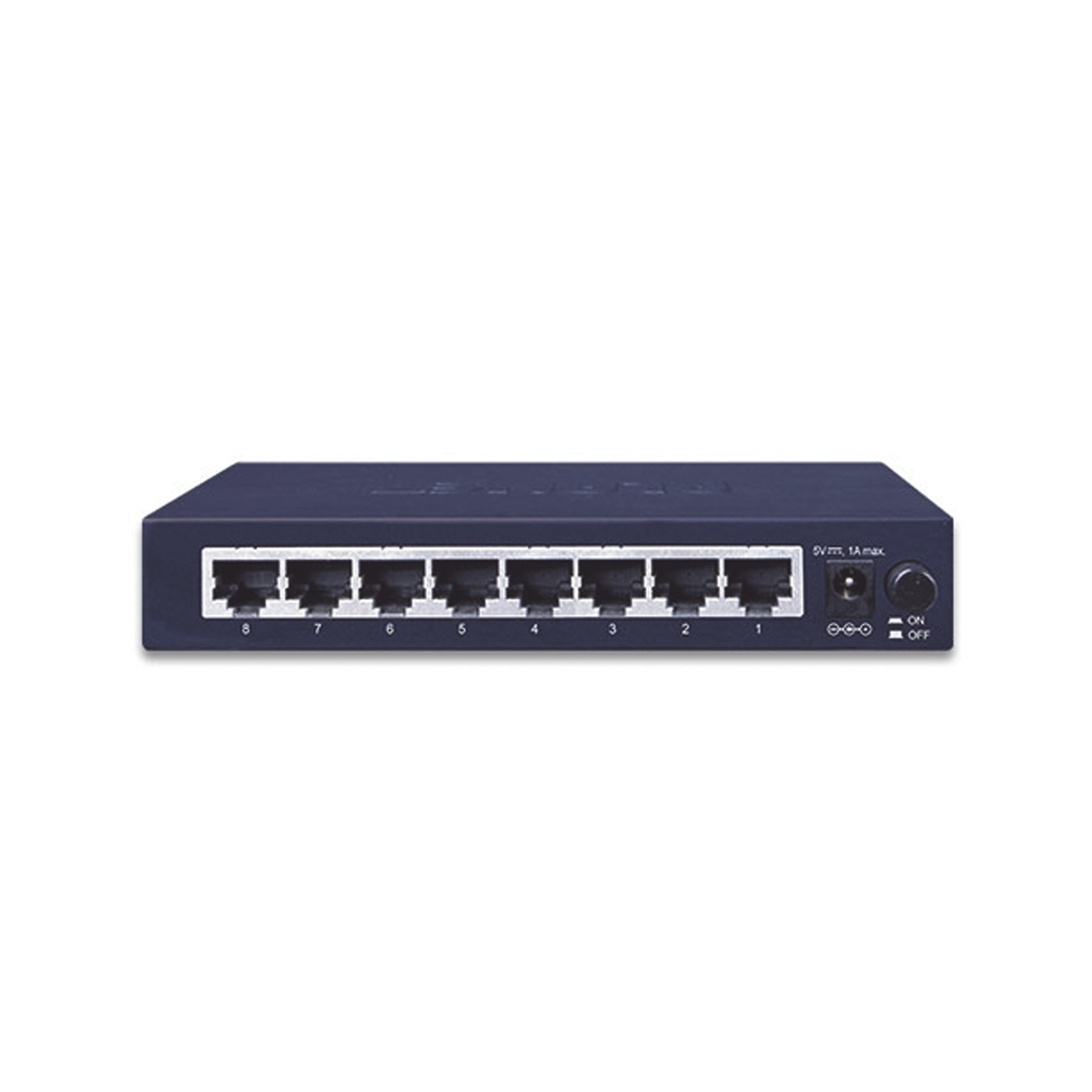

Unmanaged Desktop Switch, 8 Gigabit Ports 10/100/1000 Mbps, Energy Saving Technology of Up to 40%

  • c1132540474ac47f68a9595e3b132c30
  • c1132540474ac47f68a9595e3b132c30
1 2
  • Ahorro de energía hasta 40% con redes ecológicas
  • Automáticamente reduce energía con Hibernation Link Down
  • Algoritmo ajusta potencia según longitud del cable
  • Switch fabric 16 Gbps para alto rendimiento
  • Cumple estándares IEEE 802.3/802.3u/802.3ab/802.3x

150 in stock

Modelo: GSD-803

Proveedor: PLANET

Código SAT: 43222610

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Self-negotiation10M/100M/1000MAuto MDI/MDI-Xgiant frameWall mountable

Energy saving

Incorporates two advanced green grid technologies providing energy savings of up to 40% , maintaining high performance efficiently.

Hibernation Link Down Power Saving
Automatically reduces power to a given port when not in use.

Smart power scaling based on cable length
It is an intelligent algorithm that actively determines the appropriate power level based on the cable length.


Hardware specification
Hardware version 7
10/100/1000BASE-T ports 8 automatic MDI/MDIX ports
Case Metal
Dimensions 155x86x26mm
Weight 348g
Power requirements (external power adapter) 5V DC, 1A
Energy consumption 3:4 Watts/11 BTU
Address table 4K
switch fabric 16Gbps
Throughput (package per second) 11:9Mpps
Standards Compliance IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full Duplex Flow Control)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Regulatory compliance FCC Part 15 Class B, EC
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Running: 5~95%
Storage: 5~95% (non-condensing)

Package Included

- 1 Switch GSD803

- 1 5 Vdc / 1 A power adapter.

- 1 User Manual.
