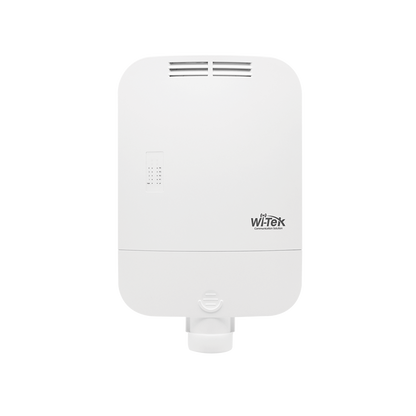

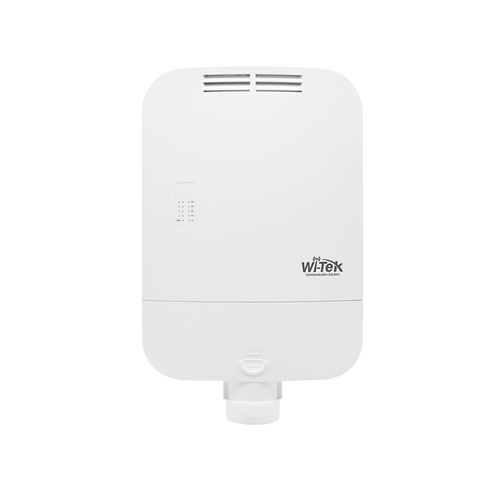

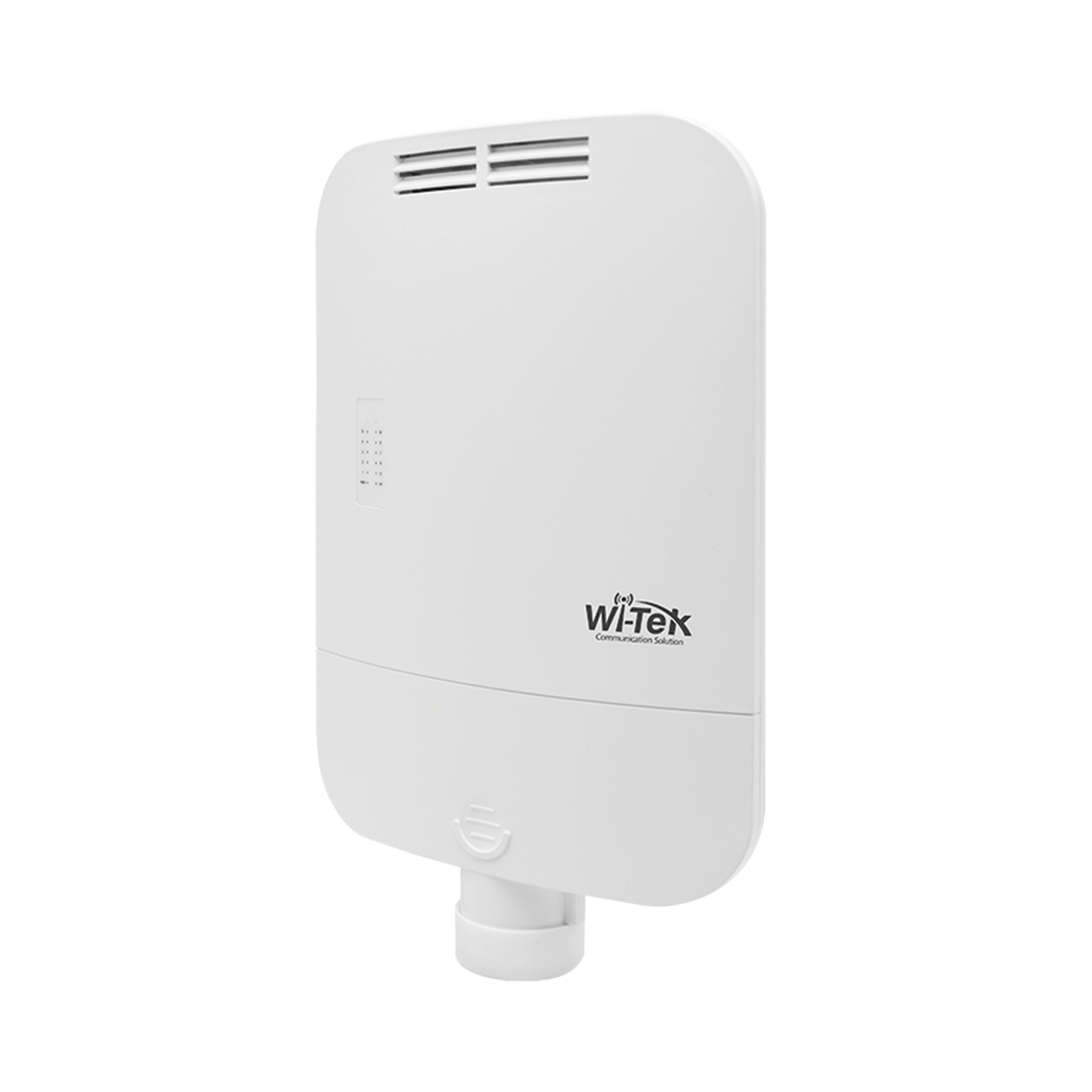

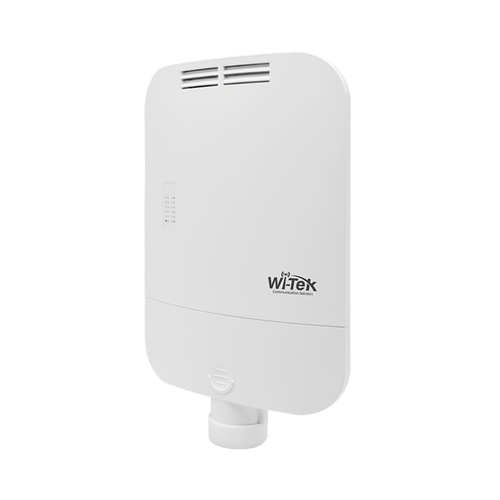

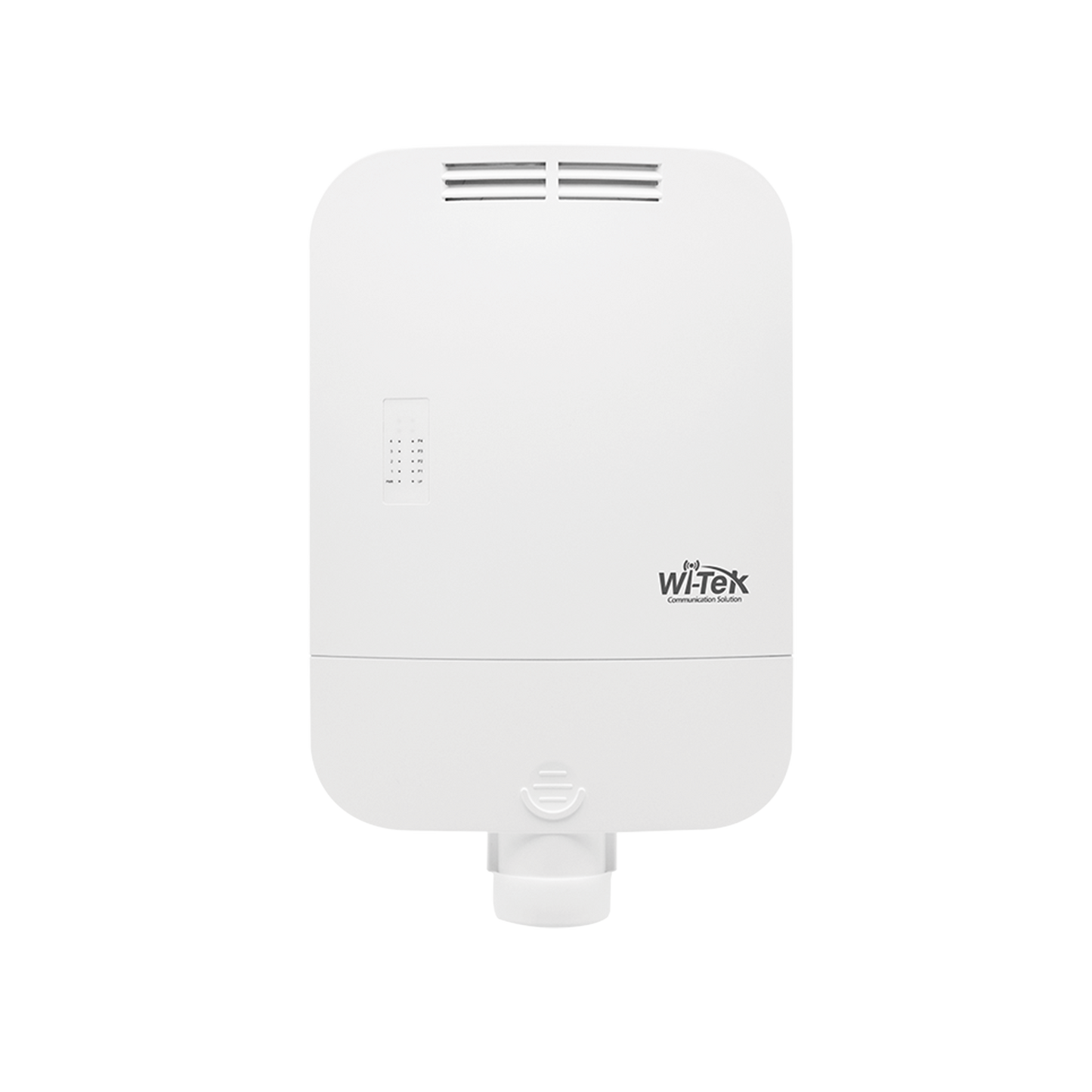

SWITCH CCTV POE FOR EXTERNAL / NOT ADMINISTRABLE / WITH 4 GIGABIT POE AF / AT + 1 PORTS UPLINK GIGOBIT + 1 X SFP Gigabit / Budget 65 W / Ideal for video surveillance applications

  • f5d4b8289ec165776f9e1a8f4d6ff0a6
  • 1962b8df4c77090d862f61077203a07c
  • 0e63f38b852462e2ceab28df7e1de6d9
  • 4ea77b937d759c62ecfea8519be9fb81
  • 802253621200eb3fd4c84f985815b652
1 5
  • All in one for easy installation
  • Applications for CCTV
  • IP65 protection

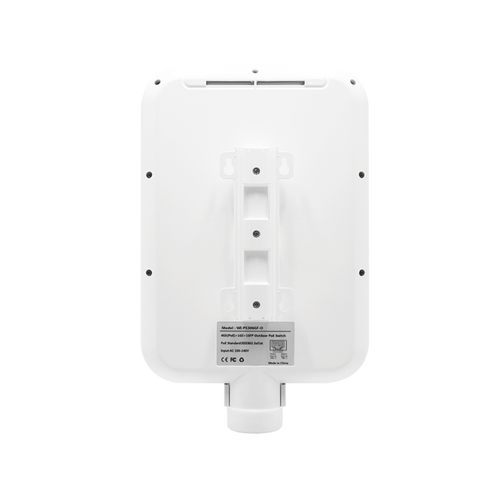

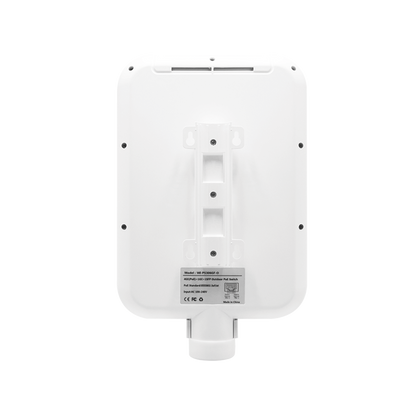

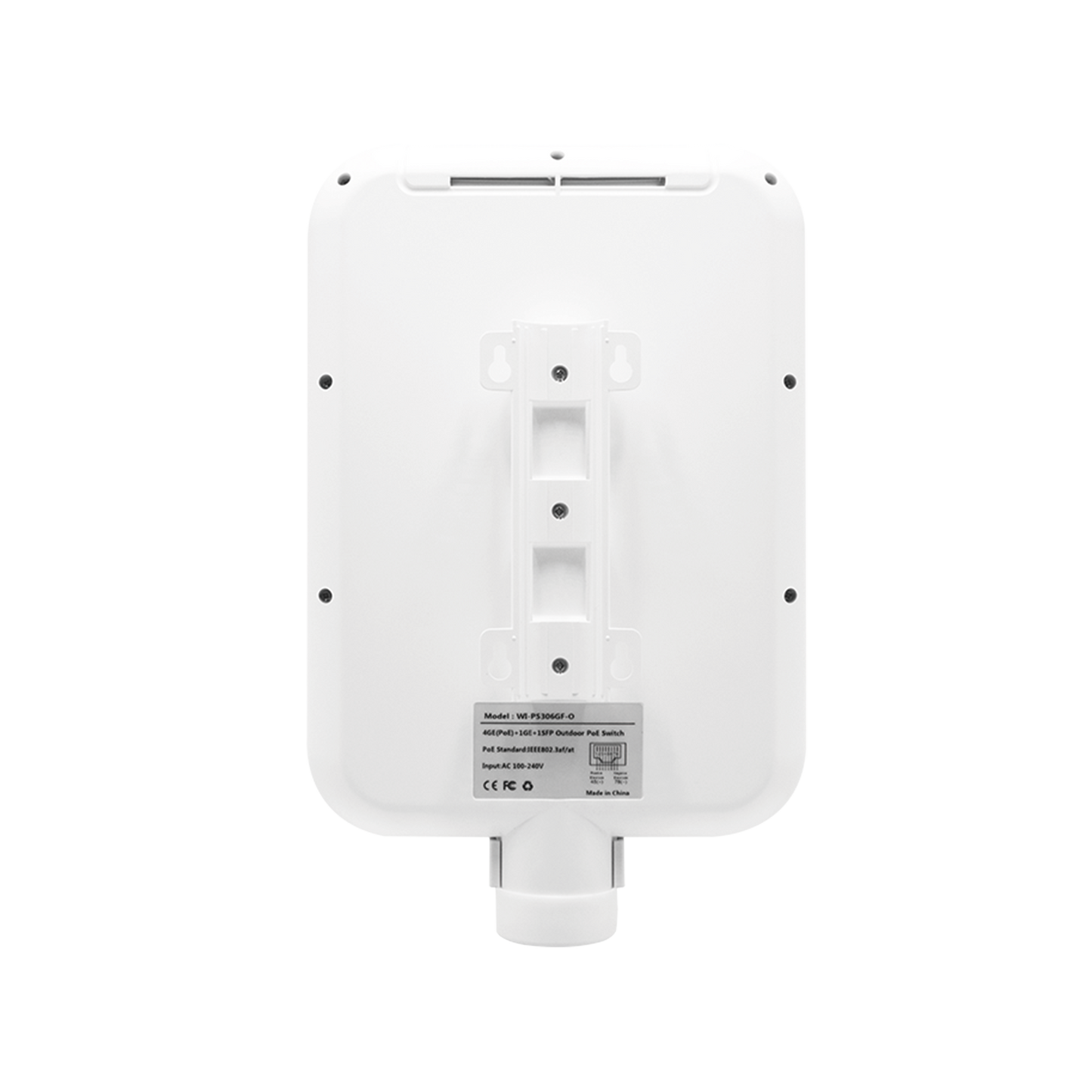

  • Wall / post assembly
  • Temperature range -30º to 70ºC

Out of stock

Modelo: WI-PS306GF-O

Proveedor: WI-TEK

Código SAT: 43222610

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Switch Poe AF/AT of up to 30W

The Poe They cannot energize equipment with passive POE 24V& bun; The application is ideal for the installation of security cameras that accept the standardized POE.

Wall or post facilities

It adapts to any CCTV & Comma application; This is more practical for the installation medium of the switch.

All in the same device

Plug and Play & Commma; The team already has everything you need to only arrive & Commuma; Install and connect the cameras. In traditional applications & Commma; It is necessary to have a greater amount of elements & Commma; This for the same application.

Specs
Dimensions 215 x 240 x 48 mm

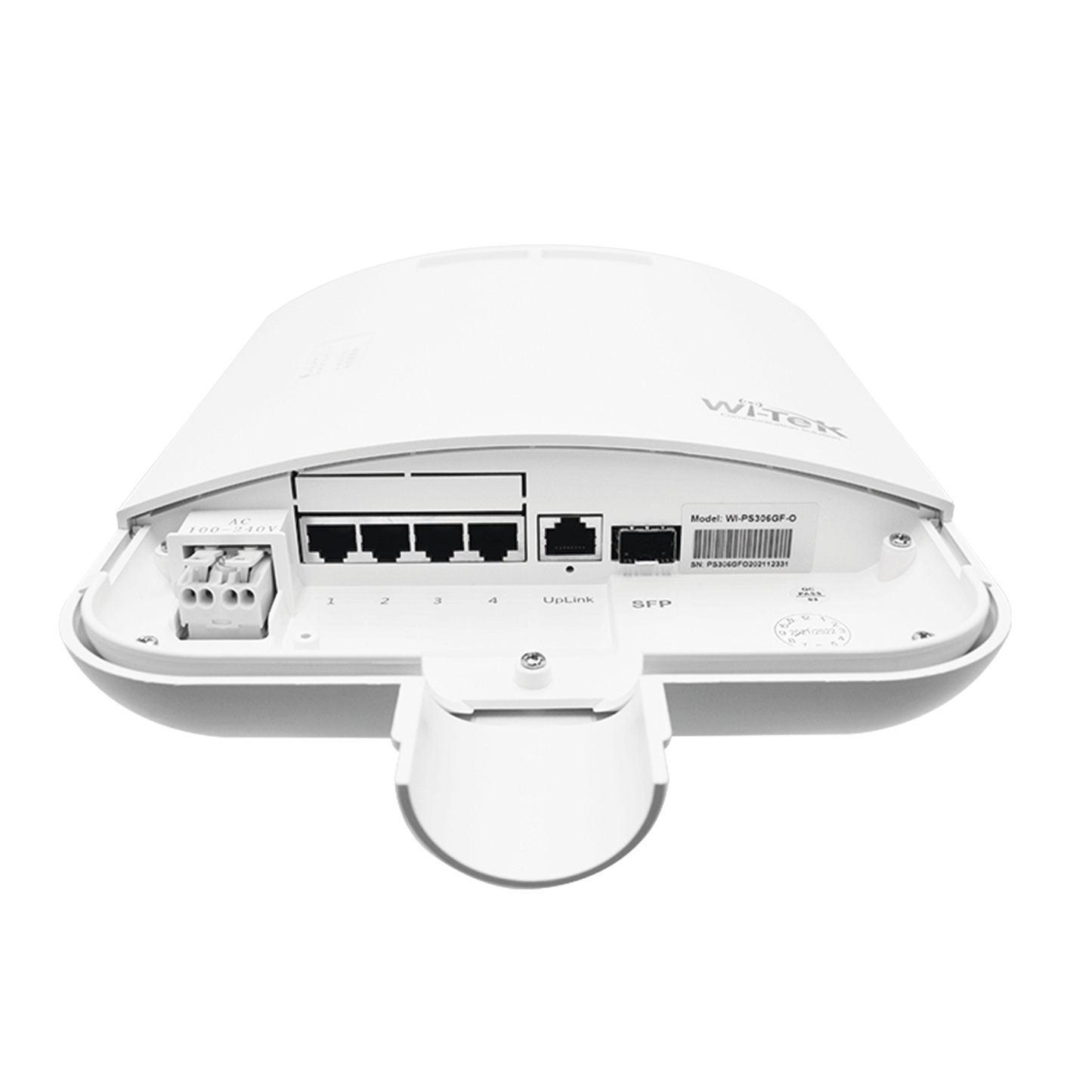

Network interfaces (4) 10/100/1000 Mbps
(1) Uplink 10/100/1000 Mbps
(1) SFP 10/100/1000 Mbps
Internal power supply AC 110-240 V & Commma; 50/60Hz
Poe ports (RJ45) 1-4 ports: up to 30W
POE Budget: 65W
Bandwidth 12 Gbps
Mac Address Table 4k
PACKET FORWARDING RATE 11.9 MPPS
Protection level Lightning Protection 6KV
6KV ESD Contact Discharge
Operating temperature -30 to 70 ° C
Certifications CE & Commma; FCC & Comma; Rohs
Characteristics
Transmission method Store-And-Forward
Advanced functions Mac Address Auto-Learning
IEEEE802.3X FLOW CONTROL FOR FULL-DUPLEX MODE
Backpressure for Half-Duplex Mode
Others
Package content Switch Poe

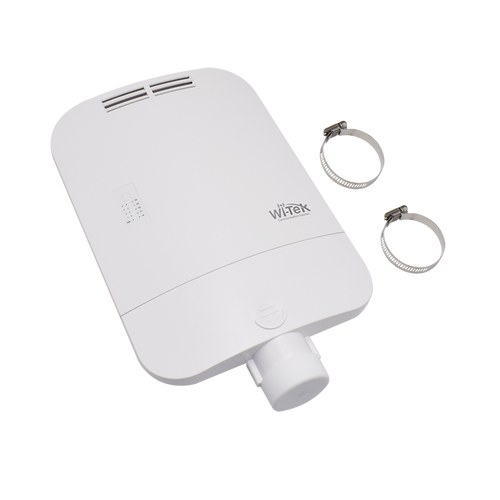

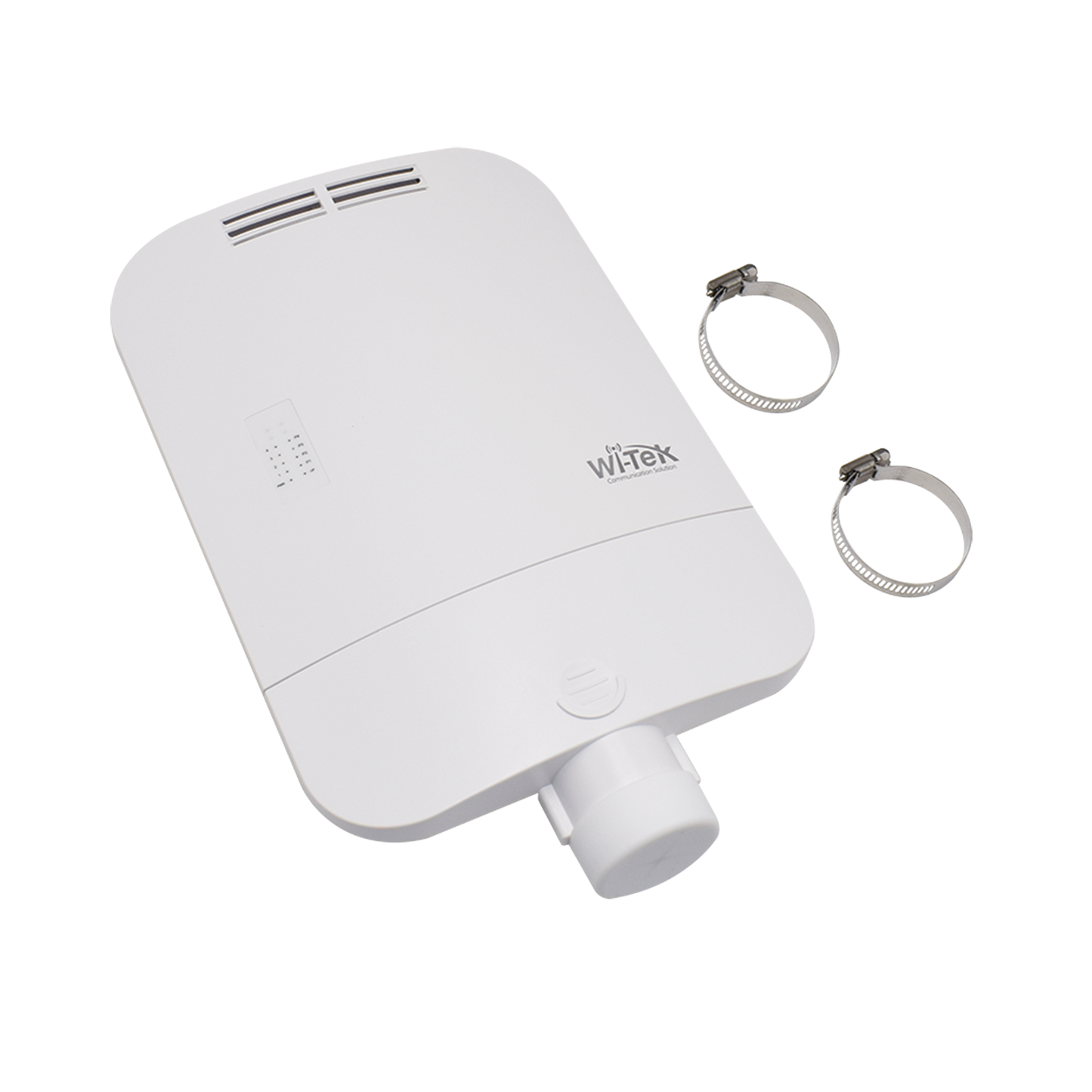

Assembly kit
User/Guarantee Guide
