Layer 3 Managed Switch 12-Port 10G SFP+, 8-Port 10/100/1000T W/Redundant AC Supply

Powerful 10 Gbps solution for all long range networks
PLANET The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or transmission speed required to extend the 10G network efficiently. Also, with a 256 Gbps switching fabric, The XGS-6350-12X8TR can handle extremely large amounts of data in a secure topology that links to backbone or high-capacity enterprise servers, data centers, campus, etc, where VoIP applications, video streaming and multicasting are used

Redundant dual AC power to ensure continuous operation

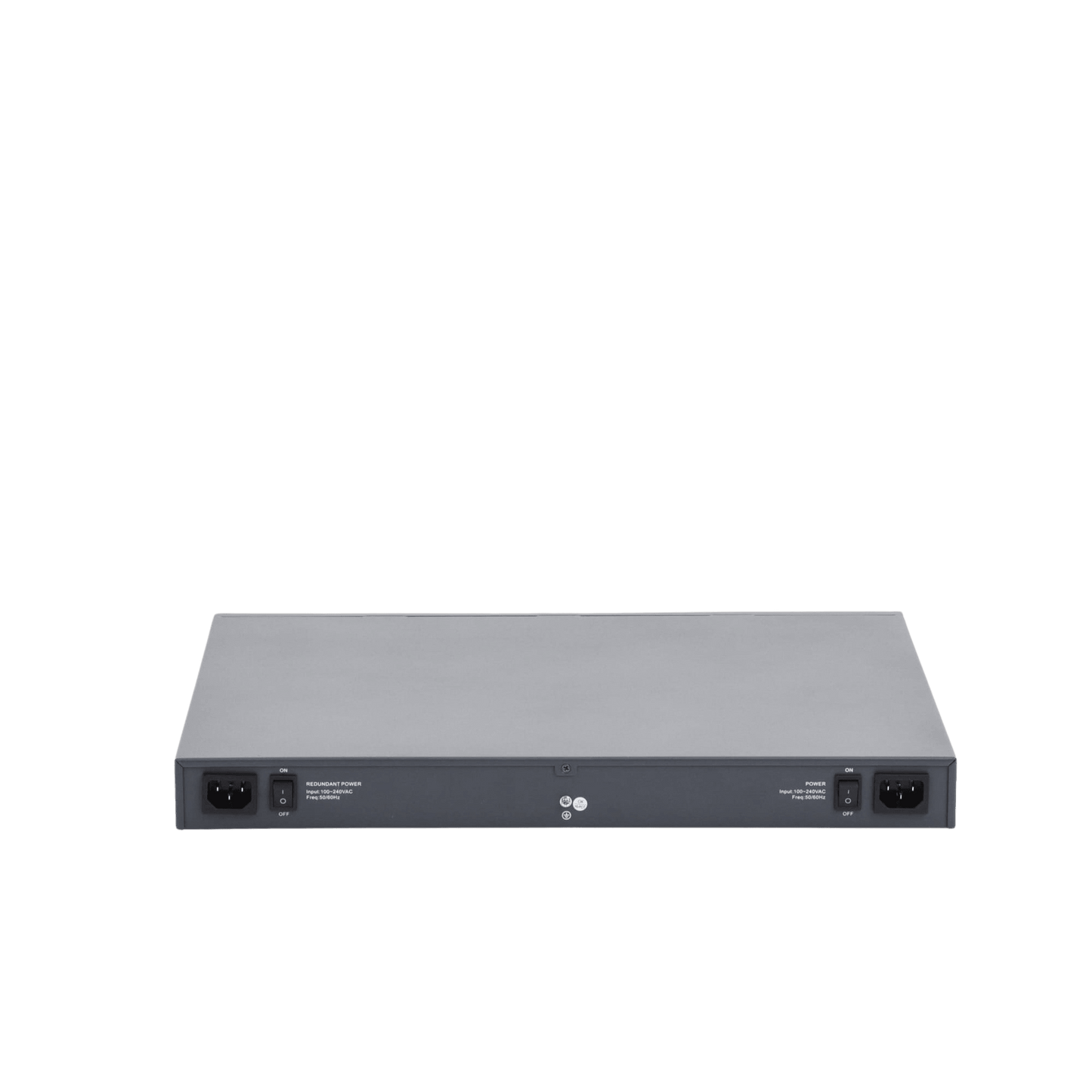

The XGS-6350-12X8TR is equipped with two 100~240V AC power supply units for redundant power supply installation. A redundant power system is also provided to improve reliability with the dual AC power supply units. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

Layer 3 routing support
The XGS-6350-12X8TR allows the administrator to conveniently increase network efficiency by configuring Layer 3 static routing manually, RIP (Routing Information Protocol) or OSPF (open shortest path first) configuration. The RIP can employ hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed on a path from the source to the destination. OSPF is an internal dynamic routing protocol for an autonomous system based on a link-state. The protocol creates a link state database by exchanging link states between Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database.

High performance
The XGS-6350-12X8TR features a high-performance switch architecture that is capable of providing a non-blocking switch fabric and wire speed performance of up to 256 Gbps. greatly simplifying the tasks of upgrading the LAN to meet increasing bandwidth demands.

Rich IPv6 support
The XGS-6350-12X8TR provides IPv6 management and enterprise-grade secure features like SSH, ACL, WRR (Weighted Round Robin) and RADIUS authentication. The XGS-6350-12X8TR helps enterprises enter the IPv6 era with the lowest investment. Also, You don't need to replace network facilities when building IPv6 FTTx edge network.

Excellent and safe traffic control
The XGS-6350-12X8TR is loaded with powerful traffic management and WRR features to enhance services offered by telecoms and enterprises. WRR capabilities include wire-rate Layer 4 traffic classifiers and bandwidth limiting that are particularly useful for multi-tenant unit applications, multiple business units, Telco or network services.

Powerful security
Supported ACL policies can classify traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Also, Various policies can be implemented to forward traffic. The XGS-6350-12X8TR also provides IEEE 802.1x port-based access authentication, which can be implemented with RADIUS, to ensure security at the port level and block illegal users. Therefore, The XGS-6350-12X8TR enables enterprises and campuses to make the most of limited network resources and ensures the best performance in video conferencing and VoIP streaming.

Robust Layer 2 Features
The XGS-6350-12X8TR can be programmed for basic switch management functions, such as port speed configuration, port aggregation, VLAN, spanning tree protocol, WRR, bandwidth control and IGMP inspection. Also supports 802.1Q tagged VLAN, Q-in-Q, Voice VLAN and GVRP protocol. Also, the number of VLAN interfaces is 1K and the number of VLAN IDs is 4K. By supporting port aggregation, The XGS-6350-12X8TR enables the operation of a high-speed trunk combined with multiple ports. Allows up to 32 groups for trunking with a maximum of 8 ports for each group.

Efficient and secure administration
For efficient administration, The XGS-6350-12X8TR is equipped with a console, web and SNMP management interfaces. With its built-in web-based management interface, The XGS-6350-12X8TR offers easy-to-use configuration and management installation, platform independent. The XGS-6350-12X8TR supports the standard Simple Network Management Protocol (SNMP) and can be managed through any standard management software. To reduce product learning time, The XGS-6350-12X8TR offers a Cisco-like command via Telnet or the console port. Also, The XGS-6350-12X8TR offers secure remote management by supporting SSH connection that encrypts packet content in each session.

Flexibility and extension solution
The XGS-6350-12X8TR provides eight 100/1000Mbps Ethernet ports and twelve 1/10Gbps SFP+ fiber ports. Each of the SFP+ slots supports dual speed, 10GBASE-SR/LR or 1000BASE-SX/LX. Therefore, The administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also with the required transmission speed. The distance can be extended from 550 meters to 2 km (multimode fiber) or up to 10/20/30/40/50/70/120 km (single-mode fiber or WDM fiber). They are suitable for applications within data centers and enterprise distributions.
