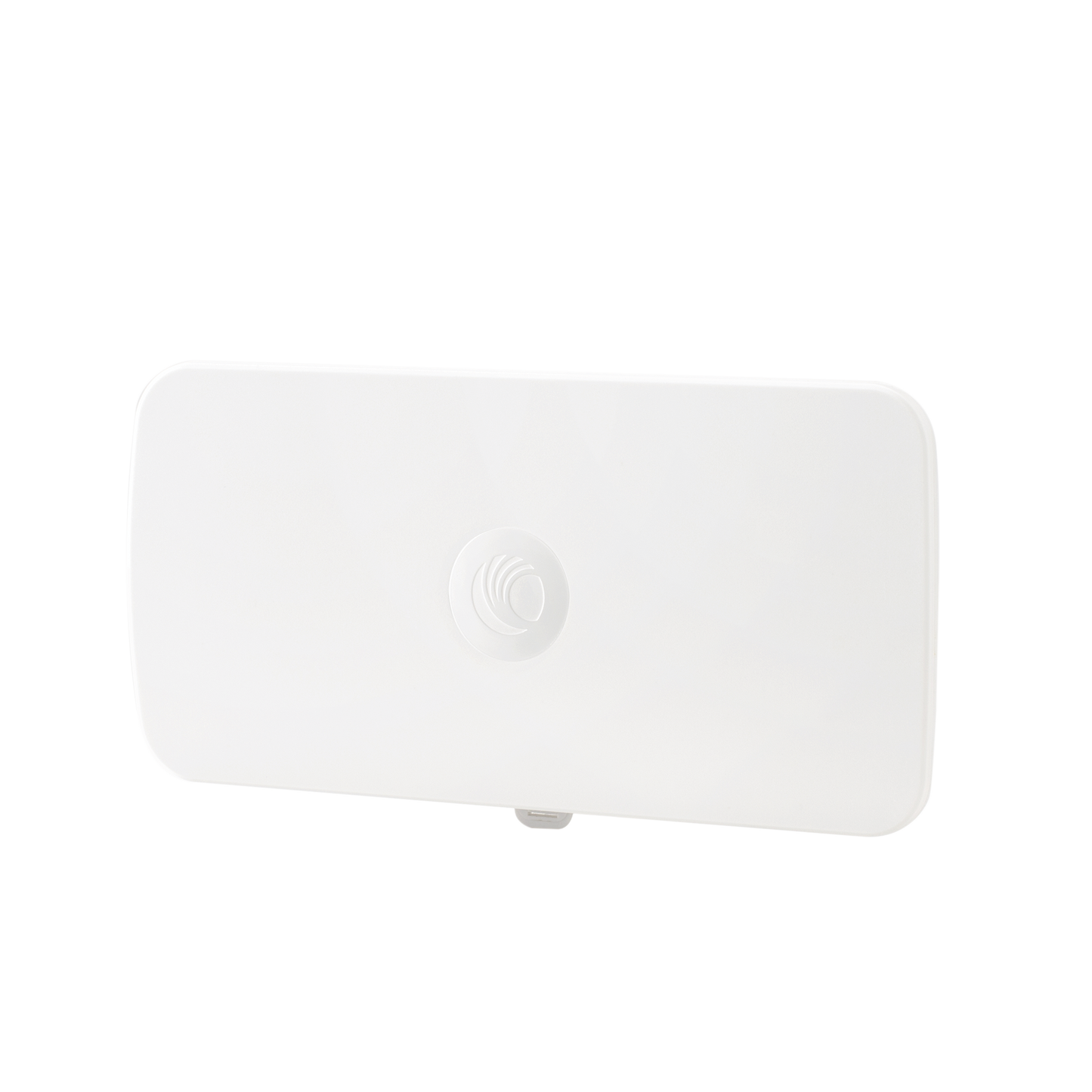

Force 300L Subscriber / +600 MBps Real / 5 GHz Wave2 802.11-AC / 16 dBi Antenna - C050910C111A

  • 0e60f8e802f4da7d5dba7ef366a965b7
  • 0e60f8e802f4da7d5dba7ef366a965b7
1 2
  • AC Wave2 Technology
  • 16 dBi
  • 100,000 PPS Maximum performance for voice and video surveillance applications
  • Option to configure as point to point
  • Includes mounting and PoE power supply

Out of stock

Modelo: FORCE300L-GEN2

Proveedor: CAMBIUM NETWORKS

Código SAT: 43221709

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Force 300-16 5GHz GEN2

5
GHz +600
Mbps 16
dBi 802.11AC
WAVE2 GEN2

New GEN2 Processor

A powerful GEN2 processor optimized for AC Wave2 technology.

SECURITY

128-bit AES encryption, L2 and L3 firewall rules, compatibility with different user levels, HTTP/SSH support provides enhanced security.

FLEXIBLE MODES OF OPERATION

Provides extremely low latency for PTP implementations, highly scalable mode without GPS sync and TDD operation for synchronized towers

NEW CHANNEL SIZE AND MODULATION

Supports channel size configuration from 20 MHz to 80 MHz and modulates up to 256 QAM

Principal functions

  • Gigabit Ethernet port
  • Allows PoE Cambium and standard PoE (30Vdc)
  • Includes PoE
  • Includes tilt fitting
  • Integrated 16 dBi antenna
  • 100,000 PPS Maximum performance for voice and video surveillance applications

MIMO and modulation 2x2 MIMO/OFDM
Frequency range 4.9 – 5.970 GHz (defined by country of operation)
Maximum power output 0 to +29 dB
Revenue 16 dBi
Maximum power consumption 12 Watts
Exterior protection IP55
Management HTTPs, SSH, SNMPv2c
Channel spaces Configurable in 5 MHz increments
MAC Layer Cambium Proprietary
Ethernet structure 10/100/1000BaseT, rate auto negotiated Cambium PoE or Standard PoE
Protocols used IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
VLAN 802.1Q with 802.1p priority
Input voltage 30V (PoE Included)
Encryption 128-bit AES (CCMP mode)
Antenna Type Integrated satellite dish with mounting
Channel width 20Ι40Ι80Mhz
Warranty 3 years



cnMaestro

LINKPlanner

cnArcher

cnHeat

cnMaestro™ is an on-premise or cloud-based software platform for secure end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and touchless provisioning. View and perform a full set of wireless network management functions in real time. Optimize system availability, Maximize performance and meet the emerging needs of business and residential customers.

LINKPlanner allows you to model "what if" scenarios (based on geography, distance, antenna height, transmit power and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and profitability with ease. Available for Microsoft® Windows® and Mac® systems, is a free and easy to use link design tool.

LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed around the world.

Raise the bar on installation accuracy with cnArcher™, The free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules.

Built on Cambium Networks' experience in RF planning, propagation and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world.
