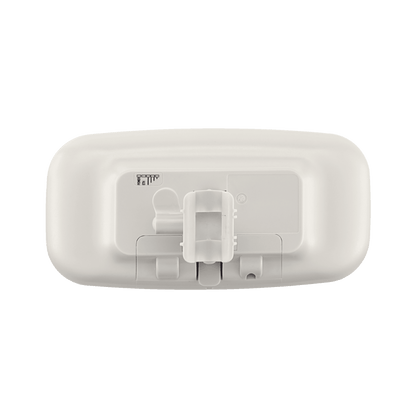

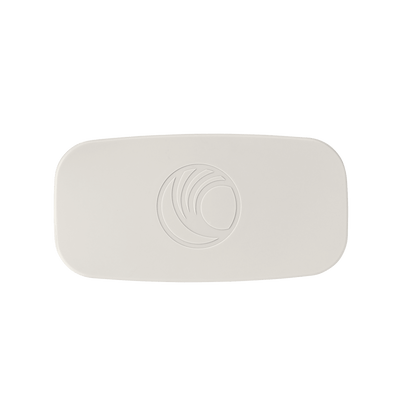

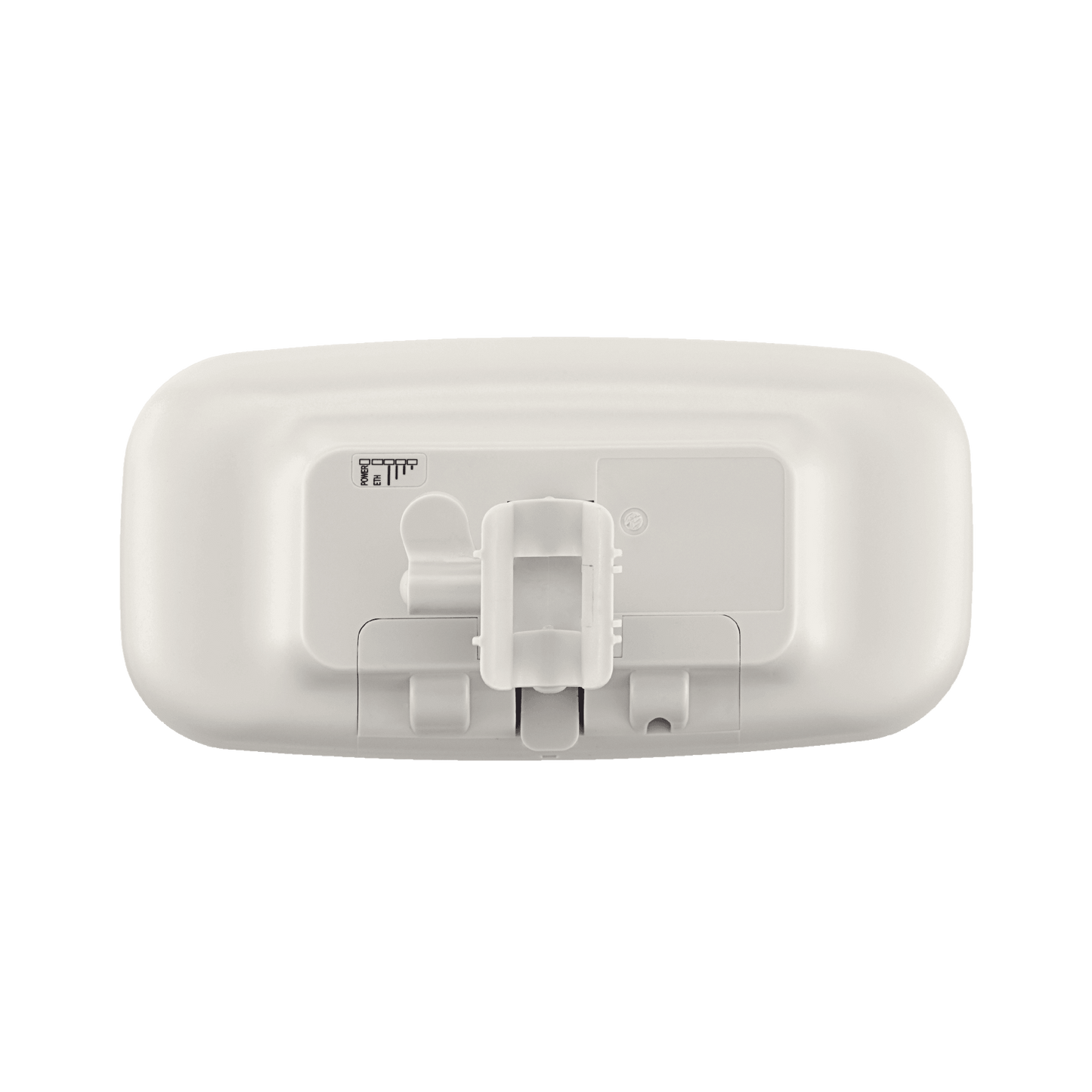

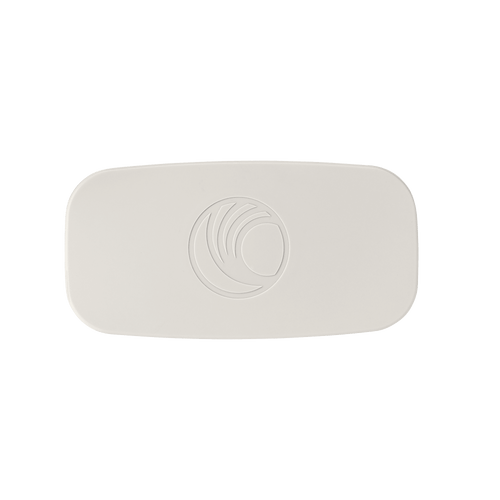

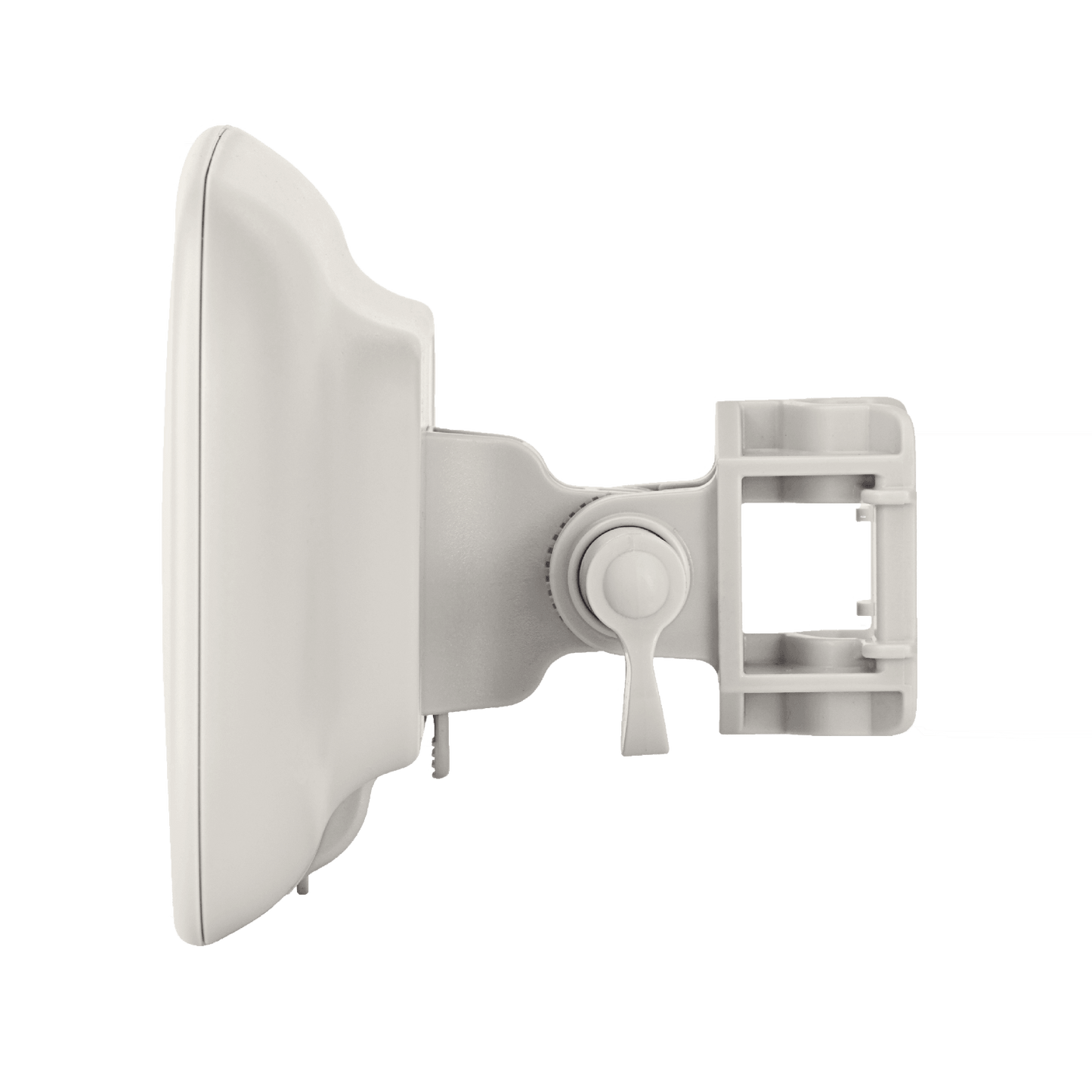

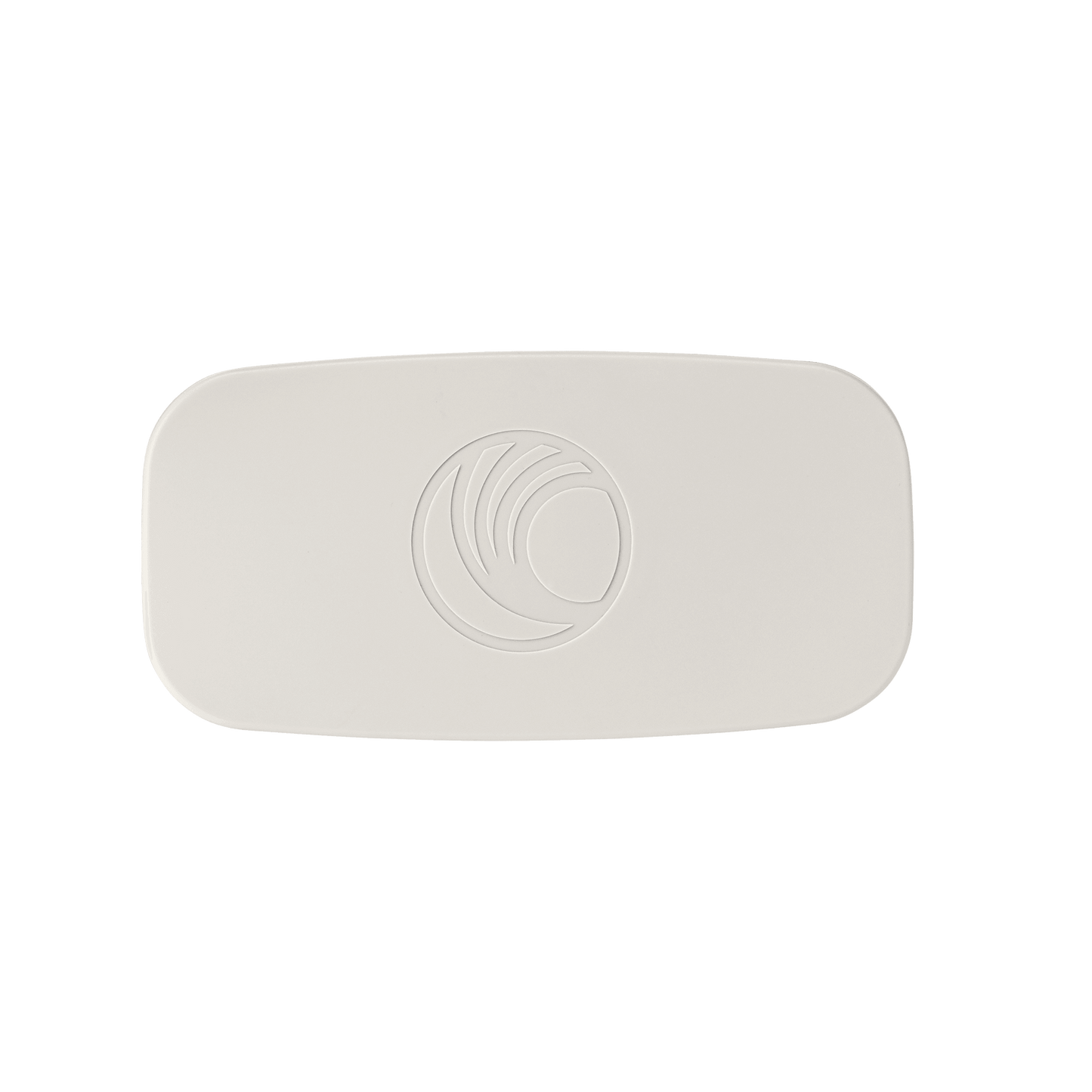

ePMP Force 180 5GHz, 200+ Mbps Subscriber with Integrated 16 dBi Antenna (C050900C171A)

  • 057f809f4f9261056537495a655bc9e0
  • b0ea379015a4602ba1ef8331c02841c7
  • 08ea88cce898557ac5bbedd3516700e1
1 3
  • QoS to prioritize Triple Play traffic (Video, Voice and Data)
  • Frequency range 4910-5970 MHz
  • Free monitoring from the cloud with cnMaestro, receive event notifications
  • Includes PoE power supply and mast or wall mounting
  • Option to configure as point to point

Out of stock

Modelo: FORCE180

Proveedor: CAMBIUM NETWORKS

Código SAT: 43222640

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details



Force 180

5
GHz 200+
Mbps 16
dBi

QUALITY OF SERVICE

A powerful multi-level prioritization scheme that can be configured by the operator

network to enable the delivery of differentiated services.

SECURITY

128-bit AES encryption, L2 and L3 firewall rules, compatibility with different levels

user, HTTP/SSH support provides enhanced security.

FLEXIBLE MODES OF OPERATION

Provides extremely low latency for PTP implementations, highly

scalable without GPS sync and TDD operation for synchronized towers

ROBUST DESIGN

Operates in ambient temperatures as high as 60 degrees and as low as -30 degrees

centigrade

The ePMP Force 180 is the second generation of integrated ePMP radio. It is a 2×2 MIMO radio in the 5 GHz band, with a capacity of 200+ Mbps and an integrated 16 dBi antenna. Can be used as CPE, as AP (no sync) or as PTP.


Principal functions

  • Gigabit Ethernet port
  • Allows Cambium PoE and standard PoE
  • Integrated 16 dBi antenna

Includes PoE injector and power cable.
Includes tilt pole mount.

MIMO and modulation 2x2 MIMO/OFDM
Frequency range 4910 – 5970MHz (defined by country of operation)
Maximum power output 30 dBm combined (defined by country of operation)
Revenue 16 dBi
Maximum power consumption 10 W Maximum, 5W Typical
Exterior protection IP55
Management HTTPs, SSH, SNMPv2c
Channel spaces Configurable in 5 MHz increments
MAC Layer Cambium Proprietary
Ethernet structure 10/100/1000BaseT, auto negotiated rate, Cambium PoE (included)
Protocols used IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
VLAN 802.1Q with 802.1p priority
Input voltage 10 to 30V
Encryption 128-bit AES (CCMP mode)
Antenna Type Integrated
Channel width 5/10 MHz, 20/40MHz
Warranty 3 years


Installation and assembly of equipment



Step-by-step configuration via Web interface


cnMaestro

LINKPlanner

cnArcher

cnHeat

cnMaestro™ is an on-premise or cloud-based software platform for secure end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and touchless provisioning. View and perform a full set of wireless network management functions in real time. Optimize system availability, Maximize performance and meet the emerging needs of business and residential customers.

LINKPlanner allows you to model "what if" scenarios (based on geography, distance, antenna height, transmit power and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and profitability with ease. Available for Microsoft® Windows® and Mac® systems, is a free and easy to use link design tool.

LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed around the world.

Raise the bar on installation accuracy with cnArcher™, The free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules.

Built on Cambium Networks' experience in RF planning, propagation and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world.
