Class B Transient Suppressor for Residential Applications, 2 Phase, 4 Wire, 220 Vac

  • 1cf98d4962b90f4b4111fdf355627a49
1 1
  • Supresor clase B para uso industrial y residencial
  • Indicadores luminosos de estado de protección
  • Atenuación EMI/RFI: 1kHz - 100MHz (55dB opcional)
  • ICC 20us: 50kA para protección efectiva
  • Rango temperatura operación: -10 a 85°C

29 in stock

Modelo: SOHO/220

Proveedor: TOTAL GROUND

Código SAT: 39121600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

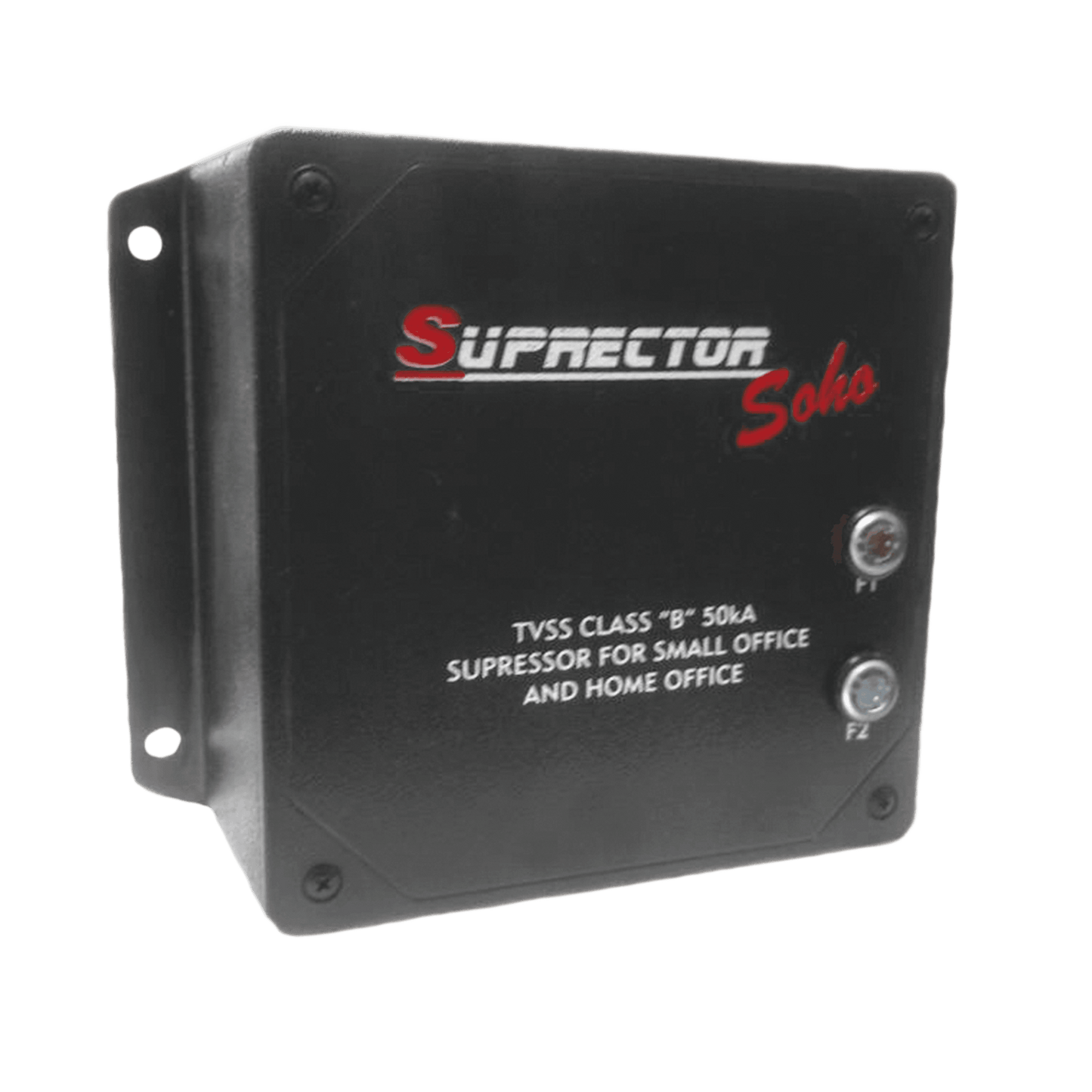

SOHO SUPPRESSOR is a Class B suppressor with the technology of a robust suppressor for industrial use, but with an aesthetic design and more suitable for residences and small offices.

  • Available for 2 phases.

  • For 220 Vac installations.

  • Luminous protection status indicators.

  • Aesthetic design for easy installation.

  • For interiors.

  • 1 year warranty.

TECHNICAL SPECIFICATIONS:

  • Max Voltage Operating: 220 Vac.

  • EMI/RFI Attenuation: 1KHz - 100 MHz (55 dB optional).

  • Operating frequency range: 60 Hz.

  • Connection type: Parallel.

  • Icc 20 us: 50 KA.

  • Temp. operating range Ambient: -10 to 85°C.

  • Power consumption: 1 Watt.

  • Humidity (non-condensed weather protection): 5% - 95%.

  • Weight: 500 gr.

  • Dimensions: 14.5 x 12 x 6 cm.
