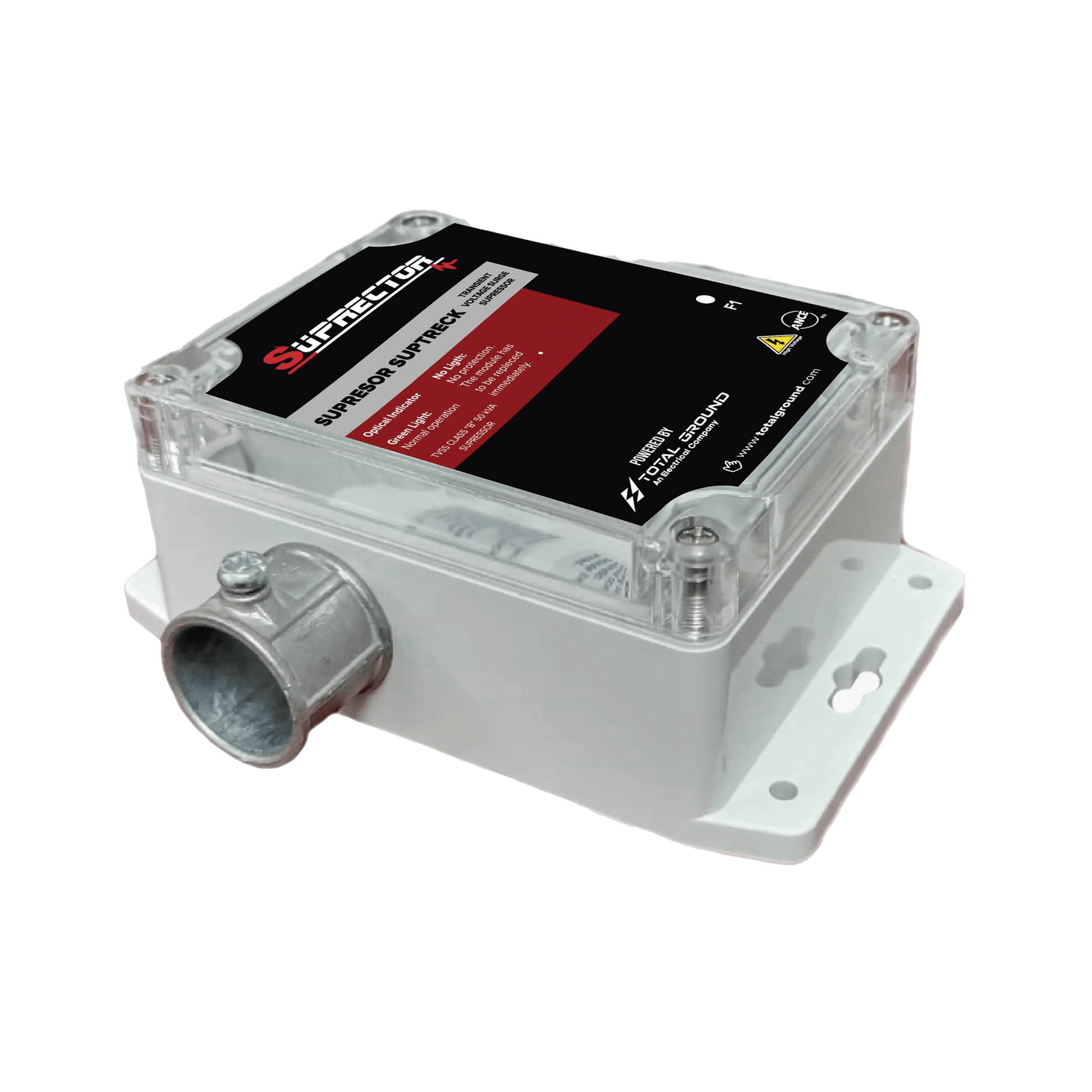

Class B transient suppressor with operating voltage 127 Vac, 3 phases, 50 KA

• SUPRECTOR class B transient suppressors, They are designed to provide the best protection to main panels and connections by eliminating transient line peaks caused by various factors.

• Manufactured in a range of different capacities to meet different protection needs.

• They have a high-precision thermal fuse that opens the circuit in the event of a current overload, thus avoiding flame release and the possibility of the varistor becoming shorted.

• Protects and provides security to equipment from transient events caused by internal and external factors.

• This suppressor is part of the SPTE, This being the SIPTE required in NMX-J-549-ANCE-2005.

• MOV (Metal Oxide Varistor) technology with thermal protection fuse.

APPLICATIONS:

• Ideal for protection in any industrial application.
• Secondary/main boards.
• Protection of transients due to atmospheric discharges or internal and external events.

CHARACTERISTICS:

• Polycarbonate plastic cabinet: NEMA 4

• Led indicator of active protection status in real time.

• Four wall fixing points.

• 3/4 terminal.

TECHNICAL SPECIFICATIONS:

• 3 Protection Modes: * Line-Neutral * Line-Ground * Neutral-Ground
• Maximum protection current: 50 kA per phase.
• Approximate dimensions: 14.5 x 5.51 x 8.99 cm.
• Maximum short circuit capacity of 200ka.
• 3 Phases, 5 Threads.
