Din Rail Type Surge Suppressor Voltage: 127 VAC, 1 Phase, 3 Wires.

  • b40fb53e7446acab03a743ad4f89be0f
  • b40fb53e7446acab03a743ad4f89be0f
1 2
  • Protección contra picos transitorios de hasta 50kA
  • Cumple normativas para instalación segura en DIN rail
  • Modo de protección fase-neutro y neutro-tierra
  • Indicador LED de estado de protección activo
  • Rango operativo: -10°C a 85°C, 0%-95% humedad

238 in stock

Modelo: SUPRECTOR-DIN-FA

Proveedor: TOTAL GROUND

Código SAT: 39121600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Description:

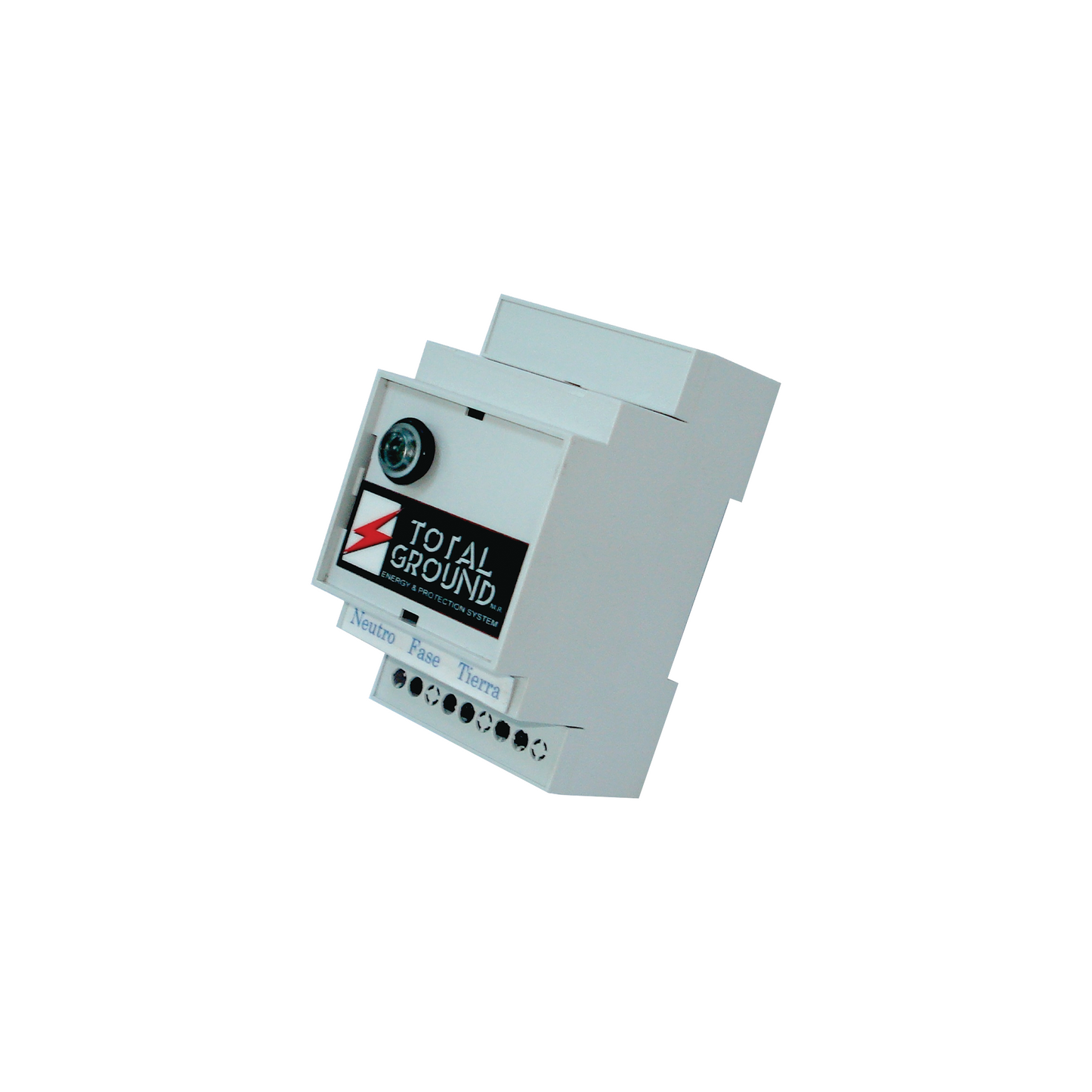

DIN Rail Suprector is a DIN Rail mountable suppressor for protection against transient spikes caused by lightning. turning on and off motors and restoring power supply. Complies with the various regulations that suggest the installation of suppressors. DIN Rail Suprector is a single-phase suppressor, with a protection of 50KA which makes it a high efficiency class A suppressor.


Physical specifications.

  • White plastic cabinet.
  • Dimensions: 9 x5.5 x 6 cm.
  • Terminal Block for electrical connection.

Electric specifications.

  • Protection
  • Wave tracking circuit.
  • 2 Protection Modes:
  • Phase – Neutral: FN.
  • Neutral – Ground: N-GND.
  • Optical indicators
  • 1 Led indicator of active protection status in real time.

Environmental specifications.

  • Operating temperature -10°C~85°C.
  • Relative humidity: 0%~95%.

Applications

  • Ideal for protection in any industrial application.
  • Secondary boards.
  • Control boards (PLC).
