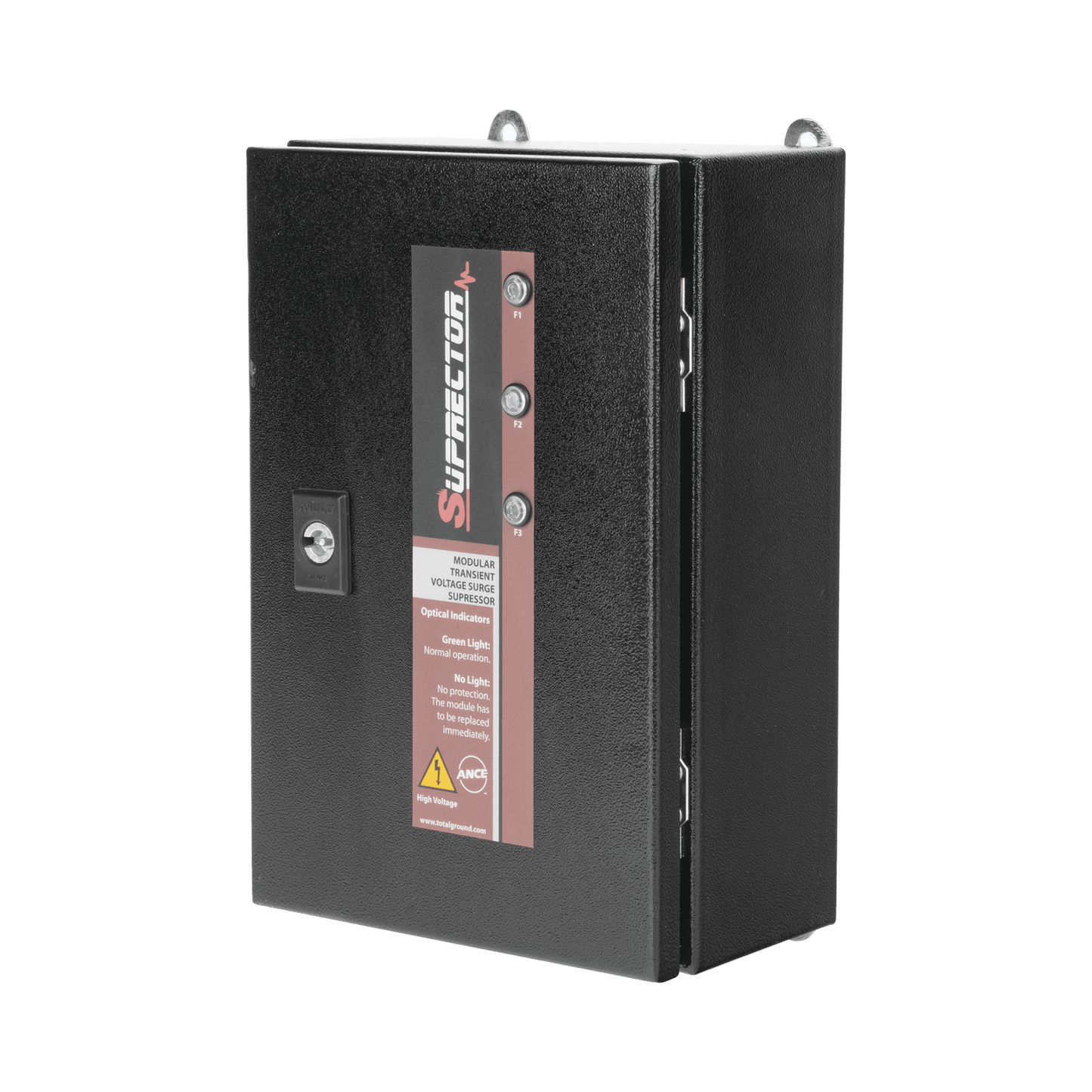

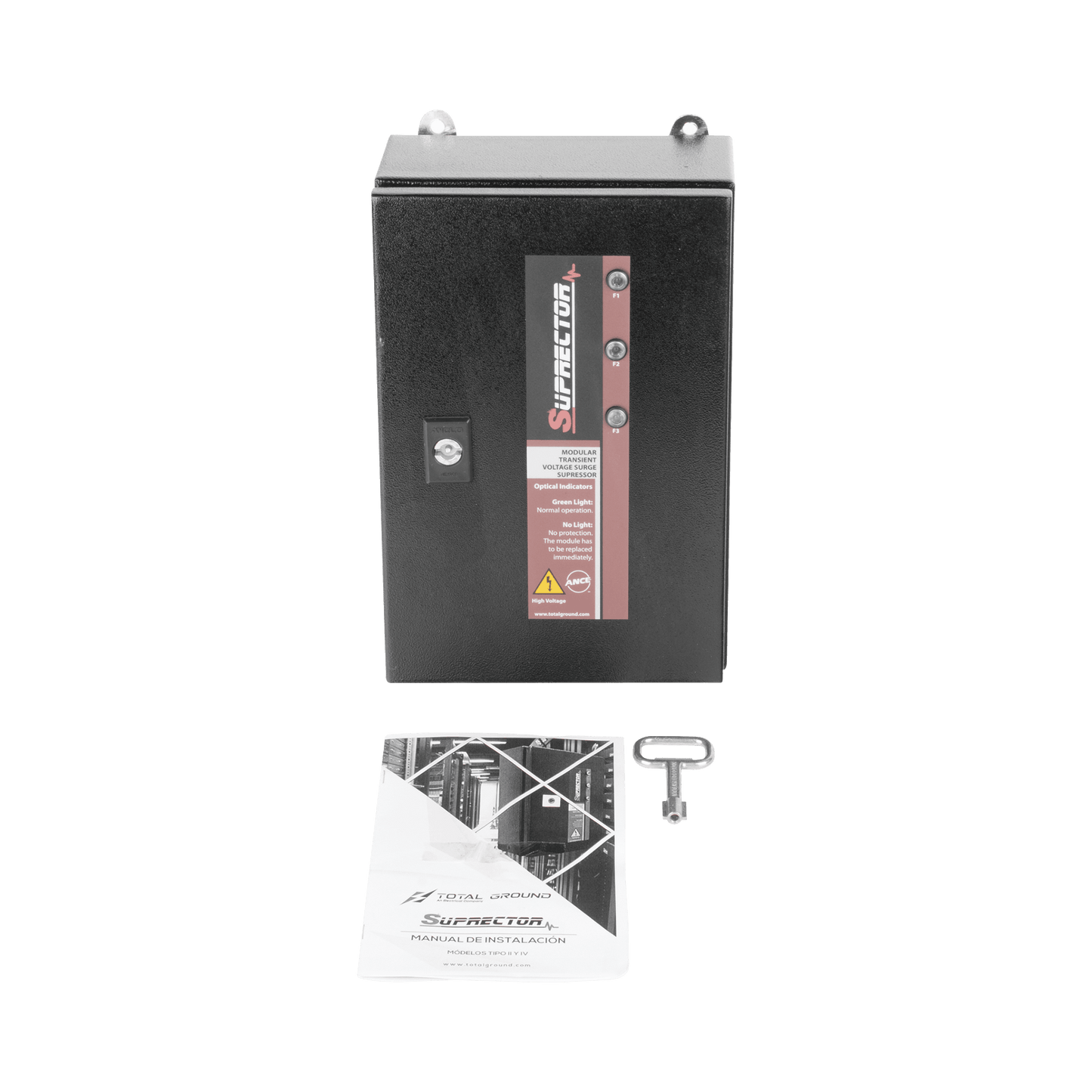

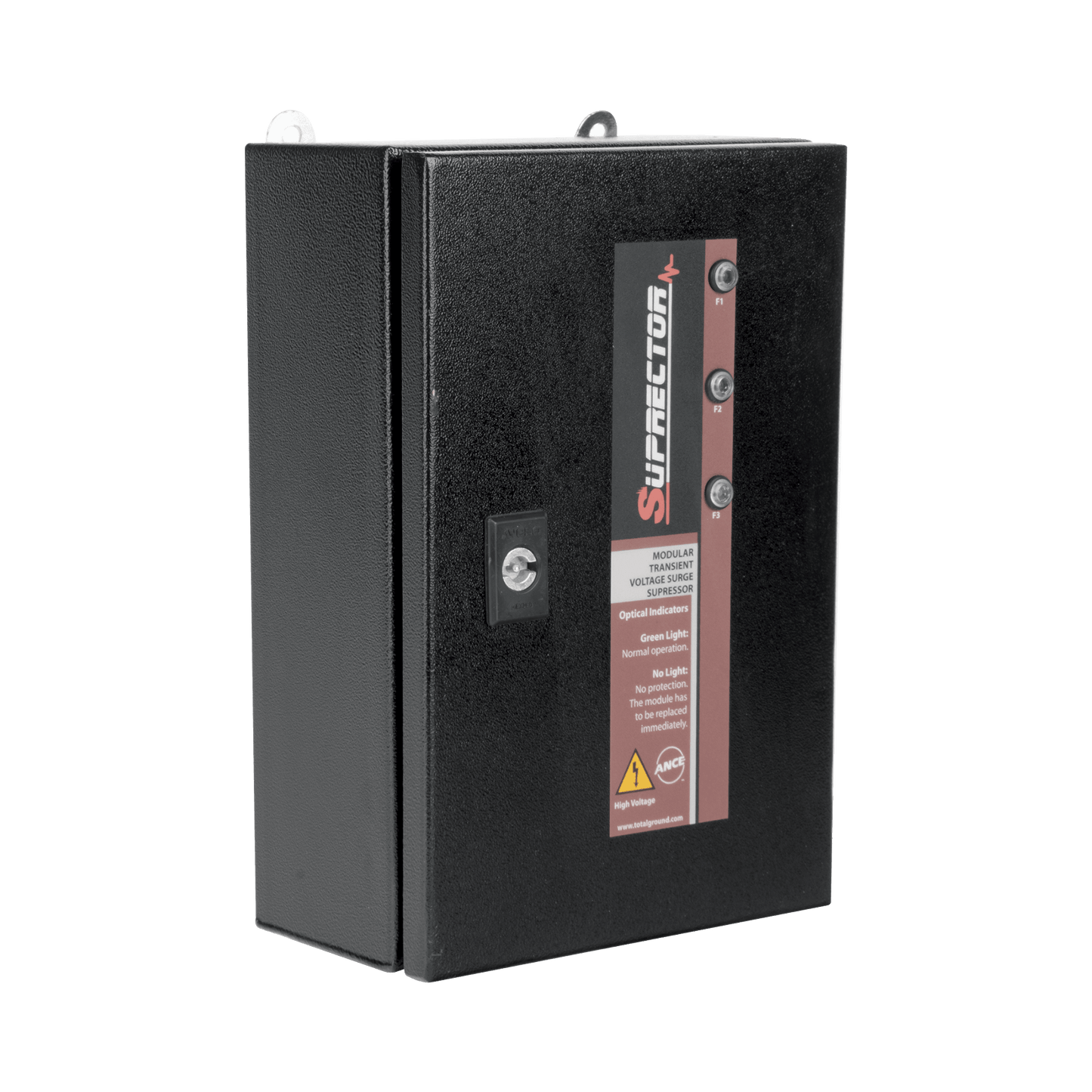

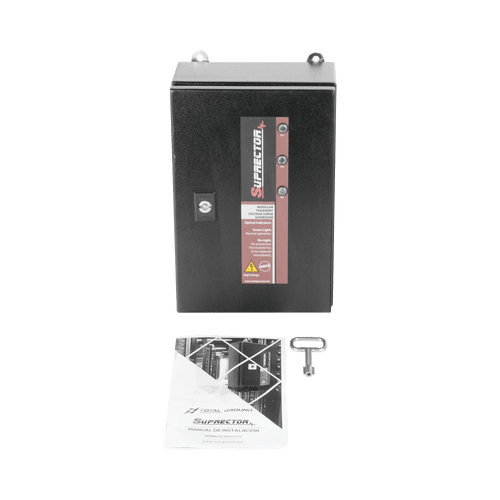

Class C Peak Suppressor with Operating Voltage 127/220 Vac, 1 Phase, 200 KA

SUPRECTOR class C transient suppressors, are designed to provide the best protection to main boards, especially those with critical load.

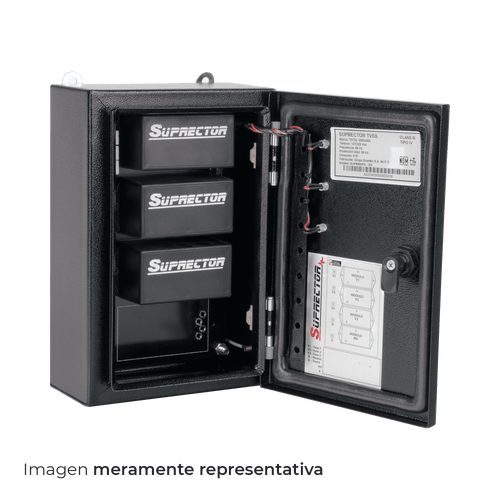

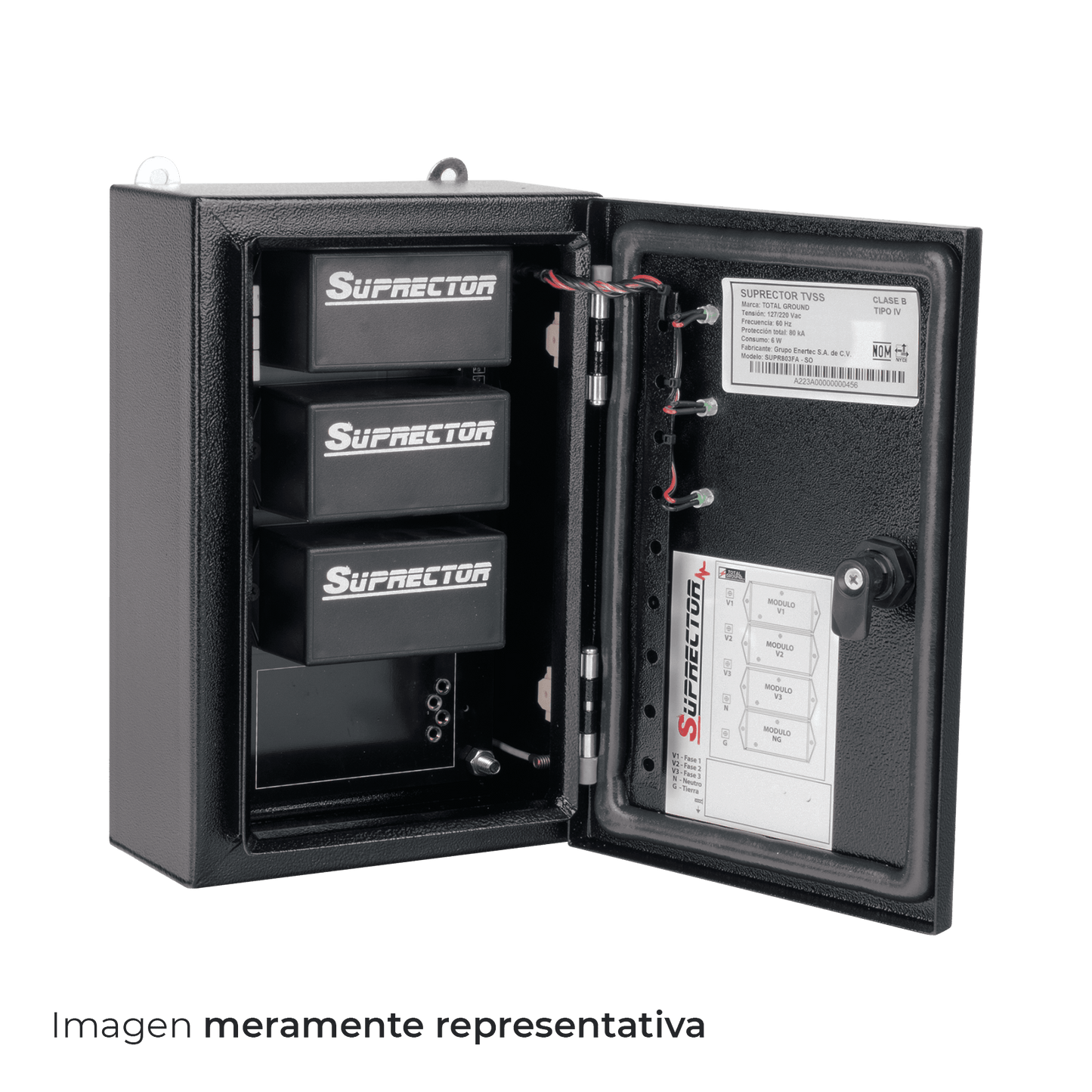

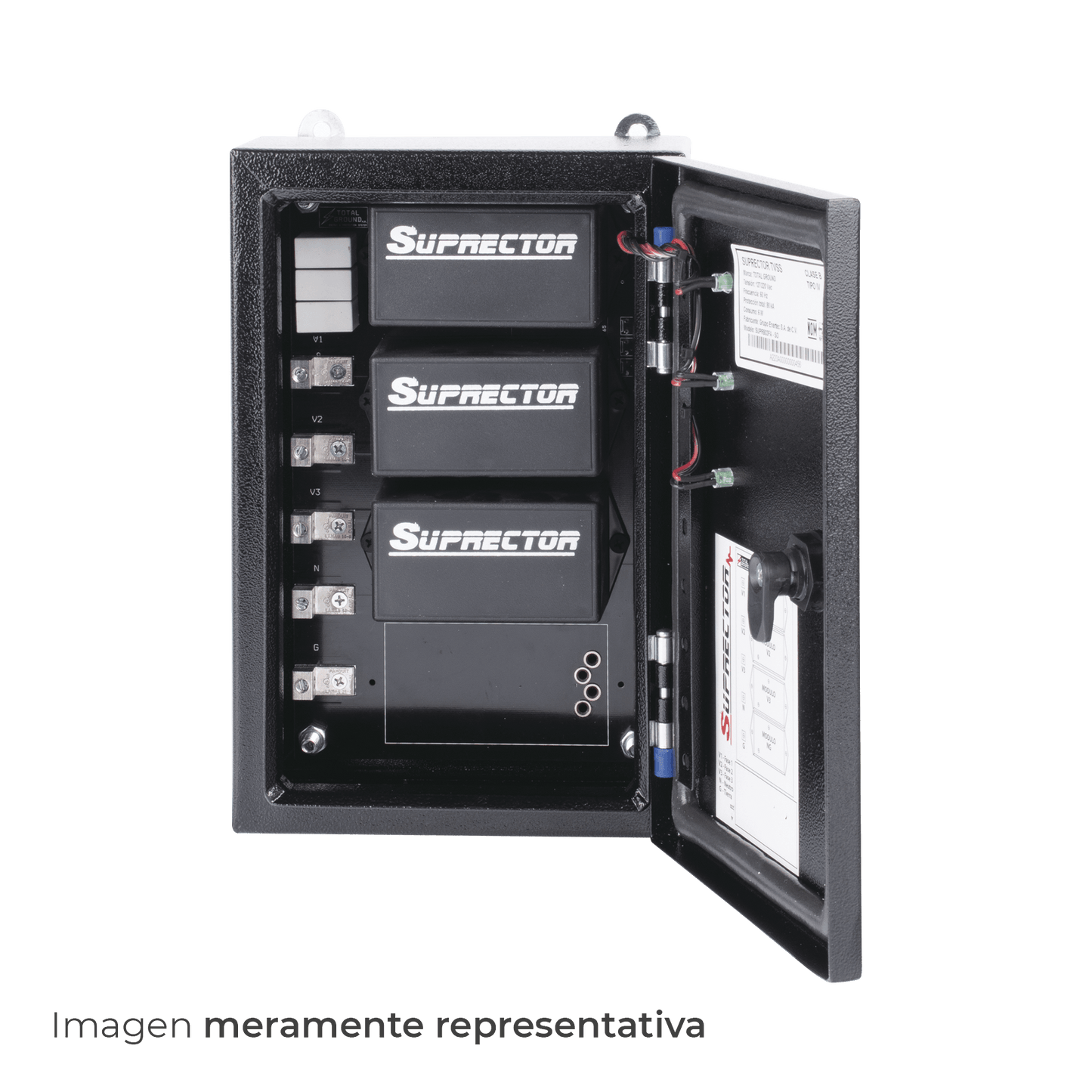

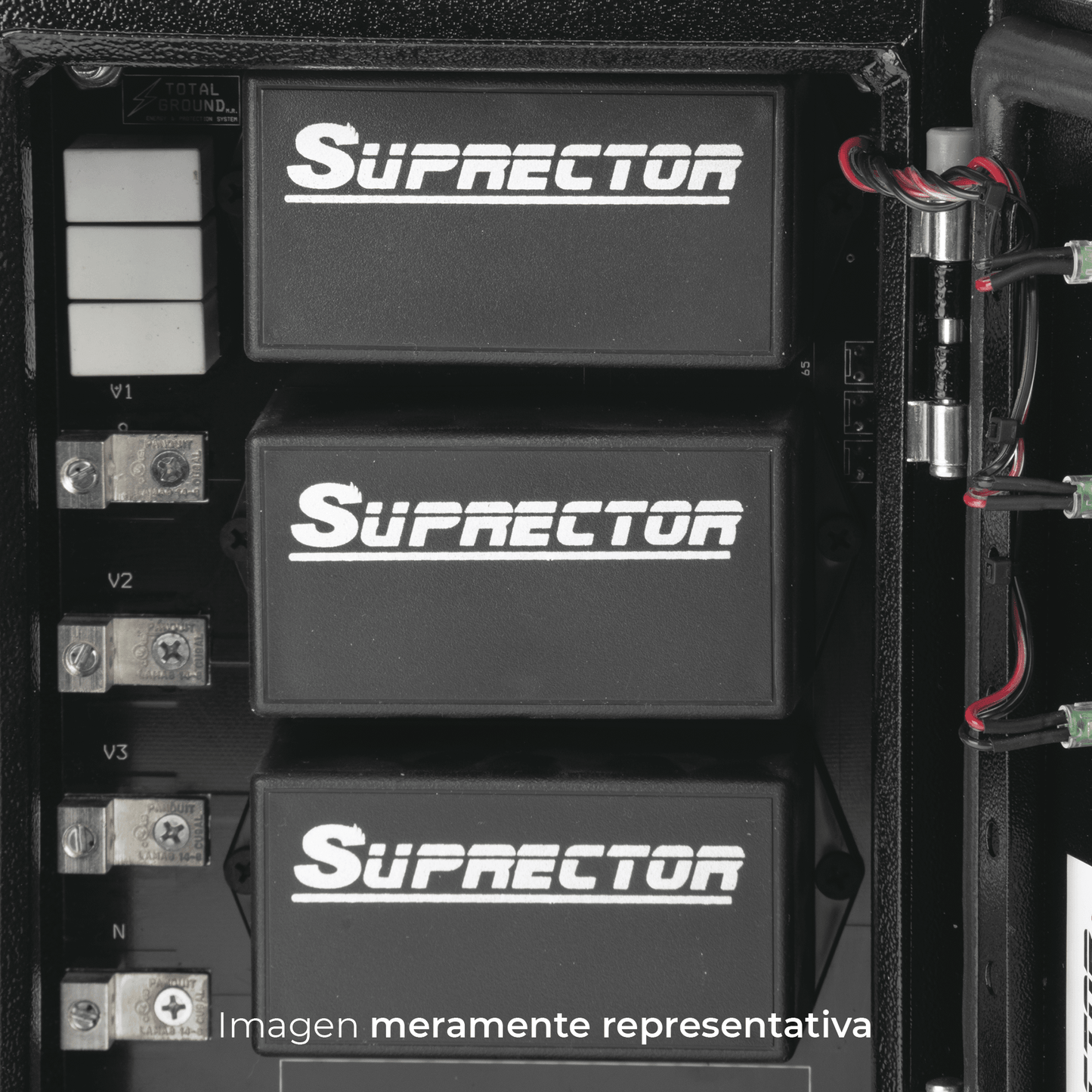

SUPRECTOR brand suppressors have hybrid technology that includes varistors of different capacities according to different protection needs. Also, The varistors integrate a high-precision thermal fuse that opens the circuit in the event of an overcurrent, avoiding flame release and preventing the varistor from being shorted. They also offer modular protection for easy replacement, repair and growth.

Another virtue of SUPRECTOR is the wave tracking circuit, whose function is to filter the noise generated by the transient voltage cut.

APPLICATIONS :
Class C suppressors are designed to provide protection for main or distribution boards.

CHARACTERISTICS:

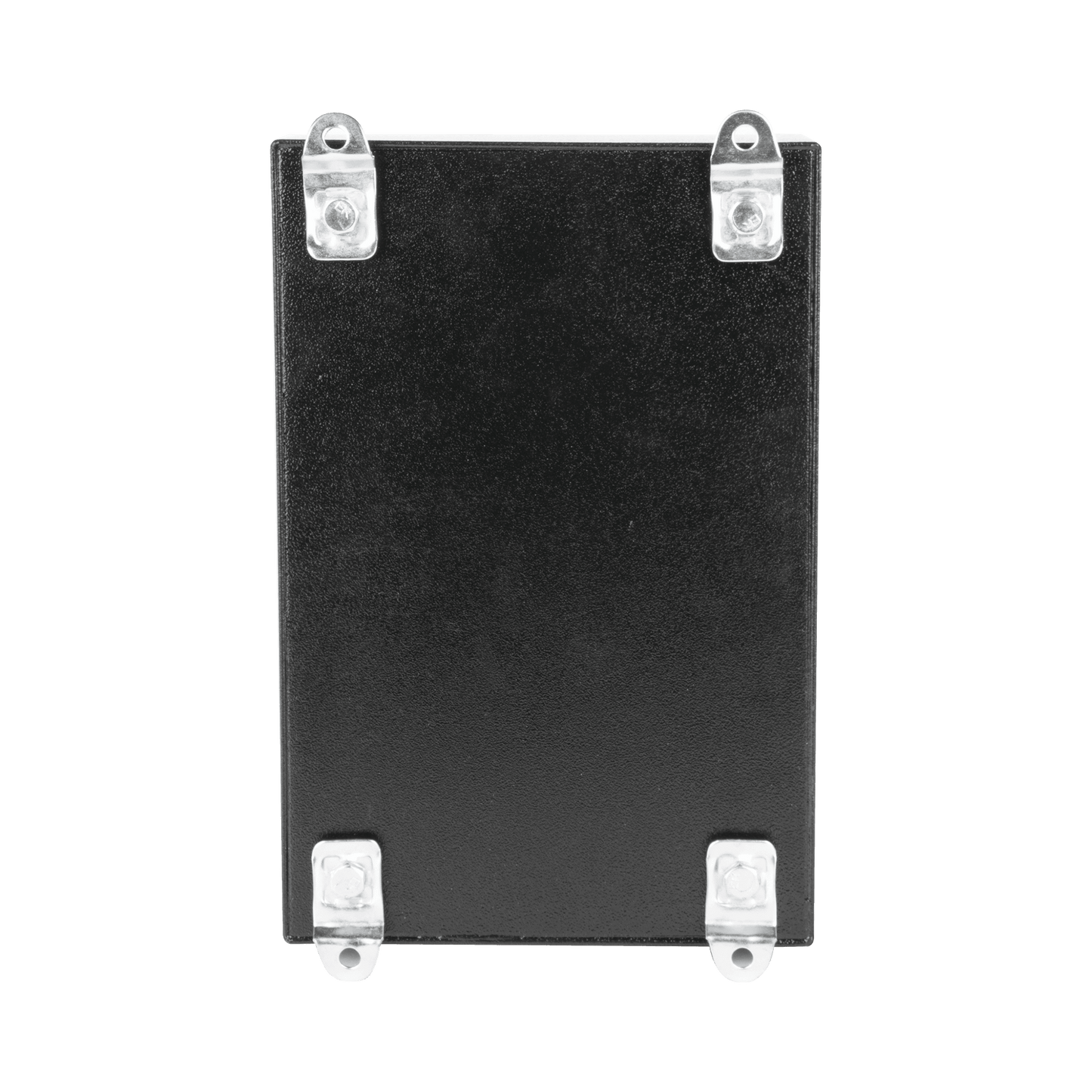

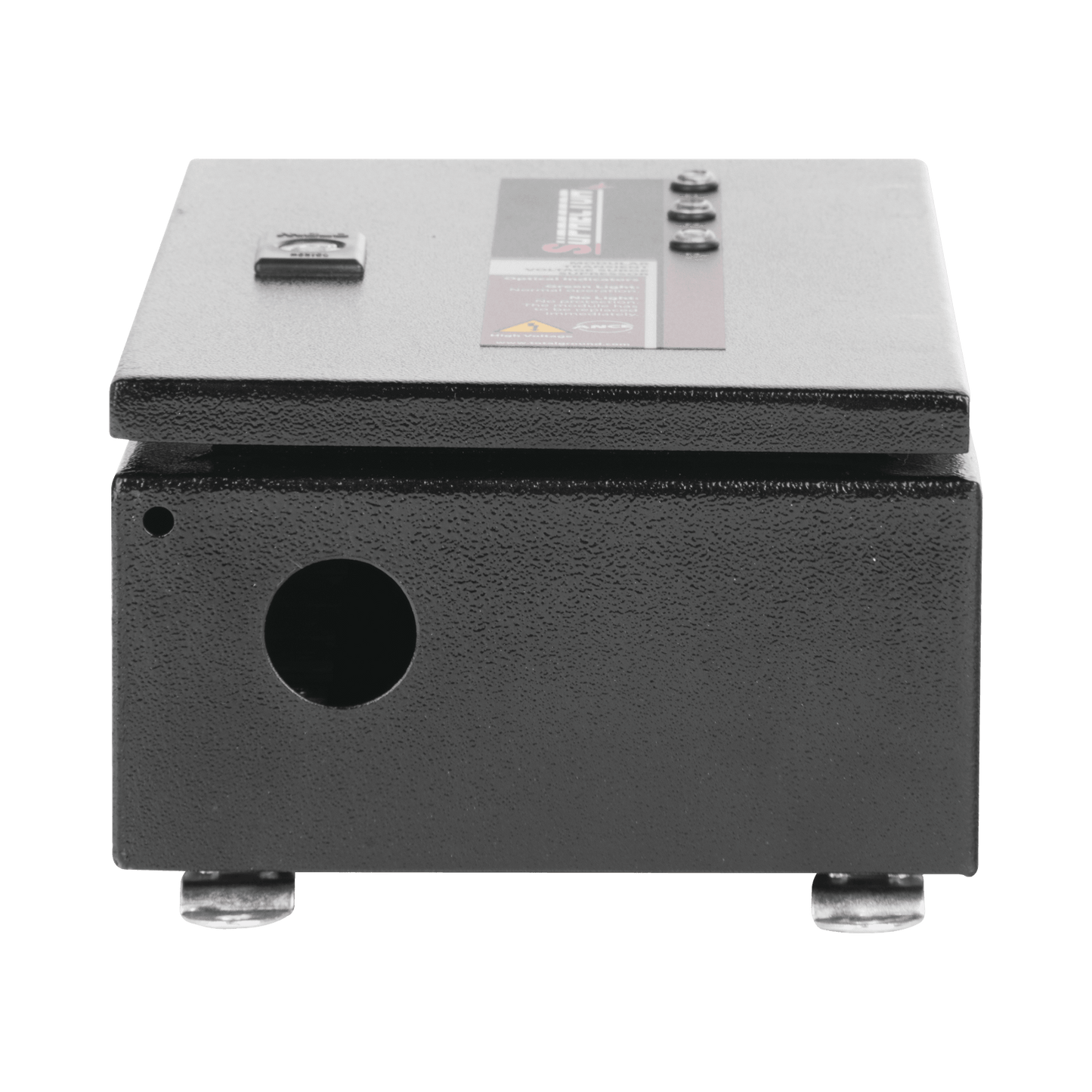

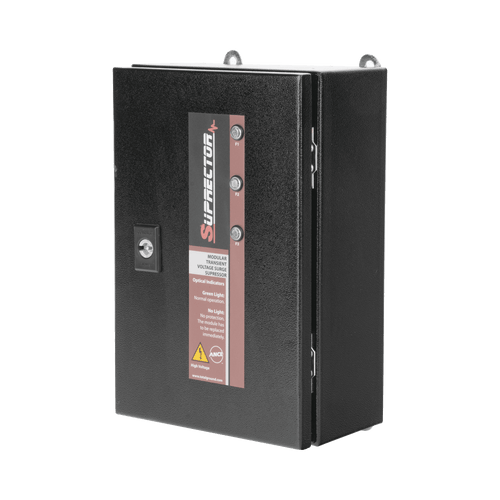

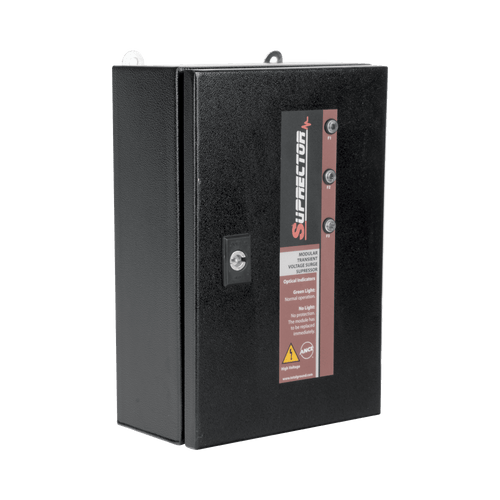

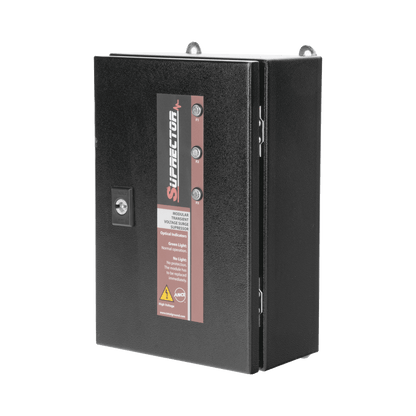

Steel cabinet: NEMA 4.
Cabinet dimensions: 30 x 20 x 12 cm.
Operating Voltages: 127/220 Vac
Capacity: 200KA
Phases: 1
Threads: 3

Protection Modes:

• Line-Neutral (LN)
• Line-Ground (LG)
• Neutral-Ground (NG)
• Line-Line (LL) (On Request)

Warranty: 5 years.

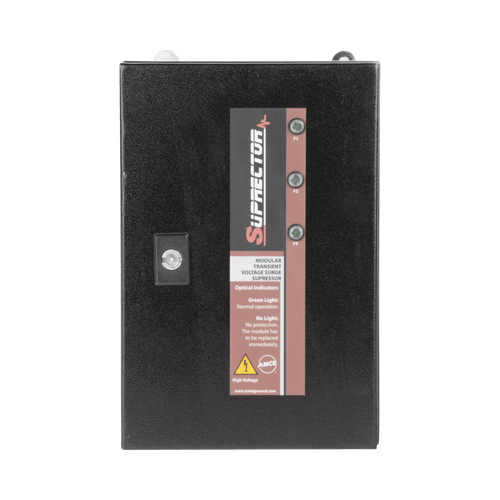

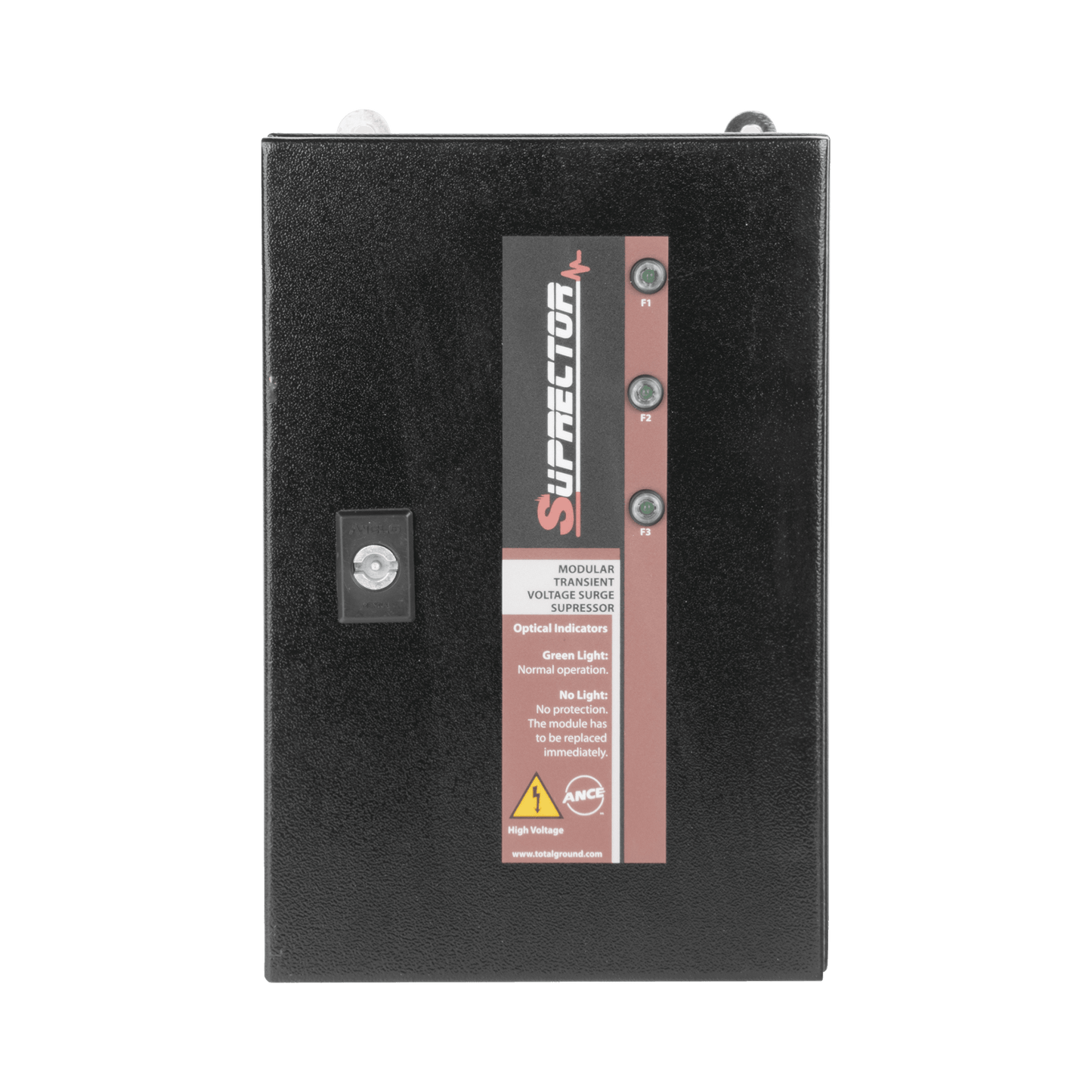

OPERATION DIAGNOSIS:
LED(s) on GREEN = PROTECTED.
LED(s) on RED = UNPROTECTED.
LED(s) off = OFF . Replace the suppressor module after checking the line voltage and installation diagram.


Recommendation for Use:

How to Select a Total Ground Class C Suppressor?
