Fusion® Player and Speaker Kits

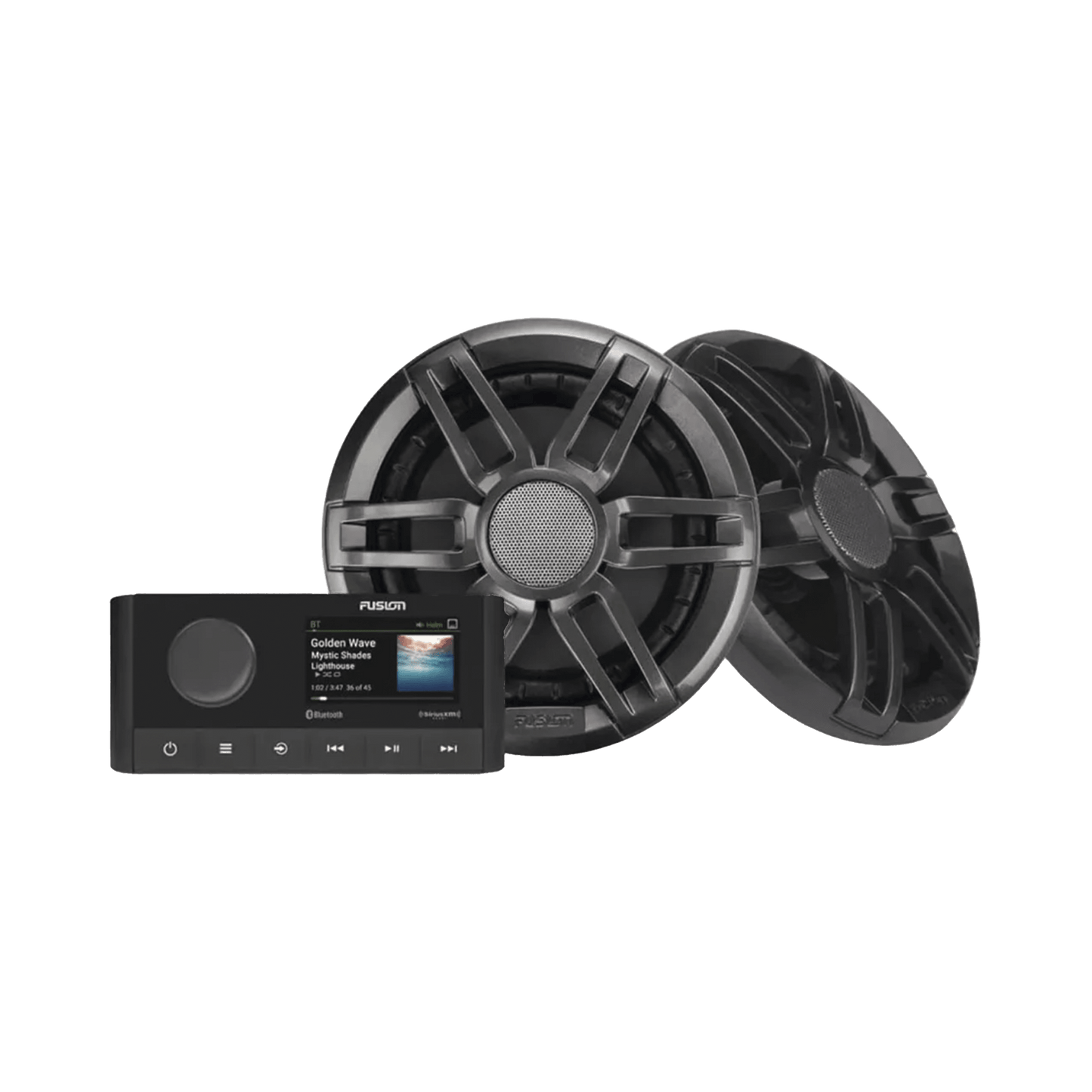

XS and MS-RA210 Sports Speaker Kit

Characteristics :

• Operation of up to two audio zones
• Management via smart devices or compatible watch
• Integrated 4 ohm class D amplifier.
• Manufactured under IPX6 protection standard
• Wireless range via Bluetooth of up to 10 m.
• 2.7" color LCD screen
• Peak power 200 W
• Connection for up to 4 speakers.
• One NMEA-2000 port

Includes:

• MS-RA210 Nautical Stereo System
• A Pair of XS Series Sporty Gray Nautical Speakers
• Hidden AM/FM antenna
• 2 meter (6 ft) NMEA 2000® voltage drop cable
• Two 6 meter (19 ft) speaker cables
• Protective dust cover
• Wiring Harnesses and Mounting Accessories
  • Mounting gasket
  • Four 6 gauge self-tapping screws
  • Two screw caps
  • Speaker and power wiring harness
  • Auxiliary input wiring harnesses, line out and subwoofer out
  • 12 x Stainless Steel Phillips Mounting Screws (4.2mm x 25.4mm (8 x 1″ Gauge))

Electric specifications:

Stereo System Specifications

Physical Dimensions (H x W x D) MS-RA210: 68 x 157 x 126″6 mm (2″68″ x 6″18″ x 4″99″) Weight MS-RA210: 350 g (12:4 oz) Water resistance rating IPX6 and IPX7 (front panel only, when installed correctly) Power input 10:8-16 V DC Operating temperature range 0 - 50°C (32 - 122°F) Current (maximum) 15A NMEA 2000® LEN MS-RA210: 1 (50 mA) Bluetooth® Wireless Range Up to 10 meters (30 ft) ANT wireless range Up to 3 meters (10 ft) Wireless protocols/frequencies Bluetooth 2:4 GHz at +12 dBm nominal
ANT: 2.4 GHz at +7 dBm nominal Compass safety distance 150mm (5:9″) Screen MS-RA210: Optically bonded 2:7″ color LCD Integrated amplifier Class D (4 ohm minimum impedance) Peak power MS-RA210: 200W Rated power output (4 ohms) MS-RA210: 26 W RMS x 4 input at 14:4 V < 10% THD Control with Fusion-Link™ MS-RA210: yes (with multifunction display, smartphone and Garmin watch) Integrated digital signal processing MS-RA210: yes (with preconfigured DSP profiles) Multi-Zone™ Technology 2 zones Bluetooth wireless technology Yeah ANT wireless technology Yeah DAB+ compatibility MS-RA210: yes (requires DAB100A antenna module) SiriusXM-Ready MS-RA210: Yes (SiriusXM Connect Vehicle Tuner required) Multilingual interface MS-RA210: Bulgarian&comma; Chinese (simplified/traditional)&comma; Croatian&comma; Czech&comma; danish&comma; Dutch&comma; English&comma; Finnish&comma; french&comma; german&comma; Greek&comma; Italian&comma; japanese&comma; korean&comma; Norwegian&comma; Polish&comma; Portuguese (BR/PT)&comma; Slovenian&comma; Spanish&comma; swedish&comma; thai and turkish NRX remote control compatibility MS-RA210: yes Software updates MS-RA210: USB Warranty 1 year Sources MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (US only&comma; requires optional SiriusXM Connect vehicle tuner)/DAB+ support (Europe only and Australia) auxiliary input One RCA (AUX) input NMEA 2000 MS-RA210: 1 port USB 2.0 MS-RA210: 1 port SiriusXM Satellite Radio MS-RA210: 1 port (requires SiriusXM Connect Vehicle Tuner, not compatible with traffic or weather) AM/FM Radio One Motorola antenna connector port Speaker MS-RA210: 4 speaker connections (amplified for 2 zones) RCA pre-output (left, right and subwoofer) MS-RA210: 2 zones (requires external amplification) line out MS-RA210: zone 1&comma; zone 2 (1 x R&D per zone, requires external amplification) Subwoofer output MS-RA210: zone 1&comma; zone 2 (requires external amplification)

Speaker specifications

Physical Dimensions (H x W x D) XS Sport Horn: 177 x 83 mm (6:97″ x 3:27″) Water resistance rating IP65 Setting XS speaker: coaxial
