Equipment Ready for Honeywell Total Connect (Smart Home) and High Security Alarm Monitoring with ALARMNET (IP).

Extreme High Security

ALARMNET ensures that your signal ALWAYS ARRIVES. Your information is sent encrypted, servers in the USA with high redundancy and 4G backup (Multiple Carriers).

Smart Home with Total Connect

Manage your Panel and other devices (Thermostats, Doors, Sensors, Lighting) with Total Connect, the leading application in the USA for smart homes.

In this image we see the state of the main door, lighting in living room / dining room, garage door, sensor alerts and cloud camera recording.

High Security Cloud Video Recording

Access video cloud, extreme fluidity and high security on Honeywell USA servers from your mobile or via the Web.

Compatible cameras: IPCAMWIC1 , IPCAMWIC2 and IPCAMWOC1

High Security Remote Arming

Remotely control security partitions for your business.

Handle security, access control, and user management with Honeywell Total Connect VISTA® partitions.

Turn your House into a Smart Home

Honeywell Total Connect allows you to manage all devices with high security on any mobile device.

Compatible with Google Home and Alexa

"Alexa, ask Honeywell to turn on the lights"
"Alexa, ask Honeywell to close the door"
"Alexa, ask Honeywell to set up the house"

Its dynamic 7” full-color TOUCHSCREEN display puts ALL INFORMATION and CONTROL at your fingertips with just the TOUCH of a button.

System
• Does not require a programming keyboard.
• It is programmed with its integrated keyboard.
• System interbuilt in the same cabinet:
- Panel in Spanish
- Backup battery
- 85 dB piezoelectric siren.
• Scheduled event functions.
• Memory of 128 events.
• System and zone status notification by voice.
• Voice message center in Spanish.
• Remotely programmable using COMPASS software.
• 9 Vdc power input.
• Compatible with Z-WAVE technology (Requires L5100ZWAVE module)
• Compatible with Total Connect (Requires L5100WIFI® 4GL or ILP5 module).
• Screen display with 4 Honeywell IP cameras. (cameras not included).

Zones
• 1 wired zone.
• 80 wireless zones plus 24 zones for wireless key fobs.
• Combination of robbery and fire zones.
• 16 types of configurable zones.
• Full supervision of wireless sensors and detectors.
• Compatible with Honeywell Wireless 5800 Series.

Users
• 48 user codes.
• 4 levels of authority: installer, teacher, standard and coercion.
• Quick assembly system.
• 2 arming keys on the keyboard.
• 4 arming levels: total, partial, instant and maximum.
• Open door warning with voice (chime).

Communication
• Broadband only, GSM, WiFi or Ethernet.
• Contact ID Protocol (4-digit account number)
• Reports in SIA format
• Communication with the central internet station through the ILP5 or L5100WIFI module
• Communication with the central internet station through the compatible GSM module
• Screen showing the strength of the GSM radio signal

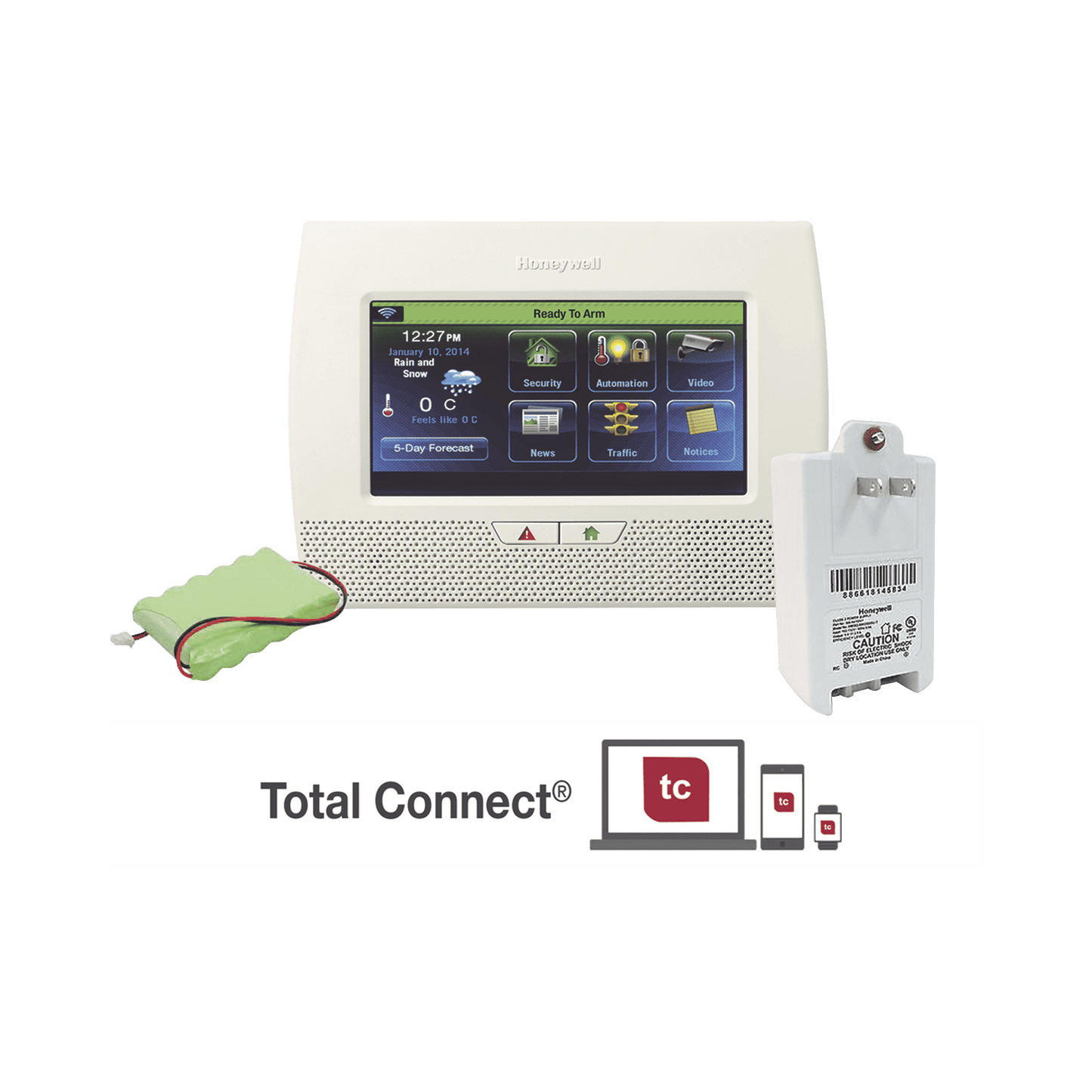

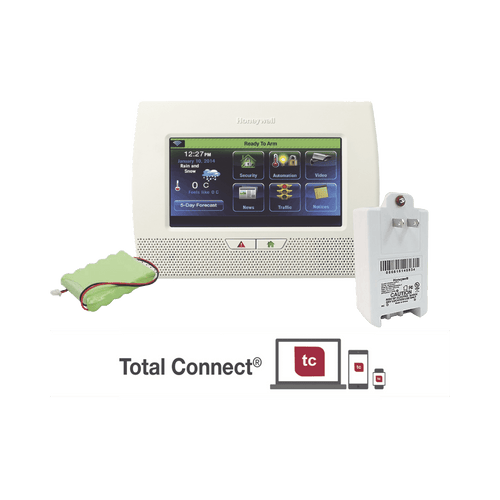

Includes:

- L7000LAS alarm panel

- L5100 Wi-Fi Communicator

- Z-Wave card L5100ZWAVE

- 9Vdc / 2.7 A Eliminator

Honeywell Total Connect™ Services requires contract, ask your sales executive or SYSCOM Engineering department.

1 year warranty
