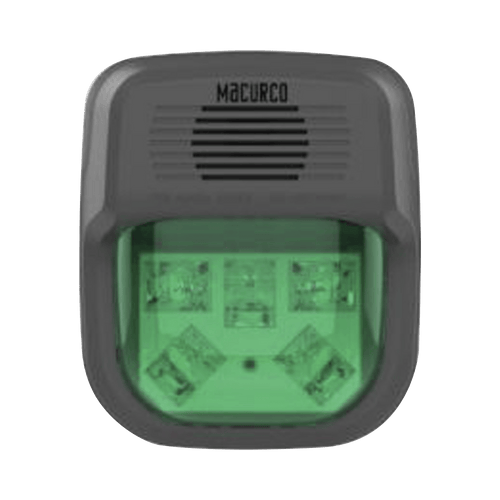

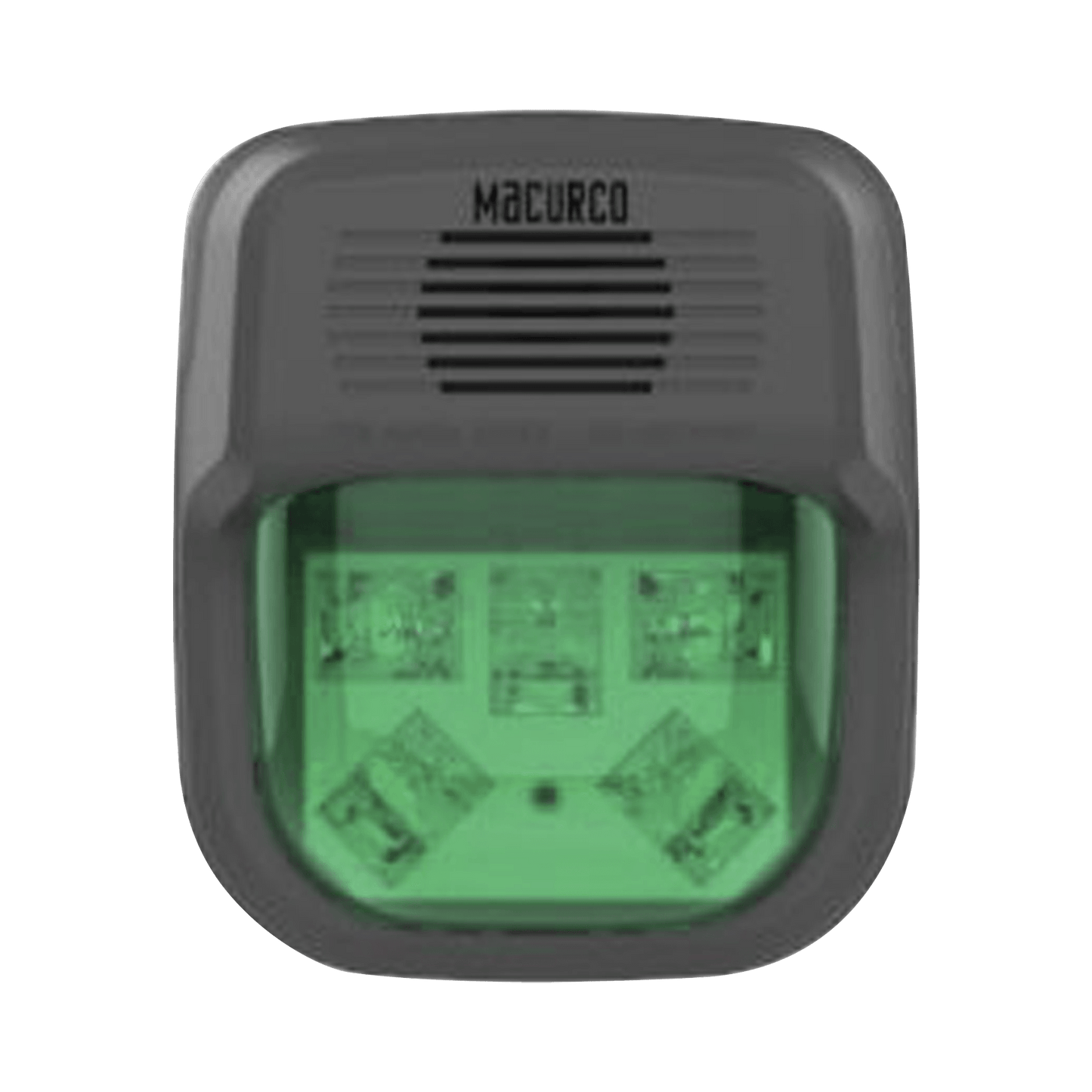

Green Strobe Siren For Macurco Panels and Detectors

  • c209a084ae0f68df4bbc9702f7517be4
1 1

Out of stock

Modelo: HS-G-HORN

Proveedor: MACURCO - AERIONICS

Código SAT: 46171606

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Macurco Series of Horns and Strobes

The Macurco Horn and Strobe series is designed for spaces where a distinctive visual or audible signal is required.
These devices use low current to provide high decibel output and can be easily seen and heard from far away. The strobe siren works well with Macurco products, including DVP-120 control panels, DVP-120M and the Macurco Series 6 and 12 Detectors. This notification device can be flush or surface mounted in a standard 4" x 4" electrical box.

Features and specifications

• Flexible optical design to meet or exceed light output in vertical/horizontal dispersion
• Strobe candela: adjustable to 15, 30, 75 or 110 cd *Based on the test result with a transparent lens cover
• Two adjustable audible tone settings: Continuous (high/low) / Temporal 4 (high/low)
• Size: 5 1/2 x 4 3/4 x 2 in. (14 x 12 x 5cm)
• Pulse duration of 20 ms
• Low current consumption
• A high power cool white LED is used
• Strobe flash rate: 1 flash per second
• Nominal Voltage: Regulated 24VDC
• Operating voltage: 16 to 33 VDC
• Operating environment: 32°F to 120°F (0°C to 49°C). 10 to 93% RH
• Works with Macurco DVP-120 and DVP-120M control panels
• Works with Macurco 6 and 12 series detectors
Maximum 92dB
