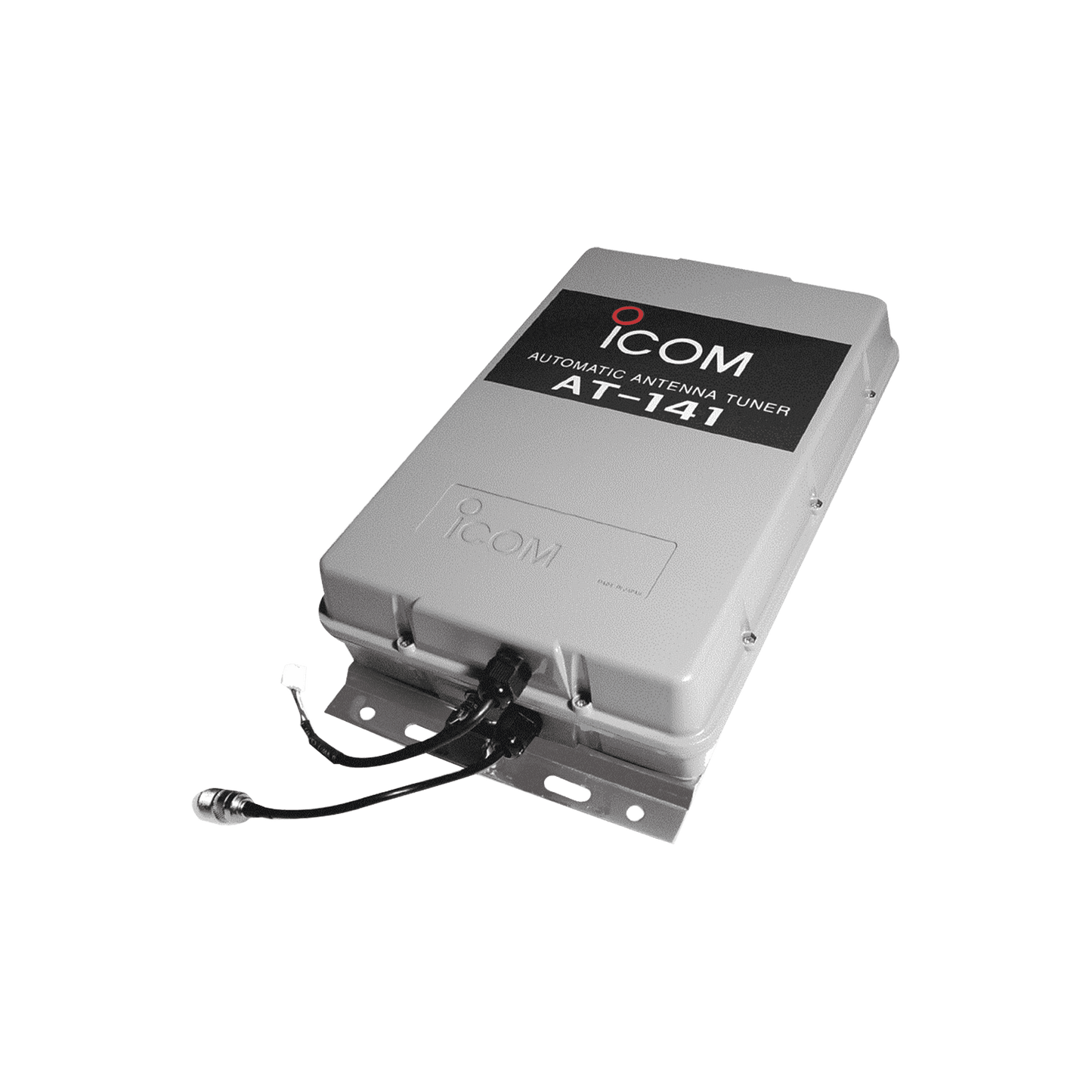

Automatic antenna tuner, range 1.6 - 30 MHz. includes external connector for control cable connection.

Automatic antenna tuner for HF radio

Operating range 1.6 to 30MHz.

Characteristics:

• Easy installation
• Construction resistant to rigorous environmental temperature conditions, vibration and humidity
• 45 memories for short time setting
• Automatic tuning to minimum SWR in less than 3 seconds.
• Designed to operate with ICOM HF radios and antenna lengths greater than 7m.

Specifications:

• Requires 13.6 Vdc power
• Maximum current consumption: 2 A
• Operating temperature range: –30°C to +60°C
• Antenna connector: SO-239 (50 Ω)
• Maximum input power: 150 W (PEP) 100 W (continuous)
• Approximate tuning time: approximately 2 to 3 seconds (in general conditions) maximum.
