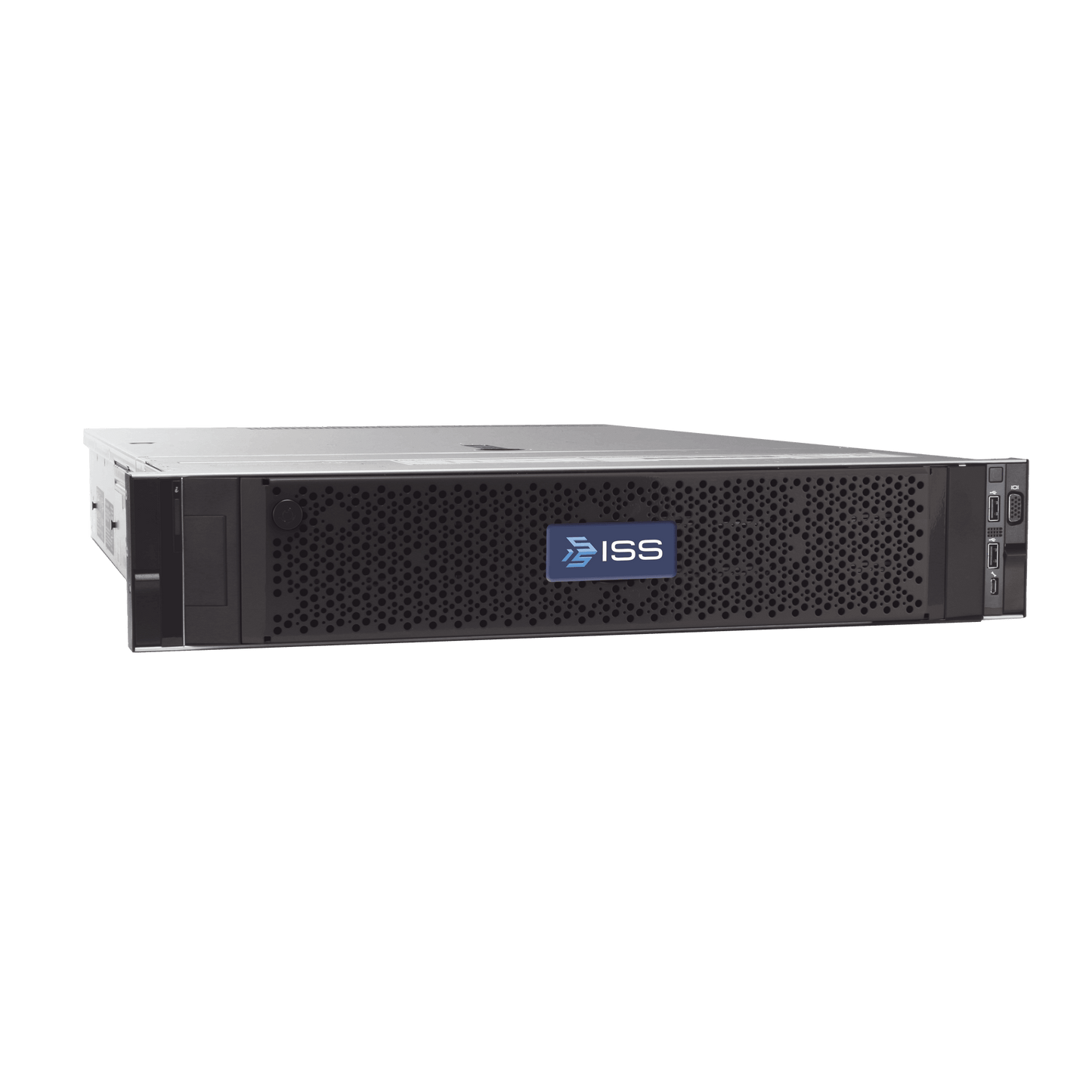

Application Server 400 for VMS ISS - Xeon Silver 4110, 32 GB RAM, Win 10 IoT, 192TB HDD (16X12TB), 4x1GbE NIC, 2U Rack

  • c46e5f780d5be29916983e9ee3010ffc
1 1

Out of stock

Modelo: SOSNVR400192T

Proveedor: ISS

Código SAT: 43211502

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

SOSNVR400192T

ISS

This powerful Hardware platform, specifically designed to meet the most demanding video security requirements, runs SecurOS technology in any of its versions as a VMS platform. Provides a complete management solution, video recording and viewing, in small and medium-sized environments, providing the end user with a unique performance experience, reliability and operating environment, to complete your tasks without interruptions and efficiently.

General characteristics

  • Based on 2x Intel Xeon 4110 processor (8 Cores/ 16 Threads)
    - Paired DDR4 2666 MHz RAM memory slot.
    - RAID 0 controller: 1, 5, 6, 10, JBOD.
    - 4 x 1Gbps network ports
    - Max. 252TB RAW video storage, with additional HDD
    - Up to 300 cameras, MD disabled.
    - Redundant sources, 100 - 240 Vac 1100W
    - Dedicated video card for GPU processes (Optional)
    - VGA video outputs
    - Operating temperature 10 ºC - 35 ºC
    - Dimensions: 434 x 715.50 x 86.8 mm
    - Weight 33.10Kg.

Physical and Electrical Characteristics

  • Form Factor 2U Rackable OS Drive Bays 2 x M.2 BOSS PCIe Card Data Drive Bays (Depending on Model) 14 x 3.5-in. Hot swap 14 x 3.5-in. Hot swap and 4 x 3.5-in. Internal Power (Depends on Model) 750 W Hot-plug redundant power supply 1100 W Hot-plug redundant power supply Consumption (Depends on Model) 100 VAC to 240 VAC, 50/60 Hz, 10 A to 5 A per source 100 VAC to 240 VAC, 50/60 Hz, from 12 A to 6.5 A per source AC input, VAC Freq. From 100 VAC to 240 VAC, 50/60 Hz, Autorange Operating Temperature 10° C to 35° C (50° F to 95° F) Operating Humidity Dimensions (Depends on Model) 434.0 mm x 86.80 x 681.80 mm (17.08 in. x 3.42 in. x 26.84 in.) .) 434.0 mm x 86.80 x mm 715.50 mm (17.08 in. x 3.42 in. x 28.17 in.) Weight 32.50 kg (71.50 lbs) Fully filled 33.10 kg (72.91 lbs)
