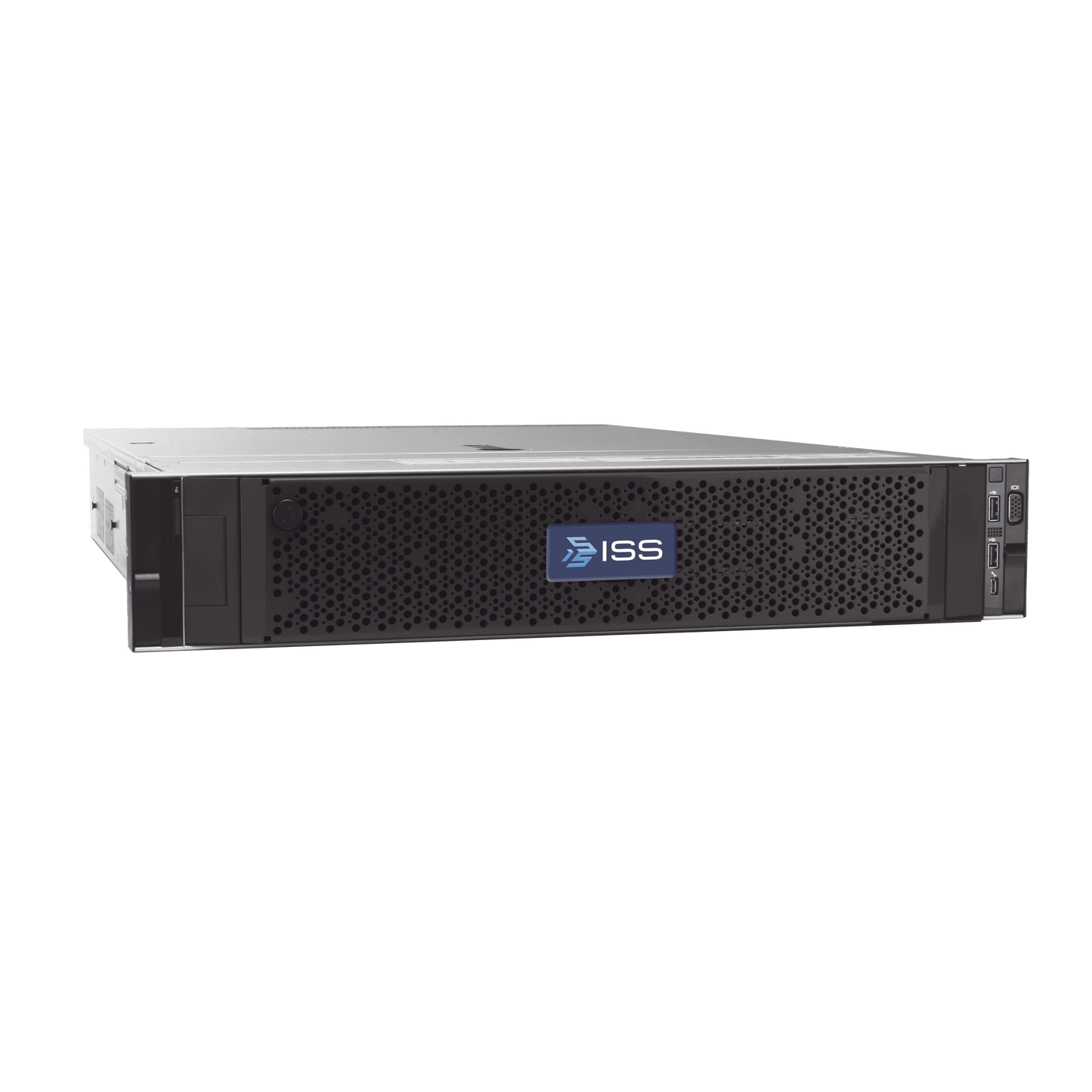

Application Server 300 for VMS ISS - Intel Xeon Silver 4110, 16 GB RAM, Win 10 IOT, 24TB HDD (3x8TB), 4x1Gb NIC, 2U Rack

  • c46e5f780d5be29916983e9ee3010ffc
1 1
  • Almacenamiento: Ofrece 24 TB ya instalados.
  • CPU: Equipado con Intel Xeon Silver 4210 de 10 núcleos y 20 hilos.
  • Ancho de Banda: Con una capacidad de hasta 900 Mbps, para grandes volúmenes de datos.
  • Diseñado para Proyectos de Alta Demanda: Con SecurOS preinstalado, es ideal para instalaciones de videovigilancia a gran escala.
  • Controladora RAID: La controladora RAID admite configuraciones 0, 1, 5, 6, 10 y JBOD

Out of stock

Modelo: SOS-NVR300-24T

Proveedor: ISS

Código SAT: 43211502

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details



SOSNVR30024T

ISS

This powerful Hardware platform, specifically designed to meet the most demanding video security requirements, runs SecurOS technology in any of its versions as a VMS platform. Provides a complete management solution, video recording and viewing, in small and medium-sized environments, providing the end user with a unique performance experience, reliability and operating environment, to complete your tasks without interruptions and efficiently.

General characteristics

  • - Based on 2x Intel Xeon E5 processor (12 Cores/ 24 Threads)
    - Paired DDR4 2133 MHz RAM memory slot.
    - RAID 0 controller: 1, 5, 6, JBOD.
    - 2Gbps network ports + 1 Mgmt LAN
    - Max. 32TB RAW video storage, with additional HDD
    - Up to 400 Mbps bandwidth, MD disabled.
    - Up to 120 cameras, MD disabled.
    - Redundant sources, 120 - 220 Vac 650W
    - Dedicated video card for GPU processes.
    - VGA/HDMI/DVI video outputs
    - Operating temperature 10 ºC - 35 ºC
    - Dimensions: 483 x 89 x 700 mm
    - Weight 17.5Kg.

Physical and Electrical Characteristics

  • Form Factor 2U Rackable OS Drive Bays 2 x M.2 SSD Data Drive Bays 14 x 3.5” Hot Swap Power Supply 2 x 1100W Hot Swap Consumption (Depends on model) 820W AC Input VAC Freq. 100 VAC to 240 VAC, 50/60 Hz, Autorange Operating Temperature 10°C to 35°C (50°F to 95°F) Operating Humidity 5% to 90% Non-condensing Dimensions (WxDxH) 482.6mm x 646mm x 86.8mm Weight 33.10 kg (72.91 lbs) Fully filled Safety and Emissions Energy Star, CEC, CECP, FCC, NOM, CCC, UL Rack 19” Standard Rack, Uses the full depth of the rack
