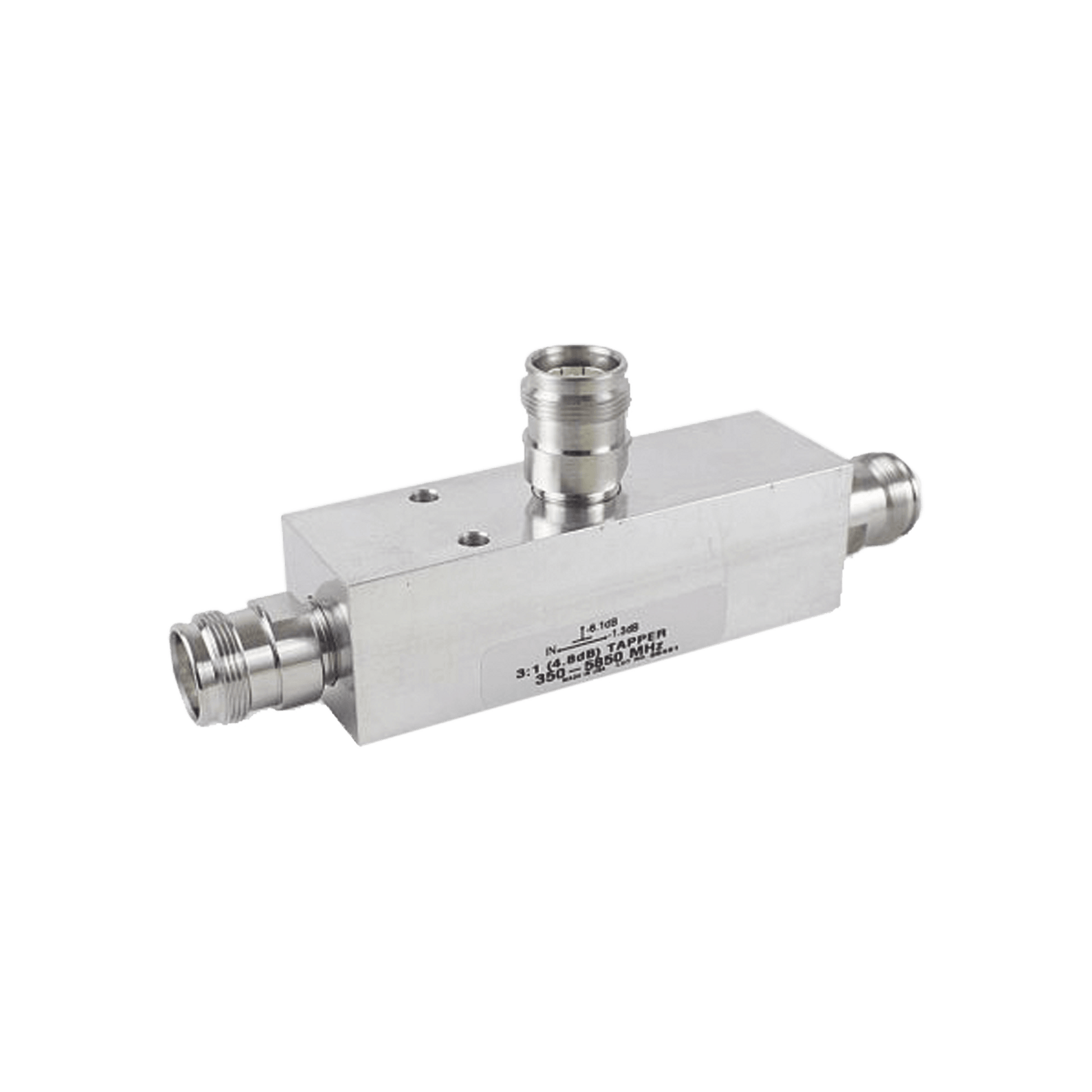

SEPARATOR 8dB (6:1) Tap 350-5930MHz 500W -161dBc 4.3-10 IP67.

  • a7732259006de628535b67a89e7209e2
  • 3a6cd50310cb2672212bdefcf7dc2921
1 2

Out of stock

Modelo: DN-64FE

Proveedor: MICROLAB

Código SAT: 32101500

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

SEPARATOR 8dB (6:1) Tap 350-5930MHz 500W -161dBc 4.3-10 IP67.

Description

8dB (6:1) Tapper 350-5930MHz500W -161dBc 4.3-10 IP67,DN-64FE

Characteristics

  • Split ratios from 1000:1 to 2:1
  • Tetra, PMR, Cellphone, UMTS, WiFi at 5,930
  • Low specified PIM
  • 500W average power rating
  • Minimum RF Insertion Loss
  • RoHS
  • High reliability, IP67

Specifications

Frequency: 350 – 5930MHz
Relationship: 6:1/8.0dB
Main division/branch: -0,7/-8,5
Can: 500 W on average, 3 kW peak
VSWR: 1:2:1 for 700-2500 MHz
1:3:1 for 350-5930 MHz
PIM: -161 dBc (2 tones at +43dBm)
Connectors: 4.3-10 (f) trimetal
Ingress Protection: IP67
Weight: 380 g (0875 lb)
